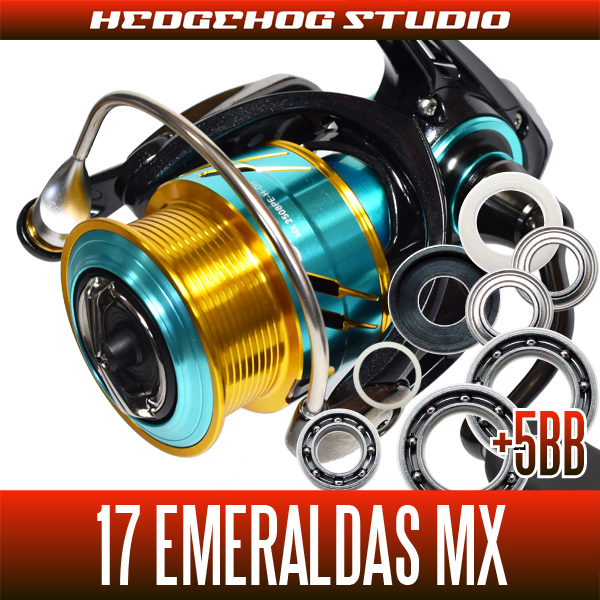

[DAIWA] 17 EMERALDAS MX 2508PE,2508PE-H MAX12BB Bearing Upgrade Kit

[DAIWA] 17 EMERALDAS MX 2508PE,2508PE-H MAX12BB Bearing Upgrade Kit

Our Selling Price: US$46.20 - US$66.55

Prices vary according to options.

Type:
Quantity:

Description


* Please note that this item is an upgrade kit for a spinning reel, Not a fishing reel itself.



SHG bearing

The high-sensitive bearing whose rotary performance is terrific is for professional use. The products were carefully selected by hand work from the crowd of other bearings.
The rotational performance is superior to HRCB, and there is no rival for its ultimate smoothness.
This is the bearing to tune up for professional-use. It is very suitable for a high sensitivity reel to challenge by delicate tackle.




HRCB bearing

The new technique that metal itself is hard to get rusty very much by special manufacturing method is adopted.
The bearing is resistance to salt water.
And the derusting performance is more than ten times compared with SHG.
It makes rotation feeling like silky smoothness that's quite unique to HEDGEHOG STUDIO.
That helps tough fishing situation that requires both rotation performance and durability in a high level.
It is the next-generation anti-rust bearings for Salt Water angler.


How to choose bearings
SHG bearing : for freshwater fishing such as Bass/Trout or fishing which attaches importance to sensitivity by using light weight lures

HRCB bearing : for overall saltwater fishing which attaches importance to anti-rust effect
(Although you can use SHG bearing on saltwater fishing, HRCB bearing is more suitable because of its durability.)

It is the Full set of tuning kit consists of :
High-performance bearing / Peculiar parts / instructions
This one is for beginner tuners. We prepare and send all the necessary items.
* Please prepare drivers or pliers yourself.



Upgrade by this kit

・Line Roller +1BB
・Handle Knob +2BB
・Tournament drag bearing tune
・Finesse spool drag bearing tune

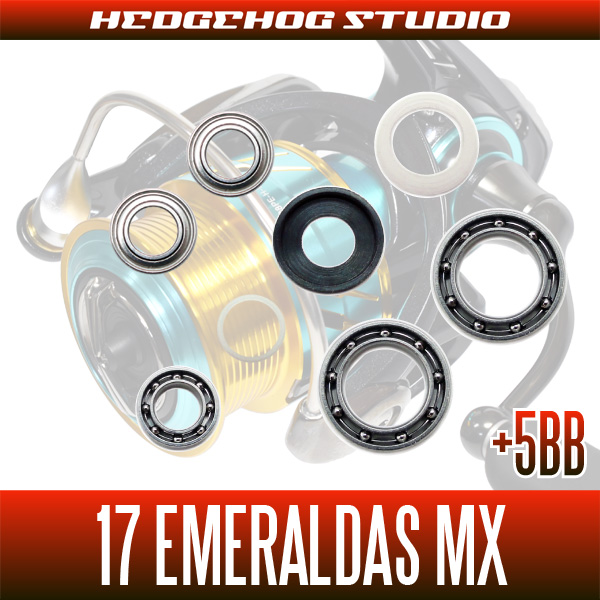

Contents

・ Line Roller Bearing (SHG-740 or HRCB-740Hi) × 1pcs
・ Roller Packing × 1pcs
・ Roller collar × 1pcs
・ Roller washer × 1pcs
・ Handle Knob Bearing (SHG-740ZZ or HRCB-740ZHi) × 2pcs
・ Spool Shaft Bearing (SHG-1170 or HRCB-1170Hi) × 1pcs
・ Spool Inside Bearing (SHG-1170 or HRCB-1170Hi) × 1pcs
・ Illustration Manual

* Adding 5 bearings is possible by this kit.



Instructions


■Line Roller 2BB Spec



Replace the plastic collar inside the line roller (Twist Buster II) with the bearing (740 size).
Remove the screw on the line roller with a screwdriver and take out all the internal parts.
Then, replace the parts surrounded by the orange frame with the attached parts.

As the rotation of the line roller improves, it is less likely that thread twisting will occur.
The flexibility of the yarn is maintained, and the durability and flight distance are improved.



■Finesse spool drag bearing tune



When you remove the drag washers inside the spool, you can see the plastic ring at the far end, so you can replace this part with a bearing.

By adding a bearing to this part, the rotation of the drag can be made smoother, drag cling etc. can be reduced, and the best drag performance can be demonstrated.



■Tournament drag bearing tune



The plastic ring attached to the spool shaft can be replaced with a bearing to improve drag performance.

The plastic ring is only stopped by a thin hexagonal ring, so you can easily remove it by removing the ring with a handle knob cap tool or a toothpick..

By making this part that supports the spool into a bearing, it becomes a smoother drag.



■Handle Knob +2BB



The handle knob part can also be made into 2BB specifications by replacing the two black plastic collars with bearings.

When the handle knob rotates better, it not only improves the comfort of winding, but also has the advantage of being more sensitive and easier to interact with when fighting with fish.


* Parts that have a built-in mag shield when installing this kit (Do not touch the part under the rotor where the mag shield is engraved.)
Therefore, please be assured that the mag shield will never come off during work.

* It is also easily possible to return the reel to reassemble the parts as they were originally.



Compatibility


*DH model in this photo

・DAIWA 17 EMERALDAS MX
( 2508PE, 2508PE-H )
