[ABU] Genuine Spare Parts for REVO BEAST Product code: 1324529 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

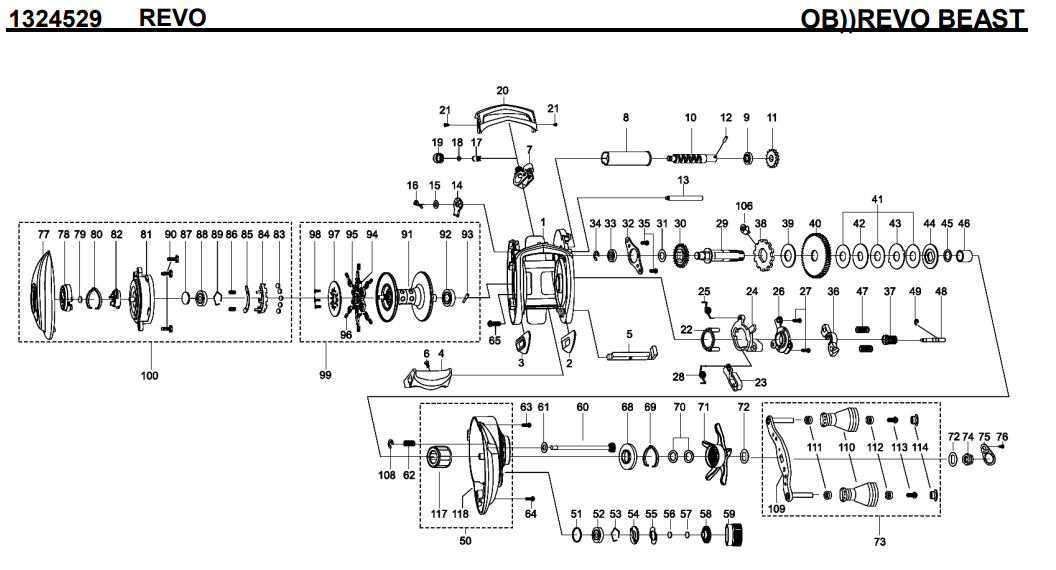

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1347111	FRAME	55.00
2	1125801	SLIDE WASHER	1.10
3	1125802	SLIDE WASHER	1.10
4	1125803	THUMBAR	3.30
5	1124745	THUMBAR SHAFT	1.65
6	1124746	THUMBAR SCREW	0.55
7	1281152	LINE GUIDE	5.50
8	1280905	LEVEL WIND TUBE	3.30
9	1132853	BALL BEARING	6.60
10	1280906	WORM SHAFT	16.50
11	1125732	WORM SHAFT GEAR	1.10
12	1125733	WORM SHAFT PIN	0.55
13	1280907	LINE GUIDE SHAFT	3.30
14	1125734	WORM SHAFT PIN HOLDER	0.77
15	1124224	WASHER	1.76
16	1124201	RETAINER	0.55
17	1125806	PAWL	3.30
18	1125736	WASHER	0.55
19	1129323	LINE GUIDE NUT	0.77
20	1280908	FRONT COVER	5.50
21	1125738	SCREW	0.55
22	1125739	YOKE HOLDER	1.10
23	1289969	KICK LEVER	3.30
24	1125741	LIFT CURVE	3.30
25	1185699	CLUTCH SPRING	1.76
26	1203786	KICK LEVER	3.30
27	1125744	SCREW	0.55
28	1125745	KICK LEVER SPRING	0.55
29	1347112	MAIN GEAR SHAFT	13.20
30	1251634	LEVEL WIND GEAR	1.76
31	1125747	WASHER	0.55
32	1281130	MAIN GEAR SHAFT PLATE	2.20
33	1281216	BALL BEARING	6.60
34	1124201	RETAINER	0.55
35	1185747	SCREW	1.76
36	1281131	YOKE	2.20
37	1281166	PINION (K)	11.00
38	1144195	RATCHET	1.65
39	1281133	DRAG WASHER	2.75
40	1204949	DRIVE GEAR	16.50
41	1347113	DRAG WASHER	2.20
42	1204951	D WASHER	1.65
43	1204952	A WASHER	1.65
44	1204953	PRESSURE WASHER	1.65
45	1144185	WASHER	0.55
46	1257782	SLEEVE	2.20
47	1116237	YOKE SPRING	0.55
48	1125766	PINION SHAFT	5.50
49	1116226	RETAINER	0.55
50	1347114	GEAR SIDE COMPLETE	55.00
51	1185714	O-RING	0.55
52	1132859	BALL BEARING	6.60
53	1104790	RING	0.55
54	1125768	CLICK WASHER	1.10
55	1125769	CLICK SPRING	1.65
56	1125770	FRICTION WASHER	0.55
57	1125771	RUBBER WASHER	0.55
58	1125772	CLICK WASHER	1.10
59	1347115	BRAKE KNOB	16.50
60	1363429	CAM LOCK SCREW	2.20
61	1133903	WASHER	0.55
62	1125775	SPRING	0.55
63	1125812	SCREW	0.55
64	1257013	SCREW	1.76
65	1257014	SCREW	1.76
68	1185796	CLICK PLATE	1.65
69	1125780	CLICK SPRING	0.77
70	1117208	SPRING WASHER	0.55
71	1347116	STAR WHEEL	22.00
72	1125783	WASHER	0.55
73	1347117	HANDLE COMPLETE	57.20
74	1203392	HANDLE NUT	2.20
75	1132929	HANDLE NUT COVER	1.65
76	1203407	SCREW	0.55
77	1347118	PALM SIDE PLATE	44.00
78	1281195	MAG DIAL	3.30
79	1281144	RUBBER WASHER	0.55
80	1125791	CLICK SPRING	1.10
81	1281145	BEARING HOUSING	16.50
82	1185732	SILDE CAM	2.20
83	1116222	MAGNET	2.20
84	1185739	MAGNET HOLDER	8.80
85	1252096	MAGNET PLATE	2.20
86	1185737	MAGNET HOLDER SPRING	1.76
87	1125797	WASHER	0.55
88	1128194	BALLBEARING	8.80
89	1104790	RING	0.55
90	1185735	SPOOL COVER SCREW	1.76
91	1347129	SPOOL	49.50
92	1144215	BALL BEARING	8.80
93	1192826	SPOOL SHAFT PIN	2.20
94	1187900	BRAKE SHOE HOLDER	3.30
95	1187888	BRAKE SHOE	0.55
96	1187892	BRAKE SHOE SPRING	0.55
97	1281178	BRAKE WEIGHT COVER	3.30
98	1187891	SCREW	0.55
99	1347130	SPOOL COMPLETE	82.50
100	1347131	PALM SIDE COMPLETE	121.00
106	1144194	STOPPER	9.90
108	1116226	RETAINER	0.55
109	1308848	HANDE	22.00
110	1347132	HANDLE KNOB	8.80
111	1208088	BUSHING FOR BALL BEARING	2.20
112	1281319	BALL BEARING	6.60
113	1281320	SCREW	1.76
114	1347133	HANDLE KNOB CAP	6.60
117	1275594	OWC	27.50
118	1347134	GEAR SIDE PLATE	46.20

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/phone/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.
