[Avail] ABU Aluminum Main Gear Bushing for Ambassadeur 1500C/2500C
![Photo1: [Avail] ABU Aluminum Main Gear Bushing for Ambassadeur 1500C/2500C (1)](https://www.hedgehog-studio.co.jp/phone/data/hedgehog-studio/product/20200127_f008c5.jpg)
Our Selling Price: US$27.72 [Regular Price: US$39.60]
Prices vary according to options.
Item Description
Aluminum Main Gear Bushing
For ABU Ambassadeur 1500C/2500C
| Product Description
Since 2019, the tooth profile has been redesigned and the thickness changed to 1.2mm (previous model: 1.0mm).
The material has been replaced from brass to ultra-duralumin for weight reduction.
For IAR models, unnecessary ratchet parts have been eliminated for further weight savings.
For non-IAR models, the ratchet tooth profile of the one-way mechanism has been modified and the number of teeth increased to reduce play during reverse rotation.
In addition, the clutch return posts have been increased to four, allowing clutch return with a 90-degree handle rotation.
*Includes one Teflon Washer MGB-WASH 0.8mm.
*Not compatible with thumb bar models such as 1600C and 2600C.
| Type
- 2500-MGB
Aluminum Main Gear Bushing 25C-MGB For 1500C/2500C Non-IAR
25c_mgb
JAN: 4580498094980
Aluminum Main Gear Bushing 25CI-MGB For 1500C/2500C IAR
25ci_mgb
JAN: 4580498095000
- 2501-MGB (for Non-IAR)
Aluminum Main Gear Bushing 2501C-MGB For 2501C
2501c_mgb
JAN: 4580498094997

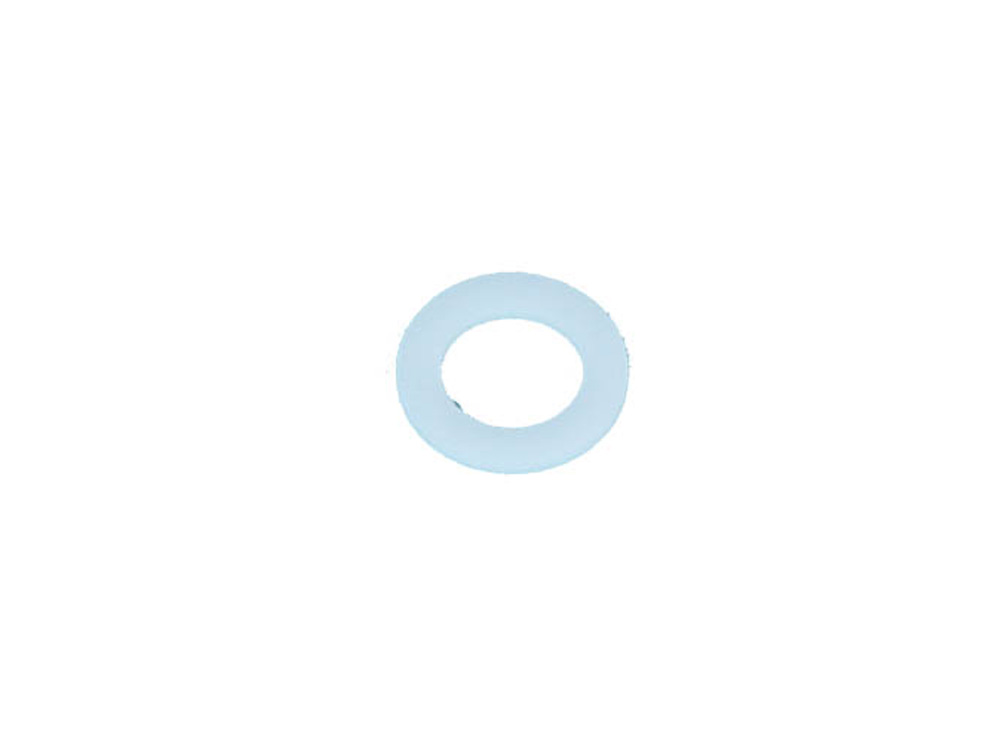

- MGB-WASH
Teflon Washer MGB-WASH 0.8mm
mgb_wash
JAN: 4580498095017
| Specifications
Basic Specifications
| Material | Body: Ultra-Duralumin (Hard Anodized Finish) Washer: Teflon |
| Weight | - For 2500C (Non-IAR): 3.5g - For 2500C (IAR): 3.2g - For 2501C (Non-IAR): 3.5g |
| Genuine Weight | - For 2500C (Non-IAR): 10.3g - For 2500C (IAR): 11.2g - For 2501C (Non-IAR): 10.3g |
Compatibility
| 2500C Non-IAR |
Compatible with reels such as 150Plus / 1500C / 2500C / 2500CS Rocket / 3500C, etc. For reels without the IAR (Instant Anti-Reverse) mechanism equipped with part #11757 |
| 2500C IAR |
Compatible with reels such as 1500CI / 1500C IAR / 2500CI / 2500C IAR / 3500CA Limited, etc. For reels equipped with the IAR (Instant Anti-Reverse) mechanism using part #21904. Some models may be engraved with only “2500C.” |
| 2501C Non-IAR |
Compatible with 2501C reels using part #1160818 |
| Installation Instructions
The following example uses the Ambassadeur 1500C (Non-IAR) for installation guidance.
Grease application is omitted in the photos for clarity.
The Genuine main gear bushing has a protrusion for crimping the ratchet, but our product does not include this.
The included white washer is used to fill that space.
Remove the side cover and take out the main gear bushing.
You will find Genuine part #5189 (drive shaft shim) inside—place the included white washer on top of it.
Then insert the aluminum main gear bushing and confirm that the clutch disengages properly.
For non-IAR models, slightly open the anti-reverse dog (about 0.1mm). Opening too far will cause reverse rotation.
Ensure the anti-reverse dog functions properly before reassembly.
After confirmation, reassemble the drag washer, main gear, and other components.
Do not forget to apply oil and grease.
| Notes
*All Avail “Side Cup Sets” currently available are for “IAR” models only and are not compatible with “Non-IAR” parts.
