[Avail] ABU Microcast Spool AMB5550UC3 for Ambassadeur 5500C series ULTRACAST

Our Selling Price: US$96.25 [Regular Price: US$137.50]

View availability

Color:

Quantity:

Return & Exchange Policy

Item Description

Microcast Spool for ABU Ambassadeur 5500UC Series

| Model Name

Microcast Spool AMB5550UC3 (Groove Depth 5.0mm)

| Product Description

By reducing the total weight of the spool, casting small plugs becomes possible.
Additionally, when casting large plugs, improvements in casting feel, distance, and control performance can be expected.

The Microcast Spool AMB5550UC3 has been redesigned for enhanced precision and lighter weight.
Please use it together with the included Click and Cog Wheel, compatible with #19373.

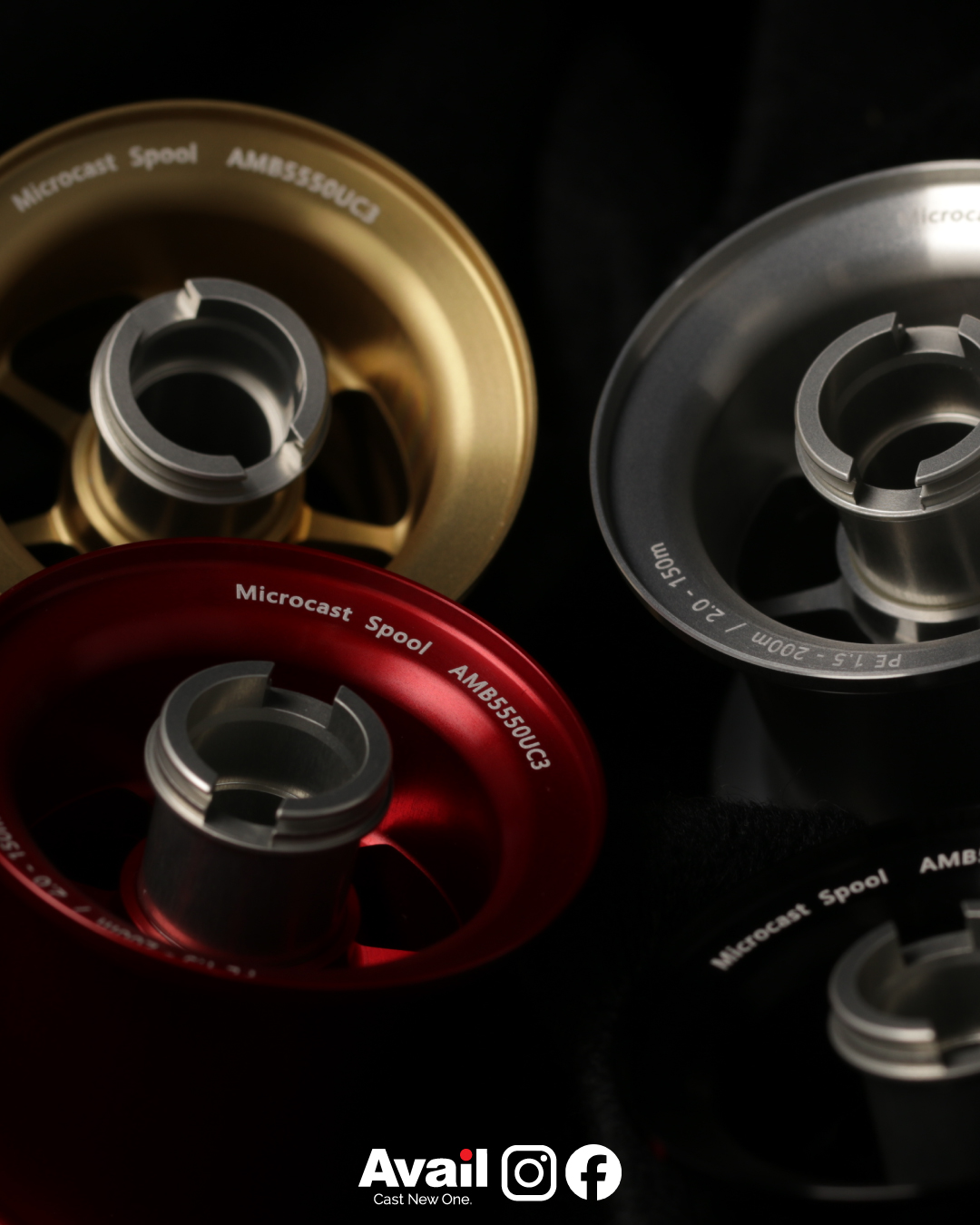

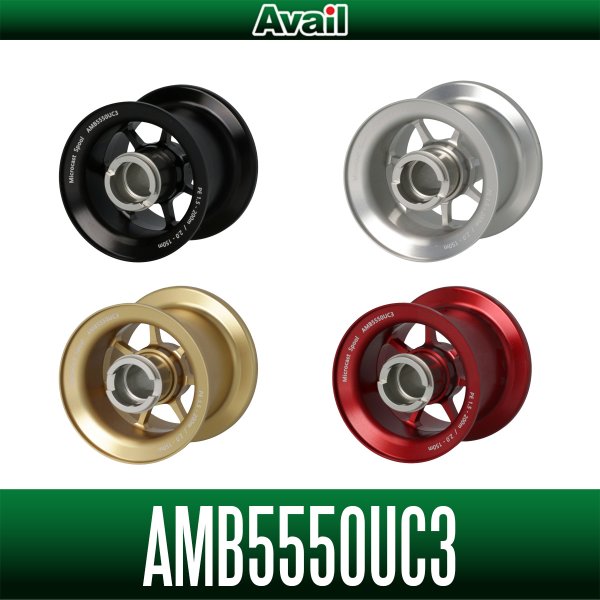

| Color

AMB5550UC3 Black
ms_amb5550uc3_blk 4580498105976

AMB5550UC3 Silver
ms_amb5550uc3_slv 4580498105990

AMB5550UC3 Champagne Gold
ms_amb5550uc3_cgld 4580498106003

AMB5550UC3 Red
ms_amb5550uc3_red 4580498105983

| Specifications

Material	Extra Super Duralumin
Weight	Approx. 11.1g
Compatible Models	ULTRACAST models such as 5500C/5500CS (Type where the shaft can be removed from the spool) *Not compatible with old 5500C models or New ULTRACAST models
Compatible Brakes	[Magnetic Brake] Microcast Brake CR2/CL2 [Centrifugal Brake] 4-Point Brake UC Bakelite 4P Brake for 4P-BRAKE UC
Groove Depth	5.0mm
Bearing Size	Outer Diameter 10mm × Inner Diameter 4mm × Width 4mm
Line Capacity	PE1.5-200m / PE2.0-150m / PE3.0-100m Nylon Size 3 (12lb)-150m / Nylon Size 4 (16lb)-100m

*Line capacity may vary depending on the manufacturer, model, and tension method used during spooling for nylon, fluorocarbon, and PE lines.
The above values are for reference only.

| Compatibility

Compatible with reels equipped with the initial and current ULTRACAST spools.

Not compatible with New ULTRACAST models equipped with the Anti-Distortion Spool released during the interim period.
*Image shows a spool for 4000 series

| Installation Method

1. Remove the handle-side unit and take out the spool.

2. Remove the cogwheel and bearing (10×4×4).

3. Remove the centrifugal brake.
The brake is fitted into the spool groove, so lift it out with your fingers. If tight, use a chopstick or similar tool.
*Older ULTRACAST models or factory-tuned models may use a metal 2-point brake.
In such cases, it is secured with a metal C-ring which must be removed for disassembly.
Reference: 4P Brake for 4P-BRAKE UC

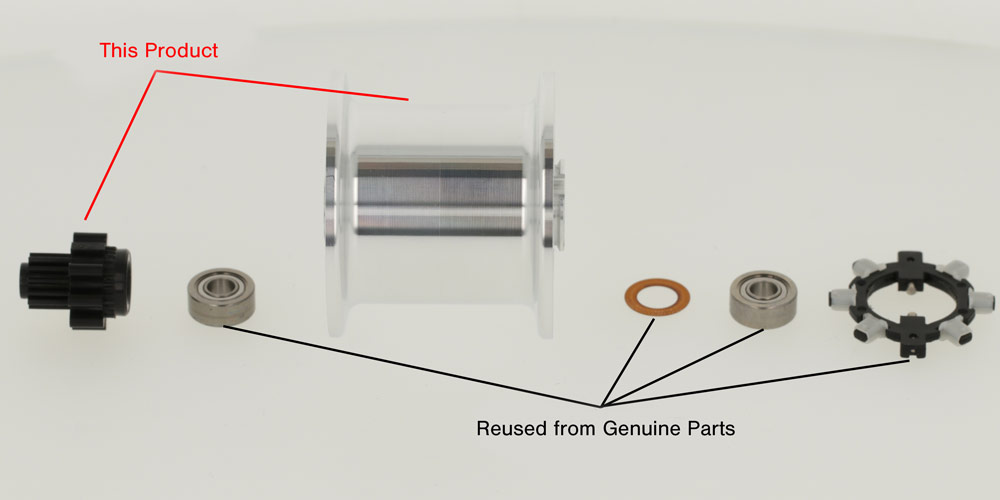

4. Attach the components in the order shown above.
*Prototype images used; actual product color may differ.

5. Attach parts to the centrifugal brake side of the spool.
Order: Washer (copper ring), bearing, centrifugal brake.
Insert the centrifugal brake parts to match the spool groove.

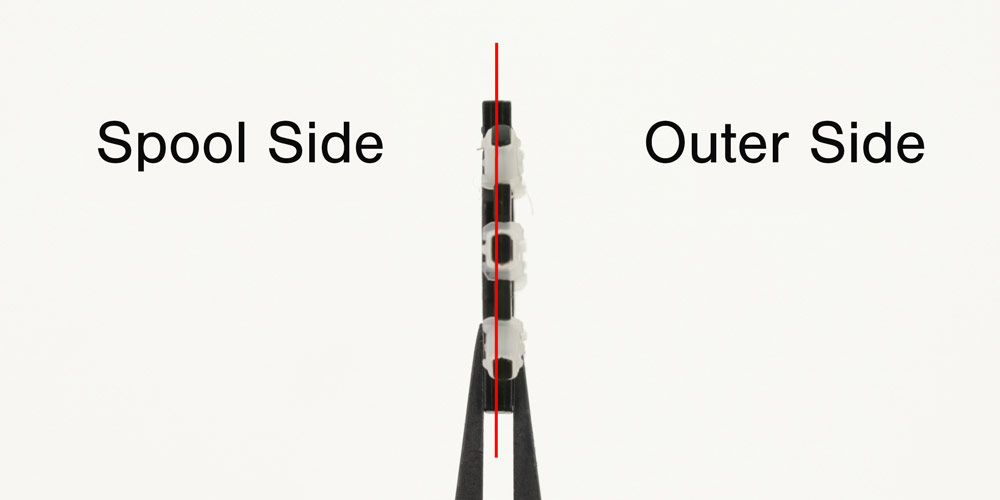

6. When attaching the centrifugal brake parts, pay attention to the orientation.

7. Attach parts to the cogwheel side.
Insert the bearing and install the included cogwheel.
Align the gear teeth, check the fit, and press evenly.
Improper fit may cause damage or spool wobble.
Ensure the cogwheel is neither lifted nor tilted after installation.

8. When assembling the spool, push the brake blocks inward.

9. Re-adjust the brakes as needed.

| Cautions

- Always use the included cogwheel (sold separately: Click and Cog Wheel compatible with #19373).
- Avoid thumb pressure on the spool rim; it may cause anodized coating to peel. Apply pressure to the line-winding surface instead.

*About Avail Spool Handling

Avail spools are designed with minimal required strength to achieve lightweight.
Please follow the precautions below:

- Do not use nylon lines with models that lack nylon capacity specs on Avail's website.
- Do not leave nylon line spooled for extended periods.
- Do not hold the spool and pull the line when snagged.

*Spools are anodized and may have color unevenness or minor discoloration.
They may also peel due to friction.
