[DAIWA] Genuine Spare Parts for 25 SALTIGA 30000-P Product code: 00065090 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 25 SALTIGA 30000-P Product code: 00065090 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

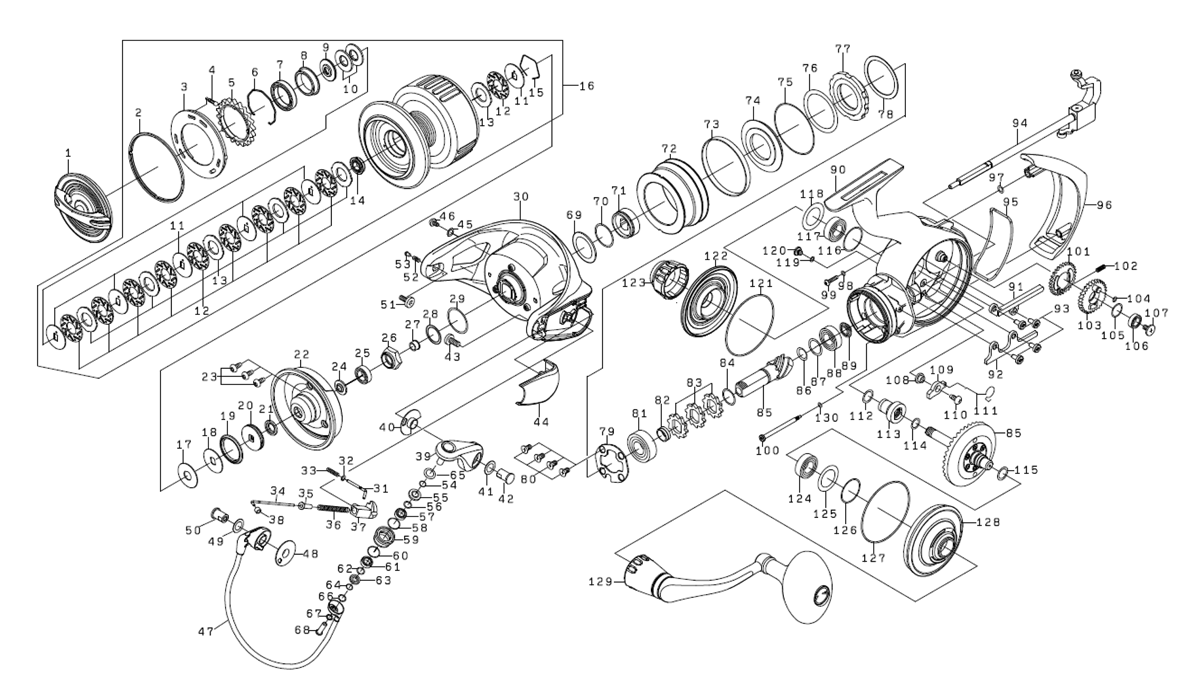

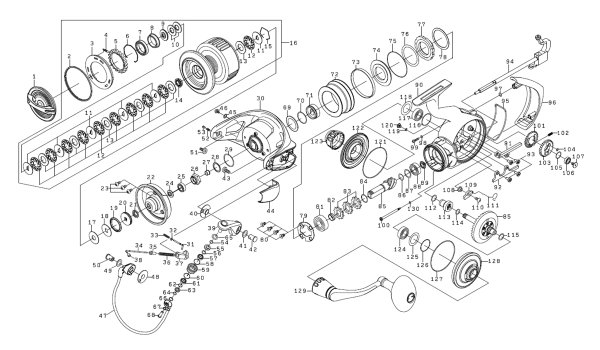

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6M657401 198.00
2 CLICK GEAR PLATE SCREW 6M042301 12.10
3 CLICK GEAR PLATE 6M825801 5.50
4 CLICK GEAR PIN 6J916501 2.20
5 CLICK GEAR 6J900201 4.40
6 SPOOL BEARING RING 6J899901 2.20
7 SPOOL BALL BEARING (A) 6J899801 18.70
8 SPOOL BALL BEARING (A) COLLAR 6M659001 6.60
9 DRAG COLLAR 6M685401 2.20
10 DRAG SPRING WASHER 6M659201 2.20
11 DRAG DISC WASHER (KEY WASHER) 6M701401 2.20
12 DRD/WASHER 6M658701 17.60
13 DRAG LIP WASHER (EARED WASHER) 6M658901 2.20
14 SPOOL BALL BEARING (B) 6J923201 8.80
15 DRAG DISC WASHER RING 6J547101 2.20
16 SPOOL (2-15) 6M880701 462.00
17 SPOOL WASHER (A) 6J937401 1.10
18 SPOOL WASHER (B) 6M684601 1.10
19 SPOOL PLATE PACKING (A) 6J898501 2.20
20 SPOOL PLATE 6J922401 4.40
21 SPOOL PLATE PACKING (B) 6J922501 2.20
22 ROTOR COVER 6M831901 8.80
23 ROTOR COVER SCREW 6H401201 2.20
24 ROTOR NUT PACKING 6J930301 2.20
25 ROTOR NUT BALL BEARING 6B861702 8.80
26 ROTOR NUT 6H685403 5.50
27 ROTOR NUT COLLAR 6J930201 2.20
28 ROTOR NUT WASHER 6J930101 1.10
29 ROTOR NUT O-RING 6F274501 1.10
30 ROTOR *Repair only (cannot be ordered) 6M831001 148.50
31 BAIL SHAFT (A) 6M651301 3.30
32 BAIL SHAFT (A) WASHER 6J919501 1.10
33 BAIL SHAFT (A) SPRING 6J929501 2.20
34 BAIL SHAFT (B) 6M651401 2.20
35 BAIL SHAFT (B) SPRING COLLAR 6M831101 2.20
36 BAIL SHAFT (B) SPRING 6M831201 2.20
37 BAIL SHAFT (B) SPRING HOLDER 6M831301 15.40
38 BAIL SHAFT (B) COLLAR 6M624301 2.20
39 ARM LEVER (BAIL ARM) *Repair only (cannot be ordered) 6M833001 39.60
40 ARM LEVER PLATE 6M624701 2.20
41 ARM LEVER NUT WASHER 6M050902 1.10
42 ARM LEVER NUT 6M652101 3.30
43 ARM LEVER SCREW 6M624903 2.20
44 ARM LEVER COVER 6M831401 6.60
45 ARM LEVER COVER SCREW WASHER 6G256401 1.10
46 ARM LEVER COVER SCREW 6H741704 2.20
47 BAIL/25 SALTIGA 30000 *Repair only (cannot be ordered) 6M831501 143.00
48 BAIL HOLDER PLATE 6M625701 2.20
49 BAIL HOLDER NUT WASHER 6M050901 1.10
50 BAIL HOLDER NUT 6M652101 3.30
51 BAIL HOLDER PLATE SCREW 6M624903 2.20
52 BAIL CLICK SPRING 6M626001 2.20
53 BAIL CLICK PIN 6M626101 2.20
54 ROLLER MAGNET COLLAR (A) O-RING 6J916201 1.10
55 ROLLER MAGNET COLLAR (A) *Repair only (cannot be ordered) 6M654501 12.10
56 ROLLER WASHER (B) 6E096501 1.10
57 ROLLER BALL BEARING (A) 6H738904 15.40
58 ROLLER O-RING (A) 6M625901 1.10
59 LINE ROLLER *Repair only (cannot be ordered) 6M625801 16.50
60 ROLLER O-RING (B) 6M625901 1.10
61 ROLLER BALL BEARING (B) 6H738904 15.40
62 ROLLER WASHER (C) 6E096501 1.10
63 ROLLER MAGNET COLLAR (B) *Repair only (cannot be ordered) 6M654301 12.10
64 ROLLER MAGNET COLLAR (B) O-RING 6J916201 1.10
65 ROLLER WASHER (A) 6E096501 1.10
66 ROLLER WASHER (D) 6F774605 1.10
67 ROLLER SCREW WASHER 6M664401 1.10
68 ROLLER SCREW 6M844801 3.30
69 CLUTCH RING WASHER 6H687201 2.20
70 CLUTCH RING O-RING 6G338401 1.10
71 CLUTCH RING *Repair only (cannot be ordered) 6H688601 27.50
72 INFINITE COVER *Repair only (cannot be ordered) 6J937301 40.70
73 INFINITE COVER O-RING 6J628302 1.10
74 MAGSEALED PLATE *Repair only (cannot be ordered) 6M664301 23.10
75 MAGSEALED PLATE O-RING 6H502601 1.10
76 ONE-WAY CLUTCH WASHER (A) 6M819601 1.10
77 ONE-WAY CLUTCH (ROLLER CLUTCH) *Repair only (cannot be ordered) 6F765401 36.30
78 ONE-WAY CLUTCH WASHER (B) 6G158101 2.20
79 PINION BEARING (A) PLATE 6M684401 5.50
80 PINION BEARING (A) PLATE SCREW 6F206902 2.20
81 PINION BALL BEARING (A) 6M684301 8.80
82 PINION BEARING (A) COLLAR 6J922103 2.20
83 RATCHET 6M800101 2.20
84 RATCHET WASHER 63727602 1.10
85 PINION + DRIVE GEAR SET *Repair only (cannot be ordered) 6Z028542 209.00
86 PINION BEARING (B) SPRING WASHER 6J921402 1.10
87 PINION BEARING (B) WASHER 63737808 1.10
88 PINION BALL BEARING (B) 6G523401 8.80
89 PINION BEARING (B) COLLAR 6J921301 3.30
90 BODY *Repair only (cannot be ordered) 6M829601 154.00
91 MAIN SHAFT PLATE (A) 6M829801 19.80
92 MAIN SHAFT PLATE (B) 6M829901 19.80
93 MAIN SHAFT PLATE SCREW 6H512401 2.20
94 MAIN SHAFT *Repair only (cannot be ordered) 6M830301 38.50
95 REAR CAP PACKING 6M830601 4.40
96 REAR CAP *Repair only (cannot be ordered) 6M830701 36.30
97 REAR CAP SCREW WASHER (A) 6B554303 1.10
98 REAR CAP SCREW WASHER (B) 6E272501 1.10
99 REAR CAP SCREW (A) 6J894902 2.20
100 REAR CAP SCREW (B) 6J895008 4.40
101 OSCILLATING GEAR (A) 6M830101 4.40
102 OSCILLATING GEAR (A) SPRING 6G157401 2.20
103 OSCILLATING GEAR (B) 6M830001 6.60
104 OSCILLATING GEAR (B) O-RING 6J037601 1.10
105 OSCILLATING GEAR BEARING WASHER 6Q216002 1.10
106 OSCILLATING GEAR BALL BEARING 6B861702 8.80
107 OSCILLATING GEAR SCREW 6H347101 2.20
108 STOPPER COLLAR 6H243301 2.20
109 STOPPER 6M800001 3.30
110 STOPPER SCREW 63516401 2.20
111 STOPPER SPRING 6M944001 2.20
112 IDLE GEAR O-RING (A) 6G339401 1.10
113 IDLE GEAR 6M830201 22.00
114 IDLE GEAR O-RING (B) 6G336701 1.10
115 DRIVE GEAR O-RING 6G339401 1.10
116 DRIVE BEARING O-RING 6J048601 1.10
117 DRIVE BALL BEARING (A) *Repair only (cannot be ordered) 6J048702 45.10
118 DRIVE BEARING (A) WASHER 6J920401 1.10
119 COVER PLATE PIN O-RING 6B853101 1.10
120 COVER PLATE PIN 6J902801 2.20
121 COVER PLATE O-RING 6M683201 1.10
122 COVER PLATE *Repair only (cannot be ordered) 6M929001 66.00
123 HANDLE CAP 6M685901 18.70
124 DRIVE BALL BEARING (B) *Repair only (cannot be ordered) 6J048702 45.10
125 DRIVE BEARING (B) WASHER 6H502201 1.10
126 DRIVE BEARING (B) O-RING 6J048601 1.10
127 ENGINE PLATE O-RING 6M683201 1.10
128 ENGINE PLATE *Repair only (cannot be ordered) 6M929102 66.00
129 HANDLE 6M832701 308.00
130 REAR CAP SCREW (B) WASHER 6M788902 1.10
200 NAMEPLATE 6J8935A0 3.30
201 HANDLE KNOB PACKING 6G223301 2.20
202 HANDLE KNOB WASHER 63753005 1.10
203 HANDLE KNOB BALL BEARING 6G466205 15.40
204 HANDLE KNOB 6M116402 66.00
205 HANDLE KNOB SCREW 6E454003 2.20
206 HANDLE KNOB CAP (WITH O-RING) 6M658101 13.20
207 HANDLE KNOB CAP O-RING 6H100001 1.10
208 SCREWDRIVER (FOR HANDLE KNOB CAP) 6M793501 4.40
209 SPOOL BAND 6X403701 15.40
