[DAIWA] Genuine Spare Parts for 26 TATULA BF TW 8.1L Product code: 00630137 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 26 TATULA BF TW 8.1L Product code: 00630137 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

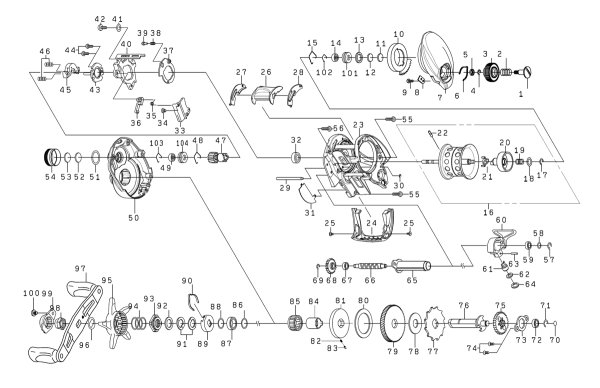

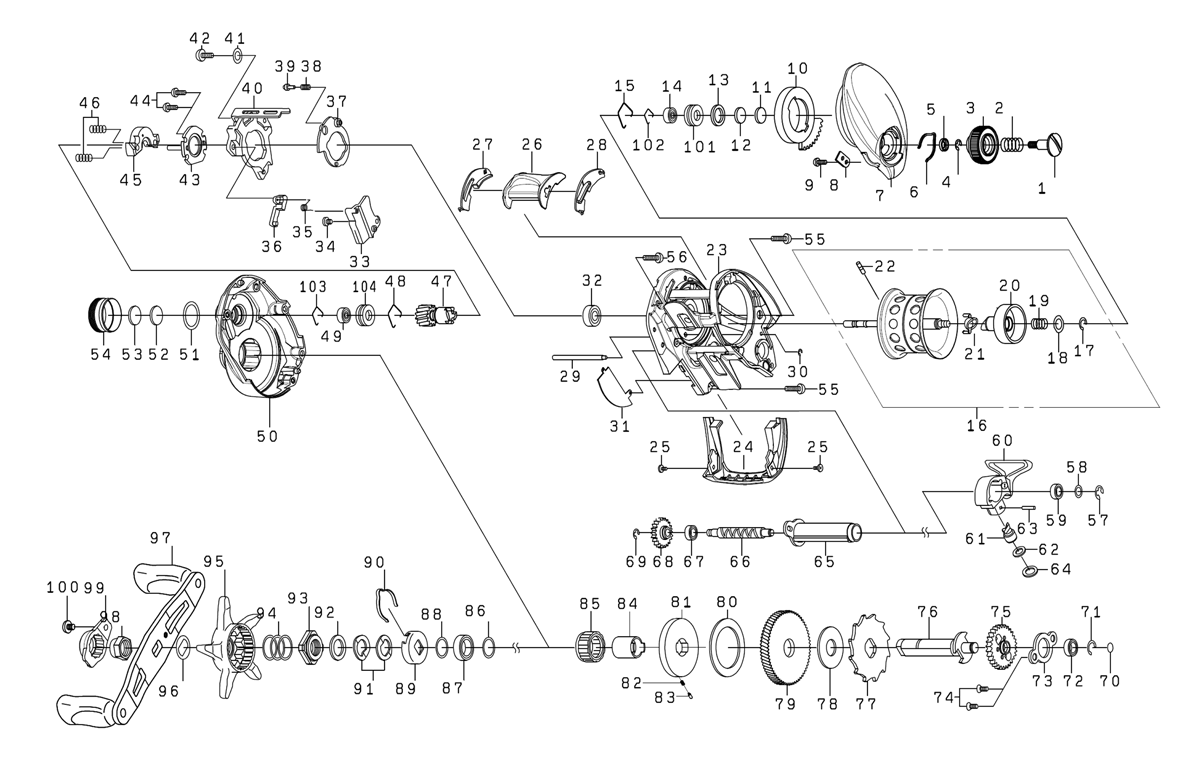

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 BRAKE DIAL SC 6J716301 3.30
2 BRAKE DIAL SP 6E167101 2.20
3 BRAKE DIAL 6M160704 8.80
4 BRAKE DIAL RETAINER (A) 6B339801 2.20
5 BRAKE DIAL COLLAR 6F637701 1.10
6 BRAKE DIAL LEAF SP 6H663401 2.20
7 RS PLATE 6M660001 25.30
8 BRAKE DIAL RETAINER (B) 6J843301 2.20
9 BRAKE DIAL RETAINER (B) SC 6G939301 2.20
10 MAG HOLDER 6M160601 8.80
11 RS BEARING W (A) 63757404 1.10
12 RS BEARING W (B) 63757411 1.10
13 RS BEARING W (C) 6G185101 1.10
14 RS BALL BEARING 6G281602 15.40
15 RS BEARING RING 6F032201 2.20
16 SPOOL (17-22) *Cannot be ordered 6Z028755 104.50
17 SPOOL HOLDER SP RETAINER 63208202 2.20
18 SPOOL HOLDER SP/W 6J497001 1.10
19 SPOOL HOLDER SP 6H862301 2.20
20 SPOOL HOLDER 6H814205 19.80
21 SPOOL HOLDER COLLAR 6J473201 2.20
22 SPOOL PIN 6J339401 2.20
23 FRAME 6M212408 38.50
24 FRONT COVER 6J956614 8.80
25 FRONT COVER SC 6H531508 2.20
26 CLUTCH LEVER 6J956101 9.90
27 CLUTCH LEVER PLATE (L) 6J955601 2.20
28 CLUTCH LEVER PLATE (R) 6J955501 2.20
29 OSCILLATING POST 6M134001 2.20
30 OSCILLATING POST RETAINER 6H704101 2.20
31 LS COVER PLATE 6J955701 2.20
32 CLUTCH CAM BALL BEARING 6B861705 8.80
33 KICK LEVER PLATE (A) 6J765701 3.30
34 KICK LEVER PLATE (A) SC 6H531508 2.20
35 KICK LEVER SP 6J915301 2.20
36 KICK LEVER 6J638601 6.60
37 CLUTCH CAM PLATE 6J765601 2.20
38 CLUTCH CAM PLATE SP 6H928801 2.20
39 CLUTCH CAM PLATE PIN 6J055201 2.20
40 CLUTCH CAM 6J955801 9.90
41 CLUTCH CAM PLATE SC・W 6M070001 1.10
42 CLUTCH CAM PLATE SC 6B360406 2.20
43 KICK LEVER PLATE (B) 6H659101 3.30
44 KICK LEVER PLATE (B) SC 6B032904 2.20
45 CLUTCH PLATE *Not available 6H944501 2.20
46 CLUTCH SP 6J313901 2.20
47 PINION + DRIVE GEAR SET 6Z027515 50.60
48 PINION RING 6H448401 2.20
49 PINION BALL BEARING 6G281602 15.40
50 LS PLATE 6M951801 30.80
51 ZERO ADJUSTER O-RING 6J279701 1.10
52 ZERO ADJUSTER W (A) 6J692001 1.10
53 ZERO ADJUSTER W (B) 6B175503 1.10
54 ZERO ADJUSTER 6J738101 8.80
55 LS PLATE SC (A) 6G945818 2.20
56 LS PLATE SC (B) *Not available 6G040814 2.20
57 WORM SHAFT RETAINER 63205901 2.20
58 WORM SHAFT W 6B411702 1.10
59 WORM SHAFT COLLAR 6G720001 2.20
60 LEVEL WIND 6M470501 46.20
61 POLE 6J740101 3.30
62 POLE W 6M161301 1.10
63 LEVEL WIND PIN 6J740201 3.30
64 LEVEL WIND O-RING 6G252202 1.10
65 WORM SHIELD 6J765801 3.30
66 WORM SHAFT 6J912601 7.70
67 WORM SHAFT COLLAR 6G720001 2.20
68 WORM SHAFT GEAR 6J693901 3.30
69 WORM SHAFT GEAR RETAINER 6B339801 2.20
70 GEAR SHAFT W 6G099801 1.10
71 GEAR SHAFT RETAINER 63208002 2.20
72 GEAR SHAFT BALL BEARING 6G466202 8.80
73 GEAR SHAFT PLATE 6J693701 3.30
74 GEAR SHAFT PLATE SC 6G297002 2.20
75 WORM GEAR 6J693601 4.40
76 GEAR SHAFT 6M900102 17.60
77 RATCHET 6H660901 3.30
78 DRIVE GEAR W 63746605 1.10
79 PINION + DRIVE GEAR SET 6Z027515 50.60
80 DRAG W 6H359002 6.60
81 DRAG COLLAR 6J740501 17.60
82 DRAG COLLAR SP 6M025201 2.20
83 DRAG COLLAR PIN 6J566201 2.20
84 CLUTCH RING 6J327701 8.80
85 ONE-WAY CLUTCH 6J540401 20.90
86 HANDLE BEARING W (A) 6B553804 1.10
87 HANDLE BALL BEARING 6B861705 8.80
88 HANDLE BEARING W (B) 6B553804 1.10
89 DRAG HOLDER 6F028203 3.30
90 DRAG HOLDER LEAF SP 6F032401 2.20
91 DRAG SP・W 61508901 2.20
92 STAR DRAG W 6H929501 2.20
93 STAR DRAG NUT 6H912002 4.40
94 STAR DRAG NUT SP 6J011901 2.20
95 STAR DRAG 6H911918 13.20
96 HANDLE W 6F576601 1.10
97 HANDLE 6M917001 96.80
98 HANDLE NUT 6H723702 3.30
99 HANDLE CAP 6J213503 7.70
100 HANDLE CAP SC 6G040835 2.20
101 RS BEARING COLLAR 6H813601 4.40
102 RS BEARING RING 6G639601 2.20
103 PINION BEARING RING 6G639601 2.20
104 PINION BEARING COLLAR 6J383801 2.20
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB COLLAR (4, 7, 2.5) 6G720001 2.20
202 HANDLE KNOB 6Q344801 17.60
203 HANDLE KNOB SC 6B679308 2.20
204 HANDLE KNOB CAP 6Q345003 2.20
