[ABU] Genuine Spare Parts for MORRUM ZX 3601 MAG Product code: 1294133 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

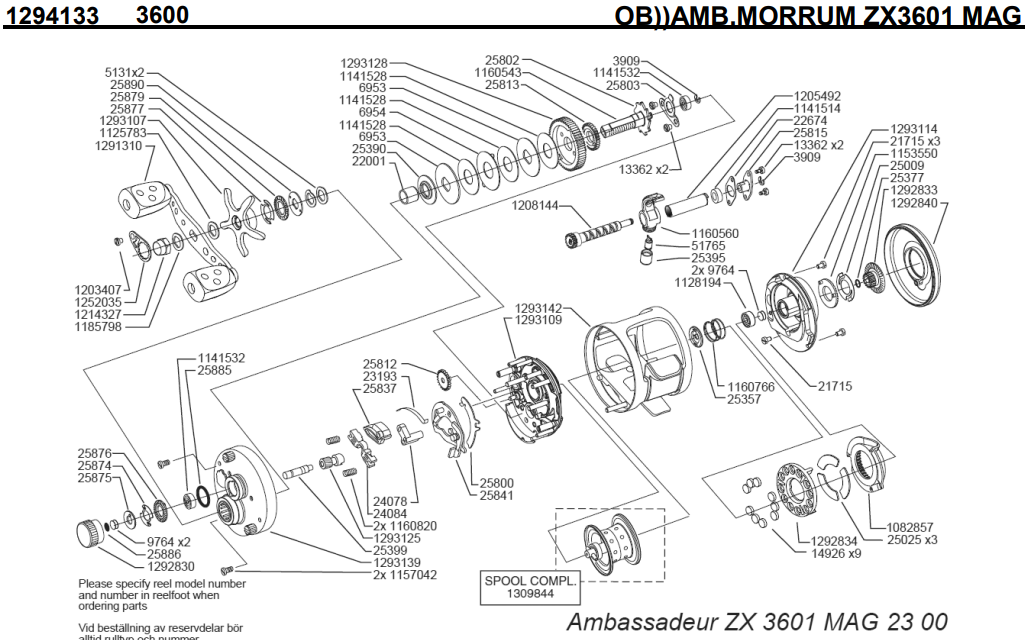

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
	3909	RETAINER	2.20
	5131	SPRING WASHER	2.20
	6953	FRICTION WASHER	2.20
	6954	FRICTION WASHER	2.20
	9764	WASHER	2.20
	13362	SCREW	2.20
	14926	MAGNET	2.20
	21715	SCREW	2.20
	22001	HANDLE BUSHING	13.20
	22674	LOCKING PLATE	3.30
	23193	SPRING	2.20
	24078	PIN HOLDER	6.60
	24084	YOKE	6.60
	25009	BRAKE CLICK SPRING	5.50
	25025	MAGNET PLATE	2.20
	25357	BALL BEARING PLUG	2.20
	25377	O-RING	2.20
	25390	PLATE	6.60
	25395	NUT	5.50
	25399	PINION SHAFT	16.50
	25800	LINK ARM	6.60
	25802	DRAIVE GEAR PLATE	2.20
	25803	LOCK WASHER	6.60
	25812	COG WHEEL	2.20
	25813	COG WHEEL	2.20
	25815	LOCKER BUSHING	3.30
	25837	SPRING HOLDER	6.60
	25841	LIFT PLATE	13.20
	25874	BRAKE CLICK SPRING	5.50
	25875	BRAKE CLICK RATCHET	5.50
	25876	BRAKE CLICK RATCHET	2.20
	25877	DRAG CLICK SPRING	5.50
	25879	DRAG CLICK RATCHET	2.20
	25885	O-RING	2.20
	25886	CAP WASHER	2.20
	25890	RATCHET HOLDER	5.50
	51765	PILOT GUIDE	6.60
	1082857	MAG CAM	8.80
	1125783	WASHER	0.55
	1128194	BALLBEARING	8.80
	1141514	BALLBEARING	13.20
	1141528	BRAKEWASHER	6.60
	1141532	BALLBEARING	13.20
	1153550	CLICKPLATE	8.80
	1157042	SCREW	2.20
	1160543	MAIN GEAR BUSHING	22.00
	1160560	LINE CARRIAGE	22.00
	1160766	SPRING	2.20
	1160820	SPRING	2.20
	1185798	HANDLE WASHER	0.55
	1203407	SCREW	0.55
	1205492	LEVELWIND TUBE	16.50
	1208144	WORM SHAFT COMPLETE	44.00
	1214327	HANDLE NUT	2.20
	1252035	HANDLE NUT COVER	3.30
	1291310	HANDLE	110.00
	1292830	SPOOL CONTROL CAP	16.50
	1292833	MAG DIAL	8.80
	1292834	MAG HOLDER	11.00
	1292840	OUTER SIDEPLATE B	46.20
	1293107	STAR WHEEL	22.00
	1293109	INNER SIDEPLATE LEFT	38.50
	1293114	INNER SIDEPLATE RIGHT	33.00
	1293125	PINION	33.00
	1293128	DRIVE GEAR	44.00
	1293139	OUTER SIDEPLATE A	94.60
	1293142	FRAME	132.00
	1309844	SPOOL COMP	66.00

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/phone/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.


| Spare Spools, Bearings, and Other Tuning Parts Compatible with MORRUM Series Here!
