[ABU] Genuine Spare Parts for MORRUM ZX 3601 IVCB-4 Product code: 1205068 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

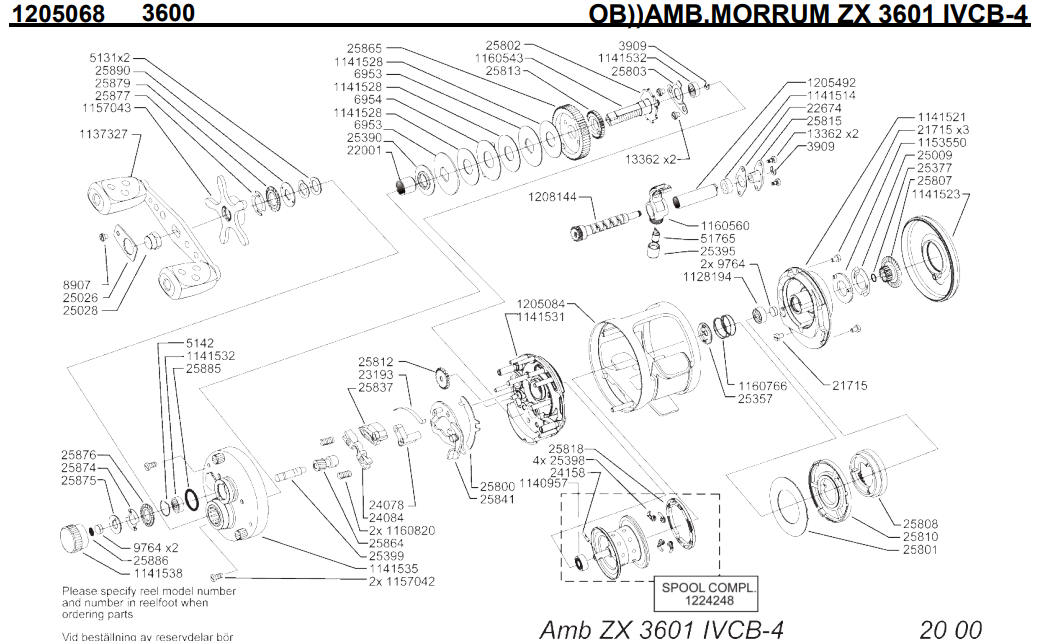

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
	5131	SPRING WASHER	2.20
	9764	WASHER	2.20
	13362	SCREW	2.20
	21715	SCREW	2.20
	25398	BRAKE WEIGHT ARM	3.30
	25802	DRAIVE GEAR PLATE	2.20
	25803	LOCK WASHER	6.60
	25807	IVCB-DIAL	8.80
	25808	IVCB-CAM	8.80
	25810	BRAKE PLATE HOLDER	8.80
	25812	COG WHEEL	2.20
	25813	COG WHEEL	2.20
	25815	LOCKER BUSHING	3.30
	25818	BRAKE WEIGHT HOLDER	3.30
	25837	SPRING HOLDER	6.60
	25841	LIFT PLATE	13.20
	25864	PINION GEAR	31.90
	25865	DRAIVE GEAR	44.00
	25874	BRAKE CLICK SPRING	5.50
	25875	BRAKE CLICK RATCHET	5.50
	25876	BRAKE CLICK RATCHET	2.20
	25877	DRAG CLICK SPRING	5.50
	25879	DRAG CLICK RATCHET	2.20
	25885	O-RING	2.20
	25886	CAP WASHER	2.20
	25890	RATCHET HOLDER	5.50
	51765	PILOT GUIDE	6.60
	1128194	BALLBEARING	8.80
	1137327	HANDLE	33.00
	1140957	BALL BEARING	33.00
	1141514	BALLBEARING	13.20
	1141521	INNERPLATE RIGHT	22.00
	1141523	OUTER SIDE PLATE RIGHT	88.00
	1141528	BRAKEWASHER	6.60
	1141531	INNERPLATE LEFT	22.00
	1141532	BALLBEARING	13.20
	1141535	OUTER SIDE PLATE	94.60
	1141538	SPOOL CONTROL CAP	16.50
	1153550	CLICKPLATE	8.80
	1157042	SCREW	2.20
	1157043	STAR WHEEL	22.00
	1160543	MAIN GEAR BUSHING	22.00
	1160560	LINE CARRIAGE	22.00
	1160766	SPRING	2.20
	1160820	SPRING	2.20
	1205084	FRAME	176.00
	1205492	LEVELWIND TUBE	16.50
	1208144	WORM SHAFT COMPLETE	44.00
	1224248	SPOOL	95.70

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/phone/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.
