[ABU] Genuine Spare Parts for 2016 ORANGEMAX Product code: 1302005 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

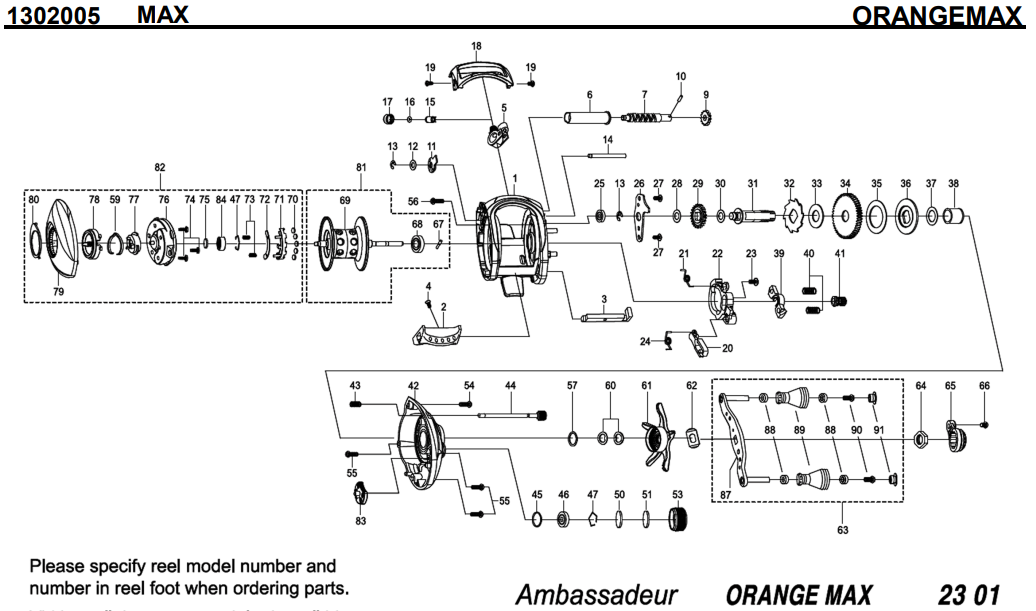

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1308916	FRAME	22.00
2	1252051	THUMBAR	3.30
3	1124745	THUMBAR SHAFT	1.65
4	1124746	THUMBAR SCREW	0.55
5	1185895	LINE GUIDE	5.50
6	1185896	LINE GUIDE PIPE	3.30
7	1125805	WORM SHAFT	16.50
9	1125732	WORM SHAFT GEAR	1.10
10	1125733	WORM SHAFT PIN	0.55
11	1125734	WORM SHAFT PIN HOLDER	0.77
12	1185695	WORM SHAFT WASHER	1.76
13	1124201	RETAINER	0.55
14	1125799	LINE GUIDE SHAFT	1.65
15	1125806	PAWL	3.30
16	1125736	WASHER	0.55
17	1129323	LINE GUIDE NUT	0.77
18	1252052	FRONT COVER (K)	5.50
19	1185912	FRONT COVER SCREW	1.76
20	1125740	KICK LEVER	1.65
21	1252054	CLUTCH SPRING	1.76
22	1252057	LIFT CURVE	3.30
23	1252059	SCREW	1.76
24	1252060	KICK LEVER SPRING	1.76
25	1116186	BALL BEARING	6.60
26	1252062	MAIN GEAR SHAFT PLATE	2.20
27	1125822	SCREW	0.55
28	1125747	WASHER	0.55
29	1125748	LEVEL WIND GEAR	1.10
30	1125749	WASHER	0.55
31	1196748	MAIN GEAR SHAFT	11.00
32	1125756	RATCHET	1.65
33	1281133	DRAG WASHER	2.75
34	1214277	MAIN GEAR	16.50
35	1190698	DRAG WASHER	1.76
36	1144201	PRESSURE WASHER	1.65
37	1118994	WASHER	0.55
38	1257782	SLEEVE	2.20
39	1125753	YOKE	1.10
40	1116237	YOKE SPRING	0.55
41	1125809	PINION 7,1	11.00
42	1308917	GEAR SIDE PLATE	30.80
43	1125775	SPRING	0.55
44	1252073	CAM LOCK SCREW	2.20
45	1185714	O-RING	0.55
46	1125827	BALL BEARING	6.60
47	1104790	RING	0.55
50	1125829	FRICTION WASHER	0.55
51	1125828	RUBBER WASHER	0.55
53	1308918	BRAKE KNOB	11.00
54	1252078	SCREW	1.76
55	1252079	SCREW	1.76
56	1185916	RIGHT SIDE COVER SCREW	1.76
57	1252081	WASHER	1.76
59	1125780	CLICK SPRING	0.77
60	1117208	SPRING WASHER	0.55
61	1302713	STAR WHEEL	13.20
62	1117205	HANDLE WASHER	0.77
63	1308919	HANDLE	33.00
64	1125785	HANDLE NUT	1.10
65	1252091	HANDLE NUT COVER	3.30
66	1257783	SCREW	1.76
67	1187619	SPOOL SHAFT PIN	2.20
68	1187625	SPOOL BALL BEARING	8.80
69	1252093	SPOOL	16.50
70	1116222	MAGNET	2.20
71	1252095	MAGNET HOLDER	1.76
72	1252096	MAGNET PLATE	2.20
73	1187623	MAGNET HOLDER SPRING	1.76
74	1185770	SPOOL COVER SCREW	0.55
75	1125797	WASHER	0.55
76	1252097	BEARING HOUSING	11.00
77	1185923	SLIDE CAM	2.20
78	1252098	MAG DIAL	3.30
79	1252101	LEFT SIDE PLATE	16.50
80	1308920	PALM SIDE TRIM	2.20
81	1252108	SPOOL COMPLETE (K)	33.00
82	1308921	PALM SIDE COMPLETE	63.80
83	1252116	FLIPPING LEVER	2.20
84	1125827	BALL BEARING	6.60
87	1373531	HANDLE	22.00
88	1208088	BUSHING FOR BALL BEARING	2.20
89	1321186	HANDLE KNOB	7.70
90	1281320	SCREW	1.76
91	1373532	HANDLE KNOB CAP	6.60
