[ABU] Genuine Spare Parts for 2021 MAX DLC MHP Product code: 1547077 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

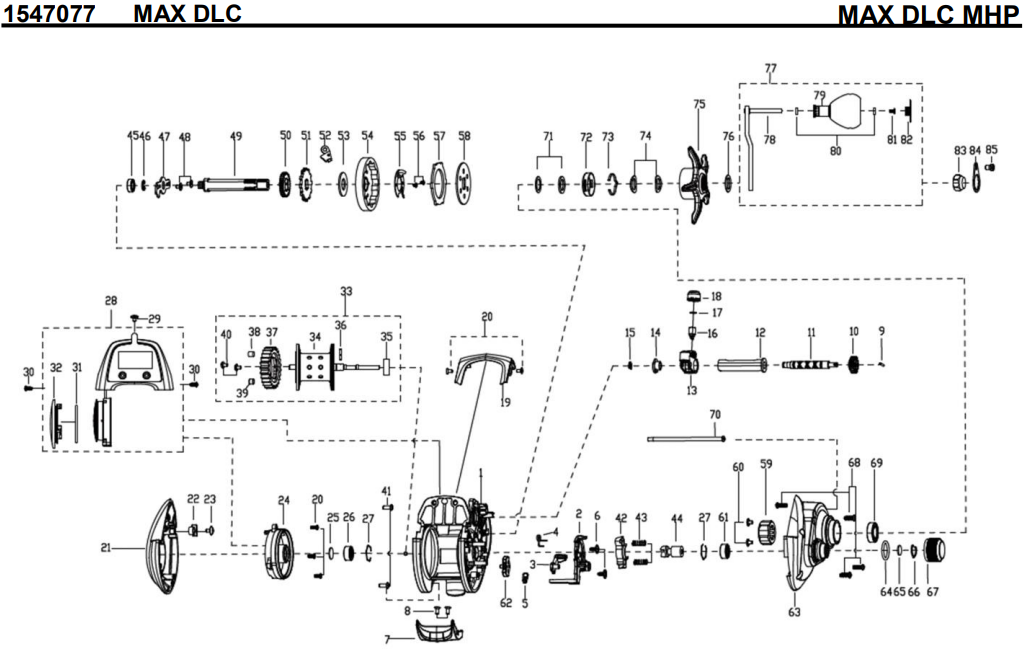

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1529143	FRAME	38.50
2	1529144	LIFT CURVE	3.30
3	1529145	KICK LEVER	3.30
4	1529146	CLUTCH SPRING	2.20
5	1529147	KICK LEVER SPRING	2.20
6	1529148	SCREW	2.20
7	1529199	THUMB BAR	3.30
8	1188255	SCREW	2.20
9	1275775	WORM SHAFT PIN	2.20
10	1206523	WORM SHAFT GEAR	2.20
11	1529200	WORM SHAFT	16.50
12	1529201	LINE GUIDE TUBE	3.30
13	1529202	LINE GUID	5.50
14	1529203	WORM SHAFT BUSHING	2.20
15	1206522	RETAINER	2.20
16	1206527	PILOT GUIDE	2.20
17	1529204	WASHER	2.20
18	1529205	LINE GUIDE NUT	2.20
19	1553129	FRONT COVER	5.50
20	1529207	SCREW	2.20
21	1529268	PALM SIDE PLATE	22.00
22	1529209	LINE CLIP	2.20
23	1529210	SCREW	2.20
24	1529211	BB HOLDER	16.50
25	1130070	BRONZE WASHER	1.76
26	1529212	BALL BEARING	6.60
27	1513276	RING	2.20
28	1553130	ELECTRONIC LINE COUNTER	55.00
29	1529214	SCREW	2.20
30	1529215	SCREW	2.20
31	1456426	O-ring	2.20
32	1531380	BATTERY DOOR	5.50
33	1553131	SPOOL ASSEMBLY	44.00
34	1553132	SPOOL	22.00
35	1530654	BALL BEARING	6.60
36	1530655	PIN	2.20
37	1529217	CLICK GEAR	3.30
38	1529218	MAGNET	2.20
39	1529219	MAGNET BALANCE	2.20
40	1341547	SPOOL CLICKER SPRING SCREW	2.20
41	1529220	SCREW	2.20
42	1529221	YOKE	2.20
43	1529222	YOKE SPRING	2.20
44	1553133	PINION	11.00
45	1529224	BALL BEARING	6.60
46	1206522	RETAINER	2.20
47	1529225	MAIN GEAR SHAFT PLATE	3.30
48	1548309	SCREW	2.20
49	1529226	MAIN GEAR SHAFT	11.00
50	1206538	LEVEL WIND GEAR	2.20
51	1206539	RATCHET	3.30
52	1307879	STOPPER	5.50
53	1513283	DRAG WASHER	3.30
54	1553134	MAIN GEAR	16.50
55	1529228	CLICK SPRING	3.30
56	1529229	SCREW	2.20
57	1529230	DRAG WASHER	3.30
58	1529231	METAL WASHER	3.30
59	1529233	ONE WAY CLUTCH	11.00
60	1513272	SCREW	2.20
61	1529236	BALL BEARING	27.50
62	1529234	FLIPPING SWITCH	3.30
63	1553135	GEAR SIDE PLATE	27.50
64	1116095	O-RING	1.10
65	1513278	FRICTION WASHER	2.20
66	1529237	CLICK SPRING	2.20
67	1530331	BRAKE KNOB	11.00
68	1529239	SCREW	2.20
69	1126394	BALL BEARING	6.60
70	1529270	LINE GUIDE SHAFT	3.30
71	1529242	WASHER	2.20
72	1513288	CLICK SPRING HOLDER	3.30
73	1513289	CLICK SPRING	2.20
74	1529243	SPRING WASHER	2.20
75	1529244	STAR WHEEL	13.20
76	1529245	WASHER	2.20
77	1553136	HANDLE ASSEMBLY	33.00
78	1531320	HANDLE ARM	11.00
79	1553137	HANDLE KNOB ASSEMBLY	8.80
80	1275802	HANDLE KNOB BUSHING	2.20
81	1518224	SCREW	2.20
82	1553138	HANDLE KNOB CAP	6.60
83	1529247	HANDLE NUT	2.20
84	1529293	HANDLE NUT RETAINER	3.30
85	1513293	SCREW	2.20

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/phone/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.
