[SHIMANO] Genuine Spare Parts for 26 Beast Master 3000II Product code: 045478 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

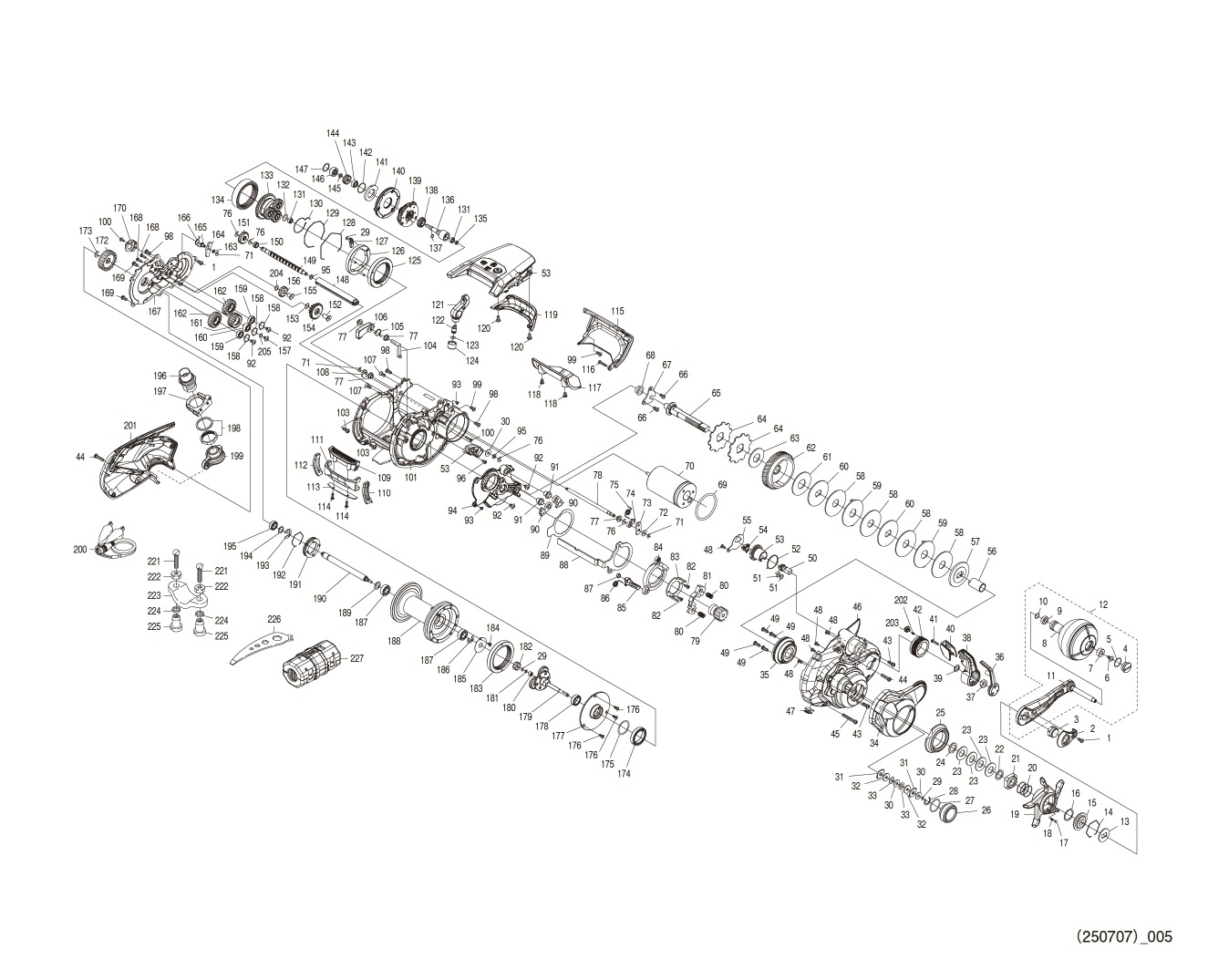

　Reel Part's Schematic Diagram

No.	S Part No.	Description	Price (USD)
1	10R1Q	SET SCREW	1.65
2	100F6	RETAINER	3.85
3	10RHS	HANDLE LOCK NUT	6.05
4	1062R	HANDLE CAP	1.10
5	10LAB	O-RING	1.10
6	103E9	SET SCREW	1.10
7	10EU0	HANDLE GRIP BUSHING (A)	1.65
8	1402V	HANDLE KNOB ASSEMBLY	66.00
9	104UJ	HANDLE GRIP BUSHING (B)	1.65
10	104FH	WASHER	2.20
11	1402W	HANDLE SHAFT ASSEMBLY	56.10
12	1402X	HANDLE ASSEMBLY	112.20
13	107QM	HANDLE MOUNTING WASHER	1.10
14	10KXX	STAR DRAG CLICK PLATE RETAINER	1.65
15	10J27	STAR DRAG CLICK PLATE	1.65
16	10G6M	WASHER	1.10
17	10B27	CLICK PIN	1.65
18	10988	CLICK SPRING	1.65
19	13Z4U	STAR DRAG	45.10
20	10HZ2	STAR DRAG SPRING	1.65
21	10QY2	STAR DRAG LOCKING NUT	4.95
22	10BR2	BEARING RETAINER	1.65
23	1052E	FLAT SPRING (DB8H)	1.65
24	146FF	WASHER	1.65
25	13Z51	MAIN UNIT A NAMEPLATE	14.85
26	13Z52	MECHANICAL BRAKE KNOB	11.55
27	10EYV	O-RING	1.10
28	105S4	C-CLIP (NO. 5103-31)	1.10
29	105NB	E-TYPE RETAINING RING 1.5	1.10
30	13PFC	WASHER	1.65
31	13Z4Z	MECHANICAL BRAKE WASHER (B)	3.30
32	13Z50	MECHANICAL BRAKE KNOB SPACER	1.10
33	13SVL	SPRING (DB4L)	1.65
34	13Z4W	MAIN UNIT A2	22.00
35	1402Y	DRIVE GEAR BEARING ASSEMBLY	27.50
36	13Z4C	LEVER SWITCH NAMEPLATE	6.05
37	10NAS	LOCKING NUT	2.75
38	13Z4G	LEVER SWITCH	8.80
39	10NAQ	OVAL WASHER	1.65
40	13Z4F	LEVER SWITCH (B)	1.65
41	10LPT	LOCKING BOLT	1.10
42	1402Z	GEAR SHIFT SWITCH ASSEMBLY	13.20
43	10A6Q	LOCKING BOLT	1.65
44	100YN	LOCKING BOLT	1.65
45	13Z74	LOCKING BOLT	1.10
46	14030	MAIN UNIT A ASSEMBLY	49.50
47	10RNS	THREAD LOCK	2.75
48	1055J	SET SCREW	1.65
49	101AA	SET SCREW	1.65
50	14031	LEVER INSERT SHAFT ASSEMBLY	8.80
51	10TNF	O-RING	1.65
52	13Z57	SHIFT SWITCH SPRING	1.10
53	13Z75	COUNTER UNIT ASSEMBLY	388.30
54	14032	MAGNET HOLDER ASSEMBLY	3.30
55	13Z6N	MAGNET HOLDER SPACER	1.10
56	10CCL	INNER TUBE	6.05
57	10D4Q	STAR DRAG PLATE	1.65
58	10L86	STAR DRAG WASHER	9.35
59	10LBB	STAR DRAG WASHER	1.65
60	10KZW	STAR DRAG WASHER	1.65
61	10CKR	STAR DRAG WASHER	9.35
62	13USJ	DRIVE GEAR	22.55
63	10CKS	STAR DRAG WASHER	6.05
64	13USH	STOPPER GEAR	2.75
65	146FE	DRIVE GEAR SHAFT	22.55
66	103ED	SET SCREW	1.10
67	109VK	DRIVE GEAR SHAFT RETAINING PLATE	1.65
68	10BQ3	MAIN GEAR SHAFT BUSHING	1.65
69	13K3D	O-RING	1.65
70	13Z76	MOTOR ASSEMBLY	143.00
71	105NC	E-TYPE RETAINING RING 2	1.10
72	1403D	WASHER	1.10
73	13Z5A	SHIFT SELECTOR PLATE (B)	1.10
74	13Z55	SHIFT SELECTOR PLATE (B2)	1.10
75	13Z58	SHIFT SELECTOR SHAFT SPRING	1.10
76	105NK	E-TYPE RETAINING RING 2.5	1.10
77	13U7Z	CLUTCH LEVER RETAINING SHAFT COLLAR	1.65
78	13Z5D	SHIFT SELECTOR SHAFT	4.40
79	13SNZ	PINION GEAR	22.55
80	104BU	CLUTCH YOKE SPRING	1.10
81	13T16	CLUTCH YOKE	1.65
82	10LVJ	MOUNTING BOLT	1.10
83	13UDZ	CLUTCH CAM PRESSURE PLATE	2.75
84	13AW8	CLUTCH CAM ASSEMBLY	11.55
85	13T15	CLUTCH PAWL	6.05
86	13T17	CLUTCH PAWL SPRING	1.65
87	1048B	CLUTCH PAWL BUSHING	1.65
88	13TCS	CLUTCH PLATE	6.05
89	13T7E	CLUTCH CAM WASHER	1.65
90	10MWB	STOPPER PAWL ASSEMBLY	3.85
91	10PE1	STOPPER MOUNTING SHAFT	1.65
92	103L4	MOUNTING BOLT	1.10
93	10F23	CLUTCH CAM SPACER	1.10
94	13T14	MAIN BODY MOUNTING PLATE	45.10
95	1059U	WASHER	1.10
96	10S65	MOUNTING BOLT	1.10
98	103GK	MOUNTING BOLT	1.10
99	103DE	MOUNTING BOLT	1.10
100	10LUZ	MOUNTING BOLT	1.10
101	14033	FRAME ASSEMBLY	112.20
103	10LZD	MOUNTING BOLT	1.65
104	13TCT	CLUTCH LEVER (B) SHAFT	9.35
105	13Z5K	CLUTCH LEVER POSITIONING SPRING	1.10
106	13Z6Q	CLUTCH LEVER (B)	6.05
107	10ML8	MOUNTING BOLT	1.10
108	13Z5E	GEAR SHIFT PLATE	1.10
109	13T7C	CLUTCH LEVER	3.85
110	13Z5C	CLUTCH LEVER MOUNT (B)	1.65
111	13Z5L	CLUTCH LEVER NAMEPLATE	16.50
112	13Z5B	CLUTCH LEVER MOUNT (A)	1.65
113	13UDQ	CLUTCH LEVER PROTECTOR	1.65
114	101LH	MOUNTING BOLT	1.10
115	13Z6B	LEVEL WIND GUARD	22.55
116	10TGT	MOUNTING BOLT	1.10
117	13Z6A	LEVEL WIND GUARD NAMEPLATE	1.65
118	103GZ	MOUNTING BOLT	1.65
119	13Z4M	COUNTER CASE SIDE COVER	11.55
120	1055F	MOUNTING BOLT	1.65
121	14034	LEVEL WIND ASSEMBLY	11.00
122	10FFW	WORM SHAFT PIN	2.75
123	10RR9	WASHER	2.75
124	10FJW	LEVEL WIND BRACKET	1.65
125	13Z60	INNER GEAR	16.50
126	14035	STOPPER RETAINING PLATE ASSEMBLY	8.80
127	13Z5M	STOPPER TAB	1.65
128	10B6C	RETAINING SPRING	1.10
129	13Z5P	INNER GEAR (B) RETAINING CLIP	1.10
130	13Z6X	STOPPER TAB SPRING	1.10
131	10PDA	BALL BEARING (3X6X2.5)	13.75
132	108WQ	O-RING	1.65
133	14036	REDUCTION GEAR PLATE (A) ASSEMBLY (WITH BEARING)	67.65
134	13Z5Q	INNER GEAR (B)	19.25
135	13Z5X	SUN GEAR (A) COLLAR	1.10
136	13Z5Y	SUN GEAR BUSHING	12.65
137	13Z67	BEARING RETAINING SPRING	1.10
138	13Z5T	SUN GEAR (C)	5.50
139	14037	REDUCTION GEAR PLATE (C) ASSEMBLY (WITH BEARING)	57.75
140	14038	WATERPROOF SEAL HOLDER ASSEMBLY	13.20
141	13Z56	SHIFT STOPPER GEAR	2.20
142	13NR6	STOPPER GEAR RETAINER	1.10
143	104VQ	BALL BEARING (4X8X3)	13.75
144	13Z6T	DRIVE GEAR (A)	9.35
145	13Z70	WASHER	1.10
146	105C1	BALL BEARING (3X10X4)	13.75
147	13PEP	WASHER	1.10
148	13Z6D	LEVEL WIND PIPE	1.65
149	13Z6E	WORM SHAFT	11.55
150	13S0K	WORM SHAFT MOUNT (B)	1.65
151	13S6C	WORM SHAFT GEAR	6.05
152	13T10	WORM SHAFT GEAR DRIVE GEAR COLLAR	3.85
153	105EU	WASHER	1.10
154	13T0Z	WORM SHAFT GEAR DRIVE GEAR (B)	2.75
155	13T12	WORM SHAFT GEAR DRIVE GEAR COLLAR (B)	3.85
156	13T11	WORM SHAFT GEAR DRIVE GEAR (C)	6.05
157	10TTU	SET SCREW	1.10
158	10GEW	BEARING RETAINING CLIP	1.10
159	105BP	BALL BEARING (5X9X3)	13.75
160	10KX2	BALL BEARING (4X9X4)	13.75
161	13RMW	DRIVE GEAR	9.35
162	13Z6S	DRIVE GEAR (B)	9.35
163	10GCX	WASHER	1.10
164	13Z5G	GEAR SHIFT STOPPER	1.10
165	13Z59	GEAR SHIFT STOPPER MOUNTING SHAFT	3.85
166	13Z5F	GEAR SHIFT STOPPER SPRING	1.10
167	13Z6U	DRIVE GEAR RETAINING PLATE	55.00
168	10LVM	SET SCREW	1.10
169	101CP	SET SCREW	1.65
170	13Z6J	LEAD WIRE COVER	1.10
172	13Z6R	DRIVE GEAR (E)	19.80
173	105NE	TYPE E RETAINING RING 3	1.10
174	108PG	BALL BEARING (15X21X4)	22.55
175	1497R	WASHER	1.65
176	10MGL	MOUNTING BOLT	1.10
177	14039	SPOOL SIDE PLATE ASSEMBLY	13.20
178	10EX8	BALL BEARING (8X12X3.5)	13.75
179	1403A	REDUCTION GEAR PLATE (B) ASSEMBLY	41.25
180	10MCV	REDUCTION GEAR PLATE (B) SHAFT BUSHING	2.75
181	13B0W	WASHER	1.10
182	13T13	SUN GEAR	6.05
183	13Z66	SPOOL INSERT	13.75
184	1055G	MOUNTING BOLT	1.65
185	13SVG	SPOOL PARTITION	1.65
186	105NJ	TYPE E RETAINING RING 4	1.10
187	108PE	BALL BEARING (6X12X4)	13.75
188	1403B	SPOOL ASSEMBLY	77.00
189	10G8H	WASHER	1.10
190	13Z68	SPOOL SHAFT	6.05
191	13SVJ	WORM SHAFT GEAR TRANSMISSION GEAR (A)	2.75
192	106MT	BRAKE GEAR BEARING RETAINING RING	1.10
193	105RY	TYPE E RETAINING RING 5	1.10
194	13PKA	WASHER	1.10
195	104JT	BALL BEARING (6X10X3)	13.75
196	100XP	CONNECTOR	22.55
197	13Z6L	SOCKET BRACKET	1.65
198	10BGS	SOCKET NUT SET	6.05
199	10T2G	SOCKET CAP	3.85
200	10004	CABLE	45.10
201	1403C	MAIN UNIT B ASSEMBLY	55.00
202	10T6Z	CLICK SPRING	1.10
203	14BWK	GEAR SHIFT SWITCH CLICK PIN	1.10
204	10HYY	WASHER	1.65
205	10HYM	WASHER	1.10
221	10A79	LEG MOUNTING BOLT	2.75
222	105N9	LEG MOUNTING HEX NUT	1.65
223	10AR5	LEG MOUNTING BASE	4.95
224	10GA8	LEG MOUNTING NUT WASHER	1.65
225	1046P	LEG MOUNTING NUT	2.75
226	10MJ6	REEL WRENCH	3.85
227	14BZL	FERRITE CORE	6.60
LINE	10CW0	LINE GUIDE	1.65
