[SHIMANO] Genuine Spare Parts for 26 CALCUTTA CONQUEST DC 101HG LEFT Product code: 048707 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.96 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/9719

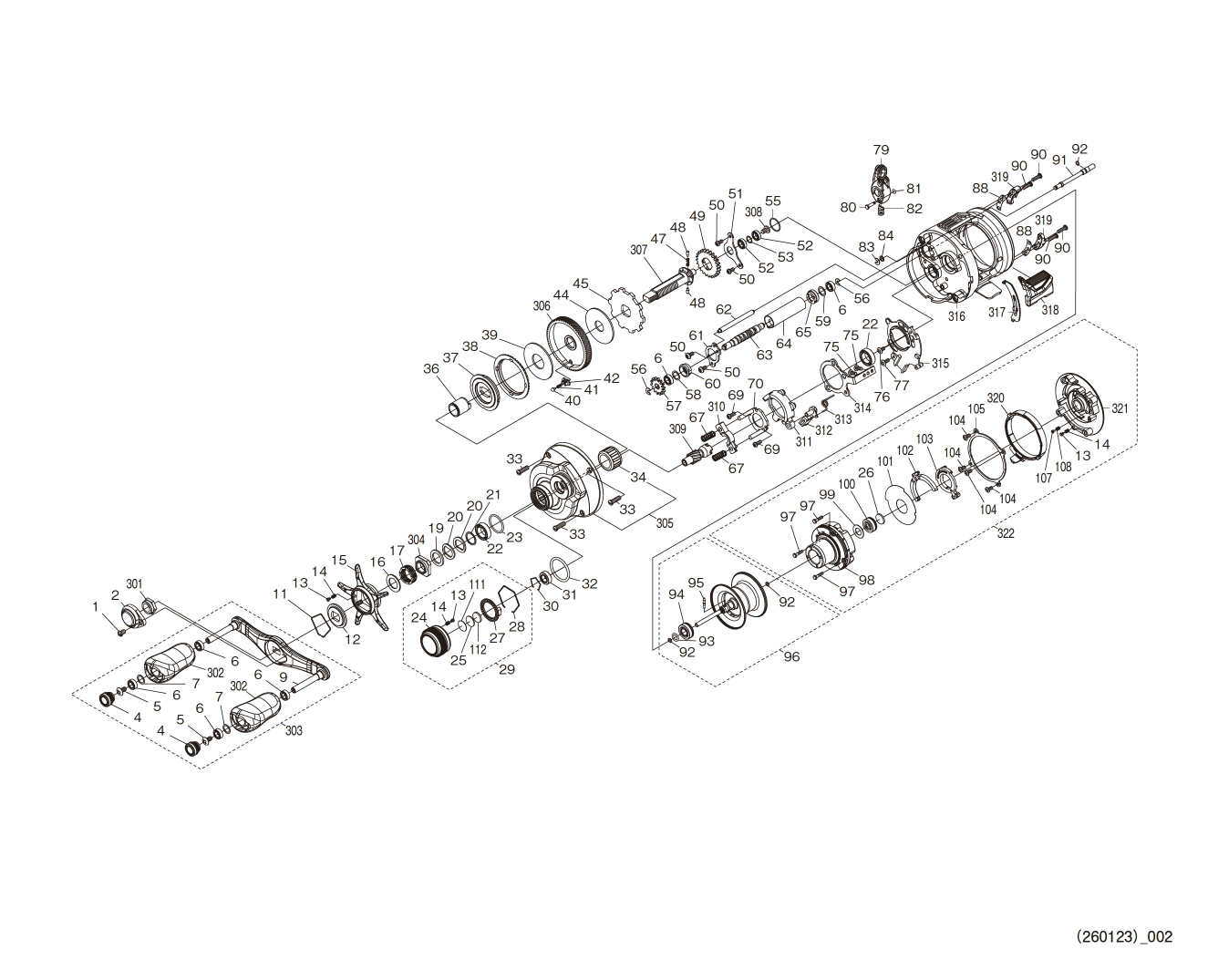

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "34 / ROLLER CLUTCH", "95 /SPOOL CLUTCH PIN" and "94 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10CZ5	SET SCREW	2.75
2	100VN	RETAINER	17.05
4	14861	HANDLE CAP	6.60
5	103E9	SET SCREW	1.10
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
9	13HVL	HANDLE SHAFT ASSEMBLY	39.60
11	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
12	10J1Y	STAR DRAG CLICK PLATE	1.65
13	10B27	CLICK PIN	1.65
14	10988	CLICK SPRING	1.65
15	14AYL	STAR DRAG	28.60
16	100CU	WASHER	1.10
17	10A71	STAR DRAG SPRING	2.75
19	10J1N	STAR DRAG SPACER	1.65
20	10D60	MAIN GEAR WASHER (C)	1.65
21	105PW	STAR DRAG BEARING WASHER	1.10
22	10EX8	BALL BEARING (8X12X3.5)	13.75
23	1027V	O-RING	1.65
24	148ZC	MECHANICAL BRAKE KNOB	17.60
25	10896	MECHANICAL BRAKE WASHER	1.10
26	1057S	SPOOL SHAFT STOP (B)	1.10
27	10L2F	MECHANICAL BRAKE KNOB CLICK PLATE	2.75
28	10L6X	MECHANICAL BRAKE KNOB CLICK HOLDER	2.75
29	14D7X	MECHANICAL BRAKE KNOB ASSEMBLY	23.65
30	1057X	RETAINING CLIP	1.65
31	105BP	BALL BEARING (5X9X3)	13.75
32	108W8	O-RING S-16	1.65
33	10C3N	SET SCREW	2.75
34	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
36	10BN3	ROLLER CLUTCH INNER TUBE	6.05
37	10SNJ	STAR DRAG PLATE	7.15
38	10E9B	DRAG CLICK RATCHET	3.85
39	1027W	STAR DRAG WASHER	9.35
40	10C0T	DRAG CLICK PIN	2.75
41	10J8A	DRAG CLICK SPRING	1.65
42	10J87	DRAG SPRING HOLDER	1.65
44	10CHZ	STAR DRAG WASHER	2.75
45	10RLS	STOPPER GEAR	3.85
47	10JDX	SPRING FOR WORM SHAFT GEAR	1.65
48	10HJF	PIN FOR WORM SHAFT GEAR	1.65
49	10057	WORM SHAFT GEAR	2.75
50	10LVE	SET SCREW	1.10
51	100GK	DRIVE GEAR SHAFT RETAINER PLATE	1.10
52	10SAM	BALL BEARINGS (4X7X2)	13.75
53	10THF	WASHER	1.10
55	10SZ4	O-RING	1.65
56	105NC	E-TYPE RETAINING RING (2)	1.10
57	10FNX	WORM SHAFT GEAR	2.75
58	10G8F	WASHER	1.10
59	10G8G	WASHER	1.10
60	10N9Q	WORM SHAFT RETAINER (A)	1.65
61	10T7S	WORM SHAFT RETAINER	1.10
62	14BLM	LEVEL WIND GUIDE	3.85
63	100GT	WORM SHAFT	5.50
64	1485Q	LEVEL WIND PIPE	7.15
65	104SP	WORM SHAFT RETAINER (B)	1.65
67	104BU	CLUTCH YOKE SPRING	1.10
69	101CN	SET SCREW	1.65
70	10F42	CLUTCH CAM PRESSURE PLATE	3.85
75	10559	SET SCREW	1.65
76	100BD	SET SCREW	1.65
77	10MPS	SET SCREW	1.65
79	10TED	LEVEL WIND ASSEMBLY	51.70
80	100GC	WORM SHAFT PIN RETAINER	1.10
81	10908	O-RING	1.65
82	100GJ	WORM SHAFT PIN	4.40
83	105NB	E-TYPE RETAINING RING 1.5	1.10
84	10GA7	WASHER	1.10
88	149EF	WASHER	1.65
90	14BQ2	SET SCREW	1.10
91	148ZF	LINE GUARD	4.95
92	10E7H	O-RING	1.10
93	10TNF	O-RING	1.65
94	1005D	BALL BEARING (5X11X4) *Cannot be ordered	13.75
95	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
96	14D80	SPOOL ASSEMBLY	122.65
97	148ZP	SET SCREW	1.10
98	148ZN	DC ASSEMBLY	144.65
99	10B94	BEARING SEAL	1.65
100	10S37	BALL BEARING (3X10X4)	13.75
101	1485C	MAIN BODY B NAMEPLATE	1.10
102	14D81	BR KNOB ASSEMBLY	11.55
103	14D82	DC DIAL ASSEMBLY	8.80
104	10S65	SET SCREW	1.10
105	148ZJ	MAIN BODY B CAM LEVER RETAINING PLATE	1.10
107	144NT	CLICK PIN	1.10
108	10T6Z	CLICK SPRING	1.10
111	141QM	WASHER	1.10
112	1057Q	SPOOL SHAFT BEARING (B)	1.10
301	10FSN	HANDLE SET SCREW	2.75
302	13MB9	HANDLE KNOB	11.55
303	14D84	HANDLE ASSEMBLY	132.00
304	10A0C	STAR DRAG LOCK NUT	2.75
305	14D85	MAIN BODY A ASSEMBLY	143.00
306	13UWW	DRIVE GEAR	28.05
307	13ULL	DRIVE GEAR SHAFT	13.20
308	10DR5	SET SCREW	1.10
309	13SPG	PINION GEAR	22.00
310	1046U	CLUTCH YOKE	1.65
311	10SKS	CLUTCH CAM	2.75
312	105ZV	CLUTCH PAWL	3.85
313	14026	CLUTCH PAWL SPRING	1.65
314	13TD2	CLUTCH PLATE	2.20
315	13UEF	MAIN BODY A SEAT	1.65
316	14D86	FRAME ASSEMBLY	275.00
317	13TD3	CLUTCH LEVER MOUNT	1.10
318	10282	CLUTCH LEVER ASSEMBLY	7.70
319	13Y8D	FRAME B MOUNT CAM	1.10
320	148ZX	MAIN BODY B CAM LEVER	2.20
321	148ZW	MAIN BODY B	107.80
322	14DFE	MAIN BODY B ASSEMBLY	327.80
*F01	14B04	REEL BAG	11.00
