[DAIWA] Genuine Spare Parts for 26 CERTATE SW 20000-H Product code: 00065308 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 26 CERTATE SW 20000-H Product code: 00065308 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

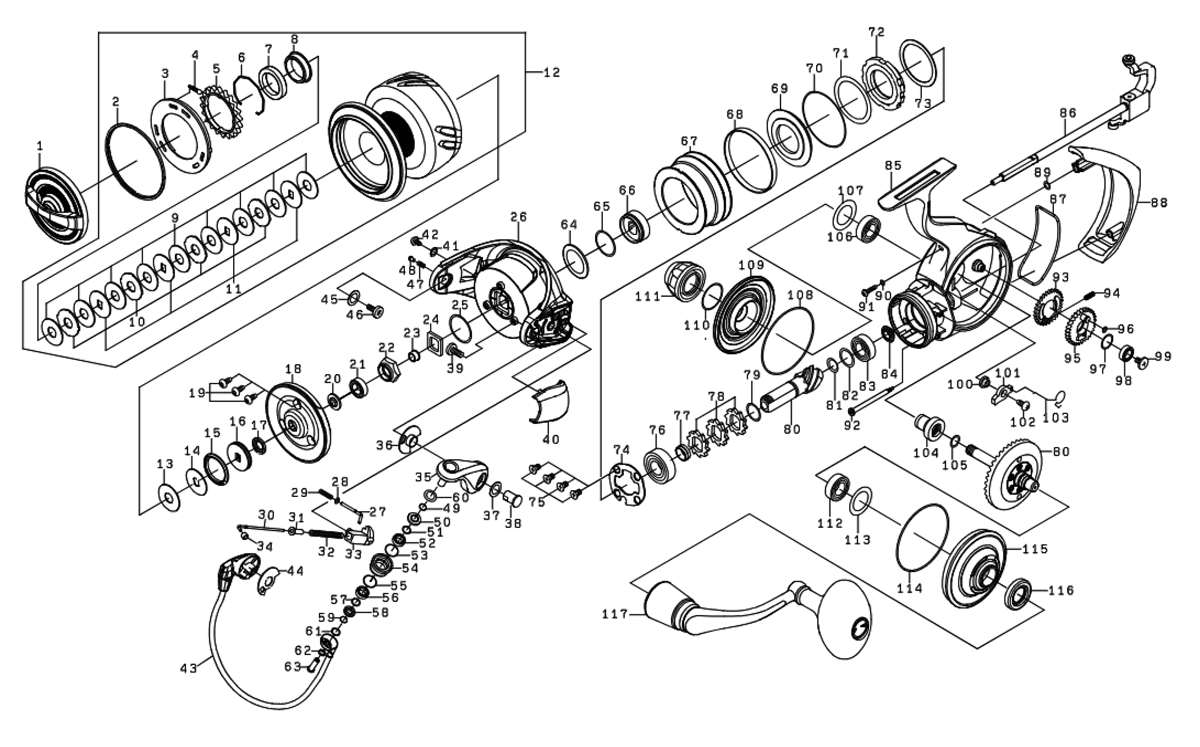

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6M828501 88.00
2 CLICK GEAR PLATE SC 6M042301 12.10
3 CLICK GEAR PLATE 6M825801 5.50
4 CLICK GEAR PIN 6J916501 2.20
5 CLICK GEAR 6J900201 4.40
6 SPOOL COLLAR 6J899901 2.20
7 SPOOL COLLAR (A) *Not available 6M145701 6.60
8 SPOOL COLLAR (B) 6J923401 7.70
9 DRAG W (9 pieces) 6M146301 99.00
10 DRAG GRIP W 6J899601 2.20
11 DRAG DISC W 6J923301 2.20
12 SPOOL (2-12) 6M846001 352.00
13 SPOOL W (A) 6J937401 1.10
14 SPOOL W (B) 6M684601 1.10
15 SPOOL PLATE GASKET (A) 6J898501 2.20
16 SPOOL PLATE 6J922401 4.40
17 SPOOL PLATE GASKET (B) 6J922501 2.20
18 ROTOR COVER 6J930401 6.60
19 ROTOR COVER SC 6H503901 2.20
20 ROTOR NUT GASKET 6J930301 2.20
21 ROTOR NUT BALL BEARING 6B861702 8.80
22 ROTOR NUT 6H685403 5.50
23 ROTOR NUT COLLAR 6J930201 2.20
24 ROTOR NUT PLATE 6H685301 2.20
25 ROTOR NUT O-RING 6F274501 1.10
26 ROTOR *Cannot be ordered 6M845601 99.00
27 BAIL SHAFT (A) 6M651301 3.30
28 BAIL SHAFT (A) W 6J919501 1.10
29 BAIL SHAFT (A) SP 6J929501 2.20
30 BAIL SHAFT (B) 6M651401 2.20
31 BALE SHAFT (B) SP COLLAR 6M624001 2.20
32 BALE SHAFT (B) SP 6M651501 2.20
33 BALE SHAFT (B) SP HOLDER 6M651601 11.00
34 BALE SHAFT (B) COLLAR 6M624301 2.20
35 ARM LEVER *Cannot be ordered 6M845701 39.60
36 ARM LEVER PLATE 6M624701 2.20
37 ARM LEVER NUT W 6M050901 1.10
38 ARM LEVER NUT 6M652101 3.30
39 ARM LEVER SC 6M624901 2.20
40 ARM LEVER COVER 6M652002 6.60
41 ARM LEVER COVER SC・W 6G256401 1.10
42 ARM LEVER COVER SC 6H741704 2.20
43 BAIL *Cannot be ordered 6M845801 115.50
44 BAIL HOLDER PLATE 6M828001 2.20
45 BAIL HOLDER SC・W 6J073502 1.10
46 BAIL HOLDER SC 6M624901 2.20
47 BAIL CLICK SP 6M626001 2.20
48 BAIL CLICK PIN 6M626101 2.20
49 ROLLER MAG COLLAR (A) O-RING 6J916201 1.10
50 ROLLER MAG COLLAR (A) *Cannot be ordered 6M654301 12.10
51 ROLLER W (B) 6E096501 1.10
52 ROLLER BALL BEARING (A) 6H738904 15.40
53 ROLLER O-RING (A) 6M625901 1.10
54 LINE ROLLER *Cannot be ordered 6M625801 16.50
55 ROLLER O-RING (B) 6M625901 1.10
56 ROLLER BALL BEARING (B) 6H738904 15.40
57 ROLLER W (C) 6E096501 1.10
58 ROLLER MAG COLLAR (B) *Cannot be ordered 6M654501 12.10
59 ROLLER MAG COLLAR (B) O-RING 6J916201 1.10
60 ROLLER W (A) 6E096501 1.10
61 ROLLER W (D) 6F774605 1.10
62 ROLLER SC?W 6M664401 1.10
63 ROLLER SC 6M844801 3.30
64 CLUTCH RING W 6H687201 2.20
65 CLUTCH RING O-RING 6G338401 1.10
66 CLUTCH RING *Cannot be ordered 6H688601 27.50
67 INFINITE COVER *Cannot be ordered 6J937302 39.60
68 INFINITE COVER O-RING 6J628302 1.10
69 MAG SHIELD PLATE *Cannot be ordered 6M664301 23.10
70 MAG SHIELD PLATE O-RING 6H502601 1.10
71 ONE-WAY CLUTCH W (A) 6M819601 1.10
72 ONE-WAY CLUTCH *Cannot be ordered 6F765401 36.30
73 ONE-WAY CLUTCH W (B) 6G158101 2.20
74 PINION BEARING (A) PLATE 6M684401 5.50
75 PINION BEARING (A) PLATE SC 6F206902 2.20
76 PINION BALL BEARING (A) 6M684301 8.80
77 PINION BEARING (A) COLLAR 6J922103 2.20
78 RATCHET 6M800101 2.20
79 RATCHET W 63727602 1.10
80 PINION + DRIVE GEAR SET *Cannot be ordered 6Z027949 187.00
81 PINION BEARING (B) SP?W 6J921402 1.10
82 PINION BEARING (B) W 63737808 1.10
83 PINION BALL BEARING (B) 6G523401 8.80
84 PINION BEARING (B) COLLAR 6J921301 3.30
85 BODY *Cannot be ordered 6M849301 115.50
86 MAIN SHAFT *Cannot be ordered 6M845201 38.50
87 REAR CAP GASKET 6M683601 3.30
88 REAR CAP *Cannot be ordered 6M683701 36.30
89 REAR CAP SC・W (A) 6B554303 1.10
90 REAR CAP SC・W (B) 6E272501 1.10
91 REAR CAP SC (A) 6J894901 2.20
92 REAR CAP SC (B) 6J895007 4.40
93 OSCILLATING GEAR (A) 6M682901 4.40
94 OSCILLATING GEAR (A) SP 6G157401 2.20
95 OSCILLATING GEAR (B) 6M682801 6.60
96 OSCILLATING GEAR (B) O-RING 6J037601 1.10
97 OSCILLATING GEAR BEARING W 6Q216002 1.10
98 OSCILLATING GEAR BALL BEARING 6B861702 8.80
99 OSCILLATING GEAR SC 6H347101 2.20
100 STOPPER COLLAR 6H243301 2.20
101 STOPPER 6M800001 3.30
102 STOPPER SC 63516401 2.20
103 STOPPER SP 6M684201 2.20
104 IDLER GEAR 6M683001 22.00
105 IDLER GEAR O-RING 6G336701 1.10
106 DRIVE BALL BEARING (A) 6G426301 8.80
107 DRIVE BEARING (A) W 6J920401 1.10
108 COVER PLATE O-RING 6M683201 1.10
109 COVER PLATE *Cannot be ordered 6M845101 55.00
110 HANDLE CAP O-RING 6M379901 1.10
111 HANDLE CAP 6J394903 17.60
112 DRIVE BALL BEARING (B) 6G426301 8.80
113 DRIVE BALL BEARING (B) W 6H502201 1.10
114 ENGINE PLATE O-RING 6M683201 1.10
115 ENGINE PLATE *Cannot be ordered 6M845301 55.00
116 HANDLE PACKING 6M845401 2.20
117 HANDLE 6M848601 203.50
200 HANDLE KNOB W 63753001 1.10
201 HANDLE KNOB COLLAR 6F648301 4.40
202 HANDLE KNOB 6M116401 48.40
203 HANDLE KNOB BALL BEARING 6G466205 15.40
204 HANDLE KNOB SC 6E454003 2.20
205 HANDLE KNOB CAP (WITH O-RING) 6M829101 17.60
206 HANDLE KNOB CAP O-RING 6H100001 1.10
207 SPOOL BAND 6X403701 15.40
208 DRIVER 6M793501 4.40
