[ABU] Genuine Spare Parts for REVO LT6-L Product code:1366286 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

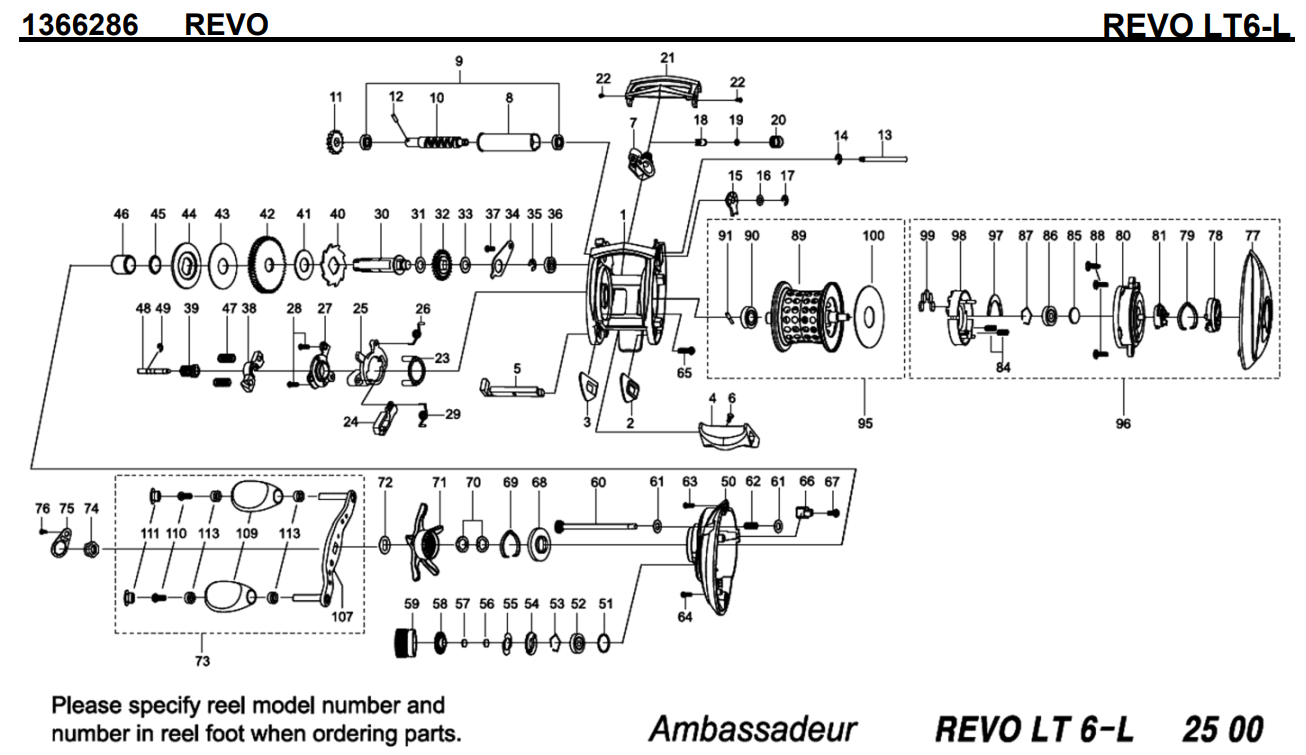

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1373526	FRAME	55.00
2	1125801	SLIDE WASHER	1.10
3	1125802	SLIDE WASHER	1.10
4	1125803	THUMBAR	3.30
5	1127696	THUMBAR SHAFT	1.65
6	1124746	THUMBAR SCREW	0.55
7	1185690	LINE GUIDE	5.50
8	1137750	LEVEL WIND TUBE	3.30
9	1132853	BALL BEARING	6.60
10	1132903	WORM SHAFT	16.50
11	1125732	WORM SHAFT GEAR	1.10
12	1125733	WORM SHAFT PIN	0.55
13	1251632	LINE GUIDE SHAFT	3.30
14	1116226	RETAINER	0.55
15	1125734	WORM SHAFT PIN HOLDER	0.77
16	1124178	WASHER	0.55
17	1124201	RETAINER	0.55
18	1125735	PAWL	3.30
19	1125736	WASHER	0.55
20	1129323	LINE GUIDE NUT	0.77
21	1308883	FRONT COVER	5.50
22	1125738	SCREW	0.55
23	1125739	YOKE HOLDER	1.10
24	1289971	KICK LEVER	3.30
25	1127698	LIFT CURVE	3.30
26	1200009	CLUTCH SPRING	1.76
27	1289974	CLUTCH PLATE	3.30
28	1125744	SCREW	0.55
29	1127701	KICK LEVER SPRING	0.55
30	1196827	MAIN GEAR SHAFT	13.20
31	1125747	WASHER	0.55
32	1251634	LEVEL WIND GEAR	1.76
33	1125749	WASHER	0.55
34	1125750	MAINGEAR SHAFT PLATE	2.20
35	1124201	RETAINER	0.55
36	1132857	BALL BEARING	6.60
37	1125796	SCREW	0.55
38	1127703	YOKE	1.10
39	1127704	PINION(1135174)	11.00
40	1189341	RATCHET	1.65
41	1281133	DRAG WASHER	2.75
42	1275654	MAIN GEAR (K)	22.00
43	1204950	Carbon washer	2.20
44	1251638	D-WASHER (K)	4.40
45	1144185	WASHER	0.55
46	1239084	SLEEVE	3.30
47	1116237	YOKE SPRING	0.55
48	1125766	PINION SHAFT	5.50
49	1116226	RETAINER	0.55
50	1373527	GEAR SIDE PLATE	60.50
51	1185714	O-RING	0.55
52	1128194	BALLBEARING	8.80
53	1104790	RING	0.55
54	1125768	CLICK WASHER	1.10
55	1125769	CLICK SPRING	1.65
56	1125770	FRICTION WASHER	0.55
57	1125771	RUBBER WASHER	0.55
58	1125772	CLICK WASHER	1.10
59	1275663	BRAKE KNOB	8.80
60	1252781	CAM LOCK SCREW	2.20
61	1133903	WASHER	0.55
62	1125775	SPRING	0.55
63	1125776	SCREW	0.55
64	1188229	SCREW	1.76
65	1185718	RIGHT SIDE COVER SCREW	0.55
66	1373520	LUBE PORT	2.20
67	1144213	SCREW	1.76
68	1132925	CLICK SPRING HOLDER	1.65
69	1125780	CLICK SPRING	0.77
70	1117208	SPRING WASHER	0.55
71	1373528	STAR WHEEL	27.50
72	1185798	HANDLE WASHER	0.55
73	1373522	HANDLE	38.50
74	1132941	HANDLE NUT	2.20
75	1132929	HANDLE NUT COVER	1.65
76	1252036	SCREW	1.76
77	1373529	PALM SIDE PLATE	22.00
78	1281162	MAG DIAL	3.30
79	1125791	CLICK SPRING	1.10
80	1252039	BEARING HOUSING	16.50
81	1185732	SILDE CAM	2.20
84	1187623	MAGNET HOLDER SPRING	1.76
85	1125797	WASHER	0.55
86	1128194	BALLBEARING	8.80
87	1104790	RING	0.55
88	1124209	SCREW	0.55
89	1257022	SPOOL (K)	49.50
90	1144215	BALL BEARING	8.80
91	1192826	SPOOL SHAFT PIN	2.20
95	1257023	SPOOL COMPLETE (K)	77.00
96	1373530	PALM SIDE COMPLETE	101.20
97	1252096	MAGNET PLATE	2.20
98	1302675	MAGNET HOLDER	5.50
99	1302674	MAGNET	4.40
100	1257068	SPOOL PLATE	3.30
107	1281323	HANDLE	16.50
109	1373525	HANDLE KNOB	16.50
110	1208090	SCREW	0.55
111	1341463	HANDLE KNOB CAP	6.60
113	1208088	BUSHING FOR BALL BEARING	2.20

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/phone/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.
