[Avail] Precision Shim Washer Set - Inner Diameter 4mm x Outer Diameter 5mm [shim_washer_4x5]

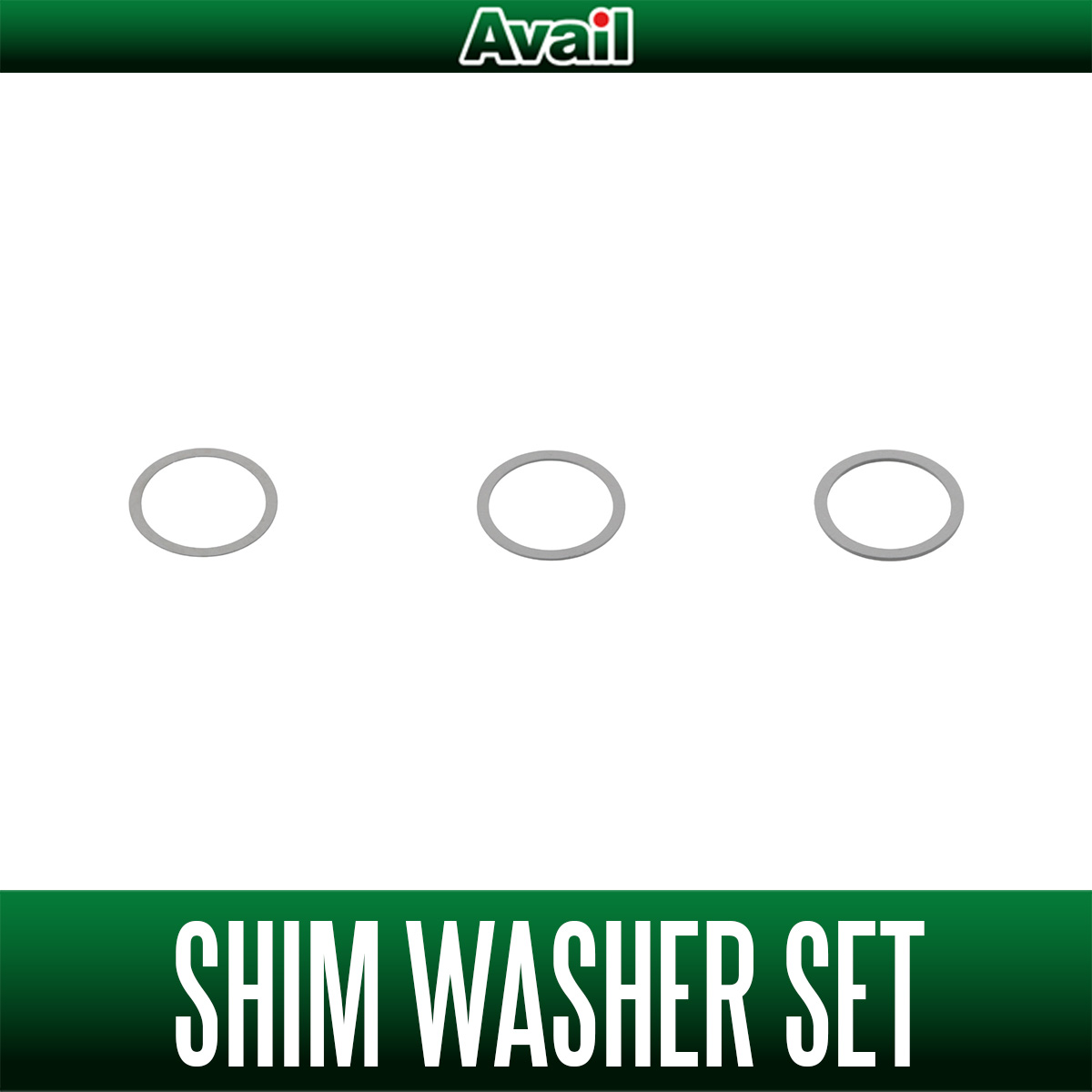

![Photo1: [Avail] Precision Shim Washer Set - Inner Diameter 4mm x Outer Diameter 5mm (1)](https://www.hedgehog-studio.co.jp/phone/data/hedgehog-studio/product/20260518_e119ef.jpg)
Our Selling Price: US$24.64 [Regular Price: US$35.20]
Item Description
| Product Description
- Set Includes 3 Thicknesses: 0.05mm / 0.10mm / 0.20mm
- Adjusts Play to Within 0.05mm
- Low Outer Diameter Design: Supports Only the Inner Race Without Contacting the Outer Race When Used With Bearings
A precision shim washer set designed to fine-tune slight play and maximize rotational performance.
When used with bearings, it contacts only the inner race, allowing clearance adjustment without compromising rotational performance.
- Ambassadeur 2500C Application Examples
“Application Example (1) Cog Wheel 5152 Bearing Model”
“Application Example (2) Aluminum Worm Shaft WS-25C-2BB-S”
“Application Example (3) Avail Handles & Knobs”
| Set Contents
| Size | Inner Diameter 4.1mm x Outer Diameter 4.9mm | ||
| Material | Stainless Steel | ||
| Thickness | 0.05mm | 0.10mm | 0.20mm |
| Quantity | 10 pieces | 10 pieces | 10 pieces |
JAN: 4580498106362
