  4. > [SHIMANO] Genuine Spare Parts for 26 CALCUTTA CONQUEST DC 200PG RIGHT Product code: 048714 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 CALCUTTA CONQUEST DC 200PG RIGHT Product code: 048714 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 CALCUTTA CONQUEST DC 200PG RIGHT Product code: 048714 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

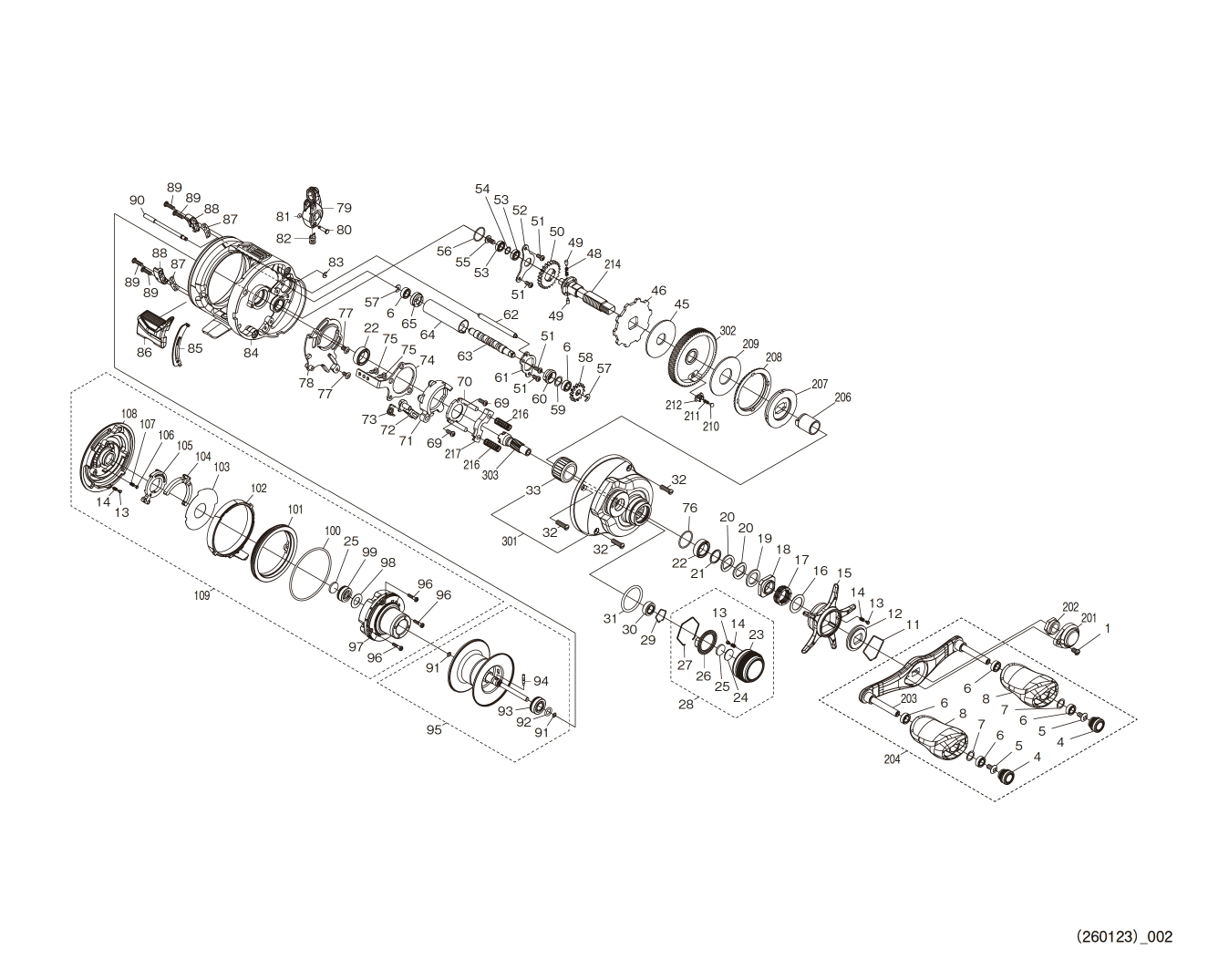

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "33 / ROLLER CLUTCH", "94 /SPOOL CLUTCH PIN" and "93 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10CZ5 SET SCREW 2.75
4 14861 HANDLE CAP 6.60
5 103E9 SET SCREW 1.10
6 104VX BALL BEARING (4X7X2.5) 13.75
7 104FH WASHER 2.20
8 10SCX HANDLE KNOB 11.00
11 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
12 10J1Y STAR DRAG CLICK PLATE 1.65
13 10B27 CLICK PIN 1.65
14 10988 CLICK SPRING 1.65
15 100VT STAR DRAG 22.55
16 148TG WASHER 1.10
17 10A71 STAR DRAG SPRING 2.75
18 10A0B STAR DRAG SET NUT 2.75
19 10J1N STAR DRAG SPACER 1.65
20 10D60 MAIN GEAR WASHER (C) 1.65
21 105PW STAR DRAG BEARING WASHER 1.10
22 10EX8 BALL BEARING (8X12X3.5) 13.75
23 148ZC MECHANICAL BRAKE KNOB 17.60
24 10896 MECHANICAL BRAKE WASHER 1.10
25 1057S SPOOL SHAFT STOPPER (B) 1.10
26 10L2F MECHANICAL BRAKE KNOB CLICK PLATE 2.75
27 10L6X MECHANICAL BRAKE KNOB CLICK HOLDER 2.75
28 14EFN MECHANICAL BRAKE KNOB ASSEMBLY 35.20
29 1057X RETAINING CLIP 1.65
30 105BP BALL BEARING (5X9X3) 13.75
31 108W8 O-RING S-16 1.65
32 10C3N SET SCREW 2.75
33 1005E ROLLER CLUTCH *Cannot be ordered 17.05
45 10CHZ STAR DRAG WASHER 2.75
46 10D6Y STOPPER GEAR 6.05
48 10JDX SPRING FOR WORM SHAFT GEAR 1.65
49 10HJG PIN FOR WORM SHAFT GEAR 1.65
50 10J6W WORM SHAFT GEAR 3.85
51 10LVF SET SCREW 1.10
52 100GK DRIVE GEAR SHAFT RETAINING PLATE 1.10
53 10SAM BALL BEARING (4X7X2) 13.75
54 143KE WASHER 1.10
55 10DR4 SET SCREW 1.10
56 10SZ4 O-RING 1.65
57 105NC TYPE E RETAINING RING 2 1.10
58 10FNX WORM SHAFT GEAR 2.75
59 10G8G WASHER 1.10
60 10N9Q WORM SHAFT HOLDER (A) 1.65
61 10T7S WORM SHAFT RETAINER 1.10
62 14AG2 LEVEL WIND GUIDE 3.85
63 101QC WORM SHAFT 5.50
64 14AG1 LEVEL WIND PIPE 14.30
65 104SP WORM SHAFT HOLDER (B) 1.65
69 101CN SET SCREW 1.65
70 10F42 CLUTCH CAM SUPPORT PLATE 3.85
71 10SX6 CLUTCH CAM 2.75
72 105ZU CLUTCH PAWL 3.85
73 10N1Z CLUTCH PAWL SPRING 1.10
74 101G3 CLUTCH PLATE 2.20
75 10559 SET SCREW 1.65
76 1027V O-RING 1.65
77 100BD SET SCREW 1.65
78 101Q6 MAIN BODY A SEAT 1.10
79 10TED LEVEL WIND ASSEMBLY 51.70
80 100GC WORM SHAFT PIN RETAINER 1.10
81 10908 O-RING 1.65
82 100GJ WORM SHAFT PIN 4.40
83 105NB TYPE E RETAINING RING 1.5 1.10
84 14DG0 FRAME ASSEMBLY 286.00
85 101Q7 CLUTCH LEVER MOUNT 1.10
86 10U0N CLUTCH LEVER ASSEMBLY 7.70
87 1421W WASHER 1.10
88 14AFY FRAME B MOUNT CAM 2.20
89 14BQ2 SET SCREW 1.10
90 14AG0 LINE GUARD 4.95
91 10E7H O-RING 1.10
92 10TNF O-RING 1.65
93 1005D BALL BEARING (5X11X4) *Cannot be ordered 13.75
94 10MD0 SPOOL CLUTCH PIN *Cannot be ordered 1.65
95 14DG1 SPOOL ASSEMBLY 143.00
96 148ZP SET SCREW 1.10
97 14AFX DC ASSEMBLY 148.50
98 10B94 BEARING SEAL 1.65
99 10S37 BALL BEARING (3X10X4) 13.75
100 10E9G O-RING 2.75
101 14AFV FRAME B MOUNT 37.40
102 14AFW MAIN BODY B CAM LEVER 2.20
103 1485C MAIN BODY B NAMEPLATE 1.10
104 14D81 BR KNOB ASSEMBLY 11.55
105 14D82 DC DIAL ASSEMBLY 8.80
106 144NT CLICK PIN 1.10
107 10T6Z CLICK SPRING 1.10
108 14AFU MAIN BODY B 111.65
109 14DG2 MAIN BODY B ASSEMBLY 374.00
201 100VN RETAINER 17.05
202 10FSM HANDLE RETAINING NUT 2.75
203 14DG3 HANDLE SHANK ASSEMBLY 49.50
204 14DG4 HANDLE ASSEMBLY 132.00
206 10BN1 ROLLER CLUTCH INNER TUBE 6.05
207 10E9L STAR DRAG PLATE 9.35
208 10E9B DRAG CLICK RATCHET 3.85
209 1027W STAR DRAG WASHER 9.35
210 10C0T DRAG CLICK PIN 2.75
211 10J8A DRAG CLICK SPRING 1.65
212 10J87 DRAG SPRING HOLDER 1.65
214 101Q9 DRIVE GEAR SHAFT 13.20
216 104BU CLUTCH YOKE SPRING 1.10
217 101EX CLUTCH YOKE 1.65
301 14DG6 MAIN BODY A ASSEMBLY 147.40
302 101EU DRIVE GEAR 28.05
303 101QB PINION GEAR 22.00
*F01 14B04 REEL BAG 11.00
