[SHIMANO] Genuine Spare Parts for 26 CALCUTTA CONQUEST DC 100HG RIGHT Product code: 048691 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.96 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/9719

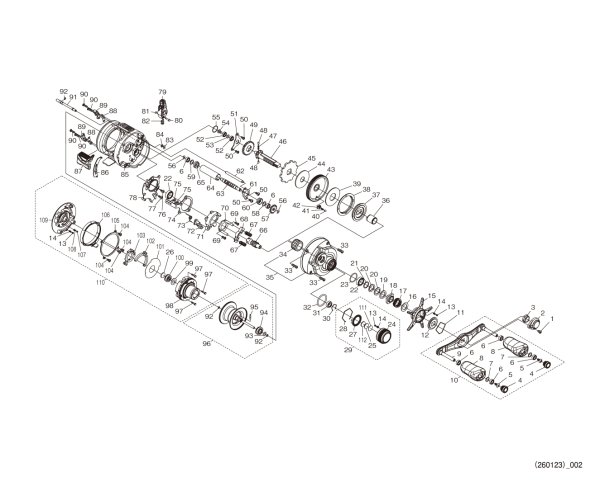

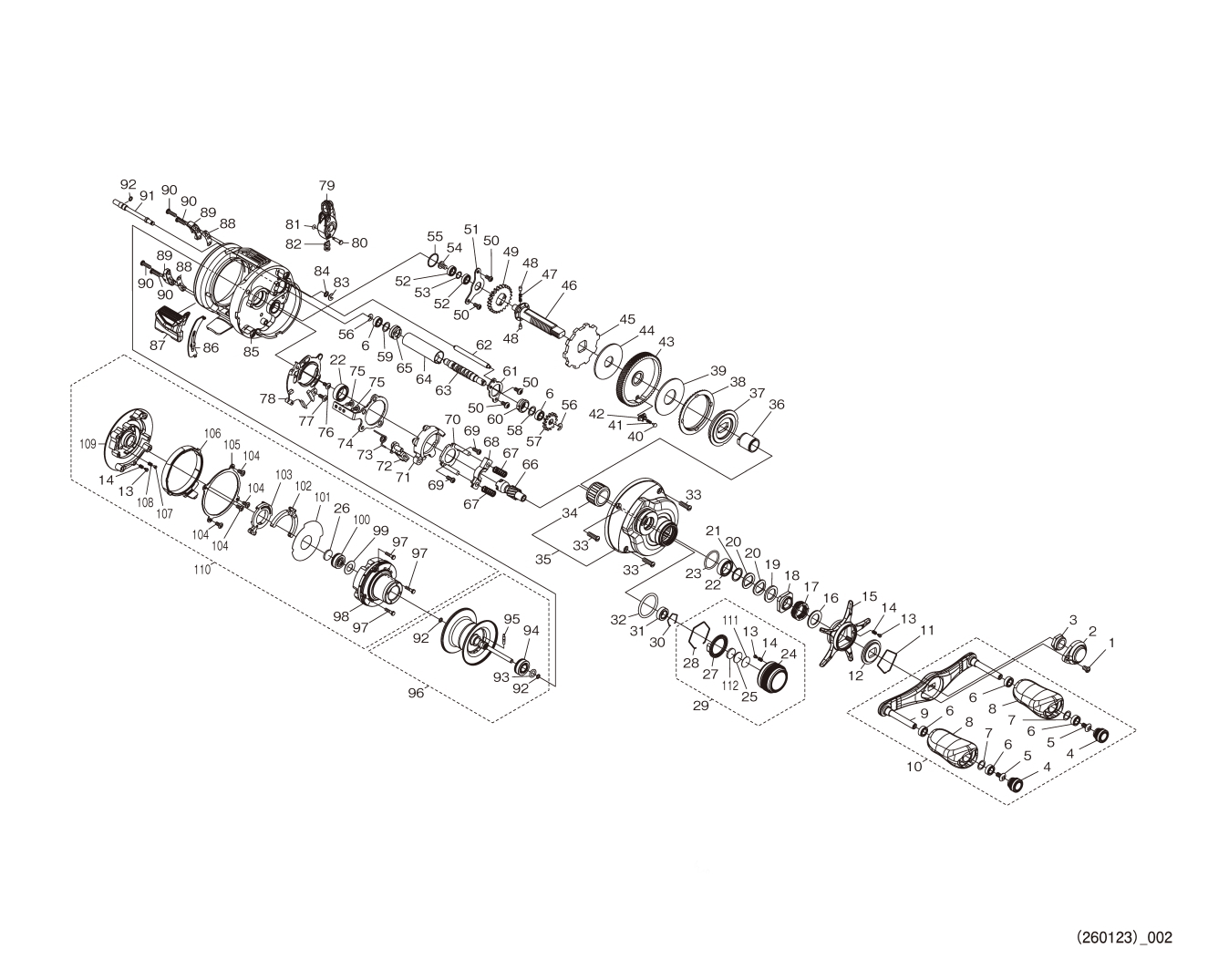

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "34 / ROLLER CLUTCH", "95 /SPOOL CLUTCH PIN" and "94 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10CZ5	SET SCREW	2.75
2	100VN	RETAINER	17.05
3	10FSM	HANDLE SET NUT	2.75
4	14861	HANDLE CAP	6.60
5	103E9	SET SCREW	1.10
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
8	10E9X	HANDLE KNOB	11.55
9	13HVL	HANDLE SHAFT ASSEMBLY	39.60
10	14D7W	HANDLE ASSEMBLY	132.55
11	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
12	10J1Y	STAR DRAG CLICK PLATE	1.65
13	10B27	CLICK PIN	1.65
14	10988	CLICK SPRING	1.65
15	14AYL	STAR DRAG	28.60
16	100CU	WASHER	1.10
17	10A71	STAR DRAG SPRING	2.75
18	10A0B	STAR DRAG LOCK NUT	2.75
19	10J1N	STAR DRAG SPACER	1.65
20	10D60	MAIN GEAR WASHER (C)	1.65
21	105PW	STAR DRAG BEARING WASHER	1.10
22	10EX8	BALL BEARING (8X12X3.5)	13.75
23	1027V	O-RING	1.65
24	148ZC	MECHANICAL BRAKE KNOB	17.60
25	10896	MECHANICAL BRAKE WASHER	1.10
26	1057S	SPOOL SHAFT STOP (B)	1.10
27	10L2F	MECHANICAL BRAKE KNOB CLICK PLATE	2.75
28	10L6X	MECHANICAL BRAKE KNOB CLICK HOLDER	2.75
29	14D7X	MECHANICAL BRAKE KNOB ASSEMBLY	23.65
30	1057X	RETAINING CLIP	1.65
31	105BP	BALL BEARING (5X9X3)	13.75
32	108W8	O-RING S-16	1.65
33	10C3N	SET SCREW	2.75
34	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
35	14D7Y	MAIN BODY ASSEMBLY A	145.20
36	10BN3	ROLLER CLUTCH INNER TUBE	6.05
37	10SNJ	STAR DRAG PLATE	7.15
38	10E9B	DRAG CLICK RATCHET	3.85
39	1027W	STAR DRAG WASHER	9.35
40	10C0T	DRAG CLICK PIN	2.75
41	10J8A	DRAG CLICK SPRING	1.65
42	10J87	DRAG SPRING HOLDER	1.65
43	10RLW	DRIVE GEAR	28.05
44	10CHZ	STAR DRAG WASHER	2.75
45	10RLS	STOPPER GEAR	3.85
46	10T7U	DRIVE GEAR SHAFT	13.20
47	10JDX	SPRING FOR WORM SHAFT GEAR	1.65
48	10HJF	PIN FOR WORM SHAFT GEAR	1.65
49	10057	WORM SHAFT GEAR	2.75
50	10LVE	SET SCREW	1.10
51	100GK	DRIVE GEAR SHAFT RETAINING PLATE	1.10
52	10SAM	BALL BEARING (4X7X2)	13.75
53	10THF	WASHER	1.10
54	10DR4	SET SCREW	1.10
55	10SZ4	O-RING	1.65
56	105NC	E-TYPE RETAINING RING 2	1.10
57	10FNX	WORM SHAFT GEAR	2.75
58	10G8F	WASHER	1.10
59	10G8G	WASHER	1.10
60	10N9Q	WORM SHAFT SUPPORT (A)	1.65
61	10T7S	WORM SHAFT RETAINER	1.10
62	14BLM	LEVEL WIND GUIDE	3.85
63	100GT	WORM SHAFT	5.50
64	1485Q	LEVEL WIND PIPE	7.15
65	104SP	WORM SHAFT MOUNT (B)	1.65
66	100HY	PINION GEAR	22.00
67	104BU	CLUTCH YOKE SPRING	1.10
68	1046T	CLUTCH YOKE	1.65
69	101CN	SET SCREW	1.65
70	10F42	CLUTCH CAM SUPPORT PLATE	3.85
71	10SX6	CLUTCH CAM	2.75
72	105ZU	CLUTCH PAWL	3.85
73	10N1Z	CLUTCH PAWL SPRING	1.10
74	100GE	CLUTCH PLATE	2.20
75	10559	SET SCREW	1.65
76	100BD	SET SCREW	1.65
77	10MPS	SET SCREW	1.65
78	100GD	MAIN BODY A SHEET	1.65
79	10TED	LEVEL WIND ASSEMBLY	51.70
80	100GC	WORM SHAFT PIN RETAINER	1.10
81	10908	O-RING	1.65
82	100GJ	WORM SHAFT PIN	4.40
83	105NB	E-TYPE RETAINING RING 1.5	1.10
84	10GA7	WASHER	1.10
85	14D7Z	FRAME ASSEMBLY	325.60
86	100GU	CLUTCH LEVER MOUNT	1.10
87	10U0N	CLUTCH LEVER ASSEMBLY	7.70
88	149EF	WASHER	1.65
89	13Y8U	FRAME B MOUNT CAM	1.10
90	14BQ2	SET SCREW	1.10
91	148ZF	LINE GUARD	4.95
92	10E7H	O-RING	1.10
93	10TNF	O-RING	1.65
94	1005D	BALL BEARING (5X11X4) *Cannot be ordered	13.75
95	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
96	14D80	SPOOL ASSEMBLY	122.65
97	148ZP	SET SCREW	1.10
98	148ZN	DC ASSEMBLY	144.65
99	10B94	BEARING SEAL	1.65
100	10S37	BALL BEARING (3X10X4)	13.75
101	1485C	MAIN UNIT B NAMEPLATE	1.10
102	14D81	BR KNOB ASSEMBLY	11.55
103	14D82	DC DIAL ASSEMBLY	8.80
104	10S65	SET SCREW	1.10
105	148ZJ	MAIN UNIT B CAM LEVER SUPPORT PLATE	1.10
106	148ZH	MAIN UNIT B CAM LEVER	2.20
107	144NT	CLICK PIN	1.10
108	10T6Z	CLICK SPRING	1.10
109	148ZG	MAIN UNIT B	94.05
110	14DFD	MAIN UNIT B ASSEMBLY	455.40
111	141QM	WASHER	1.10
112	1057Q	SPOOL SHAFT STOPPER (B)	1.10
*F01	14B04	REEL BAG	11.00
