[SHIMANO] Genuine Spare Parts for 26 STELLA SW 25000PG Product Code: 048059 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

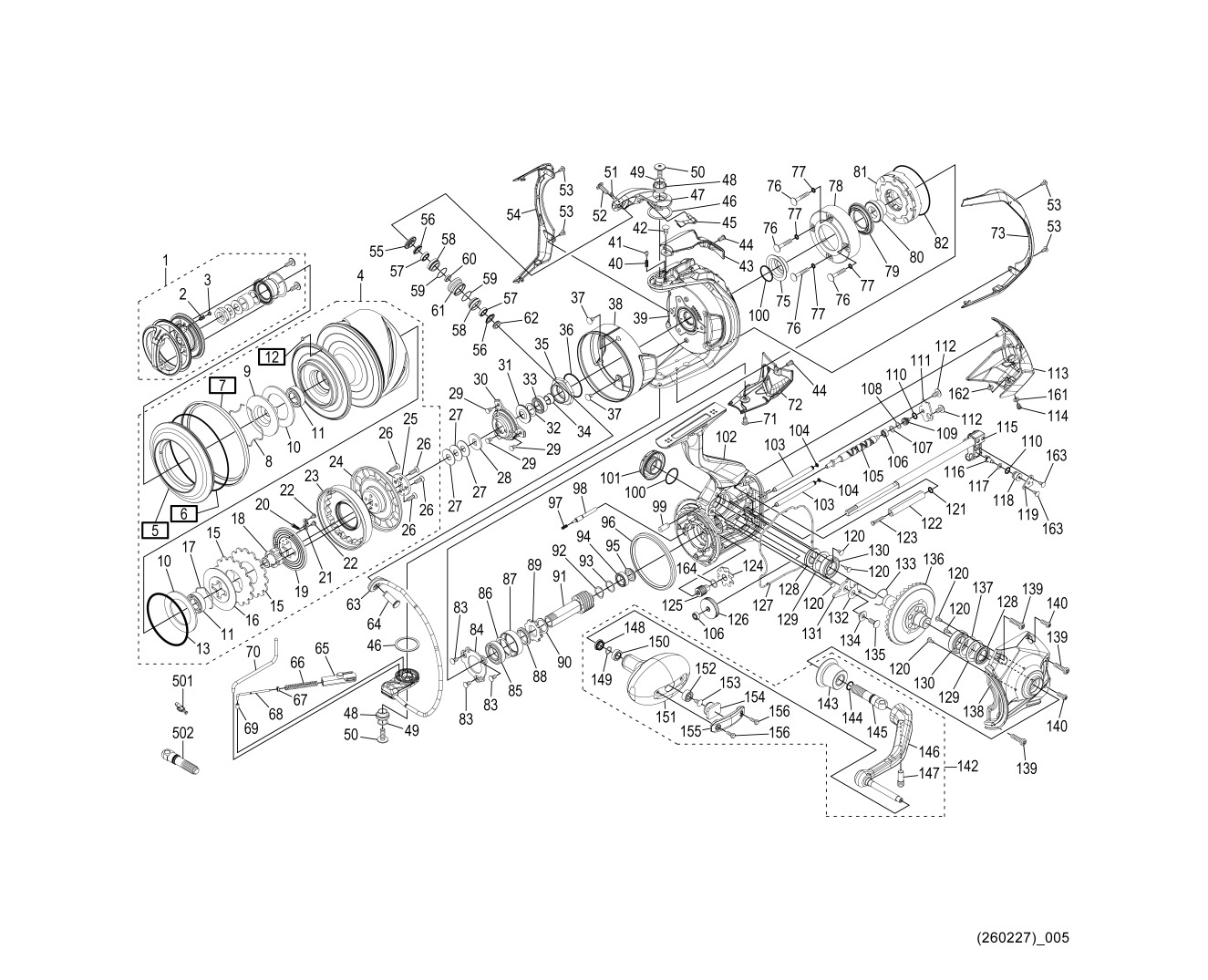

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Parts with square numbers are for repair only.
These parts are supposedto be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	14CCV	DRAG KNOB ASSEMBLY	138.60
2	1077S	BAIL TRIP LEVER CLICK SPRING	1.65
3	10361	CLICK PIN	1.10
4	14CWS	SPOOL ASSEMBLY	385.00
5	14ASY	SPOOL RING COLLAR *Cannot be ordered	55.00
6	14CXD	O-RING *Cannot be ordered	3.85
7	14ASX	SPOOL RING *Cannot be ordered	49.50
8	10B88	RETAINING SPRING	1.65
9	14AS0	OVAL WASHER	17.60
10	146VH	DRAG WASHER (A)	33.00
11	10BGD	BALL BEARING (9X17X5)	13.75
12	10EAG	PIN *Cannot be ordered	1.10
13	108WD	O-RING AS568-31	1.10
15	14AS1	DRAG WASHER (B)	33.00
16	14D7J	DRAG PLATE (A)	15.40
17	10LWM	BEARING RETAINER	1.10
18	14AS2	MAIN SHAFT BEARING GUIDE	16.50
19	10SFD	DRAG PLATE (B)	6.05
20	10E90	SPOOL PIN ASSEMBLY	11.55
21	1017R	SPRING GUIDE	1.65
22	14A1D	SET SCREW	1.10
23	14DUP	DRAG COVER ASSEMBLY	44.00
24	10SR1	HEAT SINK	11.55
25	10SQJ	SPOOL RETAINER (B)	2.75
26	10MLB	SET SCREW	1.10
27	101DM	SPOOL WASHER (A)	2.20
28	10J3W	SPOOL RETAINER (D)	1.65
29	103LB	SET SCREW	1.10
30	10RBZ	RETAINER	1.65
31	14AS6	ROTOR BEARING SEAL	5.50
32	10HU1	WASHER	1.10
33	104PS	BALL BEARING (8X14X4)	13.75
34	10SR4	ROTOR RETAINER BUSHING	9.35
35	46275	ROTOR NUT	22.55
36	10CG0	O-RING 19.5	1.65
37	10E8M	SET SCREW	1.65
38	1487L	ROTOR FLANGE	17.60
39	1487D	ROTOR	176.00
40	1077Q	BAIL TRIP LEVER CLICK SPRING	1.65
41	10CH8	BAIL TRIP LEVER CLICK PIN	1.65
42	10SCS	SET SCREW	1.10
43	1487F	ARM CAM SPRING COVER	14.30
44	14E8W	SET SCREW	2.75
45	149PA	ARM CAM FIN ASSEMBLY	5.50
46	10J7H	WASHER	1.10
47	1487G	ARM CAM	88.00
48	10K7M	SET SCREW COLLAR	3.85
49	14A71	WASHER	1.10
50	147FH	SET SCREW	2.20
51	10PN1	SET SCREW (M2X3)	1.65
52	10K46	SET SCREW	6.05
53	10MT2	SET SCREW	1.10
54	1487K	ROTOR GUARD (B)	3.30
55	146VU	LINE ROLLER MOUNT	3.30
56	1016K	LINE ROLLER SEAL	1.65
57	104W1	BALL BEARING (5X8X2)	9.35
58	1015A	BUSHING	1.65
59	1015S	O-RING	1.65
60	1014P	SPACER	1.65
61	146VT	LINE ROLLER	27.50
62	1014N	SPACER	3.85
63	14CCX	BAIL ASSEMBLY	99.00
64	10Q3F	ARM MOUNTING SHAFT	9.35
65	10SEN	ARM SPRING GUIDE (B)	1.65
66	10SEV	ARM CAM SPRING	1.65
67	10DUU	ARM SPRING GUIDE (A) SPACER	1.65
68	1016J	ARM SPRING GUIDE (A)	3.85
69	10R2F	ARM SPRING GUIDE (A) SPACER BUSHING	1.65
70	14AS7	INNER BRAKE LEVER	4.40
71	14E8X	SET SCREW	4.95
72	1487E	BAIL MOUNTING COVER	14.30
73	1487J	ROTOR GUARD (A)	3.30
75	14AS8	ROTOR COLLAR	8.80
76	10RP7	SET SCREW	1.65
77	10LAD	O-RING	1.10
78	10MHD	ROLLER CLUTCH SEAL COVER	2.75
79	14ASU	ROLLER CLUTCH SEAL	9.35
80	14ASR	ROLLER CLUTCH INNER	44.00
81	14DKS	ROLLER CLUTCH ASSEMBLY	36.30
82	10MLR	O-RING	3.85
83	10ML2	SET SCREW	2.75
84	10SFC	BEARING RETAINING PLATE	3.85
85	104PV	BALL BEARING (10X19X5)	13.75
86	10T1K	WASHER	1.10
87	10SR8	BEARING COLLAR	9.35
88	10SRD	PINION GEAR COLLAR	6.05
89	14ASD	TOOTHED STOPPER	3.30
90	10GD6	WASHER	1.65
91	14AS9	PINION GEAR	51.70
92	14ASV	CURVED WASHER	1.65
93	14ASF	SPACER	1.65
94	10583	BALL BEARING (8X12X3.5)	13.75
95	14AST	BUSHING	4.95
96	104AZ	FRICTION RING	3.85
97	10R5T	INTERMEDIATE GEAR SPRING	1.10
98	14ASM	INTERMEDIATE GEAR SHAFT	2.20
99	10AYR	BODY FLANGE SEAL	2.75
100	108WP	O-RING	1.65
101	1487R	HANDLE SCREW CAP	28.60
102	14CWT	BODY ASSEMBLY	242.00
103	10SQL	SLIDER GUIDE	3.85
104	10B0V	O-RING	2.75
105	14ASJ	WORM SHAFT	8.80
106	10PDA	BALL BEARING (3X6X2.5)	13.75
107	100XZ	WASHER	2.20
108	10TK0	WASHER	1.65
109	1015D	BUSHING	3.85
110	10TNF	O-RING	1.65
111	14ASP	WORM SHAFT COVER	2.75
112	103H6	SET SCREW	1.65
113	1487P	BODY GUARD	33.00
114	10L9D	GUARD SET SCREW (D)	1.65
115	14CCZ	MAIN SHAFT ASSEMBLY	55.00
116	106V5	CROSS GEAR PIN	6.05
117	14813	WASHER	1.65
118	10164	WORM SHAFT PIN COLLAR	6.05
119	14ASQ	WORM SHAFT PIN RETAINING PLATE	1.65
120	10MT4	SET SCREW	1.10
121	108W9	O-RING (3X5)	1.65
122	10AYM	BODY GUARD COLLAR	2.75
123	10LSC	SET SCREW	1.10
124	14ASN	INTERMEDIATE GEAR (LARGE)	14.30
125	14ASS	INTERMEDIATE GEAR (SMALL)	11.55
126	14ASH	WORM SHAFT GEAR	13.20
127	14AR0	BODY SEAL	3.30
128	146W0	BEARING SEAL	5.50
129	10BGG	WASHER	1.65
130	104PW	BALL BEARING (10X19X5)	13.75
131	10SQW	ASSIST STOPPER	1.65
132	102VH	ASSIST STOPPER COVER	1.65
133	14ASE	STOPPER SPRING	1.65
134	10J3U	ASSIST STOPPER COLLAR	3.85
135	103HM	SET SCREW	1.10
136	14ARX	DRIVE GEAR ASSEMBLY	88.00
137	14814	WASHER	2.20
138	14CD0	COVER ASSEMBLY	99.00
139	10PVN	SET SCREW	2.75
140	10A6N	SET SCREW	1.65
142	14CD1	HANDLE ASSEMBLY	203.50
143	14CD2	HANDLE SHAFT FLANGE ASSEMBLY	38.50
144	10LAA	O-RING	1.10
145	146WL	HANDLE SHAFT	15.40
146	14CD3	HANDLE SHANK ASSEMBLY	110.00
147	10E85	SET SCREW	6.05
148	147FX	HANDLE KNOB SEAL	7.70
149	104FH	WASHER	2.20
150	105BN	BALL BEARING (5X9X3)	13.75
151	146XQ	HANDLE KNOB	17.60
152	10KX1	BALL BEARING (4X9X4)	13.75
153	103E9	SET SCREW	1.10
154	147F8	HANDLE CAP	1.65
155	146XN	HANDLE KNOB NAMEPLATE	4.95
156	103NM	SET SCREW	2.75
161	14CTH	WASHER	1.10
162	14D7L	WASHER	1.10
163	103BX	SET SCREW	1.65
164	148GM	WASHER	1.10
501	1485A	ARM CAM FIN (B) ASSEMBLY	5.50
502	1485B	HANDLE SHAFT (RIGHT) ASSEMBLY	16.50
*F01	145MV	REEL BAG	38.50
MH01	14D96	LEG BOTTOM NAMEPLATE QR	6.60
