[SHIMANO] Genuine Spare Parts for 26 GRAPPLER 300XG RIGHT Product code: 049759 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 GRAPPLER 300XG RIGHT Product code: 049759 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

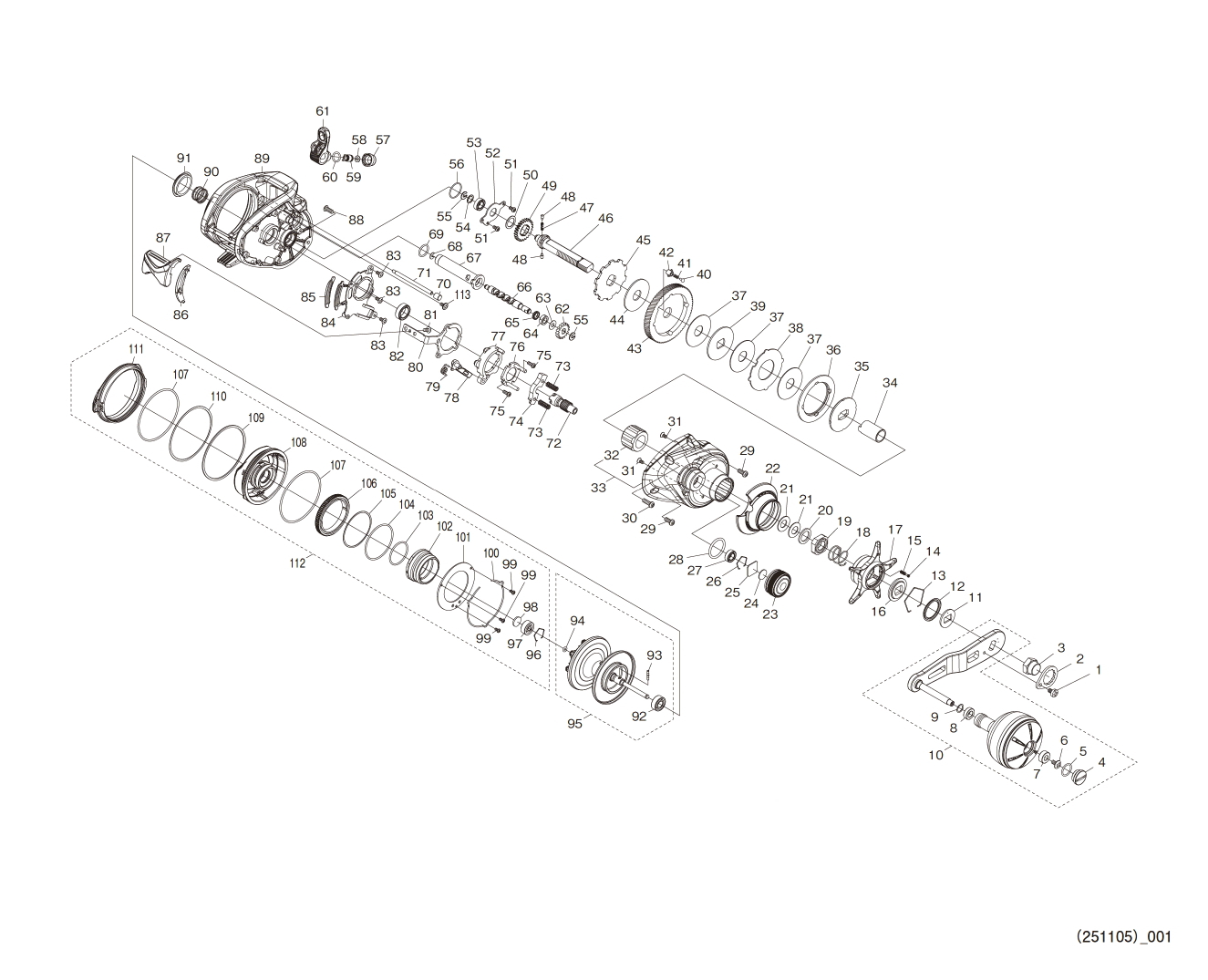

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "32 / ROLLER CLUTCH BEARING", "93 /SPOOL CLUTCH PIN", "92 /BALL BEARING", "BRKS /BRAKE SHOE M" and "BST1 /BRAKE SHAFT", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 13NXD SET SCREW 1.10
2 13VAD RETAINER 2.75
3 10FT1 HANDLE SET NUT 2.75
4 10B2C HANDLE CAP 6.05
5 10LAB O-RING 1.10
6 103E9 SET SCREW 1.10
7 10EU0 HANDLE GRIP BUSHING (A) 1.65
8 104UJ HANDLE GRIP BUSHING (B) 1.65
9 104FH WASHER 2.20
10 14CCM HANDLE ASSEMBLY 88.00
11 10QVN HANDLE MOUNT WASHER 1.65
12 10QVP STAR DRAG SEAL 2.75
13 10KXW STAR DRAG CLICK PLATE RETAINER 1.65
14 10MFC CLICK PIN 1.65
15 10BT2 CLICK SPRING 1.65
16 10J26 STAR DRAG CLICK PLATE 1.65
17 14CC9 STAR DRAG 23.10
18 10A70 STAR DRAG SPRING 2.75
19 10A3X STAR DRAG LOCK NUT 6.05
20 10J1P STAR DRAG SPACER 2.75
21 109LA SPRING (DB-8H) 1.65
22 148PZ PARTS 2.20
23 14CCD MECHANICAL BRAKE KNOB 16.50
24 10896 MECHANICAL BRAKE WASHER 1.10
25 148DJ MECHANICAL BRAKE WASHER 1.65
26 148DK BEARING RETAINER 1.10
27 105BR BALL BEARING (5X9X3) 13.75
28 108WK O-RING SM14 1.65
29 10TLW SET SCREW 1.10
30 10L6E SET SCREW 1.65
31 13NWK SET SCREW 1.10
32 10F37 ROLLER CLUTCH BEARING *Cannot be ordered 17.05
33 14CCP MAIN ASSEMBLY A 70.40
34 145RZ ROLLER CLUTCH INNER TUBE 12.65
35 10D54 STAR DRAG PLATE 3.85
36 10JAZ DRAG CLICK RATCHET 1.65
37 1064S STAR DRAG WASHER 6.05
38 13V9P STAR DRAG WASHER 1.65
39 13V9N STAR DRAG PLATE 1.65
40 13UDK DRAG CLICK PIN 2.75
41 13VFP DRAG CLICK SPRING 1.65
42 10J58 DRAG SPRING HOLDER 1.65
43 14CCE DRIVE GEAR 33.00
44 1025A STAR DRAG WASHER 6.05
45 145SG STOPPER GEAR 2.75
46 145S5 DRIVE GEAR SHAFT 15.95
47 10JDZ SPRING FOR WORM SHAFT GEAR 1.65
48 10HJG PIN FOR WORM SHAFT GEAR 1.65
49 10J47 WORM SHAFT GEAR 2.75
50 10GR7 WASHER 1.10
51 10S3Y SET SCREW 1.10
52 145S6 DRIVE GEAR SHAFT RETAINING PLATE 1.65
53 105BP BALL BEARING (5X9X3) 13.75
54 10G6D WASHER 1.65
55 105NK E-TYPE RETAINING RING 2.5 1.10
56 10LA8 O-RING 1.65
57 10FJB LEVEL WIND RECEIVER 1.65
58 10CFU WASHER 1.10
59 10BHQ WORM SHAFT PIN 2.75
60 108WQ O-RING 1.65
61 10R7V LEVEL WIND ASSEMBLY 13.75
62 1024Q WORM SHAFT GEAR 2.75
63 10C47 MAIN GEAR SHAFT WASHER 1.10
64 10PXZ HANDLE KNOB BUSHING 1.65
65 1024R WORM SHAFT SEAL 3.85
66 146AP WORM SHAFT 1.65
67 145SF LEVEL WIND PIPE 1.65
68 105NC E-TYPE RETAINING RING 2 1.10
69 101GT O-RING 1.65
70 14694 LEVEL WIND GUIDE RETAINING PLATE 1.10
71 145S1 LEVEL WIND GUIDE 1.65
72 14CY5 PINION GEAR 14.30
73 104BC CLUTCH YOKE SPRING 1.10
74 1046X CLUTCH YOKE 1.65
75 10LVJ SET SCREW 1.10
76 10QVM CLUTCH CAM SUPPORT PLATE 3.85
77 10254 CLUTCH CAM 2.75
78 101J2 CLUTCH PAWL 9.35
79 101J3 CLUTCH PAWL SPRING 1.65
80 101J9 CLUTCH PLATE 4.95
81 10LCL SET SCREW 1.10
82 105BT BALL BEARING (8X12X3.5) 13.75
83 10SUT SET SCREW 1.65
84 10251 MAIN BODY A SEAT 3.85
85 101J8 CLUTCH LEVER SEAL 3.85
86 145SQ CLUTCH LEVER MOUNT (B) 1.65
87 101J4 CLUTCH LEVER 6.05
88 101WJ SET SCREW 1.65
89 14CXM FRAME ASSEMBLY 110.00
90 10EZE BB PUSH SPRING 1.65
91 1024L FRAME CENTER SEAL 2.75
92 105CA BALL BEARING (5X11X4) *Cannot be ordered 13.75
93 10MD1 SPOOL CLUTCH PIN *Cannot be ordered 1.10
94 10EZ7 O-RING 1.10
95 14CCS SPOOL ASSEMBLY 82.50
96 1054D BEARING RETAINER 1.10
97 105C2 BALL BEARING (3X10X4) 13.75
98 10EX5 SPOOL SHAFT STOPPER B 1.10
99 10E7R SET SCREW 1.10
100 145S0 CAM LEVER RETAINING RING 1.65
101 147J3 PARTS 3.30
102 148DF BRAKE PIPE GEAR ASSEMBLY 22.00
103 146GJ O-RING 1.65
104 10MLU O-RING 3.85
105 146HL WASHER 1.10
106 145SU BRAKE DIAL 3.30
107 145SP O-RING 2.20
108 14CXK FRAME B MOUNT ASSEMBLY 31.90
109 146HN WASHER 2.20
110 146HP WASHER 1.10
111 147J7 PARTS 11.55
112 14DJG MAIN BODY B ASSEMBLY 49.50
113 10MPD SET SCREW 1.10
BRKS 1019F BRAKE SHOE M *Cannot be ordered 1.10
BST1 13SFU BRAKE SHAFT *Cannot be ordered 1.10
