[SHIMANO] Genuine Spare Parts for 26 TALICA 16II Product code: 049995 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

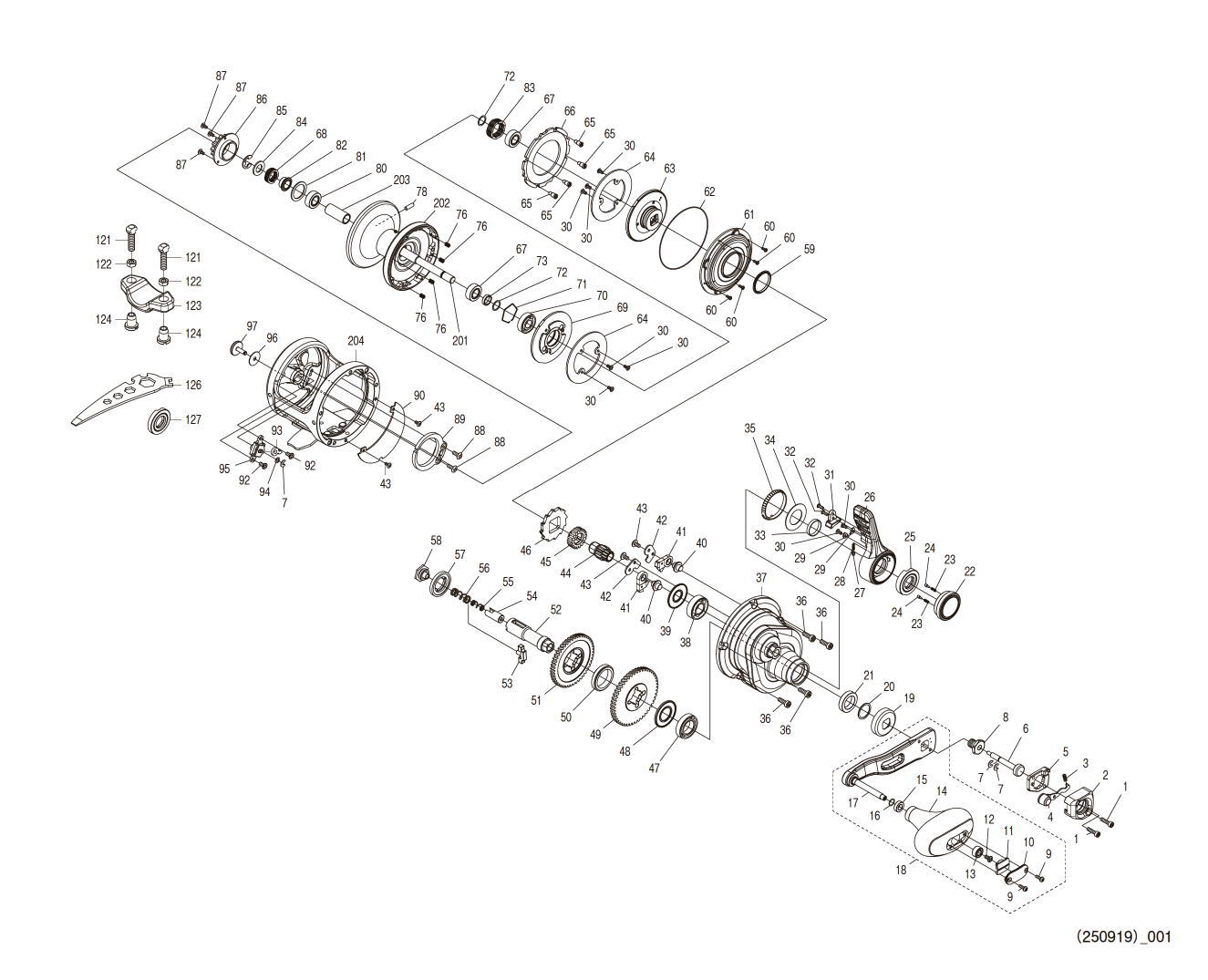

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	13ZQG	SET SCREW	1.65
2	13ZQH	RETAINER COVER	26.95
3	10PWJ	LOCK PLATE SPRING	1.65
4	13ZRS	LOCK PLATE ASSEMBLY	6.60
5	10PBN	RETAINER	1.65
6	109XB	PUSH ROD	6.05
7	105NK	E-TYPE RETAINING RING 2.5	1.10
8	106XP	HANDLE SET SCREW	6.05
9	103NH	SET SCREW	1.10
10	13ZQJ	HANDLE KNOB NAMEPLATE	1.10
11	10B97	HANDLE CAP	2.75
12	103E9	SET SCREW	1.10
13	10KX2	BALL BEARING (4X9X4)	13.75
14	13ZQK	HANDLE KNOB	27.50
15	104UJ	HANDLE GRIP BUSHING (B)	1.65
16	104FH	WASHER	2.20
17	13ZRT	HANDLE SHAFT ASSEMBLY	44.00
18	13ZRU	HANDLE ASSEMBLY	93.50
19	10KZS	HANDLE MOUNT	3.85
20	10G9V	WASHER	1.10
21	109AR	DRIVE GEAR BEARING	11.55
22	1400U	PRESET KNOB ASSEMBLY	23.10
23	10K07	CLICK SPRING	1.65
24	10JX6	CLICK PIN	1.65
25	13ZQL	DRAG CAM	20.90
26	13ZRV	DRAG LEVER ASSEMBLY	79.20
27	13ZQM	CLICK PIN	1.10
28	10C3X	CLICK SPRING	1.65
29	13ZQN	DRAG LEVER CLICK PIN COVER	1.65
30	10S65	SET SCREW	1.10
31	13ZQP	LEVER PROTECTOR	1.65
32	13ZQQ	SET SCREW	1.10
33	108DN	DRAG LEVER BUSHING	1.65
34	10J19	WASHER	1.65
35	10F6B	LEVER CLICK GEAR	1.10
36	13ZQR	SET SCREW	1.65
37	13ZRW	MAIN UNIT A ASSEMBLY	143.00
38	10T2K	BALL BEARING (9X20X6)	13.75
39	13ZQS	WASHER	7.70
40	10PFS	STOPPER MOUNTING SHAFT	2.20
41	10MWC	STOPPER TAB ASSEMBLY	3.85
42	13ZQT	STOPPER MOUNTING PLATE	1.10
43	1055F	SET SCREW	1.65
44	13ZQU	PINION GEAR (A)	20.90
45	13ZQV	PINION GEAR (B)	22.00
46	10DAM	STOPPER GEAR	3.85
47	10KXA	BALL BEARING (12X21X5)	17.05
48	13ZQW	DRIVE GEAR WASHER	9.35
49	13ZQX	DRIVE GEAR (A)	35.20
50	10D61	MAIN GEAR WASHER (C)	1.65
51	13ZQY	DRIVE GEAR (B)	30.80
52	10D6L	DRIVE GEAR SHAFT	22.55
53	10KXH	LOCK PIN	6.05
54	10KXL	LOCK PIN HOLDER	1.65
55	109VM	LOCK PIN SPRING	1.10
56	10KXQ	MAIN GEAR SHAFT SPRING	1.65
57	10D5B	MAIN GEAR WASHER (A)	1.65
58	10FCD	MAIN GEAR SHAFT MOUNTING BOLT	2.75
59	10EWA	WATERPROOF SEAL	3.85
60	10PRU	MOUNTING BOLT	1.65
61	13ZQZ	WATERPROOF COVER	2.75
62	1421C	O-RING	1.65
63	13ZR0	PINION GEAR COLLAR	29.70
64	13ZR1	DRAG WASHER	9.90
65	13ZR2	MOUNTING BOLT	4.95
66	13ZR4	DRAG PLATE	22.00
67	104Q5	BALL BEARING (7X14X5)	13.75
68	13ZR5	DRAG SPRING	2.75
69	13ZR6	DRAG PLATE RETAINER	25.30
70	104VJ	BALL BEARING (7X17X5)	13.75
71	13ZR7	BEARING RETAINER	1.10
72	149PN	WASHER	1.10
73	13ZR9	BEARING SPACER	2.20
76	10KJ6	ONE-TOUCH LEVER SPRING	1.10
78	13ZRC	SPOOL SHAFT PIN	1.10
80	104Q7	BALL BEARING (7X14X5)	13.75
81	13ZRE	WASHER	1.10
82	13ZRF	DRAG SPRING SPACER	3.30
83	13ZRG	SPOOL SHAFT SPRING	2.20
84	13ZRH	WASHER	1.10
85	105RZ	E-TYPE RETAINING RING 6	1.10
86	13ZRJ	CLICK GEAR	1.10
87	10MT4	SET SCREW	1.10
88	103GQ	SET SCREW	1.10
89	13ZRK	CLICK SPRING	2.75
90	13ZRL	MAIN BODY MOUNTING PLATE	4.40
92	103ED	SET SCREW	1.10
93	10GQV	CLICK PAWL	1.65
94	1059U	WASHER	1.10
95	13ZRM	CLICK BEARING	1.10
96	13ZRN	WASHER	1.10
97	13ZRP	CLICK BUTTON	10.45
121	13ZRQ	LEG MOUNTING BOLT	7.70
122	105N9	LEG MOUNTING HEX NUT	1.65
123	10AS1	LEG MOUNTING PLATE	11.55
124	10JCD	ROD CLAMP NUT	3.85
126	10MJ8	REEL WRENCH	3.85
127	13ZRR	DRAG CAM (LIGHT LINE CAM)	26.40
201	13ZS5	SPOOL SHAFT	9.90
202	14869	SPOOL ASSEMBLY	93.50
203	13ZS7	SPOOL SHAFT COLLAR	3.85
204	13ZS4	FRAME ASSEMBLY	187.00
