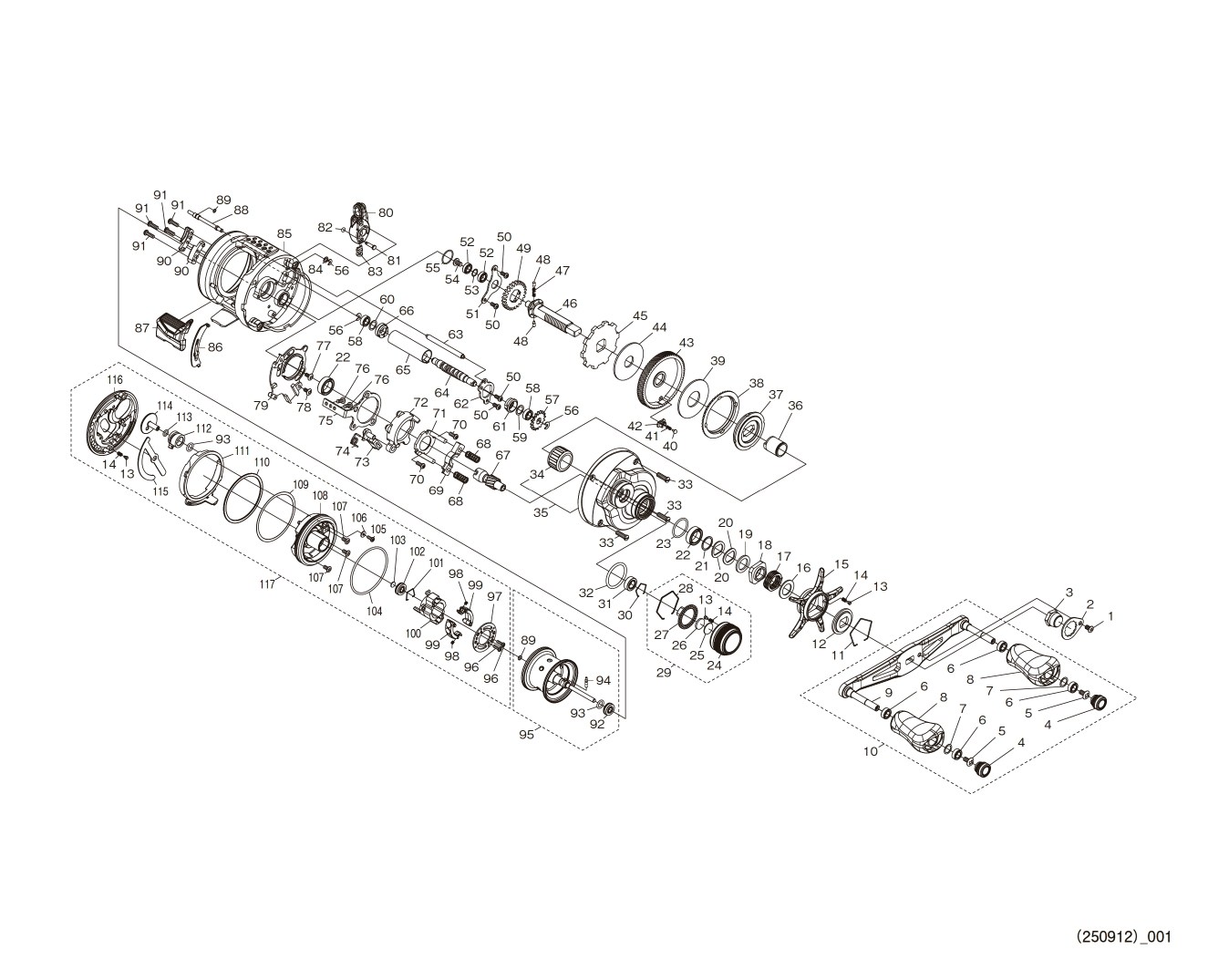

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "34 / ROLLER CLUTCH", "94 /SPOOL CLUTCH PIN" and "92 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 103GY SET SCREW 2.75
2 1486S RETAINER 2.75
3 14863 HANDLE SET NUT 6.60
4 14861 HANDLE CAP 6.60
5 103E9 SET SCREW 1.10
6 104VX BALL BEARING (4X7X2.5) 13.75
7 104FH WASHER 2.20
8 10SCX HANDLE KNOB 11.00
9 149KZ HANDLE SHAFT ASSEMBLY 58.30
10 14CYC HANDLE ASSEMBLY 99.00
11 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
12 10J1Y STAR DRAG CLICK PLATE 1.65
13 10B27 CLICK PIN 1.65
14 10988 CLICK SPRING 1.65
15 13Y87 STAR DRAG 22.00
16 100CU WASHER 1.10
17 10A71 STAR DRAG SPRING 2.75
18 10A0B STAR DRAG LOCK NUT 2.75
19 10J1N STAR DRAG SPACER 1.65
20 10D60 MAIN GEAR WASHER (C) 1.65
21 105PW STAR DRAG BEARING WASHER 1.10
22 10EX8 BALL BEARING (8X12X3.5) 13.75
23 1027V O-RING 1.65
24 14A34 MECHANICAL BRAKE KNOB 23.10
25 10896 MECHANICAL BRAKE WASHER 1.10
26 1057S SPOOL SHAFT STOPPER (B) 1.10
27 10L2F MECHANICAL BRAKE KNOB CLICK PLATE 2.75
28 10L6X MECHANICAL BRAKE KNOB CLICK HOLDER 2.75
29 14CYD MECHANICAL BRAKE KNOB ASSEMBLY 36.30
30 1057X RETAINING CLIP 1.65
31 105BP BALL BEARING (5X9X3) 13.75
32 108W8 O-RING S-16 1.65
33 10C3N SET SCREW 2.75
34 1005E ROLLER CLUTCH *Cannot be ordered 17.05
35 14CYE MAIN BODY ASSEMBLY A 148.50
36 14016 ROLLER CLUTCH INNER TUBE 13.75
37 10SNJ STAR DRAG PLATE 7.15
38 10E9B DRAG CLICK RATCHET 3.85
39 1027W STAR DRAG WASHER 9.35
40 10C0T DRAG CLICK 2.75
41 10J8A DRAG CLICK 1.65
42 10J87 DRAG SPRING HOLDER 1.65
43 10RLW DRIVE GEAR 28.05
44 10CHZ STAR DRAG WASHER 2.75
45 10R5Z STOPPER GEAR 2.75
46 10T7U DRIVE GEAR SHAFT 13.20
47 10JDX SPRING FOR WORM SHAFT GEAR 1.65
48 10HJF PIN FOR WORM SHAFT GEAR 1.65
49 10057 WORM SHAFT GEAR 2.75
50 10U0S SET SCREW 1.10
51 100GK DRIVE GEAR SHAFT RETAINING PLATE 1.10
52 10SAM BALL BEARING (4X7X2) 13.75
53 143KE WASHER 1.10
54 10DR4 SET SCREW 1.10
55 10SZ4 O-RING 1.65
56 105NC E-TYPE RETAINING RING 2 1.10
57 10FNX WORM SHAFT GEAR 2.75
58 10PXY HANDLE GRIP BUSHING (B) 1.65
59 10G8J WASHER 1.10
60 10G8G WASHER 1.10
61 10N9Q WORM SHAFT RETAINER (A) 1.65
62 10T7S WORM SHAFT RETAINER 1.10
63 13Y89 LEVEL WIND GUIDE 3.85
64 100GT WORM SHAFT 5.50
65 13Y8A LEVEL WIND PIPE 7.15
66 104SP WORM SHAFT RETAINER (B) 1.65
67 14A2Y PINION GEAR 22.55
68 13Y8B CLUTCH YOKE SPRING 1.10
69 1046T CLUTCH YOKE 1.65
70 101CN SET SCREW 1.65
71 10F42 CLUTCH CAM PRESSURE PLATE 3.85
72 10SX6 CLUTCH CAM 2.75
73 105ZU CLUTCH PAWL 3.85
74 10N1Z CLUTCH PAWL SPRING 1.10
75 100GE CLUTCH PLATE 2.20
76 10559 SET SCREW 1.65
77 100BD SET SCREW 1.65
78 10MPS SET SCREW 1.65
79 100GD MAIN BODY A SEAT 1.65
80 10TED LEVEL WIND ASSEMBLY 51.70
81 100GC WORM SHAFT PIN RETAINER 1.10
82 10908 O-RING 1.65
83 100GJ WORM SHAFT PIN 4.40
84 10GA7 WASHER 1.10
85 14CYF FRAME ASSEMBLY 220.00
86 100GU CLUTCH LEVER MOUNT 1.10
87 10U0N CLUTCH LEVER ASSEMBLY 7.70
88 13Y8E LINE GUARD 3.85
89 10E7H O-RING 1.10
90 13Y8U FRAME B MOUNT CAM 1.10
91 10TP0 SET SCREW 1.10
92 1005D BALL BEARING (5X11X4) *Cannot be ordered 13.75
93 10TNF O-RING 1.65
94 10MD0 SPOOL CLUTCH PIN *Cannot be ordered 1.65
95 14CYG SPOOL ASSEMBLY 88.00
96 10EEA SET SCREW 1.10
97 10TK4 BRAKE MOUNTING PLATE 3.85
98 10DGJ BRAKE COIL SPRING 1.10
99 10E7E MAGNET HOLDER ASSEMBLY 29.70
100 10RZA BRAKE MOUNTING BRACKET 3.30
101 101A9 BEARING RETAINER 1.10
102 10RUC BALL BEARING (3X8X2.5) 15.95
103 1085H MECHANICAL BRAKE WASHER 1.10
104 1006P O-RING 1.65
105 13Y8F SET SCREW 1.65
106 13Y8G WASHER 1.10
107 13Y8H SET SCREW 1.65
108 13Y8S FRAME B MOUNT ASSEMBLY 38.50
109 145PV WASHER 1.10
110 10T02 WASHER 2.75
111 13Y8V MAIN UNIT B CAM LEVER 1.10
112 13Y8W BRAKE CAM 2.75
113 10CFZ O-RING 1.65
114 13Y8L BRAKE DIAL 31.35
115 13Y8X MAIN UNIT B SEAL 1.10
116 14A2V MAIN UNIT B 66.00
117 14CYH MAIN UNIT B ASSEMBLY 143.00
