[ABU] Genuine Spare Parts for REVO5 STX-SHS Product code:1565122 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.

* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

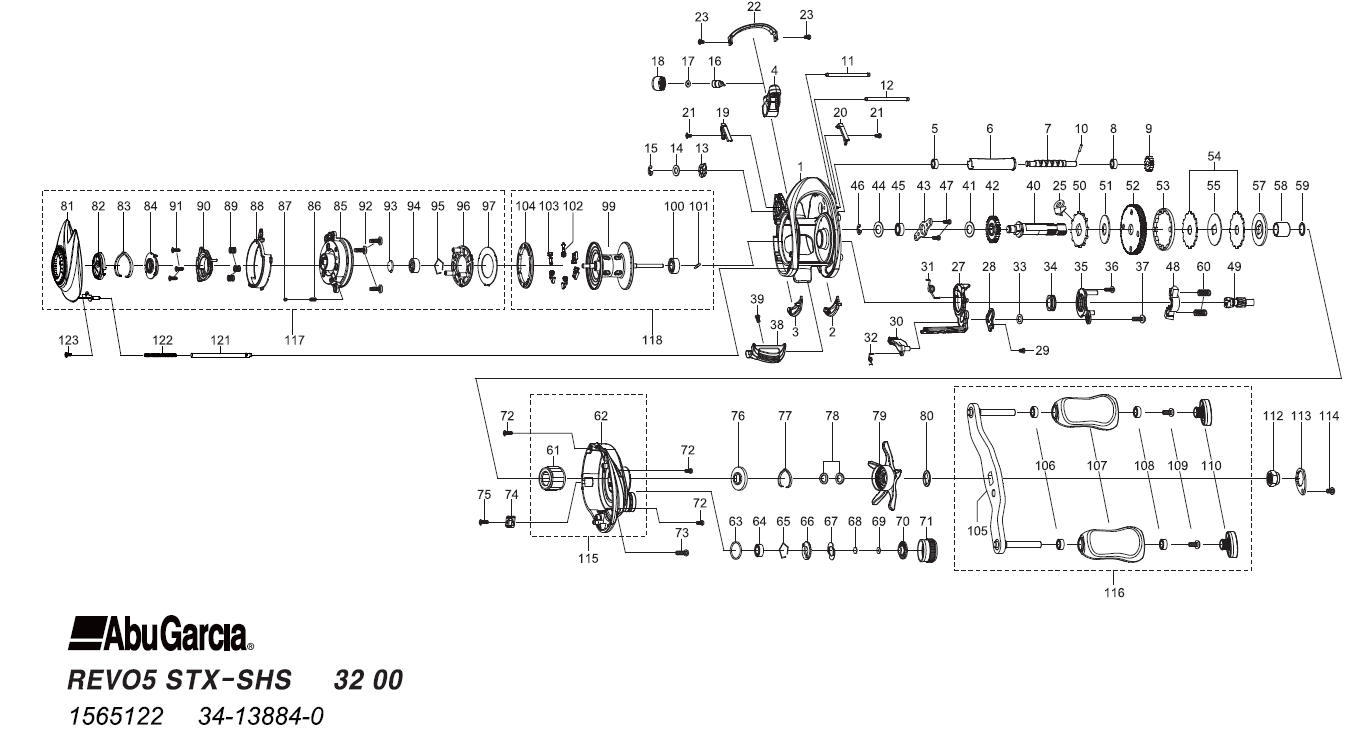

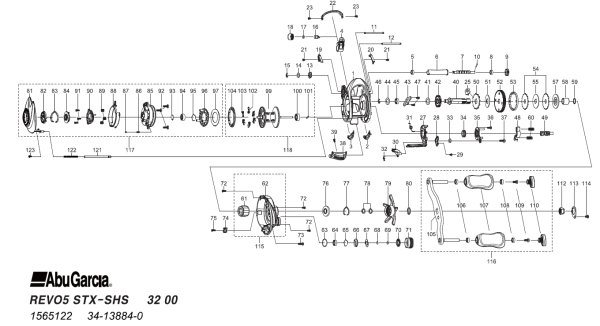

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1593039	FRAME	60.50
2	1490482	SLIDE WASHER RIGHT	2.20
3	1490483	SLIDE WASHER LEFT	2.20
4	1593002	LINE GUIDE	5.50
5	1125729	BALLBEARING	6.60
6	1137750	LEVEL WIND TUBE	3.30
7	1132903	WORM SHAFT	16.50
8	1125729	BALLBEARING	6.60
9	1125732	WORM SHAFT GEAR	1.10
10	1125733	WORM SHAFT PIN	0.55
11	1490485	LINE GUIDE SHAFT	3.30
12	1592946	GUIDE PIN	3.30
13	1313359	WORM SHAFT PIN HOLDER	2.20
14	1185695	WORM SHAFT WASHER	1.76
15	1124201	RETAINER	0.55
16	1125806	PAWL	3.30
17	1125736	WASHER	0.55
18	1129323	LINE GUIDE NUT	0.77
19	1593040	FRONT SIDE TRIM RIGHT-P	2.20
20	1593041	FRONT SIDE TRIM RIGHT-G	2.20
21	1581428	SCREW	2.20
22	1593042	FRONT COVER	30.80
23	1452764	SCREW	2.20
25	1144194	STOPPER	9.90
27	1592948	CLUTCH CAM	3.30
28	1415619	LINK PLATE	2.20
29	1415620	SCREW	2.20
30	1289969	KICK LEVER	3.30
31	1380524	CLUTCH SPRING	2.20
32	1490489	KICK LEVER SPRING	2.20
33	1490867	WASHER	2.20
34	1581431	BUSH	2.20
35	1581432	CLUTCH PLATE	3.30
36	1380616	SCREW	2.20
37	1415622	SCREW	2.20
38	1592970	THUMB BAR	3.30
39	1252078	SCREW	1.76
40	1592971	MAIN GEAR SHAFT	13.20
41	1380528	WASHER	2.20
42	1251634	LEVEL WIND GEAR	1.76
43	1490492	MAIN GEAR SHAFT PLATE	2.20
44	1592972	WASHER	2.20
45	1116186	BALL BEARING	6.60
46	1124201	RETAINER	0.55
47	1372152	SCREW	2.20
48	1281131	YOKE	2.20
49	1593057	PINION	18.70
50	1452769	RATCHET	2.20
51	1490874	DRAG WASHER	3.30
52	1593058	MAIN GEAR	30.80
53	1517675	CARTRIDGE	3.30
54	1452855	DRAG WASHER	5.50
55	1452856	DRAG WASHER	2.20
57	1452857	PRESSURE WASHER	2.20
58	1257782	SLEEVE	2.20
59	1144185	WASHER	0.55
60	1116237	YOKE SPRING	0.55
61	1551161	ONE WAY CLUTCH	11.00
62	1593059	GEAR SIDE PLATE	55.00
63	1452775	O-RING	2.20
64	1132857	BALL BEARING	6.60
65	1497606	RING	3.30
66	1125768	CLICK WASHER	1.10
67	1125769	CLICK SPRING	1.65
68	1452776	FRICTION WASHER	1.10
69	1125771	RUBBER WASHER	0.55
70	1452777	CLICK WASHER	2.20
71	1593044	BRAKE KNOB	16.50
72	1380640	SCREW	2.20
73	1257013	SCREW	1.76
74	1593045	LUBE PORT	2.20
75	1252078	SCREW	1.76
76	1125779	CLICK SPRING HOLDER	1.65
77	1125780	CLICK SPRING	0.77
78	1117208	SPRING WASHER	0.55
79	1593060	STAR WHEEL	27.50
80	1125783	WASHER	0.55
81	1593046	PALM SIDE PLATE	33.00
82	1593047	MAG DIAL	3.30
83	1125780	CLICK SPRING	0.77
84	1415635	SLIDE CAM	3.30
85	1593011	BEARING HOUSING	16.50
86	1313372	CLICK PIN SPRING	2.20
87	1313371	CLICK PIN	2.20
88	1592980	CAM LOCK LEVER	3.30
89	1313476	SPRING	2.20
90	1415641	SLIDE CAM	3.30
91	1415533	SCREW	2.20
92	1380655	SCREW	2.20
93	1125797	WASHER	0.55
94	1125827	BALL BEARING	6.60
95	1104790	RING	0.55
96	1593012	BRAKE PLATE HOLDER	5.50
97	1593013	BRAKE PLATE	3.30
99	1593048	SPOOL	66.00
100	1144215	BALL BEARING	8.80
101	1581450	SPOOL SHAFT PIN	2.20
102	1252044	BRAKE WEIGHT ARM	2.20
103	1252045	BRAKE WEIGHT	1.10
104	1593015	BRAKE WEIGHT HOLDER	3.30
105	1593049	HANDLE	27.50
106	1281319	BALL BEARING	6.60
107	1581490	HANDLE KNOB	15.40
108	1281319	BALL BEARING	6.60
109	1281320	SCREW	1.76
110	1593050	HANDLE KNOB CAP	2.20
112	1593051	HANDLE NUT	3.30
113	1593018	HANDLE NUT COVER	2.20
114	1200031	HANDLE NUT RETAINER SCREW	0.55
115	1593061	GEAR SIDE COMPLETE	66.00
116	1593053	HANDLE COMPLETE	88.00
117	1593054	PALM SIDE COMPLETE	104.50
118	1593055	SPOOL COMPLETE	93.50
121	1593056	GUIDE SHAFT	4.40
122	1452901	SPRING	2.20
123	1452902	SCREW	2.20
