[DAIWA] Genuine Spare Parts for 26 SILVER WOLF CT SV TW PE SPECIAL 8.5L Product code: 00631611 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

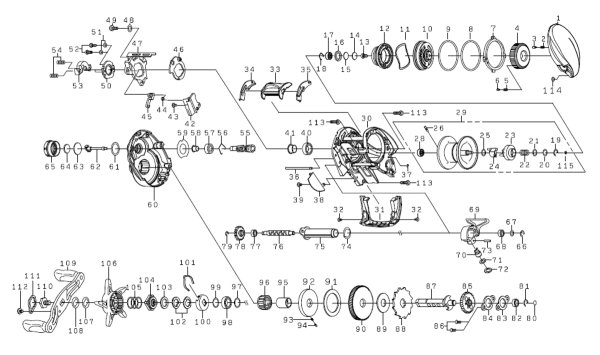

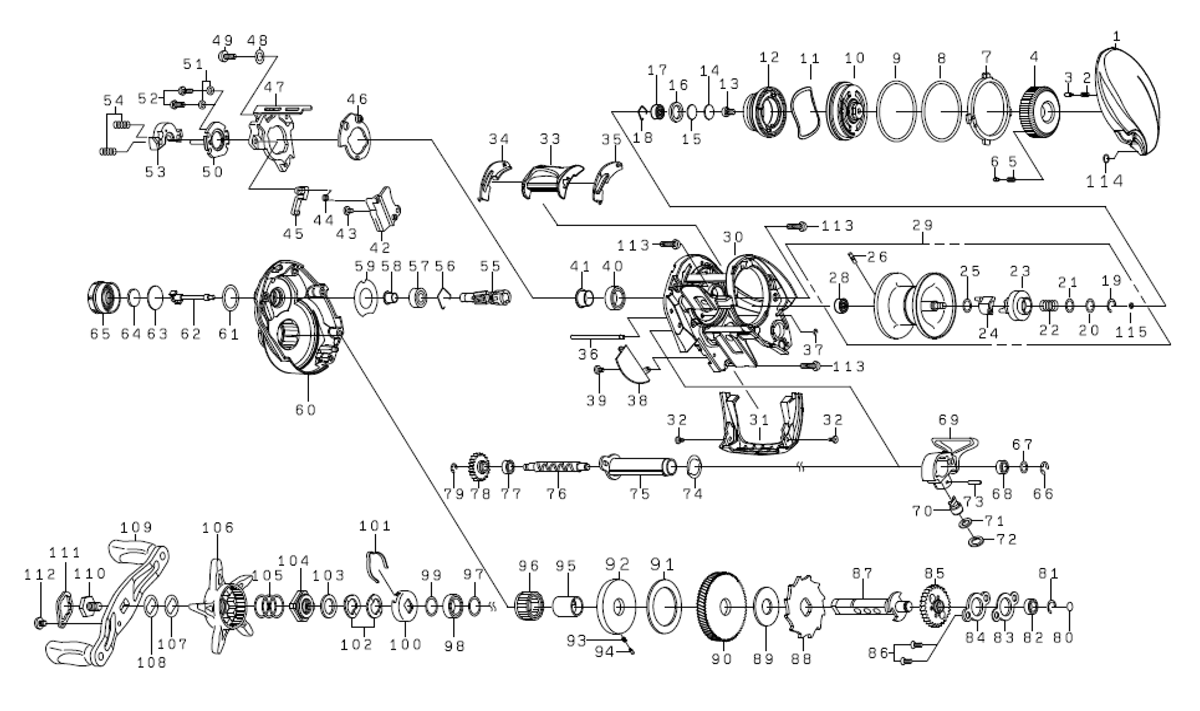

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	RS PLATE	6M887801	30.80
2	LEVER PLATE SP	6J631901	2.20
3	LEVER PLATE PIN	6J286301	2.20
4	BRAKE DIAL	6M268003	7.70
5	BRAKE DIAL SP	6M333301	2.20
6	BRAKE DIAL PIN	6J731201	2.20
7	LEVER PLATE (A)	6M332001	3.30
8	LEVER PLATE (B)	6J741703	2.20
9	LEVER PLATE (C)	6J742601	2.20
10	SET PLATE	6M896901	31.90
11	SET PLATE W	6M593301	1.10
12	MAG HOLDER *Cannot be ordered	6M646601	34.10
13	SET PLATE SC	6H666002	2.20
14	RS BEARING W (A)	63757404	1.10
15	RS BEARING W (B)	63757411	1.10
16	RS BEARING W (C)	6G185101	1.10
17	RS BALL BEARING	6G511506	15.40
18	RS BEARING RING	6F032201	2.20
19	SPOOL HOLDER SP RETAINER	63208002	2.20
20	SPOOL HOLDER W (A)	6E096501	1.10
21	SPOOL HOLDER W (B)	6M567801	1.10
22	SPOOL HOLDER SP	6M567701	2.20
23	SPOOL HOLDER	6M900201	19.80
24	SPOOL HOLDER COLLAR	6J190301	2.20
25	SPOOL HOLDER COLLAR W	6E096501	1.10
26	SPOOL PIN	6H358802	2.20
28	SPOOL BALL BEARING	6G511506	15.40
29	SPOOL (19-28, 115)	6Z028593	187.00
30	FRAME	6M887701	78.10
31	FRONT COVER	6J740905	8.80
32	FRONT COVER SC	6H294104	2.20
33	CLUTCH LEVER	6J739201	9.90
34	CLUTCH LEVER PLATE (L)	6J738501	2.20
35	CLUTCH LEVER PLATE (R)	6J738401	2.20
36	OSCILLATING POST	6J741001	2.20
37	OSCILLATING POST RETAINER	6H704101	2.20
38	LS COVER PLATE	6J765201	2.20
39	LS COVER PLATE SC	6H294104	2.20
40	CLUTCH CAM BALL BEARING	6G431008	15.40
41	CLUTCH CAM BEARING COLLAR	6M518401	7.70
42	KICK LEVER PLATE (A)	6J739101	3.30
43	KICK LEVER PLATE (A) SC	6H294104	2.20
44	KICK LEVER PLATE SP	6M042701	2.20
45	KICK LEVER	6J638601	6.60
46	CLUTCH CAM PLATE	6J765601	2.20
47	CLUTCH CAM	6J765301	9.90
48	CLUTCH CAM PLATE W	6H450701	1.10
49	CLUTCH CAM PLATE SC	6B360405	2.20
50	KICK LEVER PLATE (B)	6H659103	3.30
51	KICK LEVER PLATE (B) W	6G913306	1.10
52	KICK LEVER PLATE (B) SC	6B032905	3.30
53	CLUTCH PLATE	6H929001	3.30
54	CLUTCH SP	6J313901	2.20
55	PINION + DRIVE GEAR SET	6Z025927	56.10
56	PINION RING	6H448402	2.20
57	PINION BALL BEARING	6G538003	15.40
58	PINION BEARING COLLAR	6J724601	9.90
59	CLUTCH SP PLATE	6J285901	2.20
60	LS PLATE	6M887601	94.60
61	ZERO ADJUSTER O-RING	6J279701	1.10
62	PINION SHAFT	6G931001	3.30
63	ZERO ADJUSTER W (A)	6H161001	1.10
64	ZERO ADJUSTER W (B)	6B175503	1.10
65	ZERO ADJUSTER	6J279613	19.80
66	WORM SHAFT RETAINER	63205901	2.20
67	WORM SHAFT W	6B411702	1.10
68	WORM SHAFT COLLAR	6H850402	2.20
69	LEVEL WIND	6M604801	70.40
70	POLE	6J740102	3.30
71	POLE W	6M161301	1.10
72	LEVEL WIND O-RING	6G252202	1.10
73	LEVEL WIND PIN	6J740201	3.30
74	WORM SHIELD PLATE	6J281601	2.20
75	WORM SHIELD	6J765801	3.30
76	WORM SHAFT	6M042401	8.80
77	WORM SHAFT COLLAR	6H850402	2.20
78	WORM SHAFT GEAR	6J281401	4.40
79	WORM SHAFT GEAR RETAINER	6B339801	2.20
80	GEAR SHAFT W	6G099801	1.10
81	GEAR SHAFT RETAINER	63208002	2.20
82	GEAR SHAFT BALL BEARING	6G466201	15.40
83	GEAR SHAFT PLATE (A)	6M730701	2.20
84	GEAR SHAFT PLATE (B)	6J281101	3.30
85	WORM SHAFT GEAR	6J281001	7.70
86	GEAR SHAFT PLATE SC	6G297006	2.20
87	GEAR SHAFT	6J739404	27.50
88	RATCHET	6H660901	3.30
89	DRIVE GEAR W	63746605	1.10
90	PINION + DRIVE GEAR SET	6Z025927	56.10
91	DRAG W	6H359004	7.70
92	DRIVE COLLAR	6J740501	17.60
93	DRIVE COLLAR SP	6J410801	2.20
94	DRIVE COLLAR PIN	6J566201	2.20
95	CLUTCH RING	6J327701	8.80
96	ONE-WAY CLUTCH	6G819801	20.90
97	HANDLE BEARING W (A)	6B553803	1.10
98	HANDLE BALL BEARING	6G431008	15.40
99	HANDLE BEARING W (B)	6B553801	1.10
100	DRAG HOLDER	6F028203	3.30
101	DRAG HOLDER LEAF SP	6F032401	2.20
102	DRAG SP・W	61508901	2.20
103	STAR DRAG W	6H929501	2.20
104	STAR DRAG NUT	6J141002	7.70
105	STAR DRAG SP	6J011901	2.20
106	STAR DRAG	6M289904	35.20
107	HANDLE W (A)	6M567801	1.10
108	HANDLE W (B)	6E096501	1.10
109	HANDLE	6M888001	90.20
110	HANDLE SC	6J295501	9.90
111	HANDLE LOCK PLATE	6J319203	3.30
112	HANDLE LOCK PLATE SC	6G835502	3.30
113	LS PLATE SC	6G945806	2.20
114	RS PLATE O-RING	6J197901	1.10
115	SPOOL HOLDER O-RING	6H770601	1.10
200	HANDLE KNOB SP/W	6H744801	1.10
201	HANDLE KNOB W	6B411703	1.10
202	HANDLE KNOB	6J315504	24.20
203	HANDLE KNOB COLLAR	6G720001	2.20
204	HANDLE KNOB SC	6B679308	2.20
205	HANDLE KNOB CAP	6J315801	6.60
206	FRAME PROTECTIVE SHEET	6J374301	2.20
