[SHIMANO] Genuine Spare Parts for 26 STELLA SW 6000HG Product Code: 047526 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 STELLA SW 6000HG Product Code: 047526 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

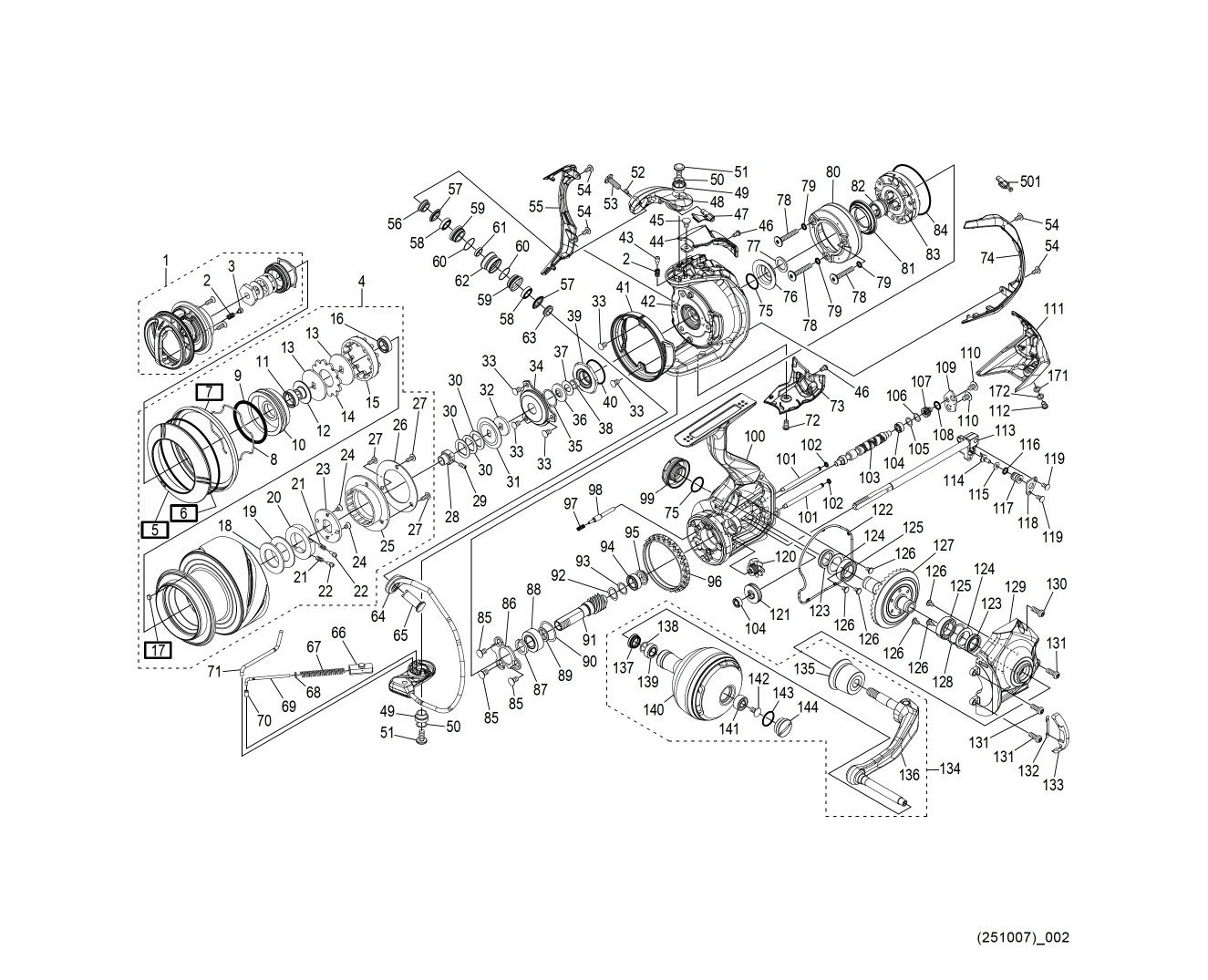

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Parts with square numbers are for repair only.
These parts are supposedto be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 145MU REEL BAG 28.60
1 14B62 DRAG KNOB ASSEMBLY 93.50
2 1077Q BAIL TRIP LEVER CLICK SPRING 1.65
3 10361 CLICK PIN 1.10
4 14BLG SPOOL ASSEMBLY 242.00
5 1463B SPOOL RING COLLAR *Cannot be ordered 25.85
6 101N1 O-RING *Cannot be ordered 1.65
7 148CN SPOOL RING *Cannot be ordered 30.80
8 10B88 ANTI-SLIP SPRING 1.65
9 108WC O-RING SM26 1.65
10 148BB BEARING SPACER 9.35
11 104PP BALL BEARING (7X11X3) 13.75
12 148BA BEARING HOUSING 3.85
13 10B9Z OVAL WASHER 2.75
14 148Z0 EAR WASHER (A) 24.20
15 148P7 SPOOL INSERT 1.65
16 104JT BALL BEARING (6X10X3) 13.75
17 10EAG PIN *Cannot be ordered 1.10
18 148SU DRAG WASHER (B) 6.60
19 1031R DRAG WASHER 4.95
20 10JJU CLICK OVAL GUIDE 9.35
21 10JMD DRAG CLICK SPRING 1.65
22 1035W SPOOL PIN 1.65
23 109HE CLICK OVAL WASHER 3.85
24 10MGD FIXING BOLT 1.10
25 10C1J DRAG COVER 2.75
26 101N7 DRAG COVER NAMEPLATE 3.85
27 10MPR MAIN BODY A SHEET B FIXING BOLT 1.10
28 148BQ MAIN SHAFT BEARING GUIDE 5.50
29 10PRL SET SCREW (M2X5) 1.65
30 148Z5 SPOOL WASHER 3.30
31 10RBU MAIN SHAFT BEARING SEAL 3.85
32 148BR SPOOL BEARING (A) 1.65
33 103LB FIXING BOLT 1.10
34 148BM RETAINER 1.65
35 10G8C WASHER 1.10
36 148Z1 ROTOR BEARING SEAL 4.40
37 14CTJ WASHER 1.10
38 14DLH ROTOR BEARING COLLAR 1.10
39 148BL ROTOR NUT 7.15
40 108WF O-RING 1.10
41 14870 ROTOR FLANGE 9.35
42 1486V ROTOR 143.00
43 106ZD CLICK PIN 1.65
44 1486X ARM CAM SPRING COVER 12.65
45 10DR4 FIXING BOLT 1.10
46 106ZG FIXING BOLT 1.65
47 14935 ARM CAM FIN ASSEMBLY 5.50
48 1486Y ARM CAM 75.90
49 101NS COLLAR 3.85
50 10HV3 WASHER 1.10
51 101NF FIXING BOLT 1.65
52 10PN1 SET SCREW (M2X3) 1.65
53 10K46 FIXING BOLT 6.05
54 10MT4 FIXING BOLT 1.10
55 1486Z ROTOR GUARD (B) 2.20
56 1016P LINE ROLLER BEARING HOUSING 6.05
57 1016K LINE ROLLER SEAL 1.65
58 104W1 BALL BEARING (5X8X2) 9.35
59 1015Z BUSHING 1.65
60 1015L O-RING 1.65
61 1014P COLLAR 1.65
62 10DUT LINE ROLLER 17.05
63 1014N COLLAR 3.85
64 14B64 BAIL ASSEMBLY 88.00
65 10Q3F ARM FIXING SHAFT 9.35
66 148BJ ARM SPRING GUIDE (B) 1.65
67 148BH ARM CAM SPRING 1.65
68 148BG ARM SPRING GUIDE (A) COLLAR 2.20
69 148BF ARM SPRING GUIDE (A) 4.95
70 10R2F ARM SPRING GUIDE (A) COLLAR BUSHING 1.65
71 148BK INNER LEVER 1.65
72 10CYU FIXING BOLT 2.75
73 1486W BAIL MOUNTING COVER 12.65
74 14876 ROTOR GUARD (A) 2.20
75 108WA O-RING 1.65
76 148BV ROTOR COLLAR 6.60
77 10J2G ROTOR WASHER 1.65
78 148T4 FIXING BOLT 1.10
79 10LAD O-RING 1.10
80 148BU ROLLER CLUTCH SEAL COVER 2.75
81 148BT ROLLER CLUTCH SEAL 8.25
82 10667 ROLLER CLUTCH INNER 3.85
83 10QPK ROLLER CLUTCH ASSEMBLY 11.55
84 108WZ O-RING 3.85
85 10ML3 FIXING BOLT 1.65
86 148BX BEARING THRUST PLATE 2.75
87 1028S WASHER 1.10
88 104Q6 BALL BEARING (7X14X5) 13.75
89 13MGK WASHER 1.65
90 107JT FRONT FLANGE BEARING ADJUSTMENT WASHER 1.10
91 148BY PINION GEAR 36.30
92 148Z6 BENT WASHER 1.65
93 148Z4 SPACER 1.65
94 104JS BALL BEARING (6X10X3) 13.75
95 148BZ BUSHING 4.40
96 104FW FRICTION RING 3.85
97 14D93 INTERMEDIATE GEAR SPRING 1.10
98 148C4 INTERMEDIATE GEAR SHAFT 2.20
99 14874 HANDLE SCREW CAP 23.10
100 14BLH BODY ASSEMBLY 190.30
101 101N9 SLIDER GUIDE 2.75
102 10JAB O-RING 1.65
103 148C5 WORM SHAFT 8.25
104 10PDA BALL BEARING (3X6X2.5) 13.75
105 100XZ WASHER 2.20
106 10TK0 WASHER 1.65
107 1015D BUSHING 3.85
108 10TNF O-RING 1.65
109 148C7 WORM SHAFT COVER 2.75
110 10E8M FIXING BOLT 1.65
111 14873 BODY GUARD 20.90
112 10RZ1 FIXING BOLT 3.85
113 14B66 MAIN SHAFT ASSEMBLY 32.45
114 106VM WORM SHAFT PIN 4.95
115 100CW WASHER 2.20
116 108W9 O-RING (3X5) 1.65
117 101NW COLLET 3.85
118 148C8 WORM SHAFT PIN RETAINING PLATE 1.65
119 10S65 FIXING BOLT 1.10
120 148C3 INTERMEDIATE GEAR (LARGE) 2.75
121 148C6 WORM SHAFT GEAR 13.20
122 148BS BODY SEAL 2.75
123 148SV BEARING SEAL 4.95
124 10BGE WASHER 1.65
125 104PT BALL BEARING (8X14X4) 13.75
126 1055G FIXING BOLT 1.65
127 148C0 DRIVE GEAR ASSEMBLY 60.50
128 100W9 WASHER 2.75
129 14B67 COVER ASSEMBLY 77.00
130 10A6N FIXING BOLT 1.65
131 10A6P FIXING BOLT 1.65
132 1498G SPACER SHEET 1.65
133 148BW FRICTION RING SPACER 1.65
134 14BLJ HANDLE ASSEMBLY 220.00
135 14B69 HANDLE SHAFT FLANGE ASSEMBLY 24.20
136 14BLK HANDLE SHANK ASSEMBLY 88.00
137 147FX HANDLE KNOB SEAL 7.70
138 104FH WASHER 2.20
139 105BN BALL BEARING (5X9X3) 13.75
140 14A3T HANDLE KNOB ASSEMBLY 88.00
141 10KX1 BALL BEARING (4X9X4) 13.75
142 103E9 FIXING BOLT 1.10
143 10LAB O-RING 1.10
144 1004B HANDLE CAP 3.85
171 14D7L WASHER 1.10
172 14CTH WASHER 1.10
501 1485A ARM CAM FIN (B) ASSEMBLY 5.50
MH01 14CNE LEG BOTTOM NAMEPLATE QR 3.85
