[SHIMANO] Genuine Spare Parts for 26 STELLA SW 4000XG Product Code: 047489 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 STELLA SW 4000XG Product Code: 047489 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

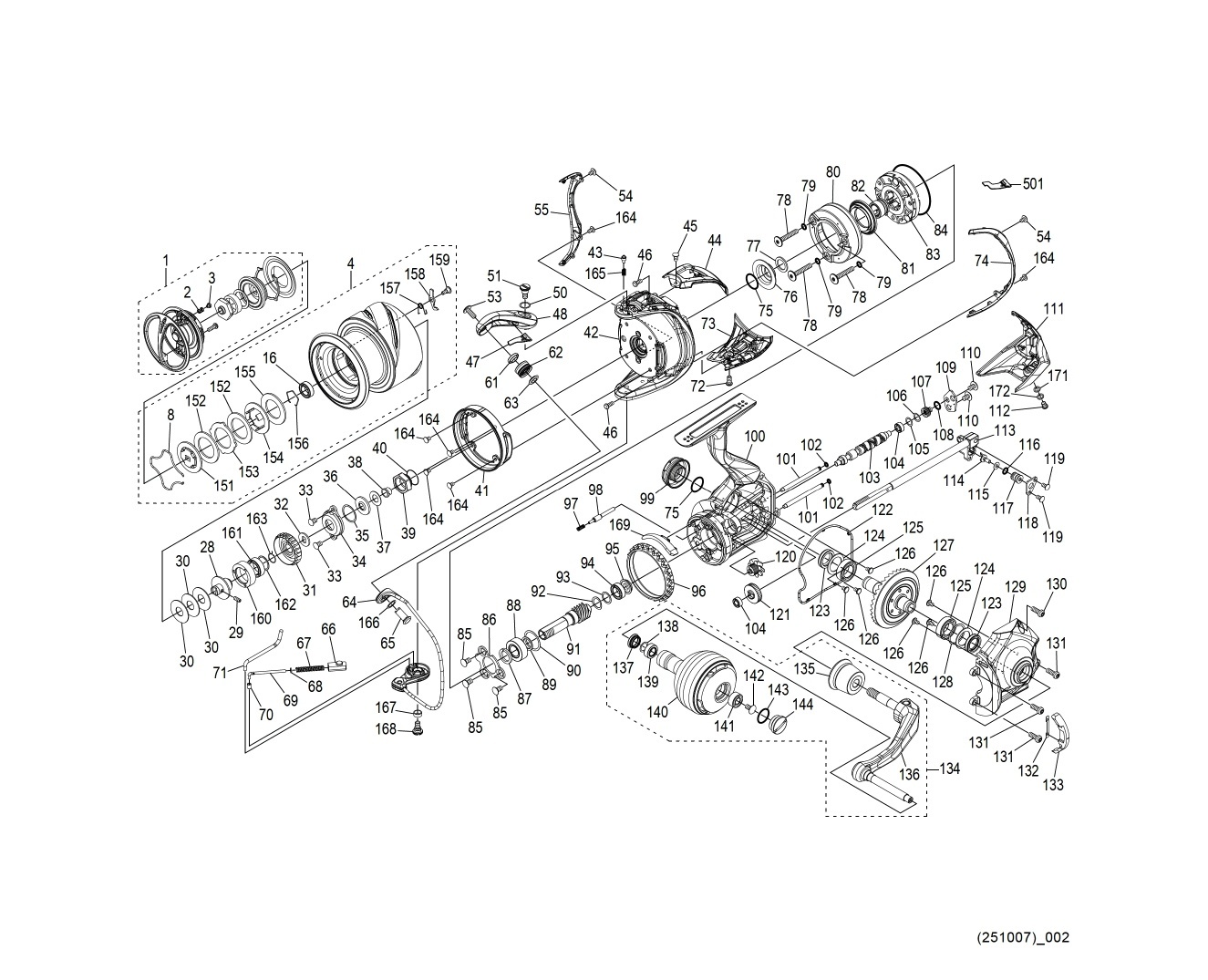

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 14BL9 DRAG KNOB ASSEMBLY 101.20
2 13K02 CLICK SPRING 1.65
3 14BM7 CLICK PIN 1.65
4 14BLA SPOOL ASSEMBLY 198.00
8 145QR ANTI-SLIP SPRING 1.10
16 104JT BALL BEARING (6X10X3) 13.75
28 10LTS SPOOL SHAFT BEARING GUIDE 6.05
29 10PN2 SET SCREW 1.65
30 101AV SPOOL WASHER (A) 2.20
31 107PS DRAG CLICK RATCHET 2.75
32 103NX SPOOL SUPPORT 1.65
33 103LB FIXING BOLT 1.10
34 1076P RETAINER 2.75
35 10G8C WASHER 1.10
36 148Z1 ROTOR BEARING SEAL 4.40
37 101ML WASHER 1.10
38 10ED7 ROTOR SUPPORT COLLAR 1.10
39 148B0 ROTOR NUT 4.40
40 1015S O-RING 1.65
41 10EA4 ROTOR FLANGE 9.35
42 14BLB ROTOR ASSEMBLY 132.00
43 106UX CLICK PIN 1.65
44 10EA0 ARM CAM SPRING COVER 9.35
45 1055D FIXING BOLT 1.65
46 103NC FIXING BOLT 1.10
47 10SQ4 ARM CAM FIN 1.10
48 14879 ARM CAM 11.55
50 10G6C WASHER 1.10
51 10RMA FIXING BOLT 6.05
53 10K40 FIXING BOLT 2.75
54 10MPF FIXING BOLT 1.10
55 10EA5 ROTOR GUARD (B) 2.75
61 1475G BEARING COLLAR (B) 2.75
62 14BLC LINE ROLLER ASSEMBLY (WITH BEARING) 44.00
63 1475F BEARING COLLAR (A) 2.75
64 14BLD BAIL ASSEMBLY 59.40
65 10RKV ARM FIXING SHAFT 6.05
66 10R2E ARM CAM SPRING GUIDE (B) 2.75
67 10R2P ARM CAM SPRING 1.65
68 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
69 10SAN ARM SPRING GUIDE (A) 3.85
70 10DKC ARM SPRING GUIDE (A) COLLAR BUSHING 1.65
71 10E2E INNER LEVER 1.65
72 10CYU FIXING BOLT 2.75
73 10RF8 BAIL MOUNTING COVER 9.35
74 10RF0 ROTOR GUARD (A) 2.75
75 108WA O-RING 1.65
76 148BV ROTOR COLLAR 6.60
77 10J2G ROTOR WASHER 1.65
78 148T4 FIXING BOLT 1.10
79 10LAD O-RING 1.10
80 148BU ROLLER CLUTCH SEAL COVER 2.75
81 148BT ROLLER CLUTCH SEAL 8.25
82 10667 ROLLER CLUTCH INNER 3.85
83 10QPK ROLLER CLUTCH ASSEMBLY 11.55
84 108WZ O-RING 3.85
85 10ML3 FIXING BOLT 1.65
86 148BX BEARING THRUST PLATE 2.75
87 1028S WASHER 1.10
88 104Q6 BALL BEARING (7X14X5) 13.75
89 13MGK WASHER 1.65
90 107JT FRONT FLANGE BEARING ADJUSTMENT WASHER 1.10
91 148CH PINION GEAR 36.30
92 148Z6 BENT WASHER 1.65
93 148Z4 SPACER 1.65
94 104JS BALL BEARING (6X10X3) 13.75
95 148BZ BUSHING 4.40
96 104FW FRICTION RING 3.85
97 14D93 INTERMEDIATE GEAR SPRING 1.10
98 148C4 INTERMEDIATE GEAR SHAFT 2.20
99 14874 HANDLE SCREW CAP 23.10
100 14BG9 BODY ASSEMBLY 190.30
101 101N9 SLIDER GUIDE 2.75
102 10JAB O-RING 1.65
103 148C5 WORM SHAFT 8.25
104 10PDA BALL BEARING (3X6X2.5) 13.75
105 100XZ WASHER 2.20
106 10TK0 WASHER 1.65
107 1015D BUSHING 3.85
108 10TNF O-RING 1.65
109 148C7 WORM SHAFT COVER 2.75
110 10E8M FIXING BOLT 1.65
111 148YX BODY GUARD 20.90
112 10RZ1 FIXING BOLT 3.85
113 14BLF MAIN SHAFT ASSEMBLY 30.80
114 106VM WORM SHAFT PIN 4.95
115 100CW WASHER 2.20
116 108W9 O-RING (3X5) 1.65
117 101NW COLLARS 3.85
118 148C8 WORM SHAFT PIN RETAINING PLATE 1.65
119 10S65 FIXING BOLT 1.10
120 148CL INTERMEDIATE GEAR (LARGE) 2.75
121 148CM WORM SHAFT GEAR 13.20
122 148BS BODY SEAL 2.75
123 148SV BEARING SEAL 4.95
124 10BGE WASHER 1.65
125 104PT BALL BEARING (8X14X4) 13.75
126 1055G FIXING BOLT 1.65
127 148CJ DRIVE GEAR ASSEMBLY 60.50
128 100W9 WASHER 2.75
129 14B67 COVER ASSEMBLY 77.00
130 10A6N FIXING BOLT 1.65
131 10A6P FIXING BOLT 1.65
132 1498G SPACER SHEET 1.65
133 148BW FRICTION RING SPACER 1.65
134 14B68 HANDLE ASSEMBLY 214.50
135 14B69 HANDLE SHAFT FLANGE ASSEMBLY 24.20
136 14B6A HANDLE SHANK ASSEMBLY 88.00
137 147FX HANDLE KNOB SEAL 7.70
138 104FH WASHER 2.20
139 105BN BALL BEARING (5X9X3) 13.75
140 14B6B HANDLE KNOB ASSEMBLY 82.50
141 10KX1 BALL BEARING (4X9X4) 13.75
142 103E9 FIXING BOLT 1.10
143 10LAB O-RING 1.10
144 1004B HANDLE CAP 3.85
151 10QBV OVAL WASHER 6.05
152 10345 DRAG WASHER 6.05
153 10BCP DRAG EAR-ATTACHED WASHER 6.05
154 10BBQ OVAL WASHER 2.75
155 10C1A DRAG WASHER 6.05
156 10GEW BEARING RETAINER 1.10
157 10BQE SPOOL PIN SPRING 1.65
158 10TJX SPOOL PIN 1.65
159 10A6F FIXING BOLT 1.65
160 10TQH BEARING COLLAR 2.75
161 10EX8 BALL BEARING (8X12X3.5) 13.75
162 10GHN WASHER 1.65
163 107V2 RATCHET SPRING 1.65
164 10DND FIXING BOLT 1.65
165 10CGZ CLICK SPRING 1.65
166 1002S ARM FIXING SHAFT WASHER 1.10
167 101D0 BAIL MOUNTING CAM COLLAR 1.65
168 10RGB FIXING BOLT 6.05
169 148AY INNER GEAR STOP 1.65
171 14D7L WASHER 1.10
172 14CTH WASHER 1.10
501 10SE2 ARM CAM FIN 1.10
*F01 145MU REEL BAG 28.60
MH01 14CNH LEG BOTTOM NAMEPLATE QR 3.85
