[ABU] Genuine Spare Parts for ZENON MG7 Product code: 1574623 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- An additional US$5.00 commission will be charged.
* Please select "+US$5.00 for Genuine Parts" for the commission in STEP 2 on the order screen.

- All back-ordered items require approximately 3 to 4 weeks to be prepared for shipment.

- We do not accept order cancellations, changes, or refunds after an order is placed. (This is because SHIMANO / DAIWA / ABU JAPAN do not accept cancellations.)

- Please note that this does not guarantee that the manufacturer has the item in stock.

- If the ordered part is not available from the manufacturer and the delivery date is undetermined, the order will be canceled.

- When ordering multiple parts, if some items are unavailable, only the parts that are in stock will be prepared and supplied.


* Please make sure to read the conditions carefully before placing your order.

In-Stock Abu Garcia Genuine Parts

By clicking the banner below, you can purchase Abu Garcia genuine spare parts that are currently in stock.

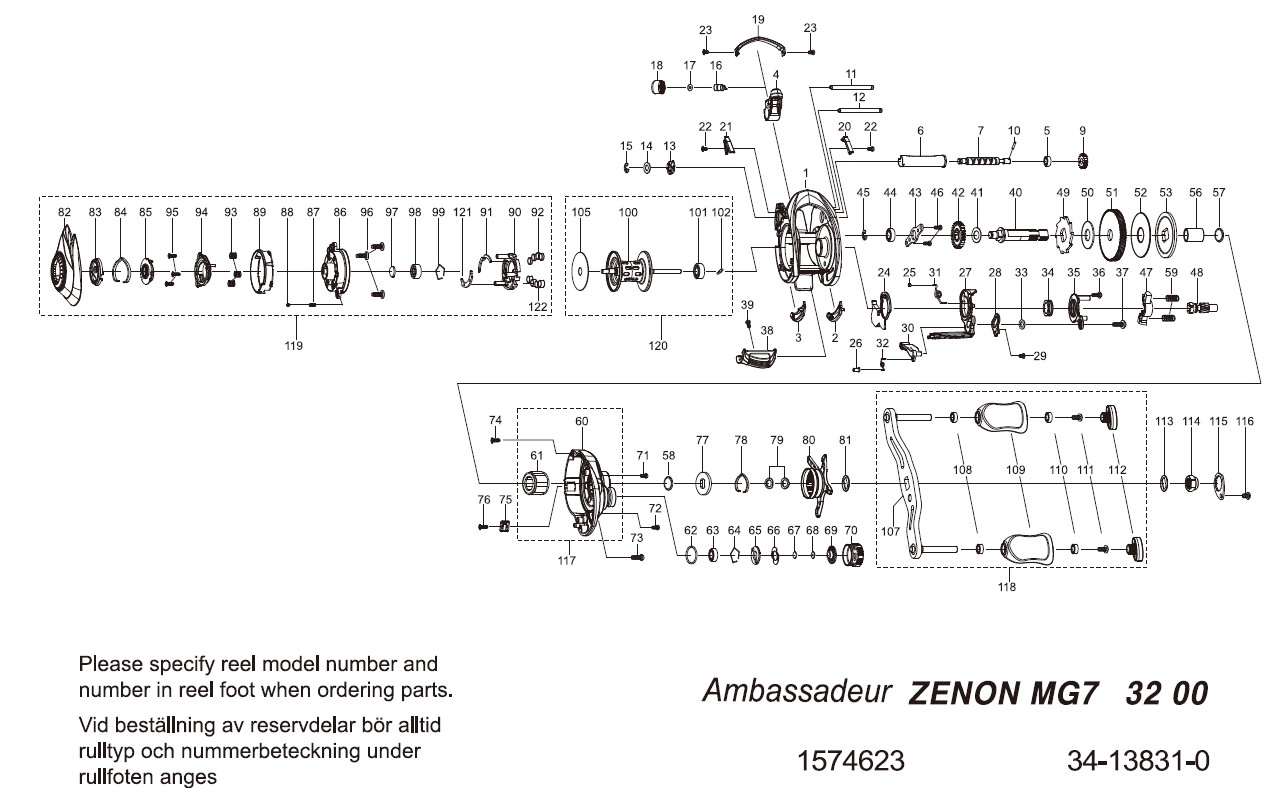

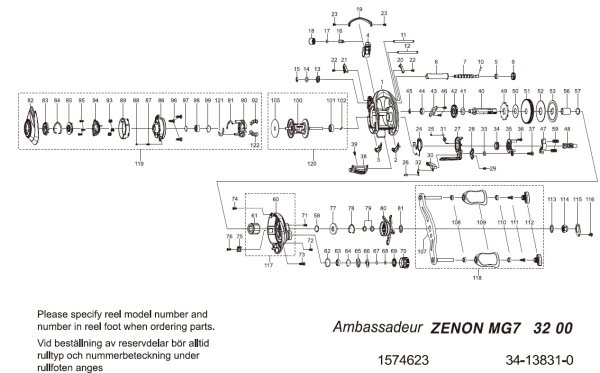

Reel Part's Schematic Diagram

Schematic Number	Part Number	Part Name	Price (USD)
1	1581423	FRAME	104.50
2	1415607	SLIDE WASHER	2.20
3	1415608	SLIDE WASHER	2.20
4	1581424	LINE GUIDE	5.50
5	1125729	BALLBEARING	6.60
6	1415610	LEVEL WIND TUBE	3.30
7	1415611	WORM SHAFT	16.50
9	1125732	WORM SHAFT GEAR	1.10
10	1125733	WORM SHAFT PIN	0.55
11	1415612	LINE GUIDE SHAFT	3.30
12	1415613	GUIDE PIN	3.30
13	1313359	WORM SHAFT PIN HOLDER	2.20
14	1185695	WORM SHAFT WASHER	1.76
15	1124201	RETAINER	0.55
16	1125735	PAWL	3.30
17	1125736	WASHER	0.55
18	1129323	LINE GUIDE NUT	0.77
19	1581475	FRONT COVER	30.80
20	1581426	FRONT SIDE TRIM RIGHT	2.20
21	1581427	FRONT SIDE TRIM LEFT	2.20
22	1452764	SCREW	2.20
23	1581428	SCREW	2.20
24	1581429	FRAME PLATE	3.30
25	1415616	BUSHING	2.20
26	1415617	KICK LEVER SPRING BUSHING	2.20
27	1581430	LIFT CURVE	3.30
28	1415619	LINK PLATE	2.20
29	1415620	SCREW	2.20
30	1289969	KICK LEVER	3.30
31	1380524	CLUTCH SPRING	2.20
32	1490489	KICK LEVER SPRING	2.20
33	1124178	WASHER	0.55
34	1581431	BUSH	2.20
35	1581432	CLUTCH PLATE	3.30
36	1415622	SCREW	2.20
37	1380616	SCREW	2.20
38	1581433	THUM BAR	3.30
39	1252078	SCREW	1.76
40	1530519	MAIN GEAR SHAFT	13.20
41	1125747	WASHER	0.55
42	1251634	LEVEL WIND GEAR	1.76
43	1415625	MAIN GRRR SHAFT PLATE	16.50
44	1116186	BALL BEARING	6.60
45	1124201	RETAINER	0.55
46	1372152	SCREW	2.20
47	1125753	YOKE	1.10
48	1581318	PINION	18.70
49	1281188	RATCHET	1.65
50	1452770	DRAG WASHER	3.30
51	1581572	MAIN GEAR	23.10
52	1204950	Carbon washer	2.20
53	1302638	PRESSURE WASHER	3.30
56	1239084	SLEEVE	3.30
57	1281136	WASHER	1.76
58	1372155	WASHER	2.20
59	1116237	YOKE SPRING	0.55
60	1581573	GEAR SIDE PLATE	44.00
61	1581437	ONE WAY CLUTCH	28.60
62	1185714	O-RING	0.55
63	1132857	BALL BEARING	6.60
64	1497606	RING	3.30
65	1125768	CLICK WASHER	1.10
66	1125769	CLICK SPRING	1.65
67	1125770	FRICTION WASHER	0.55
68	1125771	RUBBER WASHER	0.55
69	1125772	CLICK WASHER	1.10
70	1581574	BREKE KNOB	11.00
71	1581439	SCREW	2.20
72	1581439	SCREW	2.20
73	1581440	SCREW	2.20
74	1252078	SCREW	1.76
75	1581441	LUBE PORT	2.20
76	1252078	SCREW	1.76
77	1200021	CLICK PLATE	2.20
78	1125780	CLICK SPRING	0.77
79	1117208	SPRING WASHER	0.55
80	1581575	STAR WHEEL	26.40
81	1125783	WASHER	0.55
82	1581576	PALM SIDE PLATE	38.50
83	1581488	MAG DIAL	3.30
84	1125780	CLICK SPRING	0.77
85	1415635	SLIDE CAM	3.30
86	1581445	BEARING HOUSING	16.50
87	1313372	CLICK PIN SPRING	2.20
88	1313371	CLICK PIN	2.20
89	1581446	CAM LOCK LEVER	3.30
90	1415638	MAGNET HOLDER	3.30
91	1415639	MAGNET PLATE	2.20
92	1116222	MAGNET	2.20
93	1313476	SPRING	2.20
94	1415641	SLIDE CAM	3.30
95	1380655	SCREW	2.20
96	1415533	SCREW	2.20
97	1125797	WASHER	0.55
98	1504568	BALL BEARING	16.50
99	1104790	RING	0.55
100	1581577	SPOOL	60.50
101	1504567	BALL BEARING	16.50
102	1581450	SPOOL SHAFT PIN	2.20
105	1581578	SPOOL PLATE	3.30
107	1581659	HANDLE	77.00
108	1125729	BALLBEARING	6.60
109	1581453	HANDLE KNOB	15.40
110	1125729	BALLBEARING	6.60
111	1281320	SCREW	1.76
112	1581454	HANDLE KNOB CAP	3.30
113	1125783	WASHER	0.55
114	1581660	HANDLE NUT	3.30
115	1380560	HANDLE NUT COVER	2.20
116	1200031	HANDLE NUT RETAINER SCREW	0.55
117	1581661	GEAR SIDE COMPLETE	70.40
118	1581662	HANDLE COMPLETE	143.00
119	1581663	PALM SIDE COMPLETE	132.00
120	1581664	SPOOL COMPLETE	71.50
121	1415640	MAGNET PLATE	2.20
122	1302674	MAGNET	4.40

* Items Marked “For Repair Use Only” Are Not Available for Individual Parts Sales

Order Flow

(STEP 1: Customer)
Please add the ordered parts from the parts list to your cart and complete the payment together with the Commission for [SHIMANO / DAIWA / ABU] Back-order Genuine Parts (US$5.00).
↓
(STEP 2: Our Shop)
We review your order details and place the order with the manufacturer.
↓
(STEP 3: Manufacturer)
Only for parts that are not in stock, we will receive a notification from the manufacturer approximately one week later.
Parts that are in stock will arrive at our shop in about one month.
* If all ordered parts are in stock, there will be no notification from the manufacturer or our shop until the shipment is dispatched. Please wait until shipping.
↓
(STEP 4: Our Shop)
Once the parts arrive from the manufacturer, we will dispatch your order.

* Please note that it generally takes about one month for genuine spare parts to arrive.
* If you order both back-ordered items and in-stock items together, they will be shipped together after all back-ordered items arrive.
* If you would like to receive in-stock items first, please place and pay for each order separately.

* The parts list pages will be expanded gradually.
If the parts list for your reel is not yet available, please place your order by manually entering the details using the order form below.

Genuine Spare Parts Order Form
https://www.hedgehog-studio.co.jp/phone/form/parts

Regarding What You Can and Cannot Order for the Spare Parts

We source and provide genuine spare parts for SHIMANO / DAIWA / ABU reels only from the official Japanese websites listed below.
(We cannot assist with translating these websites. Please use Google Translate or other translation tools if necessary.)

| Parts that CANNOT be Ordered

- Spare parts for certain reel models (mainly older models) marked as “Unrepairable” on the SHIMANO website.

https://www.shimanofishingservice.jp/price.php

- Spare parts marked as “Just for Repair,” “Suspended,” or “Discontinued” on the DAIWA website.

http://www.sl-planets.co.jp/shop/c/

- Spare parts that do not have a part number or part code shown in the schematic diagrams on the SHIMANO / DAIWA websites.

- Spare parts marked as “For Repair Only” on the ABU website.

https://pfj-parts.com/
Please note that even for discontinued ABU reel models, parts may still be ordered if stock is available.

- Parts other than reel-related spare parts, such as rods or other fishing gear.
