[DAIWA] Genuine Spare Parts for 26 FREAMS LT4000-CXH Product code: 00067320 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 26 FREAMS LT4000-CXH Product code: 00067320 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

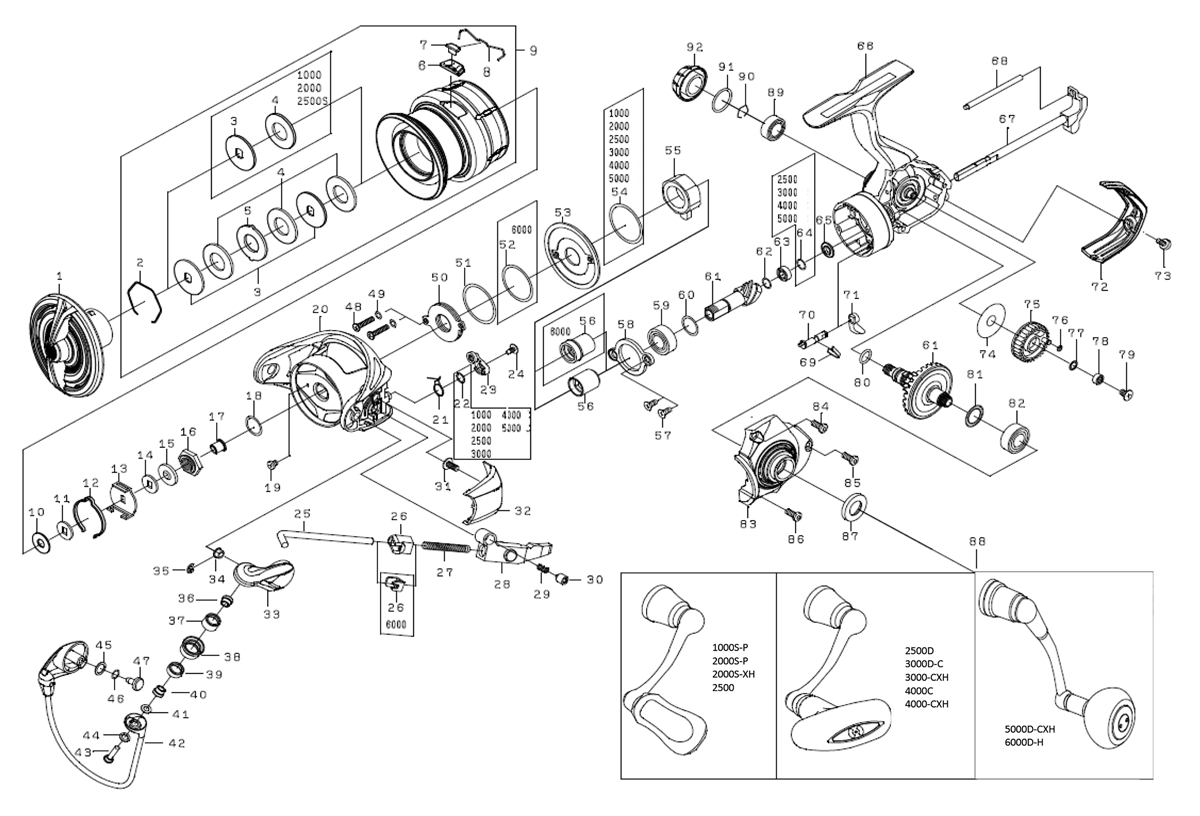

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6Q352901 12.10
2 DRAG RING 6Q346101 2.20
3 DRAG DISC W 6Q621901 2.20
4 DRAG W (3 pieces) 6Q917601 19.80
5 DRAG GRIP W 6Q346001 2.20
6 LINE STOPPER PLATE 6Q353501 2.20
7 LINE STOPPER 6Q345501 2.20
8 LINE STOPPER SPRING 6Q345701 2.20
9 SPOOL (2-9) 6R098501 72.60
10 SPOOL W (A) 6E398003 1.10
11 SPOOL W (B) 6Q348502 1.10
12 CLICK CREAGH SP 6Q797701 2.20
13 CLICK HOLDER 6Q798201 2.20
14 CLICK HOLDER W 6Q344001 1.10
15 ROTOR NUT PACKING 6H986901 3.30
16 ROTOR NUT 6Q735801 3.30
17 ROTOR NUT COLLAR 6Q858101 3.30
18 ROTOR NUT W 63727602 1.10
19 ROTOR NUT SC 6H022701 2.20
20 ROTOR 6R098401 28.60
21 KICK LEVER SP 6Q810801 2.20
22 KICK LEVER W 6M194601 1.10
23 KICK LEVER 6Q832801 3.30
24 KICK LEVER SC 6Q957301 2.20
25 ARM LEVER SHAFT 6Q833001 2.20
26 ARM LEVER SHAFT COLLAR 6Q808501 3.30
27 ARM LEVER SP 6Q833201 2.20
28 ARM LEVER SP HOLDER 6Q833301 2.20
29 ARM LEVER HOLDER SP 6Q812001 2.20
30 ARM LEVER HOLDER PIN *Not available 6Q808701 2.20
31 ARM LEVER SP COVER SC 6Q812201 2.20
32 ARM LEVER SP COVER 6Q833701 3.30
33 ARM LEVER 6R006705 11.00
34 ARM LEVER COLLAR 6Q809101 2.20
35 ARM LEVER RETAINER 6B339801 2.20
36 ROLLER COLLAR (A) 6Q994101 2.20
37 ROLLER COLLAR (B) 6R065801 2.20
38 LINE ROLLER *Not available 6Q881101 8.80
39 ROLLER COLLAR (C) 6Q994201 2.20
40 ROLLER COLLAR (D) 6Q994101 2.20
41 ROLLER W 63754101 1.10
42 BAIL 6R006801 48.40
43 ROLLER SC 6M475401 2.20
44 ROLLER SC・W 63754105 1.10
45 BAIL HOLDER SC・W (A) 6Q416203 1.10
46 BAIL HOLDER SC・W (B) 6F037404 1.10
47 BAIL HOLDER SC 6Q812301 2.20
48 MAG SHIELD PLATE SC 6G837101 2.20
49 MAG SHIELD PLATE SC・W 63754102 1.10
50 MAG SHIELD PLATE *Cannot be ordered 6J688201 23.10
51 MAG SHIELD PLATE O-RING 6J354801 1.10
53 MAGSEAL CAP *Cannot be ordered 6Q266601 3.30
54 ONE-WAY CLUTCH W 6J639902 1.10
55 ONE-WAY CLUTCH *Cannot be ordered 6J388401 26.40
56 CLUTCH RING *Cannot be ordered 6J001403 6.60
57 PINION BEARING PLATE SC 6Q126201 2.20
58 PINION BEARING PLATE 6Q195601 2.20
59 PINION BALL BEARING (A) 6G467302 8.80
60 PINION BEARING W (A) 63758502 1.10
61 PINION + DRIVE GEAR SET *Cannot be ordered 6Z700894 19.80
62 PINION BEARING W (B) 6H931701 1.10
63 PINION BALL BEARING (B) 6G466202 8.80
64 PINION BEARING W (C) 6G466103 1.10
65 PINION BEARING COLLAR 6J387701 3.30
66 BODY *Cannot be ordered 6R098101 28.60
67 MAIN SHAFT *Cannot be ordered 6Q864601 8.80
68 OSCILLATING POST 6Q853002 2.20
69 STOPPER CAM SP 6Q845901 2.20
70 STOPPER CAM 6Q852701 2.20
71 STOPPER LEVER 6Q852601 2.20
72 REAR CAP 6R098301 4.40
73 REAR CAP SC 6Q342901 2.20
74 OSCILLATE GEAR W 6H595701 1.10
75 OSCILLATE GEAR *Cannot be ordered 6Q350901 6.60
76 OSCILLATE GEAR O-RING 6G466001 1.10
77 OSCILLATE GEAR BEARING W 6H129201 1.10
78 OSCILLATE GEAR BALL BEARING 6G469005 8.80
79 OSCILLATE GEAR SC 6Q126101 2.20
80 DRIVE GEAR O-RING 6G670501 1.10
81 DRIVE W 63758511 1.10
82 DRIVE BALL BEARING (A) 6G467302 8.80
83 BODY COVER *Cannot be ordered 6R098201 19.80
84 BODY COVER SC (A) 6Q342601 2.20
85 BODY COVER SC (B) 6Q342601 2.20
86 BODY COVER SC (C) 6Q852401 2.20
87 HANDLE PACKING 6J100201 3.30
88 HANDLE 6Q396701 79.20
89 DRIVE BALL BEARING (B) 6G522706 8.80
90 DRIVE BALL BEARING (B) RING 6G472401 2.20
91 HANDLE CAP O-RING 6G162401 2.20
92 HANDLE CAP 6Q345101 4.40
200 HANDLE KNOB W 6B411701 1.10
201 HANDLE KNOB COLLAR (A) 6G720001 2.20
202 HANDLE KNOB 6Q353601 17.60
203 HANDLE KNOB COLLAR (B) 6G720001 2.20
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP 6Q353801 2.20
