[DAIWA] Genuine Spare Parts for 26 FREAMS LT2000S-P Product code: 00067304 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 26 FREAMS LT2000S-P Product code: 00067304 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

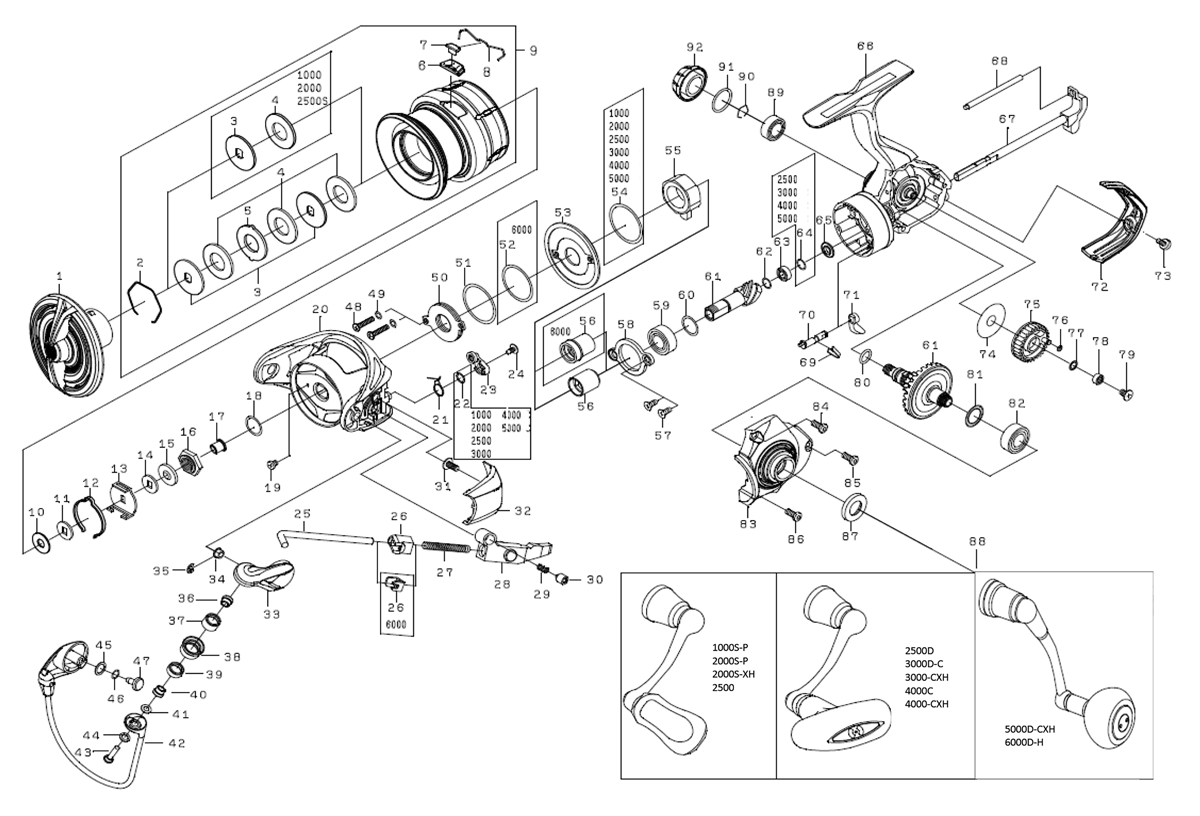

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6Q376801 12.10
2 DRAG RING 6Q346101 2.20
3 DRAG DISC W 6Q621901 2.20
4 DRAG W (1 piece) 6Q917501 6.60
6 LINE STOPPER PLATE 6Q376701 2.20
7 LINE STOPPER 6Q345501 2.20
8 LINE STOPPER SP 6Q345701 2.20
9 SPOOL (2-9) 6R102001 66.00
10 SPOOL W (A) 6E398003 1.10
11 SPOOL W (B) 6Q348502 1.10
12 CLICK LEAF SP 6Q797701 2.20
13 CLICK HOLDER 6Q798201 2.20
14 CLICK HOLDER W 6Q344001 1.10
15 ROTOR NUT PACKING 6H986901 3.30
16 ROTOR NUT 6Q748401 3.30
17 ROTOR NUT COLLAR 6Q858101 3.30
18 ROTOR NUT W 63727602 1.10
19 ROTOR NUT SC 6H022701 2.20
20 ROTOR 6Q825321 28.60
21 KICK LEVER SP 6Q825401 2.20
22 KICK LEVER W 6M194601 1.10
23 KICK LEVER 6Q825501 2.20
24 KICK LEVER SC 6Q957301 2.20
25 ARM LEVER SHAFT 6Q810901 2.20
26 ARM LEVER SHAFT COLLAR 6Q808501 3.30
27 ARM LEVER SP 6Q873901 2.20
28 ARM LEVER SP HOLDER 6Q826001 2.20
29 ARM LEVER HOLDER SP 6Q812001 2.20
30 ARM LEVER HOLDER PIN *Not available 6Q808701 2.20
31 ARM LEVER SP COVER SC 6Q812201 2.20
32 ARM LEVER SP COVER 6Q826401 3.30
33 ARM LEVER 6Q905207 11.00
34 ARM LEVER COLLAR 6Q809101 2.20
35 ARM LEVER RETAINER 6B339801 2.20
36 ROLLER COLLAR (A) 6Q994101 2.20
37 ROLLER COLLAR (B) 6R065801 2.20
38 LINE ROLLER *Not available 6Q881101 8.80
39 ROLLER COLLAR (C) 6Q994201 2.20
40 ROLLER COLLAR (D) 6Q994101 2.20
41 ROLLER W 63754101 1.10
42 BAIL 6Q905301 48.40
43 ROLLER SC 6M475401 2.20
44 ROLLER SC・W 63754105 1.10
45 BAIL HOLDER SC・W (A) 6Q416203 1.10
46 BAIL HOLDER SC・W (B) 6F037404 1.10
47 BAIL HOLDER SC 6Q812301 2.20
48 MAG SHIELD PLATE SC 6G837101 2.20
49 MAG SHIELD PLATE SC・W 63754102 1.10
50 MAG SHIELD PLATE *Cannot be ordered 6J688201 23.10
51 MAG SHIELD PLATE O-RING 6J354801 1.10
53 MAG SHIELD CAP *Cannot be ordered 6Q266601 3.30
54 ONE-WAY CLUTCH W 6J639902 1.10
55 ONE-WAY CLUTCH *Cannot be ordered 6J388401 26.40
56 CLUTCH RING *Cannot be ordered 6J001403 6.60
57 PINION BEARING PLATE SC 6Q126201 2.20
58 PINION BEARING PLATE 6Q195601 2.20
59 PINION BALL BEARING (A) 6G467302 8.80
60 PINION BEARING W (A) 63758502 1.10
61 PINION + DRIVE GEAR SET *Cannot be ordered 6Z700957 17.60
62 PINION BEARING W (B) 6H931701 1.10
63 PINION BALL BEARING (B) 6H959601 8.80
65 PINION BEARING COLLAR 6J387701 3.30
66 BODY *Cannot be ordered 6R089501 28.60
67 MAIN SHAFT *Cannot be ordered 6Q866301 8.80
68 OSCILLATING POST 6Q126306 2.20
69 STOPPER CAM SP 6Q845901 2.20
70 STOPPER CAM 6Q852701 2.20
71 STOPPER LEVER 6Q852601 2.20
72 REAR CAP 6R089701 4.40
73 REAR CAP SC 6Q342901 2.20
74 OSCILLATE GEAR W 6H607902 1.10
75 OSCILLATE GEAR *Cannot be ordered 6Q375201 6.60
76 OSCILLATE GEAR O-RING 6H770601 1.10
77 OSCILLATE GEAR BEARING W 6H129201 1.10
78 OSCILLATE GEAR BALL BEARING 6G469005 8.80
79 OSCILLATE GEAR SC 6Q126101 2.20
80 DRIVE GEAR O-RING 6G670501 1.10
81 DRIVE W 63758511 1.10
82 DRIVE BALL BEARING (A) 6G467302 8.80
83 BODY COVER *Cannot be ordered 6R089601 19.80
84 BODY COVER SC　(A) 6Q342601 2.20
85 BODY COVER SC (B) 6Q342601 2.20
86 BODY COVER SC (C) 6Q852401 2.20
87 HANDLE PACKING 6J100201 3.30
88 HANDLE 6Q402501 72.60
89 DRIVE BALL BEARING (B) 6G522706 8.80
90 DRIVE BALL BEARING (B) RING 6G472401 2.20
91 HANDLE CAP O-RING 6G162401 2.20
92 HANDLE CAP 6Q345101 4.40
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB COLLAR (A) 6G720001 2.20
202 HANDLE KNOB 6Q344801 17.60
203 HANDLE KNOB COLLAR (B) 6G720001 2.20
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP 6Q345001 2.20
