[SHIMANO] Genuine Spare Parts for 26 OCEA JIGGER LD 2501HG LEFT Product code: 048660 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

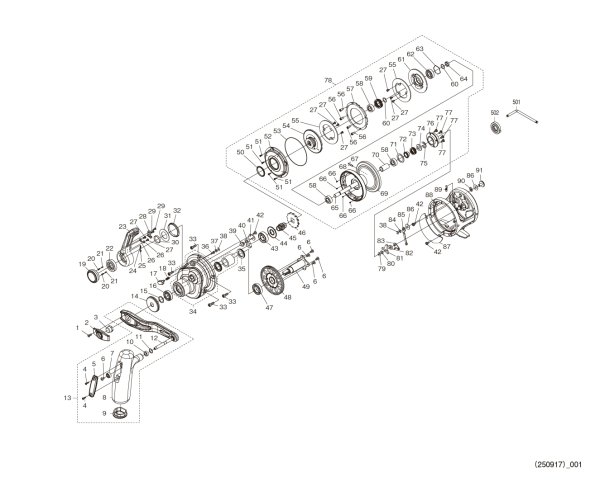

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	101AA	FIXED BOLT	1.65
2	144ZS	RETAINER	2.75
3	148UU	HANDLE FIXING NUT	6.05
4	103NH	FIXED BOLT	1.10
5	144ZR	HANDLE KNOB NAMEPLATE	6.05
6	103E9	FIXED BOLT	1.10
7	10KX2	BALL BEARING (4X9X4)	13.75
8	144ZM	HANDLE KNOB	45.10
9	144ZQ	HANDLE CAP	1.65
10	104UJ	HANDLE GRIP BUSHING (B)	1.65
11	104FH	WASHER	2.20
12	146ET	HANDLE SHAFT ASSEMBLY	112.20
13	146EU	HANDLE ASSEMBLY	168.30
14	144ZK	HANDLE RECEIVER	9.90
15	146F4	WASHER	1.10
16	104PW	BALL BEARING (10X19X5)	13.75
17	148UK	DRAG LEVER STOP	3.85
18	10BNL	DRAG LEVER STOP (B) SPRING	1.65
19	14CWU	PRESET KNOB ASSEMBLY	30.80
20	10K07	CLICK SPRING	1.65
21	10JX6	CLICK PIN	1.65
22	148UL	DRAG CAM	22.00
23	14CWV	DRAG CONTROL LEVER ASSEMBLY	80.30
24	10C3X	CLICK SPRING	1.65
25	13ZQM	CLICK PIN	1.10
26	13ZQN	DRAG LEVER CLICK PIN COVER	1.65
27	10S65	FIXING BOLT	1.10
28	148UR	LEVER PROTECTOR	1.10
29	13ZQQ	FIXING BOLT	1.10
30	108DN	DRAG LEVER BUSHING	1.65
31	10J19	WASHER	1.65
32	10F6B	LEVER CLICK GEAR	1.10
33	13ZQR	FIXING BOLT	1.65
34	14CWW	MAIN BODY A ASSEMBLY	143.00
35	10C68	ROLLER CLUTCH SEAL	3.85
36	101LH	FIXING BOLT	1.10
37	143L9	WASHER	1.10
38	105NK	E-TYPE RETAINING RING 2.5	1.10
39	10PFS	STOPPER FIXING SHAFT	2.20
40	10RZ8	STOPPER CLAW ASSEMBLY	3.85
41	13ZQT	STOPPER FIXING PLATE	1.10
42	1055F	FIXING BOLT	1.65
43	10T2K	BALL BEARING (9X20X6)	13.75
44	13ZQS	WASHER	7.70
45	148UP	PINION GEAR	22.00
46	144ZA	STOPPER GEAR	3.30
47	10KXA	BALL BEARING (12X21X5)	17.05
48	148UT	DRIVE GEAR	38.50
49	14CWX	DRIVE GEAR SHAFT ASSEMBLY	35.20
50	10EWA	WATERPROOF SEAL	3.85
51	10PRU	FIXING BOLT	1.65
52	13ZQZ	WATERPROOF COVER	2.75
53	1421C	O-RING	1.65
54	13ZR0	PINION GEAR COLLAR	29.70
55	13ZR1	DRAG WASHER	9.90
56	13ZR2	FIXING BOLT	4.95
57	13ZR4	DRAG PLATE	22.00
58	104Q5	BALL BEARING (7X14X5)	13.75
59	13ZRG	SPOOL SHAFT SPRING	2.20
60	149PN	WASHER	1.10
61	13ZR6	DRAG PLATE SUPPORT	25.30
62	104VJ	BALL BEARING (7X17X5)	13.75
63	13ZR7	BEARING RETAINER	1.10
64	13ZR9	BEARING SPACER	2.20
65	148UG	SPOOL SHAFT	9.35
66	10KJ6	ONE-TOUCH LEVER SPRING	1.10
67	10908	O-RING	1.65
68	145RN	SPOOL SHAFT PIN	1.10
69	1486D	SPOOL UNIT ASSEMBLY	79.75
70	144Z3	SPOOL SHAFT COLLAR	3.85
71	13ZRE	WASHER	1.10
72	13ZRF	DRAG SPRING SPACER	3.30
73	13ZR5	DRAG SPRING	2.75
74	13ZRH	WASHER	1.10
75	105RZ	E-TYPE RETAINING RING 6	1.10
76	148UH	F STOPPER GEAR	11.00
77	103EG	FIXING BOLT	1.10
78	14CWY	SPOOL ASSEMBLY	220.00
79	105NE	E-TYPE RETAINING RING 3	1.10
80	10DHK	WASHER	1.10
81	10905	F-STOPPER CLAW	1.65
82	144YX	F-STOPPER RETAINER	2.75
83	13T4V	F-STOPPER LEVER	2.75
84	10J16	WASHER	1.10
85	14CWZ	F-STOPPER LINK ASSEMBLY	3.85
86	104H2	CLICK BUTTON WASHER (A)	1.10
87	14AYM	MAIN BODY FIXING PLATE	4.40
88	14CX0	FRAME ASSEMBLY	176.00
89	13T7X	STOPPER CLAW SPRING	1.65
90	104MS	CLICK BEARING RETAINER	1.65
91	144YV	F-STOPPER KNOB	5.50
501	144ZU	REEL WRENCH	6.60
502	148UV	DRAG CAM (LIGHT LINE CAM)	26.40
