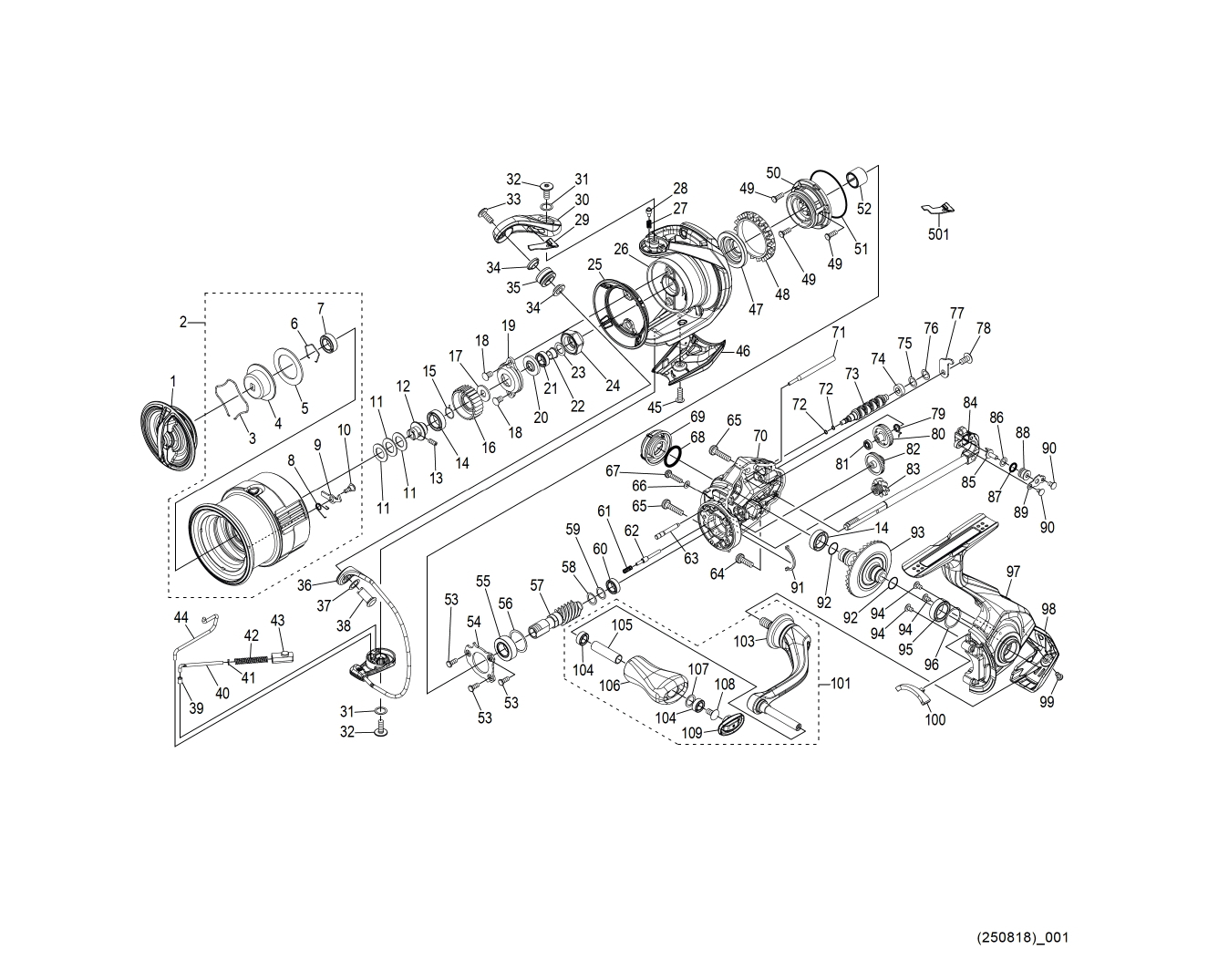

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 14C2H DRAG KNOB ASSEMBLY 30.80
2 14CKU SPOOL ASSEMBLY 143.00
3 10B6F RETAINING SPRING 1.65
4 10BCB OVAL WASHER 6.05
5 10R5H DRAG WASHER (A) 2.20
6 10GEW BEARING RETAINER 1.10
7 104JT BALL BEARING (6X10X3) 13.75
8 10BQE SPOOL PIN SPRING 1.65
9 10TJX SPOOL PIN 1.65
10 10A6F FIXING BOLT 1.65
11 10DHG SPOOL WASHER 2.20
12 10DKF MAIN SHAFT BEARING GUIDE 6.05
13 10PN2 SET SCREW 1.65
14 104PP BALL BEARING (7X11X3) 13.75
15 107V2 RATCHET SPRING 1.65
16 10SYS DRAG CLICK RATCHET 2.75
17 103PE SPOOL SUPPORT 1.65
18 10T1G RETAINER FIXING BOLT 1.10
19 1076N RETAINER 2.75
20 10SPZ ROTOR BEARING SEAL 3.85
21 104K1 BALL BEARING (5X8X2.5) 13.75
22 14743 ROTOR SUPPORT COLLAR 4.40
23 101FF WASHER 1.65
24 10R5F ROTOR NUT 9.35
25 14AAJ ROTOR FLANGE 7.70
26 14C2K ROTOR ASSEMBLY 58.30
27 10CGZ CLICK SPRING 1.65
28 106UX CLICK PIN 1.65
29 10R52 ARM CAM FIN 1.10
30 14AAB ARM CAM 8.25
31 13XDP WASHER 1.65
32 10RFW FIXING BOLT 1.65
33 10TLJ FIXING BOLT 2.75
34 1020L LINE ROLLER BEARING COLLAR 2.75
35 101KE LINE ROLLER (WITH BEARING) ASSEMBLY 34.10
36 14C2L BAIL ASSEMBLY 46.20
37 1002S ARM FIXING SHAFT WASHER 1.10
38 10EAP ARM FIXING SHAFT 2.75
39 10DKC ARM SPRING GUIDE (A) COLLAR BUSHING 1.65
40 10SAN ARM SPRING GUIDE (A) 3.85
41 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
42 10R2P ARM CAM SPRING 1.65
43 10R2E ARM CAM SPRING GUIDE (B) 2.75
44 13XDR INNER GEAR LEVER 2.75
45 10E8R FIXING BOLT 1.10
46 147HA BAIL MOUNTING COVER 10.45
47 101D5 ROTOR COLLAR 9.35
48 10DK7 FRICTION RING 3.85
49 101LH FIXING BOLT 1.10
50 10S2L ROLLER CLUTCH ASSEMBLY 12.65
51 10DKD ROLLER CLUTCH GUIDE SEAL 1.65
52 10DJY ROLLER CLUTCH INNER 3.85
53 10TGX FIXING BOLT 1.10
54 10R53 BEARING THRUST PLATE 2.75
55 13L47 BALL BEARING (7X13X4) 13.75
56 10RYR WASHER 1.10
57 13XE6 PINION GEAR 21.45
58 10DJ1 WASHER 1.65
59 143BL SPACER 1.10
60 10RKR BALL BEARING (5X8X2.5) 7.15
61 10R5T INTERMEDIATE GEAR SPRING 1.10
62 10R5K INTERMEDIATE GEAR SHAFT 2.75
63 13XDV INTERMEDIATE GEAR SHAFT (C) 2.75
64 10172 FIXING BOLT 1.10
65 100YN FIXING BOLT 1.65
66 10GD4 WASHER 1.10
67 1017M FIXING BOLT 1.10
68 108WH O-RING 1.65
69 14C2M HANDLE SCREW CAP ASSEMBLY 7.15
70 14AAL BODY 29.70
71 10R4U SLIDER GUIDE (A) 3.85
72 10092 O-RING 1.65
73 10R55 WORM SHAFT 11.55
74 10TH6 BUSHING 3.85
75 100XZ WASHER 2.20
76 10TK0 WASHER 1.65
77 13XDY WORM SHAFT COVER 1.65
78 10QG5 FIXING BOLT 1.10
79 10R5N WORM SHAFT GEAR SPRING 2.20
80 10R5L WORM SHAFT GEAR 9.35
81 10R5Q BALL BEARING (2X5X1.5) 7.15
82 10R4Q INTERMEDIATE GEAR (C) 8.25
83 13YJ8 INTERMEDIATE GEAR (L) 8.25
84 13XDZ MAIN SHAFT ASSEMBLY 30.80
85 106VL WORM SHAFT PIN 4.95
86 100CW WASHER 2.20
87 108W9 O-RING (3X5) 1.65
88 101BY WORM SHAFT PIN COLLAR 2.75
89 10HAG WORM SHAFT PIN RETAINING PLATE 1.65
90 10R4V FIXING BOLT 1.65
91 10DKA COVER FLANGE SEAL 2.75
92 1009S O-RING 1.65
93 13XE7 DRIVE GEAR 30.80
94 1055G FIXING BOLT 1.65
95 10EX8 BALL BEARING (8X12X3.5) 13.75
96 1022D WASHER 2.75
97 14CKV COVER ASSEMBLY 85.80
98 13ZMK BODY GUARD 11.55
99 10EF0 FIXING BOLT 1.65
100 10R4Y INNER GEAR STOP 1.65
101 14CKX HANDLE ASSEMBLY 111.10
103 14CKW HANDLE SHANK ASSEMBLY 85.80
104 104VX BALL BEARING (4X7X2.5) 13.75
105 1022F KNOB FIXING SHAFT PIPE 3.85
106 1004X HANDLE KNOB 11.55
107 104FH WASHER 2.20
108 103E9 FIXING BOLT 1.10
109 10SML HANDLE CAP 4.95
501 10TD4 ARM CAM FIN 1.10
MH01 14AGP LEG BOTTOM NAMEPLATE 2.75
