  3. > [SHIMANO] 24-26 OCEA CONQUEST CT Genuine Parts List - Schematic Diagram & Parts Diagram
  4. > [SHIMANO] Genuine Spare Parts for 26 OCEA CONQUEST CT 301XG LEFT Product code: 049230 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 OCEA CONQUEST CT 301XG LEFT Product code: 049230 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 OCEA CONQUEST CT 301XG LEFT Product code: 049230 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

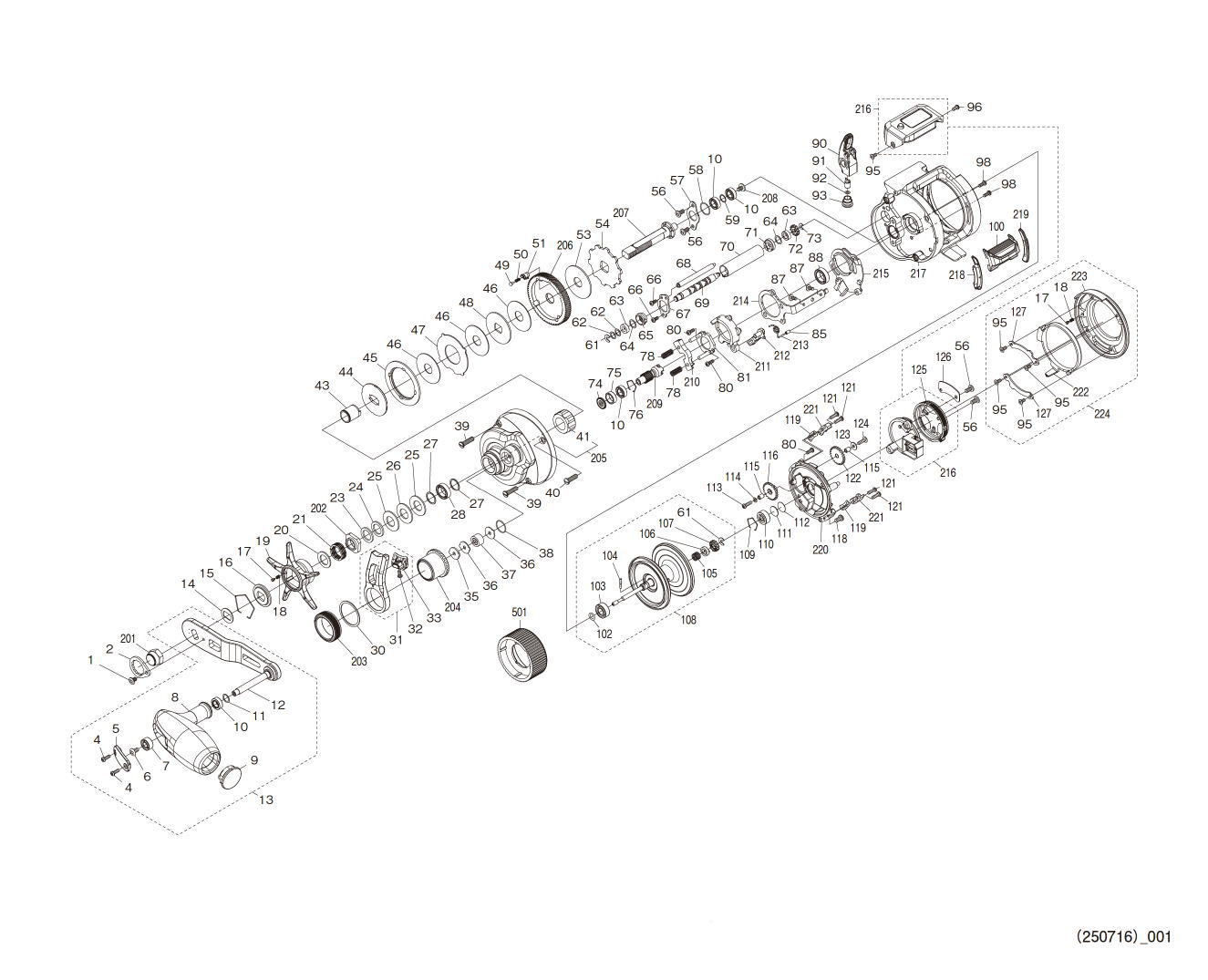

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "41 / ROLLER CLUTCH", "103 / BALL BEARING" and "104 / SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10QG0 FIXING BOLT 1.10
2 145FB RETAINER 2.75
4 103NH FIXING BOLT 1.10
5 10TNM HANDLE KNOB NAMEPLATE 2.75
6 103E9 FIXING BOLT 1.10
7 10KX2 BALL BEARING (4X9X4) 13.75
8 142EQ HANDLE KNOB 44.00
9 145AW HANDLE CAP 1.65
10 105BP BALL BEARING (5X9X3) 13.75
11 104FH WASHER 2.20
12 146G0 HANDLE SHAFT ASSEMBLY 39.60
13 146G1 HANDLE ASSEMBLY 95.70
14 107QQ HANDLE BEARING WASHER 1.65
15 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
16 10J1Y STAR DRAG CLICK PLATE 1.65
17 10B27 CLICK PIN 1.65
18 10988 CLICK SPRING 1.65
19 13Z8A STAR DRAG 28.60
20 10QXM WASHER 1.10
21 10A71 STAR DRAG SPRING 2.75
23 10J1N STAR DRAG SPACER 1.65
24 13B0U STAR DRAG SPACER 1.10
25 10EW3 SALA SPRING (DB8L) 1.65
26 1052E SALA SPRING (DB8H) 1.65
27 13B0S WASHER 1.65
28 105BS BALL BEARING (8X12X3.5) 13.75
30 13PK8 WASHER 1.65
31 146G2 FAURE LEVER ASSEMBLY 45.65
32 10LVD FIXING BOLT 1.10
33 13UEU LEVER PROTECTOR 1.65
35 13UES MECHANICAL BRAKE WASHER 1.10
36 13UET MECHANICAL BRAKE WASHER 3.85
37 13SVY ROLLER CLUTCH 16.50
38 109EB O-RING S11.2 1.65
39 13MBW FIXING BOLT 3.85
40 10A6X FIXING BOLT 3.85
41 10F33 ROLLER CLUTCH *Cannot be ordered 22.55
43 14016 ROLLER CLUTCH INNER TUBE 13.75
44 10D54 STAR DRAG PLATE 3.85
45 10JAZ DRAG CLICK RATCHET 1.65
46 10CHW STAR DRAG WASHER 6.05
47 10KQL STAR DRAG WASHER 1.65
48 10LB6 STAR DRAG WASHER 1.65
49 10C0S DRAG CLICK PIN 2.75
50 10J89 DRAG CLICK SPRING 1.65
51 13VG9 DRAG SPRING HOLDER 1.65
53 10CHZ STAR DRAG WASHER 2.75
54 10D6Y STOPPER GEAR 6.05
56 1055F FIXING BOLT 1.65
57 13VAE DRIVE GEAR SHAFT FIXING PLATE 1.65
58 10SZ4 O-RING 1.65
59 13Y0Z WASHER 1.10
61 105NK E-TYPE RETAINING RING 2.5 1.10
62 10J16 WASHER 1.10
63 10PXY HANDLE GRIP BUSHING (B) 1.65
64 10G8J WASHER 1.10
65 10N9Q WORM SHAFT BEARING (A) 1.65
66 10LVF FIXING BOLT 1.10
67 13SCJ WORM SHAFT RETAINER 1.65
68 13SH2 LEVEL WIND GUIDE 6.05
69 13S1A WORM SHAFT 9.35
70 145UA LEVEL WIND PIPE 11.00
71 104SP WORM SHAFT BEARING (B) 1.65
72 13S6P WORM SHAFT GEAR (C) 2.75
73 105NC E-TYPE RETAINING RING 2 1.10
74 13UEW ROLLER CLUTCH SEAL 3.85
75 13SVZ BEARING SPACER 1.10
76 1057X RETAINER 1.65
78 13T1T CLUTCH YOKE SPRING 1.10
80 101CN FIXING BOLT 1.65
81 13UEP CLUTCH CAM PRESSURE PLATE 3.85
85 108S5 SPRING SPACER 1.65
87 103C0 FIXING BOLT 1.10
88 10EX8 BALL BEARING (8X12X3.5) 13.75
90 10NYG LEVEL WIND ASSEMBLY 34.10
91 10FFT WORM SHAFT PIN 3.85
92 10GD0 WASHER 1.10
93 10FJC LEVEL WIND BEARING 6.05
95 10S65 FIXING BOLT 1.10
96 10U0S FIXING BOLT 1.10
98 10559 FIXING BOLT 1.65
100 13H6M CLUTCH LEVER ASSEMBLY 8.80
102 10TNF O-RING 1.65
103 105CA BALL BEARING (5X11X4) *Cannot be ordered 13.75
104 10MD0 SPOOL CLUTCH PIN *Cannot be ordered 1.65
105 10E20 SPOOL SHAFT SPRING 1.65
106 10MCY SPOOL SHAFT CAM 1.65
107 13SW5 WORM SHAFT GEAR (A) 2.75
108 146G6 SPOOL ASSEMBLY 79.20
109 10GEW BEARING RETAINER 1.10
110 105C1 BALL BEARING (3X10X4) 13.75
111 1057Q SPOOL SHAFT STOPPER (B) 1.10
112 13Y0Y WASHER 1.10
113 13JPR FIXING BOLT 1.10
114 10HVD WASHER 1.10
115 10TUH WORM SHAFT GEAR (D) MOUNT 2.75
116 13Z7H WORM SHAFT GEAR (B) 2.75
118 10LSL FIXING BOLT 1.10
119 13Z7M WASHER 1.10
121 142MD FIXING BOLT 1.10
122 13S6N WORM SHAFT GEAR (D) 2.75
123 10HYM WASHER 1.10
124 10TTU FIXING BOLT 1.10
125 13Z8F BATTERY COVER 4.40
126 13Z7L FRAME B MOUNT NAMEPLATE 1.65
127 13Z7D MAIN BODY B CAM LEVER PUSH PLATE 1.10
201 13V1Q HANDLE FIXING NUT 6.05
202 10A3W STAR DRAG FIXING NUT 3.85
203 13Z87 LOCK RING 13.75
204 13Z83 MECHANICAL BRAKE KNOB 17.05
205 14CM1 MAIN BODY A ASSEMBLY 135.30
206 13UYC DRIVE GEAR 28.05
207 13ULX DRIVE GEAR SHAFT 22.55
208 10PVU FIXING BOLT 1.65
209 13SQ8 PINION GEAR 22.55
210 13T1U CLUTCH YOKE 1.65
211 10SKS CLUTCH CAM 2.75
212 105ZV CLUTCH CLAW 3.85
213 104CK CLUTCH CLAW SPRING 1.65
214 13TDN CLUTCH PLATE 4.95
215 13UER MAIN UNIT A SEAT 1.10
216 146GC COUNTER UNIT ASSEMBLY 192.50
217 146GE FRAME ASSEMBLY 220.00
218 13TDS CLUTCH LEVER MOUNT (B) 1.65
219 13TDR CLUTCH LEVER MOUNT (A) 1.65
220 13Z7G FRAME B MOUNT 30.80
221 1461X FRAME B MOUNT CAM 1.65
222 13Z7C MAIN UNIT B CAM LEVER 1.10
223 13Z7A MAIN UNIT B 52.80
224 1473J MAIN UNIT B ASSEMBLY 60.50
501 145AV BATTERY CAP WRENCH 5.50
