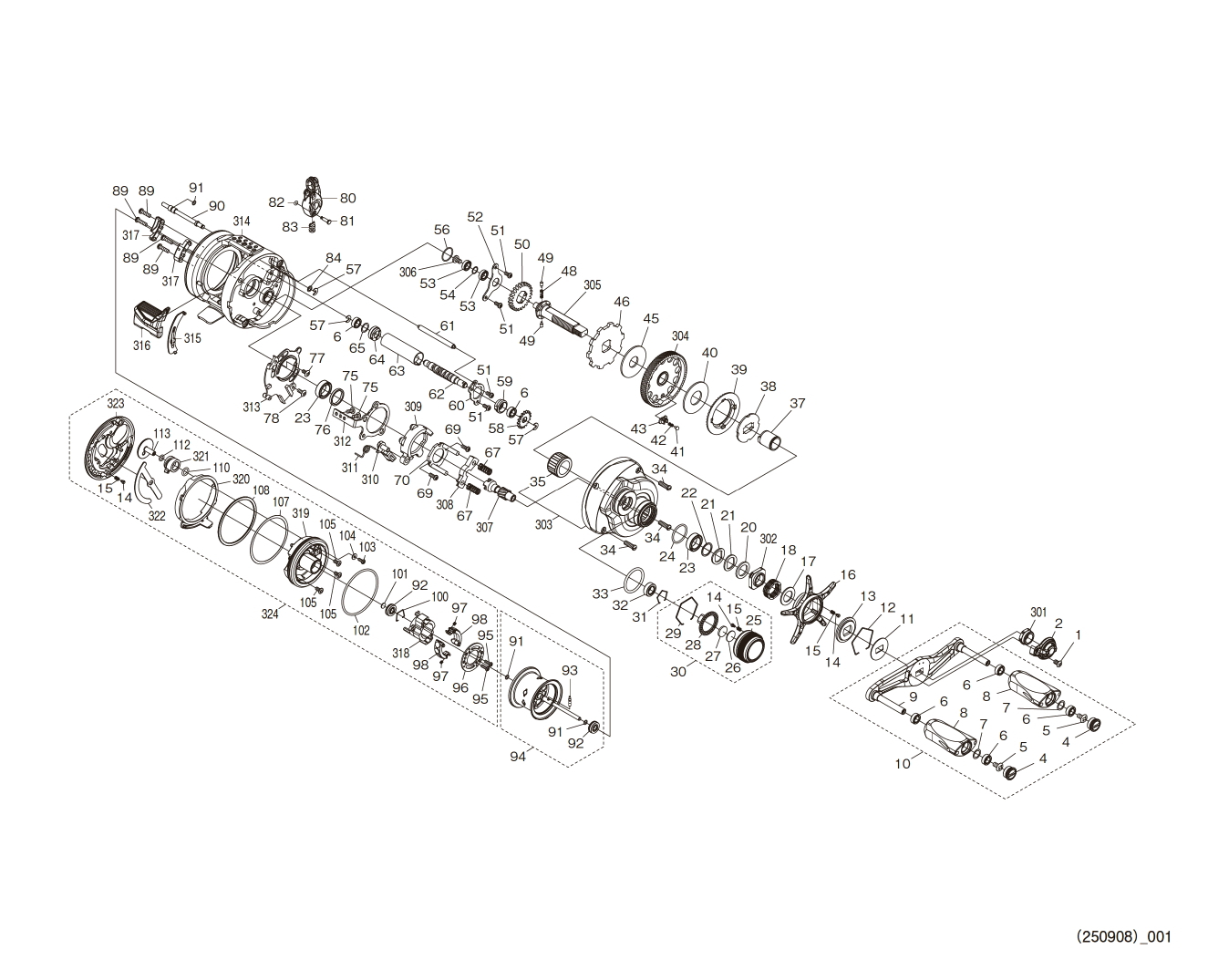

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "35 / ROLLER CLUTCH", "93 /SPOOL CLUTCH PIN" and "92 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10DN7 FIXING BOLT 1.65
2 10RZU RETAINER 1.10
4 14AE8 HANDLE CAP 11.55
5 10DQN FIXING BOLT 1.65
6 104VX BALL BEARING (4X7X2.5) 13.75
7 104FH WASHER 2.20
8 14AE7 HANDLE KNOB 88.00
9 14CNJ HANDLE SHANK ASSEMBLY 34.10
10 14CNK HANDLE ASSEMBLY 203.50
11 13V36 HANDLE BEARING WASHER 1.65
12 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
13 10J1Y STAR DRAG CLICK PLATE 1.65
14 10B27 CLICK PIN 1.65
15 10988 CLICK SPRING 1.65
16 14AEC STAR DRAG 22.00
17 100CU WASHER 1.10
18 10A71 STAR DRAG SPRING 2.75
20 10J1N STAR DRAG SPACER 1.65
21 10D60 MAIN GEAR WASHER (C) 1.65
22 105PW STAR DRAG BEARING WASHER 1.10
23 10EX8 BALL BEARING (8X12X3.5) 13.75
24 1027V O-RING 1.65
25 14AEB MECHANICAL BRAKE KNOB 20.35
26 10896 MECHANICAL BRAKE WASHER 1.10
27 1057S SPOOL SHAFT STOPPER (B) 1.10
28 10L2F MECHANICAL BRAKE KNOB CLICK PLATE 2.75
29 10L6X MECHANICAL BRAKE KNOB CLICK HOLDER 2.75
30 14CNL MECHANICAL BRAKE KNOB ASSEMBLY 36.85
31 1057X ANTI-SLIP LOCK 1.65
32 105BP BALL BEARING (5X9X3) 13.75
33 108W8 O-RING S-16 1.65
34 10C3N FIXING BOLT 2.75
35 1005E ROLLER CLUTCH *Cannot be ordered 17.05
37 10BN3 ROLLER CLUTCH INNER TUBE 6.05
38 10D55 STAR DRAG PLATE 6.05
39 10JB0 DRAG CLICK RATCHET 2.75
40 10CKS STAR DRAG WASHER 6.05
41 10C0T DRAG CLICK PIN 2.75
42 10J8A DRAG CLICK SPRING 1.65
43 10J87 DRAG SPRING HOLDER 1.65
45 10CJ4 STAR DRAG WASHER (A) 3.85
46 10R5Z STOPPER GEAR 2.75
48 10JDX WORM SHAFT GEAR SPRING 1.65
49 10HJF WORM SHAFT GEAR PIN 1.65
50 10057 WORM SHAFT GEAR 2.75
51 10U0S FIXING BOLT 1.10
52 100GK DRIVE GEAR SHAFT FIXING PLATE 1.10
53 10SAM BALL BEARING (4X7X2) 13.75
54 13PKS WASHER 1.10
56 10SZ4 O-RING 1.65
57 105NC E-TYPE RETAINING RING 2 1.10
58 10FNX WORM SHAFT GEAR 2.75
59 10N9Q WORM SHAFT BEARING (A) 1.65
60 10T7S WORM SHAFT RETAINER 1.10
61 1485R LEVEL WIND GUIDE 3.30
62 100GT WORM SHAFT 5.50
63 1485Q LEVEL WIND PIPE 7.15
64 104SP WORM SHAFT BEARING (B) 1.65
65 10G8G WASHER 1.10
67 13Y8B CLUTCH YOKE SPRING 1.10
69 101CN FIXING BOLT 1.65
70 10F42 CLUTCH CAM RETAINING PLATE 3.85
75 10559 FIXING BOLT 1.65
76 13Y8C FRAME (A) BUSHING 2.75
77 100BD FIXING BOLT 1.65
78 10MPS FIXING BOLT 1.65
80 10TED LEVEL WIND ASSEMBLY 51.70
81 100GC WORM SHAFT PIN RETAINER 1.10
82 10908 O-RING 1.65
83 100GJ WORM SHAFT PIN 4.40
84 10GA7 WASHER 1.10
89 10TP0 FIXING BOLT 1.10
90 13Y8E LINE GUARD 3.85
91 10E7H O-RING 1.10
92 10RUC BALL BEARING (3X8X2.5) *Cannot be ordered 15.95
93 10MCZ SPOOL CLUTCH PIN *Cannot be ordered 2.75
94 13Y84 SPOOL ASSEMBLY 134.75
95 10EEA FIXING BOLT 1.10
96 10TK4 BRAKE FIXING PLATE 3.85
97 10DGJ BRAKE COIL SPRING 1.10
98 10E7E MAGNET HOLDER ASSEMBLY 29.70
100 101A9 BEARING RETAINER 1.10
101 1085H MECHANICAL BRAKE WASHER 1.10
102 1006P O-RING 1.65
103 13Y8F FIXING BOLT 1.65
104 13Y8G WASHER 1.10
105 13Y8H FIXING BOLT 1.65
107 145UU WASHER 1.10
108 10T02 WASHER 2.75
110 10TNF O-RING 1.65
112 10CFZ O-RING 1.65
113 14AE2 BRAKE DIAL 31.35
301 14AE6 HANDLE FIXING NUT 4.95
302 10A0B STAR DRAG FIXING NUT 2.75
303 14CNR MAIN BODY A ASSEMBLY 132.00
304 10EDX DRIVE GEAR 29.70
305 10T7U DRIVE GEAR SHAFT 13.20
306 10DR4 FIXING BOLT 1.10
307 10EE1 PINION GEAR 23.10
308 1004W CLUTCH YOKE 1.10
309 10SX6 CLUTCH CAM 2.75
310 105ZU CLUTCH CLAW 3.85
311 10N1Z CLUTCH CLAW SPRING 1.10
312 100GE CLUTCH PLATE 2.20
313 100GD BODY A SHEET 1.65
314 14CNS FRAME ASSEMBLY 165.00
315 100GU CLUTCH LEVER RECEIVER 1.10
316 10U0N CLUTCH LEVER ASSEMBLY 7.70
317 13Y8U FRAME B RECEIVER CAM 1.10
318 10RZA BRAKE MOUNTING PLATE 3.30
319 13Y8S FRAME B RECEIVER ASSEMBLY 38.50
320 13Y8V BODY B CAM LEVER 1.10
321 13Y8W BRAKE CAM 2.75
322 13Y8X BODY B SEAL 1.10
323 14ADZ BODY B 77.00
324 14CNT BODY B ASSEMBLY 132.00
*F01 14B04 REEL BAG 11.00
