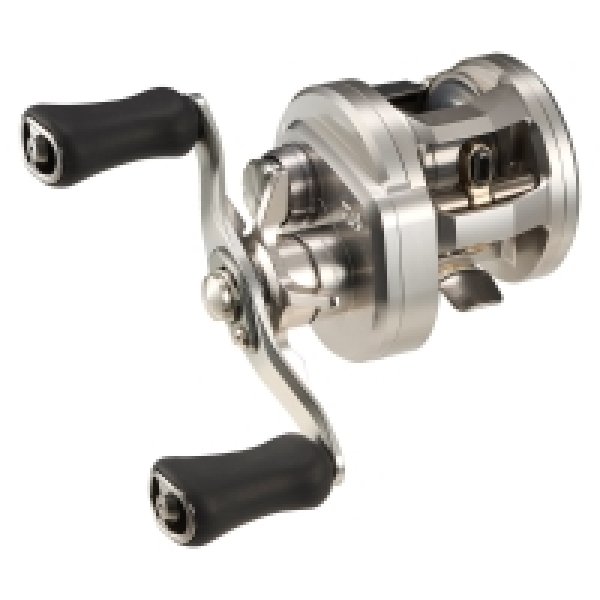

[DAIWA] Genuine Spare Parts for 26 RYOGA 100P Product code: 00630140 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	LS COVER	6J625203	39.60
2	MAG DIAL PLATE	6J625101	2.20
3	MAG DIAL	6J625002	9.90
4	MAG DIAL GEAR	6H176201	4.40
5	LS PLATE	6M852401	90.20
6	LEVER PLATE PIN	6J731201	2.20
7	LEVER PLATE SP	6J799101	2.20
8	LEVER PLATE COLLAR	6J635101	2.20
9	MAG DIAL PIN	6J286301	2.20
10	MAG DIAL SP	6J731301	2.20
11	MAG DIAL COLLAR	6J624901	2.20
12	LS PLATE SC	6G557111	2.20
13	MAG HOLDER	6J632401	19.80
14	MAG HOLDER RING	6H454501	2.20
15	LEVER PLATE	6J624801	2.20
16	LS BEARING W (A)	63757404	1.10
17	LS BEARING W (B)	63757411	1.10
18	LS BEARING W (C)	6G185101	1.10
19	LS BALL BEARING	6G511506	15.40
20	LS BEARING RING	6F032201	2.20
21	SPOOL (22-37)	6Z028459	156.20
22	SPOOL HOLDER O-RING	6H770601	1.10
23	SPOOL HOLDER RETAINER	63208002	2.20
24	SPOOL HOLDER SP・W	6J497001	1.10
25	SPOOL HOLDER SP (A)	6M042201	2.20
26	SPOOL HOLDER SP COLLAR	6M391901	3.30
27	SPOOL HOLDER SP (B)	6M042001	2.20
28	SPOOL HOLDER	6M055001	19.80
29	SPOOL HOLDER COLLAR	6M041701	2.20
30	SPOOL HOLDER COLLAR W	63755202	1.10
31	SPOOL PIN	6H358802	2.20
32	SPOOL BEARING RING	6J149501	2.20
33	SPOOL BALL BEARING	6G511506	15.40
34	SPOOL BEARING COLLAR	6H232201	2.20
35	SPOOL BEARING SP	6M052601	2.20
36	SPOOL BEARING W (A)	6F774601	1.10
37	SPOOL BEARING W (B)	6M052501	1.10
38	FRAME	6M852201	126.50
39	RS PLATE SC (A)	6J632305	2.20
40	FRAME O-RING	6J718601	1.10
41	CLUTCH LEVER PLATE (L)	6J623701	2.20
42	CLUTCH LEVER	6J219801	6.60
43	CLUTCH LEVER PLATE (R)	6J195001	2.20
44	RS PLATE SC (B)	6J623902	3.30
45	WORM SHAFT RETAINER	63205901	2.20
46	WORM SHAFT W	6B411703	1.10
47	WORM SHAFT COLLAR	6G720001	2.20
48	WORM SHIELD *Not available	6J541701	11.00
49	WORM SHIELD PLATE	6J623801	2.20
50	WORM SHIELD PLATE W	6B553803	1.10
51	LEVEL WIND	6J498701	55.00
52	WORM SHAFT	6J729201	11.00
53	WORM SHAFT COLLAR	6G720001	2.20
54	WORM SHAFT GEAR	6H910501	3.30
55	WORM SHAFT GEAR RETAINER	6B339801	2.20
56	LEVEL WIND POST RETAINER	6B864101	2.20
57	LEVEL WIND POST	6J527502	3.30
58	LEVEL WIND POST COLLAR	6H168701	2.20
59	POLE	6H168601	15.40
60	POLE W	6G099801	1.10
61	RS COVER PLATE	6J195415	8.80
62	COVER PLATE SC	6H455407	2.20
63	CLUTCH CAM BALL BEARING	6G431008	15.40
64	PINION BEARING COLLAR	6M518401	7.70
65	KICK LEVER SP	6H450001	2.20
66	KICK LEVER	6J221401	12.10
67	KICK LEVER PLATE	6H912301	2.20
68	KICK LEVER PLATE SC	6H294101	2.20
69	CLUTCH CAM SP COLLAR	6H910601	2.20
70	CLUTCH CAM SP	6H928801	2.20
71	CLUTCH CAM PIN	6J055201	2.20
72	CLUTCH CAM	6J219601	6.60
73	CLUTCH CAM PLATE	6H659101	3.30
74	CLUTCH PLATE	6H929001	3.30
75	CLUTCH SP	6J055301	2.20
76	CLUTCH CAM SC・W	6H159201	1.10
77	CLUTCH CAM SC	63522501	2.20
78	CLUTCH CAM PLATE SC	6B032904	2.20
79	PINION + DRIVE GEAR SET	6Z026846	93.50
80	PINION BEARING RING	6H160801	2.20
82	PINION BALL BEARING	6G538003	15.40
83	PINION BEARING COLLAR	6H159501	7.70
84	RS PLATE	6M852101	116.60
85	RS PLATE SC (C)	6G945822	2.20
86	ZERO ADJUSTER O-RING	6J279701	1.10
87	PINION SHAFT	6J198801	3.30
88	ZERO ADJUSTER W (A)	6H161002	1.10
89	ZERO ADJUSTER W (B)	6B175503	1.10
90	ZERO ADJUSTER	6J279612	17.60
91	GEAR SHAFT W	6G099801	1.10
92	GEAR SHAFT RETAINER	63208002	2.20
93	GEAR SHAFT BALL BEARING	6G538007	15.40
94	GEAR SHAFT PLATE	6H156501	6.60
95	WORM GEAR	6H912701	4.40
96	GEAR SHAFT	6J278301	18.70
97	GEAR SHAFT PLATE SC	6E134503	2.20
98	GEAR SHAFT O-RING	6F657801	1.10
99	RATCHET	6H929401	3.30
100	DRIVE GEAR W (A)	6H661101	1.10
101	PINION + DRIVE GEAR SET	6Z026846	93.50
102	DRAG W (1 piece)	6J517101	12.10
103	DRIVE COLLAR	6J499201	20.90
104	DRIVE COLLAR SP	6M025201	2.20
105	DRIVE COLLAR PIN	6J566201	2.20
106	DRIVE COLLAR O-RING	6H452801	1.10
107	CLUTCH RING W	6B553803	1.10
108	CLUTCH RING	6J327701	8.80
109	ONE-WAY CLUTCH	6G819801	20.90
110	HANDLE BALL BEARING	6G431008	15.40
111	HANDLE BEARING W	6B553802	1.10
112	DRAG HOLDER	6E709201	3.30
113	DRAG LEAF SP	6E715601	2.20
114	DRAG SP・W	61508901	2.20
115	STAR DRAG W	6H929501	2.20
116	STAR DRAG NUT	6J102301	7.70
117	STAR DRAG SP	6J011901	2.20
118	STAR DRAG	6J673910	30.80
119	HANDLE W (A)	6J102801	1.10
120	HANDLE W (B)	6J101302	1.10
121	HANDLE	6M870101	140.80
122	HANDLE NUT	6J090303	6.60
123	HANDLE LOCK PLATE	6M637102	4.40
124	HANDLE LOCK PLATE SC	6G835505	2.20
125	DRIVE GEAR W (B)	6H359004	7.70
200	HANDLE KNOB W	6B411703	1.10
201	HANDLE KNOB SP/W	6H744801	1.10
202	HANDLE KNOB	6M604401	26.40
203	HANDLE KNOB BALL BEARING	6G469005	8.80
204	HANDLE KNOB COLLAR	6G720001	2.20
205	HANDLE KNOB SC	6B679308	2.20
206	HANDLE KNOB CAP	6M604601	6.60
