[DAIWA] Genuine Spare Parts for 26 KOHGA IC 150PL Product code: 00631049 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 26 KOHGA IC 150PL Product code: 00631049 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

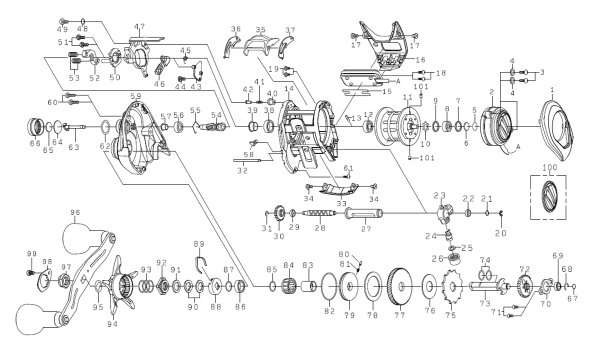

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 RS PLATE 6M851901 27.50
2 IC MODULE 6J639108 107.80
3 IC MODULE SC 6H666003 2.20
4 IC MODULE SC・W 6B536104 1.10
5 RS BEARING W (A) 63757406 1.10
6 RS BEARING W (B) 63757411 1.10
7 RS BEARING W (C) 63753003 1.10
8 RS BALL BEARING 6G431102 8.80
9 RS BEARING W (D) 6J844401 1.10
10 RS BEARING RETAINER 6H365601 2.20
11 SPOOL (11-13) 6M150701 48.40
12 SPOOL BALL BEARING 6G498510 8.80
13 SPOOL PIN 6J252301 2.20
14 FRAME 6J742901 25.30
15 IC MODULE HOLD SEAL 6J619501 2.20
16 IC MODULE COVER 6J621808 9.90
17 IC MODULE COVER SC (A) 6H842806 2.20
18 IC MODULE COVER SC (B) 6H881502 2.20
19 RS PLATE SC 6H005701 2.20
20 WORM SHAFT RETAINER 63205901 2.20
21 WORM SHAFT W 6B411703 1.10
22 WORM SHAFT COLLAR 6G720001 2.20
23 LEVEL WIND 6J620201 9.90
24 POLE 61214212 3.30
25 POLE W 63731303 1.10
26 POLE HOLDER NUT 6F402801 2.20
27 WORM SHIELD 6J638701 3.30
28 WORM SHAFT 6J243602 7.70
29 WORM SHAFT COLLAR 6G720001 2.20
30 WORM SHAFT GEAR 6J281401 4.40
31 WORM SHAFT GEAR RETAINER 6B339801 2.20
32 OSCILLATING POST 6M134301 2.20
33 FRONT COVER 6J621908 8.80
34 FRONT COVER SC 6H842806 2.20
35 CLUTCH LEVER 6J619901 6.60
36 CLUTCH LEVER PLATE (R) 6J619601 2.20
37 CLUTCH LEVER PLATE (L) 6J619701 2.20
38 CLUTCH CAM BALL BEARING 6G431008 15.40
39 CLUTCH CAM BEARING COLLAR 6M518401 7.70
40 CLUTCH CAM PLATE COLLAR 6H910601 2.20
41 CLUTCH CAM PLATE SP 6H928801 2.20
42 CLUTCH CAM PLATE COLLAR 6J055201 2.20
43 KICK LEVER PLATE (A) 6J333601 2.20
44 KICK LEVER PLATE (A) SC 6H531508 2.20
45 KICK LEVER SP 6J407801 2.20
46 KICK LEVER 6J638601 6.60
47 CLUTCH CAM PLATE 6J638501 6.60
48 CLUTCH CAM PLATE W 6H159201 1.10
49 CLUTCH CAM PLATE SC 63522501 2.20
50 KICK LEVER PLATE (B) 6H659101 3.30
51 KICK LEVER PLATE (B) SC 6B032904 2.20
52 CLUTCH PLATE 6H944401 3.30
53 CLUTCH PLATE SP 6J313901 2.20
54 PINION + DRIVE GEAR SET 6Z028447 74.80
55 PINION BEARING RING 6H448401 2.20
56 PINION BALL BEARING 6G538003 15.40
57 PINION BEARING COLLAR 6J724601 9.90
58 LINE STOPPER 6E169502 2.20
59 LS PLATE 6M851401 34.10
60 LS PLATE SC (A) 6J635701 2.20
61 LS PLATE SC (B) 6J255202 2.20
62 MECHANICAL BRAKE KNOB O-RING 6M150101 1.10
63 PINION SHAFT 6J198801 3.30
64 MECHANICAL BRAKE W (A) 6H161001 1.10
65 MECHANICAL BRAKE W (B) 6B175503 1.10
66 MECHANICAL BRAKE KNOB 6M121102 18.70
67 GEAR SHAFT W 6G099801 1.10
68 GEAR SHAFT RETAINER 63208002 2.20
69 GEAR SHAFT BALL BEARING 6G466202 8.80
70 GEAR SHAFT PLATE 6J281101 3.30
71 GEAR SHAFT PLATE SC 6E134509 2.20
72 WORM GEAR 6J281001 7.70
73 GEAR SHAFT 6M122202 17.60
74 GEAR SHAFT O-RING 6F657801 1.10
75 RATCHET 6H660901 3.30
76 DRIVE GEAR W 6J085101 1.10
77 PINION + DRIVE GEAR SET 6Z028447 74.80
78 DRAG W (1 piece) 6M929701 13.20
79 DRIVE COLLAR 6J443001 17.60
80 DRIVE COLLAR PIN 6J566201 2.20
81 DRIVE COLLAR SP 6M025201 2.20
82 DRIVE COLLAR O-RING 6J458101 1.10
83 CLUTCH RING 6J327701 8.80
84 ONE-WAY CLUTCH 6G819801 20.90
85 CLUTCH RING W 6B553801 1.10
86 HANDLE BALL BEARING 6B861705 8.80
87 HANDLE BEARING W 6B553801 1.10
88 DRAG HOLDER 6F028203 3.30
89 DRAG HOLDER LEAF SP 6F032401 2.20
90 DRAG SP・W 61508901 2.20
91 DRAG NUT W 6H929501 2.20
92 STAR DRAG NUT 6J141002 7.70
93 STAR DRAG SP 6J011901 2.20
94 STAR DRAG 6J140002 24.20
95 HANDLE W 6J101302 1.10
96 HANDLE 6M850001 121.00
97 HANDLE NUT 6J090308 6.60
98 HANDLE LOCK PLATE 6M637104 4.40
99 HANDLE LOCK PLATE SC 6G835508 3.30
100 BATTERY CAP (WITH O-RING) *Cannot be ordered 6J737601 11.00
101 BRAKE COLLAR 6B352901 2.20
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB COLLAR 6G720001 2.20
202 HANDLE KNOB 6M850101 39.60
203 HANDLE KNOB SC 6B679308 2.20
204 HANDLE KNOB CAP (WITH O-RING) 6Z027818 15.40
205 HANDLE KNOB CAP O-RING 6H100001 1.10
