[SHIMANO] Genuine Spare Parts for 26 NASCI C2000S Product Code: 048080 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 26 NASCI C2000S Product Code: 048080 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

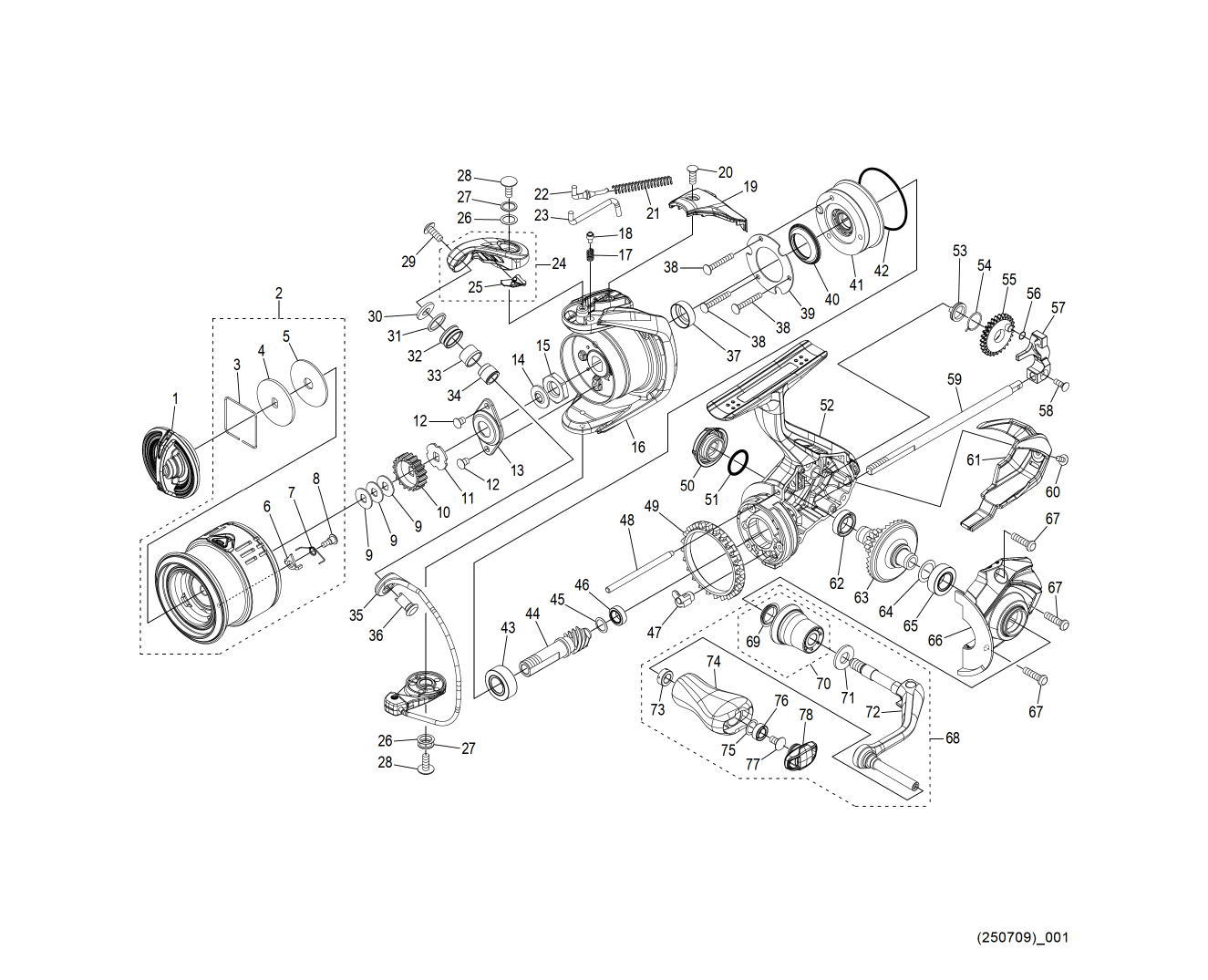

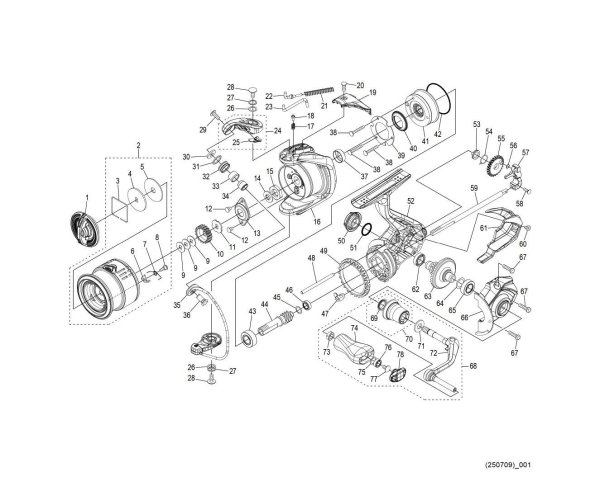

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 101BU DRAG KNOB ASSEMBLY 17.05
2 14BMK SPOOL ASSEMBLY 36.30
3 10B87 ANTI-SLIP SPRING 1.65
4 10N24 OVAL WASHER 1.65
5 10N5A DRAG WASHER 1.10
6 10DS4 SPOOL PIN 1.65
7 10DS6 SPOOL PIN SPRING 1.65
8 10TRB FIXING BOLT 1.65
9 10BXN SPOOL WASHER SET 1.10
10 103MU SPOOL SUPPORT (A) 1.65
11 10J04 SPOOL SUPPORT (B) 1.65
12 10PMC FIXING BOLT 2.75
13 10TRH RETAINER 2.75
14 107L4 ROTOR BEARING SEAL 2.75
15 1067Y ROTOR NUT 3.85
16 14AYG ROTOR 11.00
17 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
18 106ZC CLICK PIN 1.65
19 14AYH ARM CAM SPRING COVER 3.85
20 10LFK FIXING BOLT 1.10
21 10FVB ARM CAM SPRING 1.10
22 105LS ARM SPRING GUIDE 1.10
23 106L0 INNER DRAG LEVER 2.75
24 14CAE ARM CAM ASSEMBLY 3.85
25 14BMR ARM CAM FIN 1.10
26 10KFA ADJUSTMENT WASHER 1.10
27 10K96 WASHER 1.65
28 103DA FIXING BOLT 1.65
29 10PMH FIXING BOLT 1.65
30 107X1 LINE ROLLER WASHER 1.65
31 10KFD ARM ROLLER SPACER 1.65
32 10JLF ARM ROLLER 1.65
33 10PFH ARM ROLLER BUSHING 1.10
34 149ZC COLLARS 1.65
35 14CAF BAIL ASSEMBLY 18.70
36 149ZA ARM FIXING SHAFT 3.30
37 10JHG ROTOR COLLAR 3.85
38 103C6 FIXING BOLT 1.10
39 10L62 ROLLER CLUTCH COVER PLATE 1.65
40 10MH6 ROLLER CLUTCH SEAL 3.85
41 10QPN ROLLER CLUTCH ASSEMBLY 11.55
42 10MLU O-RING 3.85
43 10E7A BALL BEARING (7X14X5) 7.15
44 14BMV PINION GEAR 13.20
45 10SYU WASHER 1.65
46 10RKR BALL BEARING (5X8X2.5) 7.15
47 149ZL STOPPER CAM 1.10
48 101BN SLIDER GUIDE 1.65
49 104FV FRICTION RING 2.75
50 10RSE HANDLE SCREW CAP 3.85
51 10E3K O-RING 1.65
52 14CAL BODY ASSEMBLY 18.70
53 10TBH BUSHING 1.10
54 10RPB BUSHING SPRING 1.10
55 101BV SLIDER GEAR 1.65
56 101BW O-RING 1.65
57 101BP SLIDER 8.25
58 10R1P FIXING BOLT 1.65
59 101SY MAIN SHAFT 6.05
60 10LCS FIXING BOLT 1.10
61 10R9D BODY GUARD 6.05
62 107FA BALL BEARING (7X11X3) 7.15
63 101BZ DRIVE GEAR 16.50
64 10EEZ WASHER 2.75
65 10DZB BALL BEARING (7X13X4) 7.15
66 14BZE COVER 12.10
67 10L6K FIXING BOLT 1.10
68 14BMW HANDLE ASSEMBLY 49.50
69 10PXV HANDLE SHAFT SEAL 2.75
70 10TSE HANDLE SHAFT FLANGE ASSEMBLY 8.80
71 10E5X HANDLE WASHER 1.65
72 14CAH HANDLE SHANK ASSEMBLY 22.00
73 10PXZ HANDLE KNOB BUSHING 1.65
74 10328 HANDLE KNOB 11.55
75 104FH WASHER 2.20
76 10K64 BALL BEARING (4X7X2.5) 7.15
77 10LFA FIXING BOLT 1.10
78 10TNJ HANDLE CAP 3.85
MH01 1478Z BASE PLATE 1.10
