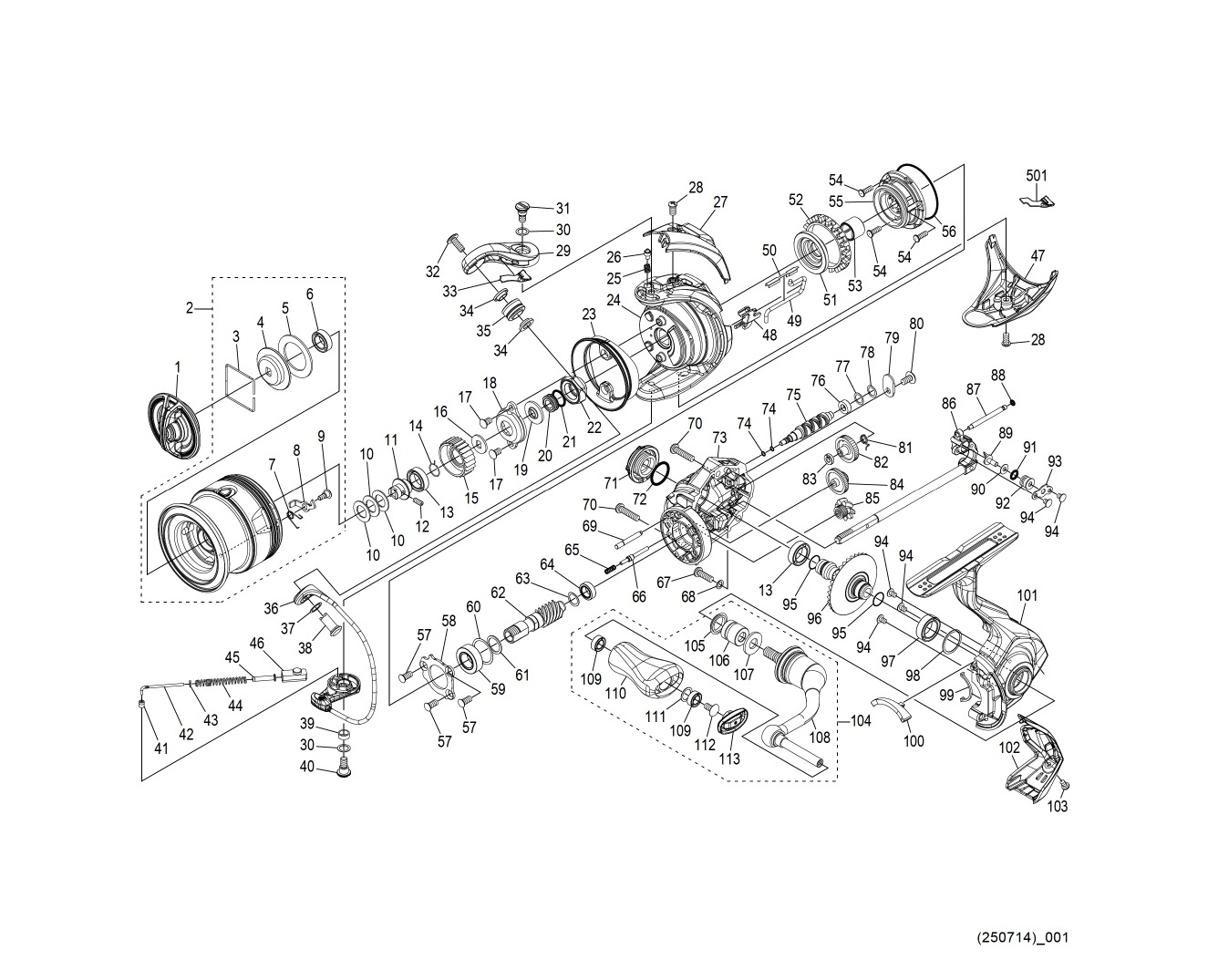

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 145QT DRAG KNOB ASSEMBLY 30.80
2 14CM3 SPOOL ASSEMBLY 132.00
3 10B87 ANTI-SLIP SPRING 1.65
4 10B9X OVAL WASHER 3.85
5 100B7 DRAG WASHER (A) 2.20
6 104JT BALL BEARING (6X 10X 3) 13.75
7 10DNN SPOOL PIN SPRING 1.65
8 10TNV SPOOL PIN 1.65
9 10TRB FIXING BOLT 1.65
10 10DHG SPOOL WASHER 2.20
11 10DKF MAIN SHAFT BEARING GUIDE 6.05
12 10PN2 SET SCREW 1.65
13 104PP BALL BEARING (7X 11X 3) 13.75
14 107V2 RATCHET SPRING 1.65
15 10SYS DRAG CLICK RATCHET 2.75
16 103PE SPOOL SUPPORT 1.65
17 103LB FIXING BOLT 1.10
18 1076N RETAINER 2.75
19 1004T ROTOR BEARING SEAL 3.85
20 13Z0W MAIN SHAFT COLLAR 4.40
21 108WQ O-RING 1.65
22 13Z0V ROTOR NUT 6.05
23 100GX ROTOR FLANGE 9.35
24 145QV ROTOR ASSEMBLY 104.50
25 10024 CLICK SPRING 1.65
26 106UX CLICK PIN 1.65
27 10T7Y ARM CAM SPRING COVER 13.20
28 10RP9 FIXING BOLT 1.65
29 13ZYZ ARM CAM 8.25
30 10J1F WASHER 1.10
31 13ZZ0 FIXING BOLT 6.05
32 10K40 FIXING BOLT 2.75
33 10R5M ARM CAM FIN 1.10
34 1020L LINE ROLLER BEARING COLLAR 2.75
35 13XYD LINE ROLLER ASSEMBLY (WITH BEARING) 34.10
36 145QW BAIL ASSEMBLY 46.20
37 1002S ARM FIXING SHAFT WASHER 1.10
38 13ZML ARM FIXING SHAFT 6.05
39 101D0 BAIL MOUNTING CAM COLLAR 1.65
40 13ZYY FIXING BOLT 6.05
41 10S8C ARM SPRING GUIDE (A) BUSHING 1.65
42 100AT ARM SPRING GUIDE (A) 3.85
43 100B9 ARM SPRING GUIDE (A) COLLAR 2.20
44 100B8 ARM CAM SPRING 2.20
45 10S8A ARM SPRING GUIDE (C) 2.20
46 10R2E ARM CAM SPRING GUIDE (B) 2.75
47 100H0 BAIL MOUNTING COVER 17.05
48 10T7Z INNER LEVER COVER 1.65
49 100B1 INNER LEVER 2.75
50 10S8G INNER LEVER SEAT 1.65
51 101D5 ROTOR COLLAR 9.35
52 10DK7 FRICTION RING 3.85
53 10DJY ROLLER CLUTCH INNER 3.85
54 101LH FIXING BOLT 1.10
55 10S2L ROLLER CLUTCH ASSEMBLY 12.65
56 10DKD ROLLER CLUTCH GUIDE SEAL 1.65
57 10TGX FIXING BOLT 1.10
58 10R53 BEARING RETAINING PLATE 2.75
59 10R77 BALL BEARING (7X 13X 4) 7.15
60 10RYR WASHER 1.10
61 13MGK WASHER 1.65
62 142Z5 PINION GEAR 21.45
63 10DJ1 WASHER 1.65
64 10RKR BALL BEARING (5X 8X 2.5) 7.15
65 10R5T INTERMEDIATE GEAR SPRING 1.10
66 10T34 INTERMEDIATE GEAR SHAFT 2.75
67 10172 FIXING BOLT 1.10
68 13YPL WASHER 1.10
69 13XFM INTERMEDIATE GEAR SHAFT (C) 2.75
70 100YN FIXING BOLT 1.65
71 13ZYN HANDLE SCREW CAP 6.60
72 142EP O-RING 1.65
73 13ZZ3 BODY 22.55
74 10092 O-RING 1.65
75 10S8F WORM SHAFT 11.55
76 10TH6 BUSHING 3.85
77 100XZ WASHER 2.20
78 10TK0 WASHER 1.65
79 10ATC WORM SHAFT COVER 1.65
80 10QG5 FIXING BOLT 1.10
81 10R5N WORM SHAFT GEAR SPRING 2.20
82 10R5L WORM SHAFT GEAR 9.35
83 13Z11 BUSHING 2.75
84 100BB INTERMEDIATE GEAR (C) 8.25
85 100B6 INTERMEDIATE GEAR (LARGE) 8.25
86 13XYM MAIN SHAFT ASSEMBLY 30.80
87 100BA SLIDER GUIDE (A) 3.85
88 10908 O-RING 1.65
89 106VK WORM SHAFT PIN 4.95
90 100CW WASHER 2.20
91 108W9 O-RING (3X 5) 1.65
92 101BY WORM SHAFT PIN COLLAR 2.75
93 10HAG WORM SHAFT PIN RETAINING PLATE 1.65
94 1055G FIXING BOLT 1.65
95 1009S O-RING 1.65
96 13XZ3 DRIVE GEAR 30.80
97 10EX8 BALL BEARING (8X 12X 3.5) 13.75
98 1022D WASHER 2.75
99 10DKA COVER FLANGE SEAL 2.75
100 10R4Y INNER GEAR STOP 1.65
101 14CM2 COVER ASSEMBLY 77.00
102 1422L BODY GUARD 11.55
103 10EF0 FIXING BOLT 1.65
104 145QY HANDLE ASSEMBLY 86.90
105 10PXU HANDLE SHAFT SEAL 2.75
106 10022 HANDLE SHAFT FLANGE (B) 9.35
107 10FMF HANDLE WASHER 1.65
108 145QZ HANDLE SHANK ASSEMBLY 57.20
109 104VX BALL BEARING (4X 7X 2.5) 13.75
110 1004X HANDLE KNOB 11.55
111 104FH WASHER 2.20
112 103E9 FIXING BOLT 1.10
113 10SML HANDLE CAP 4.95
501 10S8H ARM CAM FIN 1.10
MH01 14A6Z LEG BOTTOM NAMEPLATE 2.75
