  3. > [SHIMANO] 14-15 CALCUTTA CONQUEST Genuine Parts List - Schematic Diagram & Parts Diagram
  4. > [SHIMANO] Genuine Spare Parts for 14-15 CALCUTTA CONQUEST 201 Product code:032058 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 14-15 CALCUTTA CONQUEST 201 Product code:032058 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 14-15 CALCUTTA CONQUEST 201 Product code:032058 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

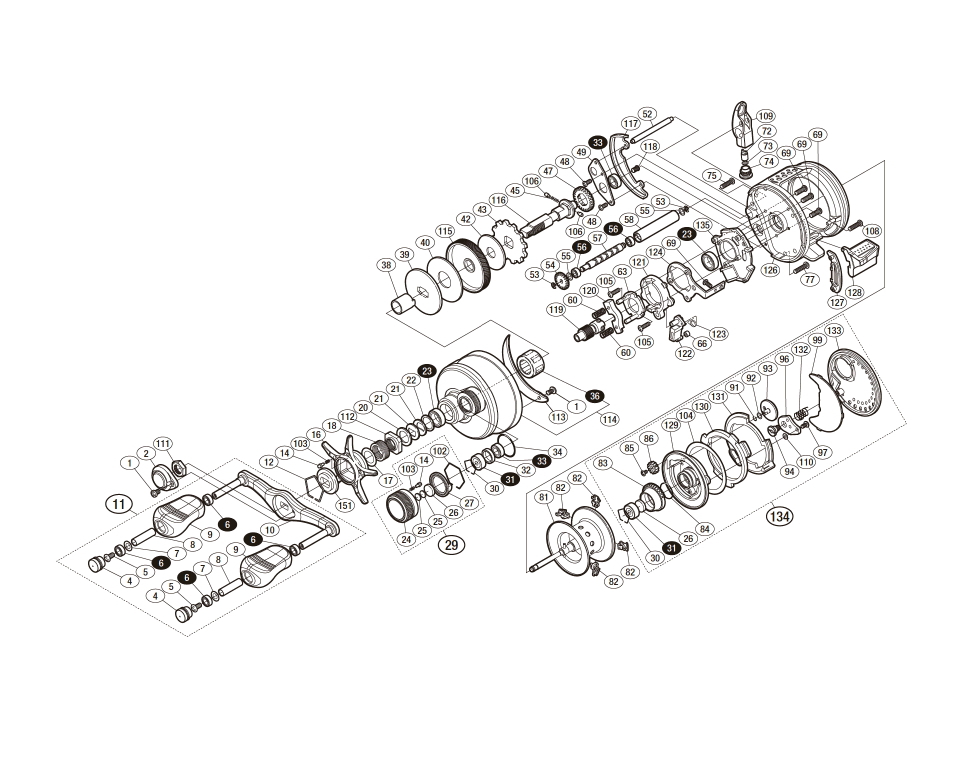

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "36 / ROLLER CLUTCH" they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13WHP REEL BAG 9.35
1 10CZ5 FIXING BOLT 2.75
2 10Q5R HANDLE RETAINER 13.75
4 10FMG HANDLE CAP 3.85
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4X7X2.5) 13.75
7 104FH WASHER 2.20
8 109VL KNOB FIXING SHAFT PIPE 3.85
9 10325 HANDLE KNOB 11.55
10 10A67 HANDLE 39.60
11 10CF1 HANDLE ASSEMBLY 101.20
12 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
14 10B27 CLICK PIN 1.65
16 10AU1 STAR DRAG 22.55
17 10HHN SLIDER WASHER (9X13X0.3) 1.65
18 10A71 STAR DRAG SPRING 2.75
20 10J1N STAR DRAG SPACER 1.65
21 10D60 MAIN GEAR WASHER (C) 1.65
22 105PW STAR DRAG BEARING WASHER 1.10
23 10EX8 BALL BEARING (8X12X3.5) 13.75
24 10KDN MECHANICAL BRAKE KNOB 17.05
25 10896 MECHANICAL BRAKE WASHER 1.10
26 1057S SPOOL SHAFT STOPPER (B) 1.10
27 10L2F MECHANICAL BRAKE KNOB CLICK PLATE 2.75
29 10HWC MECHANICAL BRAKE KNOB ASSEMBLY 28.05
30 10GEW BEARING RETAINER 1.10
31 105C4 BALL BEARING (3X10X4) 13.75
32 10EYT BEARING SPACER 2.75
33 105BR BALL BEARING (5X9X3) 13.75
34 108W8 O-RING S-16 1.65
36 10F33 ROLLER CLUTCH *Cannot be ordered 22.55
38 10BN1 ROLLER CLUTCH INNER TUBE 6.05
39 10D3M STAR DRAG PLATE 2.75
40 106XR STAR DRAG WASHER 3.85
42 10CJ2 STAR DRAG WASHER 3.85
43 10D6Z STOPPER GEAR 3.85
45 10JDZ WORM SHAFT GEAR SPRING 1.65
47 10J6W WORM SHAFT GEAR 3.85
48 10MPN FIXING BOLT 1.10
49 109SU DRIVE GEAR SHAFT FIXING PLATE 3.85
52 10QSF LEVEL WIND ROD 3.85
53 105NC E-TYPE RETAINING RING 2 1.10
54 10FNW WORM SHAFT GEAR 2.75
55 10GFJ WASHER 1.10
56 10PDA BALL BEARING (3X6X2.5) 13.75
57 104T8 WORM SHAFT 9.35
58 10NFR LEVEL WIND PIPE 11.55
60 104BB CLUTCH YOKE SPRING 1.10
63 10F3Y CLUTCH CAM PRESSURE PLATE 3.85
66 1048C CLUTCH CLAW BUSHING 1.65
69 103C0 FIXING BOLT 1.10
72 10FFT WORM SHAFT PIN 3.85
73 10GFH WASHER 1.10
74 10FJC LEVEL WIND RECEIVER 6.05
75 10JZ1 MAIN BODY A FIXING BOLT (A) 2.75
77 10A6J FIXING BOLT 3.85
81 10L3T SPOOL ASSEMBLY 78.65
82 1046H BRAKE SHOE (RED) 1.10
83 10EXR BRAKE PIPE GEAR 17.05
84 10LA8 O-RING 1.65
85 10PRT FIXING BOLT 1.10
86 10BGM BR KNOB GEAR 1.65
91 10FMT O-RING 1.10
92 10HYU WASHER 1.10
93 10EV4 BR KNOB 22.55
94 10GM4 MAIN BODY B SHAFT 6.05
96 10AVQ DAMPER BUSHING 2.75
97 10LVE FIXING BOLT 1.10
99 104H6 MAIN BODY B SEAL 3.85
102 10L6X MECHANICAL BRAKE KNOB CLICK HOLDER 2.75
103 10988 CLICK SPRING 1.65
104 104N2 BODY B CAM LEVER ADJUSTMENT WASHER 1.65
105 10LUZ FIXING BOLT 1.10
106 10HJG WORM SHAFT GEAR PIN 1.65
108 101XL FIXING BOLT 1.10
109 10TSX LEVEL WIND ASSEMBLY 31.90
110 10280 WASHER 1.10
111 10FSN HANDLE FIXING NUT 2.75
112 10A0C STAR DRAG FIXING NUT 2.75
113 10QCB BODY FIXING PLATE NAMEPLATE 1.65
114 10HZM BODY A ASSEMBLY 112.20
115 10CMH DRIVE GEAR 28.05
116 1058P DRIVE GEAR SHAFT 22.55
117 108PL WORM SHAFT GEAR COVER 9.35
118 10PVU FIXING BOLT 1.65
119 10CS1 PINION GEAR 22.55
120 1046Y CLUTCH YOKE 1.65
121 10K0Y CLUTCH CAM 2.75
122 105ZV CLUTCH CLAW 3.85
123 10N1V CLUTCH CLAW SPRING 1.65
124 10QGL CLUTCH PLATE 4.95
126 10EVH FRAME 168.30
127 1096V CLUTCH LEVER MOUNT 1.65
128 10MWG CLUTCH LEVER 9.35
129 10FXE FRAME B MOUNT ASSEMBLY 22.55
130 104NA FRAME B MOUNT CAM 2.75
131 10BAP BODY B CAM LEVER 2.75
132 10KN7 DAMPER SPRING 1.65
133 10D0E BODY B 45.10
134 101Z3 BODY B ASSEMBLY 118.25
135 10RPE BODY A SEAT 3.85
151 10J26 STAR DRAG CLICK PLATE 1.65
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
