  3. > [SHIMANO] 14-15 CALCUTTA CONQUEST Genuine Parts List - Schematic Diagram & Parts Diagram
  4. > [SHIMANO] Genuine Spare Parts for 14-15 CALCUTTA CONQUEST 101 Product code: 032034 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 14-15 CALCUTTA CONQUEST 101 Product code: 032034 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 14-15 CALCUTTA CONQUEST 101 Product code: 032034 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

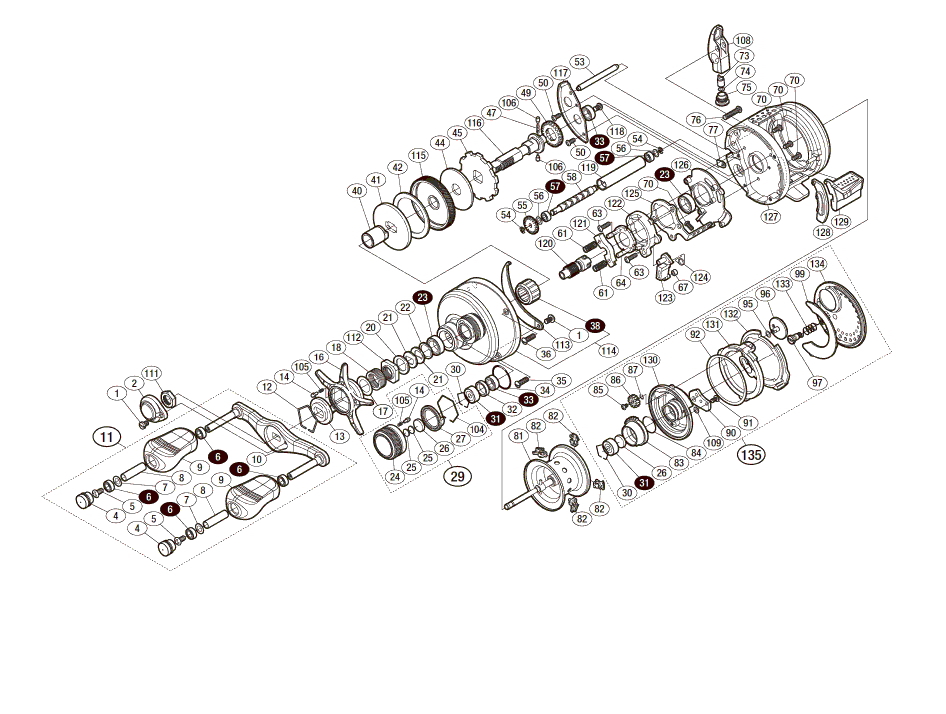

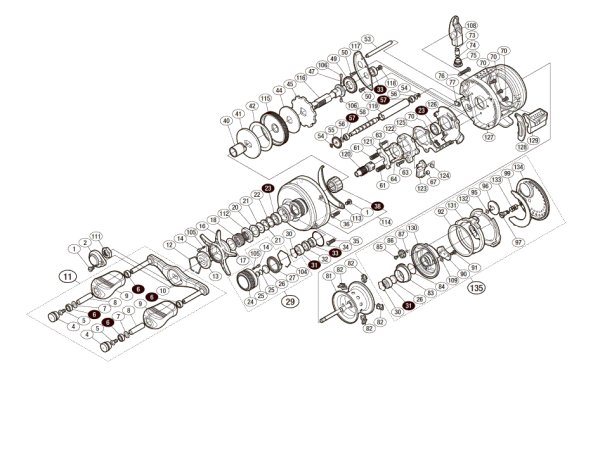

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "38 / ROLLER CLUTCH" they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13WHP REEL BAG 9.35
1 10CZ5 FIXING BOLT 2.75
2 10Q5R HANDLE RETAINER 13.75
4 10FMG HANDLE CAP 3.85
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4X7X2.5) 13.75
7 104FH WASHER 2.20
8 109VL KNOB FIXING SHAFT PIPE 3.85
9 10325 HANDLE KNOB 11.55
10 10A68 HANDLE 39.60
11 10CF2 HANDLE ASSEMBLY 101.20
12 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
13 10J26 STAR DRAG CLICK PLATE 1.65
14 10B27 CLICK PIN 1.65
16 10AU1 STAR DRAG 22.55
17 10HHN SLIDER WASHER (9X13X0.3) 1.65
18 10A71 STAR DRAG SPRING 2.75
20 10J1N STAR DRAG SPACER 1.65
21 10D60 MAIN GEAR WASHER (C) 1.65
22 105PW STAR DRAG BEARING WASHER 1.10
23 10EX8 BALL BEARING (8X12X3.5) 13.75
24 10KDN MECHANICAL BRAKE KNOB 17.05
25 10896 MECHANICAL BRAKE WASHER 1.10
26 1057S SPOOL SHAFT STOP (B) 1.10
27 10L2F MECHANICAL BRAKE KNOB CLICK PLATE 2.75
29 10HWC MECHANICAL BRAKE KNOB ASSEMBLY 28.05
30 10GEW BEARING RETAINER 1.10
31 105C4 BALL BEARING (3X10X4) 13.75
32 10EYR BEARING SPACER 2.75
33 105BR BALL BEARING (5X9X3) 13.75
34 108W8 O-RING S-16 1.65
35 10C3N FIXING BOLT 2.75
36 10C3M MAIN BODY A FIXING BOLT (C) 2.75
38 10F34 ROLLER CLUTCH *Cannot be ordered 22.55
40 10BMX ROLLER CLUTCH INNER TUBE 9.35
41 10D3R STAR DRAG PLATE 6.05
42 1071X STAR DRAG WASHER (C) 3.85
44 10CJ4 STAR DRAG WASHER (A) 3.85
45 10D70 STOPPER GEAR 3.85
47 10JDX WORM SHAFT GEAR SPRING 1.65
49 10J6W WORM SHAFT GEAR 3.85
50 10LVG FIXING BOLT 1.10
53 10GUF LEVEL WIND GUIDE 3.85
54 105NC E-TYPE RETAINING RING 2 1.10
55 10FNW WORM SHAFT GEAR 2.75
56 10GFJ WASHER 1.10
57 10PDA BALL BEARING (3X6X2.5) 13.75
58 104T9 WORM SHAFT 9.35
61 104BJ CLUTCH YOKE SPRING 1.10
63 10LUX FIXING BOLT 1.10
64 10F3Y CLUTCH CAM PRESSURE PLATE 3.85
67 1048C CLUTCH CLAW BUSHING 1.65
70 103C0 FIXING BOLT 1.10
73 10FFT WORM SHAFT PIN 3.85
74 10GFH WASHER 1.10
75 10FJC LEVEL WIND RECEIVER 6.05
76 10A6J FIXING BOLT 3.85
77 10FTB WORM SHAFT RETAINER 2.75
81 10L3M SPOOL ASSEMBLY 78.65
82 1046H BRAKE SHOE (RED) 1.10
83 10EXR BRAKE PIPE GEAR 17.05
84 10LA8 O-RING 1.65
85 10PRT FIXING BOLT 1.10
86 10BGM BR KNOB GEAR 1.65
87 10FMT O-RING 1.10
90 10AYW DAMPER BUSHING 2.75
91 10LVE FIXING BOLT 1.10
92 104MY MAIN BODY B CAM LEVER ADJUSTMENT WASHER 1.65
95 10HYU WASHER 1.10
96 10EV4 BR KNOB 22.55
97 10GM5 MAIN BODY B SHAFT 6.05
99 104H7 MAIN BODY B SEAL 3.85
104 10L6X MECHANICAL BRAKE KNOB CLICK HOLDER 2.75
105 10988 CLICK SPRING 1.65
106 10HJG WORM SHAFT GEAR PIN 1.65
108 10TSX LEVEL WIND ASSEMBLY 31.90
109 10280 WASHER 1.10
111 10FSN HANDLE FIXING NUT 2.75
112 10A0C STAR DRAG FIXING NUT 2.75
113 10QCD MAIN BODY FIXING PLATE NAMEPLATE 1.65
114 10HZP MAIN BODY A ASSEMBLY 112.20
115 10CMK DRIVE GEAR 28.05
116 105CB DRIVE GEAR SHAFT 22.55
117 109SW DRIVE GEAR SHAFT FIXING PLATE 9.35
118 10PVU FIXING BOLT 1.65
119 10NFT LEVEL WIND PIPE 11.55
120 10CS3 PINION GEAR 22.55
121 1046Y CLUTCH YOKE 1.65
122 10K0Y CLUTCH CAM 2.75
123 105ZV CLUTCH CLAW 3.85
124 10N1V CLUTCH CLAW SPRING 1.65
125 10QGN CLUTCH PLATE 4.95
126 10BVR BODY A SEAT 3.85
127 10EVK FRAME 146.30
128 10971 CLUTCH LEVER RECEIVER 1.65
129 10MWG CLUTCH LEVER 9.35
130 10FXG FRAME B RECEIVER ASSEMBLY 22.55
131 104NC FRAME B RECEIVER CAM 2.75
132 10BAR BODY B CAM LEVER 2.75
133 10KN9 DAMPER SPRING 1.65
134 10D0G BODY B 45.10
135 101Z5 BODY B ASSEMBLY 118.25
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
