[DAIWA] Genuine Spare Parts for 21 銀狼-GINRO LBQD Product code: 00066052 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

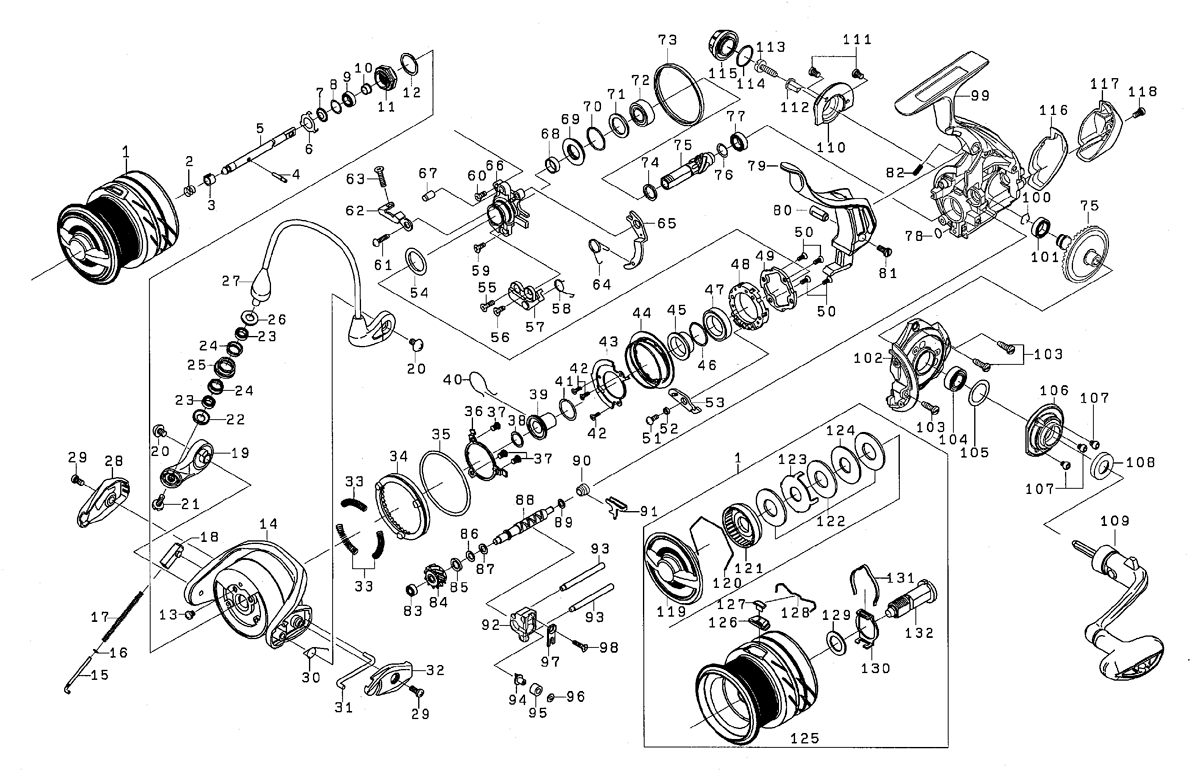

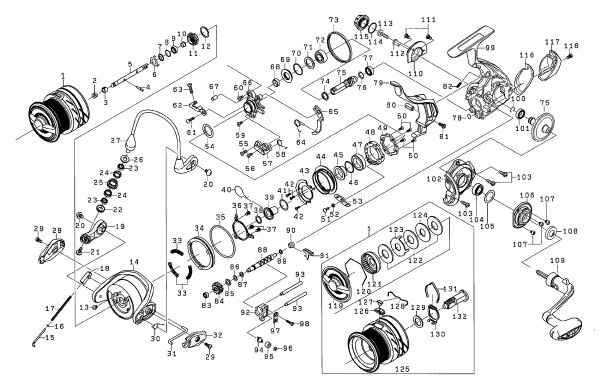

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	SPOOL	6Z026018	165.00
2	METAL SP	6G993001	2.20
3	SPOOL PIN COLLAR	6G992901	2.20
4	SPOOL PIN	6G992801	2.20
5	MAIN SHAFT	6H178501	19.80
6	ROTOR NUT BEARING PLATE	6G471501	2.20
7	ROTOR NUT BEARING PACKING	6H461201	2.20
8	ROTOR NUT BEARING W	6G466103	1.10
9	ROTOR NUT BALL BEARING	6G466205	15.40
10	ROTOR NUT BEARING COLLAR	6J214101	2.20
11	ROTOR NUT	6H818201	4.40
12	ROTOR NUT W	6G613403	1.10
13	ROTOR NUT SC	6G627701	2.20
14	ROTOR	6H817214	63.80
15	ARM LEVER SHAFT	6G766601	2.20
16	ARM LEVER SHAFT W	6G685401	1.10
17	ARM LEVER SP	6G766701	2.20
18	ARM LEVER SP HOLDER	6H817401	4.40
19	ARM LEVER	6H817310	11.00
20	ARM LEVER SC	6G998401	2.20
21	ROLLER SC	6G687202	4.40
22	ROLLER PACKING (A)	6H818101	2.20
23	ROLLER BALL BEARING	6G686903	12.10
24	ROLLER COLLAR	6G998901	2.20
25	LINE ROLLER	6G686701	7.70
26	ROLLER PACKING (B)	6G687001	3.30
27	BAIL	6H817701	143.00
28	ARM LEVER COVER	6H817501	7.70
29	ARM LEVER COVER SC	6H376601	2.20
30	BAIL LOCK SHAFT SP	6M405801	2.20
31	BAIL LOCK SHAFT	6H817601	4.40
32	BAIL HOLDER COVER	6H818001	7.70
33	RATCHET SP	6H458001	2.20
34	RATCHET	6G766005	20.90
35	RATCHET O-RING	6G158601	1.10
36	RATCHET HOLDER	6G766102	3.30
37	RATCHET HOLDER SC	6G992201	2.20
38	METAL BEARING COLLAR W	63758502	1.10
39	METAL BEARING COLLAR	6H817101	7.70
40	METAL STOPPER SP	6G297901	2.20
41	METAL BEARING COLLAR RING	6J089701	2.20
42	BEARING HOLDER PLATE SC	6G297401	2.20
43	BEARING HOLDER PLATE	6G991901	4.40
44	BRAKE DISC *Cannot be ordered	6J947001	15.40
45	METAL COLLAR (A)	6J947301	3.30
46	METAL COLLAR (A) W	6J932101	1.10
47	METAL COLLAR (B)	6J947201	3.30
48	BRAKE METAL	6G296802	7.70
49	METAL RATCHET	6G774901	6.60
50	METAL RATCHET SC *Cannot be ordered	6G297001	2.20
51	ROTOR STOPPER SC	63522507	2.20
52	ROTOR STOPPER COLLAR	6G297701	2.20
53	ROTOR STOPPER	6G382401	4.40
54	SET PLATE COLLAR	6J947401	2.20
55	BRAKE STOPPER SC (A)	6H370201	2.20
56	BRAKE STOPPER SC (B)	6H178101	2.20
57	BRAKE STOPPER	6G764902	11.00
58	BRAKE STOPPER SP	6G864101	2.20
59	SET PLATE SC (A)	6H178101	2.20
60	SET PLATE SC (B)	6H370201	2.20
61	BRAKE PLATE SC (A)	6F935402	2.20
62	BRAKE PLATE	6G991701	15.40
63	BRAKE PLATE SC (B)	6H370301	2.20
64	CRANK PLATE SP	6G296205	2.20
65	CRANK PLATE	6H178202	3.30
66	SET PLATE	6H370102	20.90
67	PUSH HEAD *Cannot be ordered	6J728501	4.40
68	MAG SHIELD COLLAR	6H816501	4.40
69	MAG SHIELD PLATE *Cannot be ordered	6H815901	15.40
70	MAG SHIELD O-RING	6H816401	2.20
71	PINION BEARING W	63727601	1.10
72	PINION BALL BEARING (A)	6G279602	15.40
73	BRAKE RING	6H545901	3.30
74	PINION BEARING COLLAR	6H815801	2.20
75	PINION + DRIVE GEAR SET *Cannot be ordered	6Z023770	66.00
76	PINION BEARING (B) W	6G572501	1.10
77	PINION BALL BEARING (B)	6G467101	15.40
78	SET PLATE W	6J319701	1.10
79	BRAKE LEVER *Cannot be ordered	6M132201	72.60
80	BRAKE LEVER NUT	6G762701	4.40
81	BRAKE LEVER SC	6G762801	4.40
82	BRAKE LEVER SP	6G762601	2.20
83	WORM SHAFT BALL BEARING	6G281605	8.80
84	WORM SHAFT GEAR	6J337101	29.70
85	WORM SHAFT GEAR COLLAR	6G762901	2.20
86	WORM SHAFT GEAR SP・W	6G864801	1.10
87	WORM SHAFT GEAR W	6B411703	1.10
88	WORM SHAFT	6G763201	15.40
89	WORM SHAFT W	6F950201	1.10
90	WORM SHAFT BEARING COLLAR	6F631502	3.30
91	WORM SHAFT RETAINER	6J205301	2.20
92	OSCILLATING SLIDER	6J205101	17.60
93	OSCILLATING POST	6J205201	7.70
94	POLE	6G763601	8.80
95	POLE HOLDER COLLAR	6G763701	3.30
96	POLE W	63750801	1.10
97	POLE HOLDER PLATE	6G763801	2.20
98	POLE HOLDER PLATE SC	6E150205	2.20
99	BODY *Cannot be ordered	6J716902	52.80
100	DRIVE BEARING (A) RING	6G472401	2.20
101	DRIVE BALL BEARING (A)	6G522702	8.80
102	BODY COVER	6J205606	39.60
103	BODY COVER SC	6H380401	2.20
104	DRIVE BALL BEARING (B)	6G467302	8.80
105	DRIVE W	6G468001	1.10
106	DRIVE BEARING COVER (L)	6M072104	36.30
107	DRIVE BEARING COVER (L) SC	6H740303	3.30
108	HANDLE PACKING	6J130201	2.20
109	HANDLE *Cannot be ordered	6M131401	169.40
110	DRIVE BEARING COVER (R)	6M072004	36.30
111	DRIVE BEARING COVER (R) SC	6H740003	3.30
112	HANDLE COLLAR	6F404801	2.20
113	HANDLE SC	63638511	2.20
114	HANDLE CAP O-RING	6G399702	1.10
115	HANDLE CAP	6H745101	6.60
116	REAR CAP PACKING	6J206001	4.40
117	REAR CAP	6J206104	11.00
118	REAR CAP SC	6H825401	2.20
119	DRAG KNOB	6J852002	20.90
120	DRAG RING	6F742501	2.20
121	DRAG RATCHET	6G367202	8.80
122	DRAG W	6G365301	2.20
123	DRAG GRIP W	6F635202	2.20
124	DRAG DISC W	6G367101	2.20
126	LINE STOPPER PLATE	6J558101	2.20
127	LINE STOPPER	6J558001	2.20
128	LINE STOPPER SP	6J314801	2.20
129	SPOOL W	63755702	1.10
130	CLICK HOLDER	6G693902	2.20
131	CLICK LEAF SP	6F704901	2.20
132	SPOOL METAL	6G364501	27.50
200	HANDLE KNOB SP/W	6H744801	1.10
201	HANDLE KNOB W	6B411703	1.10
202	HANDLE KNOB BALL BEARING	6G469009	15.40
203	HANDLE KNOB COLLAR	6H850401	2.20
204	HANDLE KNOB	6J555601	24.20
205	HANDLE KNOB SC	6B679308	2.20
206	HANDLE KNOB CAP	6J555802	6.60
