[DAIWA] Genuine Spare Parts for 17 EXCELER 3500H Product code: 00059808 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

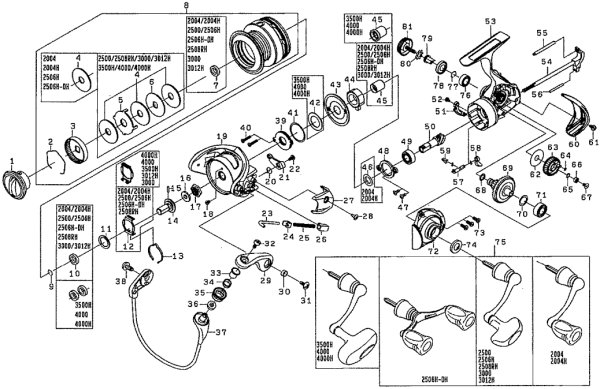

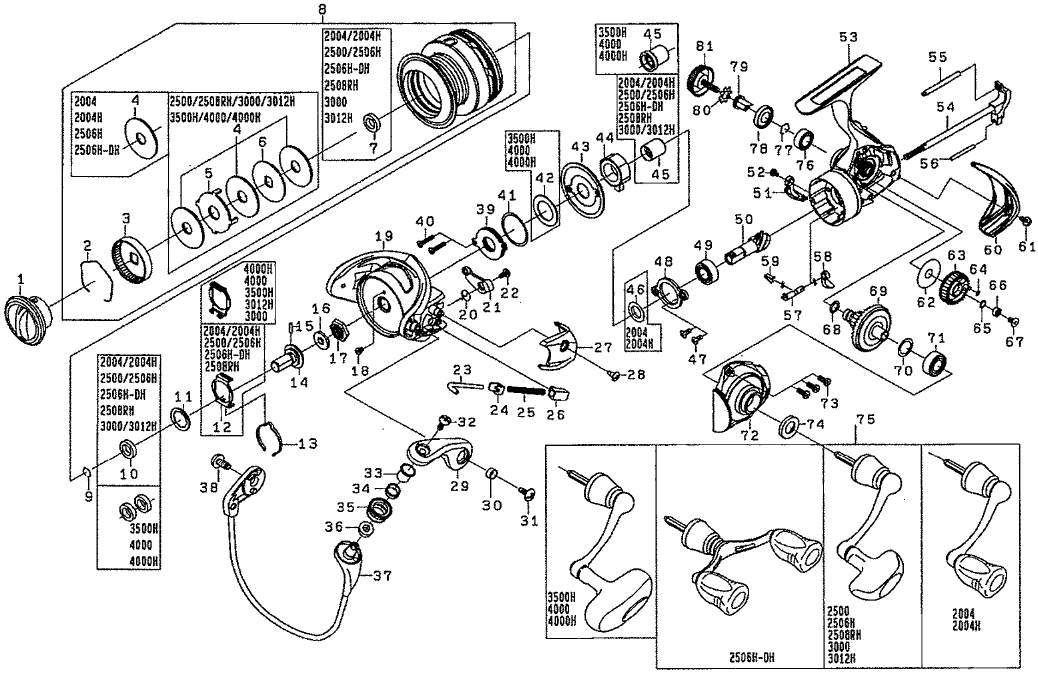

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	DRAG KNOB	6J496801	16.50
2	DRAG RING	6F710001	2.20
3	DRAG RATCHET	6F895302	7.70
4	DRAG W SET (3 pieces)	6J398601	19.80
5	DRAG GRIP W	6F627301	1.10
6	DRAG DISC W	6H714001	2.20
8	SPOOL (2-8)	6J496001	72.60
9	SPOOL METAL RING	6G525101	2.20
10	SPOOL METAL COLLAR	6G747401	2.20
11	SPOOL W	6G903901	1.10
12	CLICK HOLDER	6G694001	3.30
13	CLICK LEAF SP	6F709002	2.20
14	SPOOL METAL	6H641501	4.40
15	SPOOL METAL PIN	6G224101	2.20
16	ROTOR NUT PACKING	6H995201	2.20
17	ROTOR NUT	6H995101	15.40
18	ROTOR NUT SC	6H022701	2.20
19	ROTOR *Cannot be ordered	6H994306	20.90
20	KICK LEVER SP	6H413601	2.20
21	KICK LEVER	6H994401	4.40
22	KICK LEVER SC	6H417701	2.20
23	ARM LEVER SHAFT	6H640601	2.20
24	ARM LEVER SHAFT PLATE	6H576101	3.30
25	ARM LEVER SP	6H640701	2.20
26	ARM LEVER SP HOLDER	6J089401	2.20
27	ARM LEVER SP COVER	6H994601	3.30
28	COVER SC	6G270801	2.20
29	ARM LEVER	6H728912	6.60
30	ARM LEVER SC COLLAR	6H962401	2.20
31	ARM LEVER SC	6G205001	2.20
32	ROLLER SC	6G195602	2.20
33	ROLLER COLLAR (A)	6G195501	2.20
34	ROLLER SLEEVE	6G220701	2.20
35	LINE ROLLER	6J089902	7.70
36	ROLLER COLLAR (B)	6G874201	2.20
37	BAIL	6H984001	27.50
38	BAIL HOLDER SC	6G205001	2.20
39	MAG SHIELD PLATE *Cannot be ordered	6J289301	23.10
40	MAG SHIELD PLATE SC	6J001601	2.20
41	MAG SHIELD PLATE O-RING	6J212901	1.10
42	MAG SHIELD CAP W	6J238801	2.20
43	MAG SHIELD CAP *Cannot be ordered	6J100501	4.40
44	ONE-WAY CLUTCH *Cannot be ordered	6J309101	26.40
45	CLUTCH RING *Cannot be ordered	6J690501	18.70
47	PINION BEARING PLATE SC	6J000901	2.20
48	PINION BEARING PLATE	6J020801	2.20
49	PINION BALL BEARING (A)	6G522802	8.80
50	PINION + DRIVE GEAR SET *Cannot be ordered	6Z021606	27.50
51	BAIL KICK COLLAR	6J021001	2.20
52	BAIL KICK COLLAR SC	6G940402	2.20
53	BODY	6J312903	34.10
54	MAIN SHAFT *Cannot be ordered	6J140901	12.10
55	OSCILLATING POST (A)	6H614301	2.20
56	OSCILLATING POST (B)	6J084803	2.20
57	STOPPER CAM	6J020501	3.30
58	STOPPER LEVER	6H595401	2.20
59	STOPPER CAM LEAF SP	6H697801	2.20
60	REAR CAP	6J495801	4.40
61	REAR CAP SC	6J001801	2.20
62	OSCILLATING GEAR W	6G644201	1.10
63	OSCILLATING GEAR *Cannot be ordered	6G644302	4.40
64	OSCILLATING GEAR O-RING	6B853101	1.10
65	OSCILLATING GEAR BEARING W (0.02)	6G522101	1.10
66	OSCILLATING GEAR BALL BEARING	6G467105	8.80
67	OSCILLATING GEAR SC	6H272202	2.20
68	DRIVE GEAR O-RING	6G645301	2.20
69	PINION + DRIVE GEAR SET *Cannot be ordered	6Z021606	27.50
70	DRIVE W (0.1)	63737808	1.10
71	DRIVE BALL BEARING (A)	6G523405	8.80
72	BODY COVER *Cannot be ordered	6J313101	15.40
73	BODY COVER SC	6G332904	2.20
74	HANDLE PACKING	6J100401	3.30
75	HANDLE	6J495901	39.60
76	DRIVE BALL BEARING (B)	6B861704	8.80
77	DRIVE BEARING RING	6G525101	2.20
78	HANDLE PACKING	6J100401	3.30
79	HANDLE COLLAR	6F721202	2.20
80	HANDLE W	61608101	2.20
81	HANDLE SC	6H641802	3.30
201	HANDLE KNOB W	6B411703	1.10
202	HANDLE KNOB COLLAR	6G720001	2.20
203	HANDLE KNOB SC	6B679308	2.20
