[SHIMANO] Genuine Spare Parts for 18 CARDIFF CI4+ C3000MHG Product Code: 039354 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 18 CARDIFF CI4+ C3000MHG Product Code: 039354 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

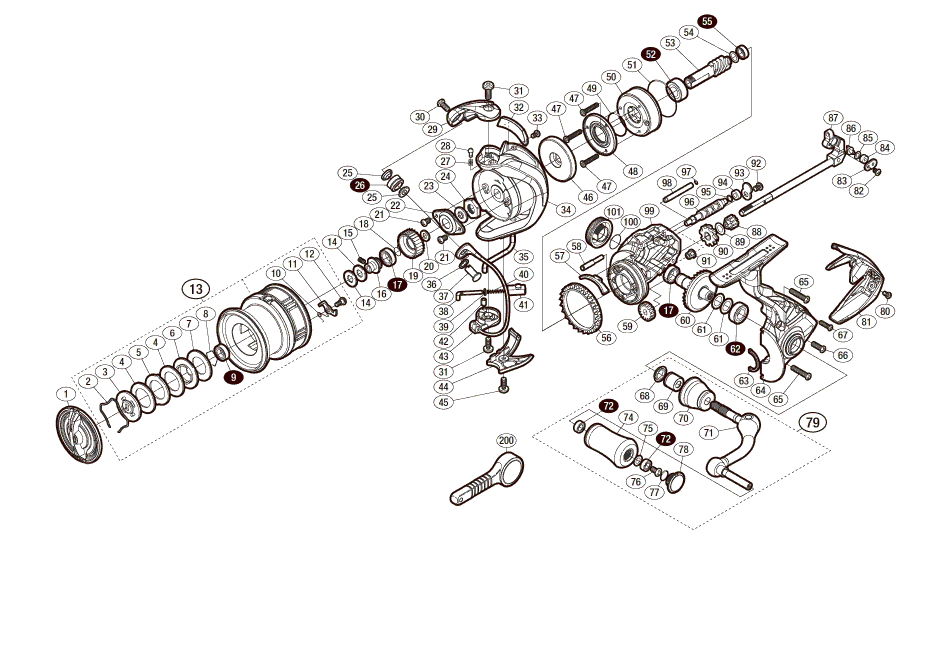

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13QN3 REEL BAG 4.95
1 13BNH DRAG KNOB ASSEMBLY 17.05
2 10B8M RETAINING SPRING 1.65
3 10QBV OVAL WASHER 6.05
4 102ZQ DRAG WASHER 1.65
5 102XW EAR WASHER 1.65
6 10B9D DRAG OVAL WASHER 2.75
7 10C14 DRAG WASHER 1.65
8 10GEW BEARING RETAINER 1.10
9 104JT BALL BEARING (6X10X3) 13.75
10 10TNV SPOOL PIN 1.65
11 10TNX SPOOL PIN SPRING 1.65
12 10TRB FIXING BOLT 1.65
13 13CGQ SPOOL ASSEMBLY 67.65
14 10BU8 SPOOL WASHER SET 1.10
15 10PN3 SET SCREW (M2X5) 1.65
16 10THY SPOOL SHAFT BEARING GUIDE 3.85
17 104PP BALL BEARING (7X11X3) 13.75
18 107V2 RATCHET SPRING 1.65
19 10SYS DRAG CLICK RATCHET 2.75
20 103PE SPOOL SUPPORT 1.65
21 10PME FIXING BOLT 1.10
22 10TRH RETAINER 2.75
23 107L4 ROTOR BEARING SEAL 2.75
24 10TPL ROTOR NUT 3.85
25 10TJM LINE ROLLER BEARING COLLAR 2.75
26 10RY0 LINE ROLLER ASSEMBLY (WITH BEARING) 34.10
27 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
28 10CHA BAIL TRIP LEVER CLICK PIN 1.65
29 13KLQ ARM CAM 6.05
30 10TLJ FIXING BOLT 2.75
31 10TLM FIXING BOLT 1.65
32 10EDG BALANCER GUARD ASSEMBLY 9.35
33 10TLH FIXING BOLT 1.65
34 13KF5 ROTOR 28.05
35 10RA8 INNER GEAR LEVER 2.75
36 1018Z WASHER 1.65
37 13KLN ARM FIXING SHAFT 6.05
38 1061L ARM SPRING GUIDE (A) 3.85
39 10TYE SPRING GUIDE (A) COLLAR 1.65
40 105R6 ARM CAM SPRING 1.65
41 107AB ARM CAM SPRING SEAT 2.75
42 10TRC ARM SPRING GUIDE (A) COLLAR BUSH 1.65
43 13ARH BAIL ASSEMBLY 45.10
44 10TPJ BAIL MOUNTING COVER 9.35
45 101CC FIXING BOLT 1.65
46 10SYA ROTOR COLLAR 9.35
47 10TJP FIXING BOLT 1.65
48 10SYJ ROLLER CLUTCH COVER PLATE 9.35
49 10EAY O-RING 1.65
50 10S16 ROLLER CLUTCH ASSEMBLY 11.55
51 10MLU O-RING 3.85
52 104Q5 BALL BEARING (7X14X5) 13.75
53 101SS PINION GEAR 12.65
54 10HEP WASHER 1.10
55 104JZ BALL BEARING (5X8X2.5) 13.75
56 104FV FRICTION RING 2.75
57 10TQF INNER GEAR STOP 1.65
58 10CLD INTERMEDIATE GEAR (B) SHAFT 3.85
59 10HBH WORM SHAFT GEAR 3.85
60 101WY DRIVE GEAR ASSEMBLY 22.55
61 1003B WASHER 2.75
62 104JD BALL BEARING (7X13X4) 13.75
63 10CBD COVER FLANGE SEAL 2.75
64 13DVV FOOTED COVER ASSEMBLY 22.55
65 10RX3 FIXING BOLT 1.65
66 10M2L FIXING BOLT 1.10
67 10TP1 FIXING BOLT 1.10
68 10PXV HANDLE SHAFT SEAL 2.75
69 10C82 HANDLE SHAFT FLANGE (B) 3.85
70 13MHM HANDLE SHAFT FLANGE 12.65
71 1.3E+29 HANDLE SHAFT ASSEMBLY 28.05
72 104VX BALL BEARING (4X7X2.5) 13.75
74 13J20 HANDLE KNOB 22.55
75 101BD WASHER 2.75
76 10LFA FIXING BOLT 1.10
77 10LAA O-RING 1.10
78 13MHK HANDLE CAP 6.05
79 13ERQ HANDLE ASSEMBLY 78.65
80 10RX2 FIXING BOLT 1.65
81 10TN4 BODY GUARD 11.55
82 10LCD FIXING BOLT 1.65
83 10HAK WORM SHAFT PIN RETAINING PLATE 1.65
84 10JXM WORM SHAFT PIN COLLAR 1.65
85 101AT WASHER 2.75
86 10JT4 WORM SHAFT PIN 3.85
87 10DMX MAIN SHAFT ASSEMBLY 20.35
88 106RH INTERMEDIATE GEAR (SMALL) 2.75
89 10DHA WASHER 2.75
90 10R3M INTERMEDIATE GEAR (LARGE) 6.05
91 106MA WORM SHAFT BUSHING 1.65
92 10LHQ FIXING BOLT 1.10
93 10ATJ WORM SHAFT COVER 1.65
94 106CN WORM SHAFT BUSHING 1.65
95 10SBX WASHER 6.05
96 1068G WORM SHAFT 6.05
97 10JAC O-RING 1.65
98 10H17 SLIDER GUIDE (A) 1.65
99 13L4G BODY 22.55
100 108WA O-RING 1.65
101 13DBR HANDLE SCREW CAP 11.55
200 10NC0 REEL WRENCH 1.65
ITOS 10G4L SPOOL LINE STOPPER SEAL 1.65
MH01 13NJU BASE PLATE 2.75
