[SHIMANO] Genuine Spare Parts for 18 CARDIFF CI4+ 1000S Product Code: 039330 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

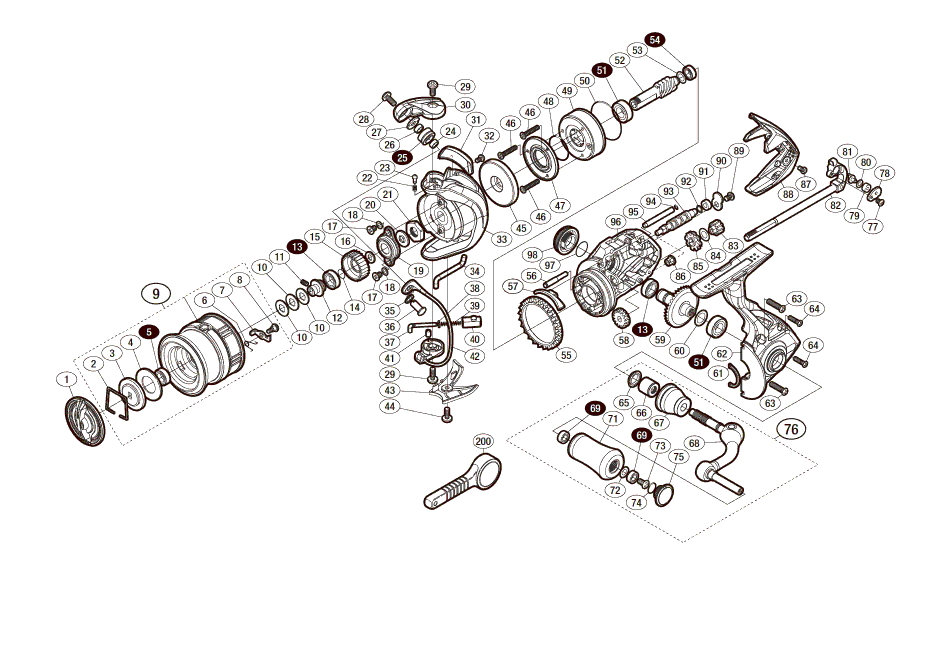

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13QN3	REEL BAG	4.95
1	13BNG	DRAG KNOB ASSEMBLY	17.05
2	10B87	ANTI-SLIP SPRING	1.65
3	13K0V	OVAL WASHER	1.65
4	102ZG	DRAG WASHER	1.65
5	104JT	BALL BEARING (6X10X3)	13.75
6	10DNN	SPOOL PIN SPRING	1.65
7	10DNJ	SPOOL PIN	1.65
8	10TRB	FIXING BOLT	1.65
9	13CGN	SPOOL ASSEMBLY	62.15
10	10BU8	SPOOL WASHER SET	1.10
11	10PN3	SET SCREW (M2X5)	1.65
12	10THY	SPOOL SHAFT BEARING GUIDE	3.85
13	104PP	BALL BEARING (7X11X3)	13.75
14	107V2	RATCHET SPRING	1.65
15	10SYS	DRAG CLICK RATCHET	2.75
16	103PE	SPOOL BEARING	1.65
17	1055M	FIXING BOLT	1.10
18	10KF3	WASHER	1.65
19	10DMB	RETAINER	2.75
20	107L4	ROTOR BEARING SEAL	2.75
21	10TPL	ROTOR NUT	3.85
22	10CH0	BAIL TRIP LEVER CLICK SPRING	1.65
23	10CHA	BAIL TRIP LEVER CLICK PIN	1.65
24	10GAS	LINE ROLLER BEARING COLLAR	2.75
25	13CPN	LINE ROLLER ASSEMBLY (WITH BEARING)	22.55
26	10TRL	LINE ROLLER BEARING COLLAR	2.75
27	1079V	LINE ROLLER GUIDE	1.65
28	10TLJ	FIXING BOLT	2.75
29	10TLM	FIXING BOLT	1.65
30	13KLP	ARM CAM	6.05
31	13ER6	BALANCER GUARD ASSEMBLY	9.35
32	10TLH	FIXING BOLT	1.65
33	13KF4	ROTOR	28.05
34	10DM9	INNER GEAR LEVER	2.75
35	1018Z	WASHER	1.65
36	13KLN	ARM FIXING SHAFT	6.05
37	1061L	ARM SPRING GUIDE (A)	3.85
38	10TYE	SPRING GUIDE (A) COLLAR	1.65
39	10R2N	ARM CAM SPRING	1.65
40	107AB	ARM CAM SPRING SEAT	2.75
41	10TRC	ARM SPRING GUIDE (A) COLLAR BUSH	1.65
42	13CV4	BAIL ASSEMBLY	45.10
43	10DNY	BAIL MOUNTING COVER	9.35
44	10SH9	FIXING BOLT	1.65
45	10SYA	ROTOR COLLAR	9.35
46	10TJP	FIXING BOLT	1.65
47	10SYJ	ROLLER CLUTCH COVER PLATE	9.35
48	10EAY	O-RING	1.65
49	10S16	ROLLER CLUTCH ASSEMBLY	11.55
50	10MLU	O-RING	3.85
51	104JD	BALL BEARING (7X13X4)	13.75
52	10C4X	PINION GEAR	12.65
53	10HEP	WASHER	1.10
54	104JZ	BALL BEARING (5X8X2.5)	13.75
55	104FV	FRICTION RING	2.75
56	10CLD	INTERMEDIATE GEAR (B) SHAFT	3.85
57	10TQF	INNER GEAR STOP	1.65
58	10HBH	WORM SHAFT GEAR	3.85
59	10A5X	DRIVE GEAR ASSEMBLY	22.55
60	1003B	WASHER	2.75
61	10CBD	COVER FLANGE SEAL	2.75
62	13DVW	FOOTED COVER ASSEMBLY	22.55
63	13JXQ	FIXING BOLT	1.65
64	10TP1	FIXING BOLT	1.10
65	10PXV	HANDLE SHAFT SEAL	2.75
66	10C82	HANDLE SHAFT FLANGE (B)	3.85
67	13MHL	HANDLE SHAFT FLANGE	12.65
68	13E29	HANDLE SHAFT ASSEMBLY	28.05
69	104VX	BALL BEARING (4X7X2.5)	13.75
71	13J20	HANDLE KNOB	22.55
72	101BD	WASHER	2.75
73	10LFA	FIXING BOLT	1.10
74	10LAA	O-RING	1.10
75	13MHK	HANDLE CAP	6.05
76	13ERP	HANDLE ASSEMBLY	78.65
77	10LCD	FIXING BOLT	1.65
78	10HAJ	WORM SHAFT PIN RETAINING PLATE	1.65
79	10JXT	WORM SHAFT PIN COLLAR	1.65
80	101AT	WASHER	2.75
81	106UZ	WORM SHAFT PIN	3.85
82	101YM	MAIN SHAFT ASSEMBLY	20.35
83	106RH	INTERMEDIATE GEAR (SMALL)	2.75
84	10DHA	WASHER	2.75
85	10CQS	INTERMEDIATE GEAR (LARGE)	6.05
86	106M9	WORM SHAFT BUSHING	1.65
87	10RX2	FIXING BOLT	1.65
88	10DM3	BODY GUARD	11.55
89	10LHQ	FIXING BOLT	1.10
90	10ATJ	WORM SHAFT COVER	1.65
91	106CN	WORM SHAFT BUSHING	1.65
92	101BR	WASHER	1.65
93	1068F	WORM SHAFT	6.05
94	10JAC	O-RING	1.65
95	10H17	SLIDER GUIDE (A)	1.65
96	13L4F	BODY	22.55
97	108WA	O-RING	1.65
98	13AS1	HANDLE SCREW CAP ASSEMBLY	11.55
200	10NC0	REEL WRENCH	1.65
ITOS	10G4L	SPOOL LINE STOPPER SEAL	1.65
MH01	13NJS	BASE PLATE	2.75
