[SHIMANO] Genuine Spare Parts for 20 BB-X HYPER FORCE C2000DXXG Product Code: 042804 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 20 BB-X HYPER FORCE C2000DXXG Product Code: 042804 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

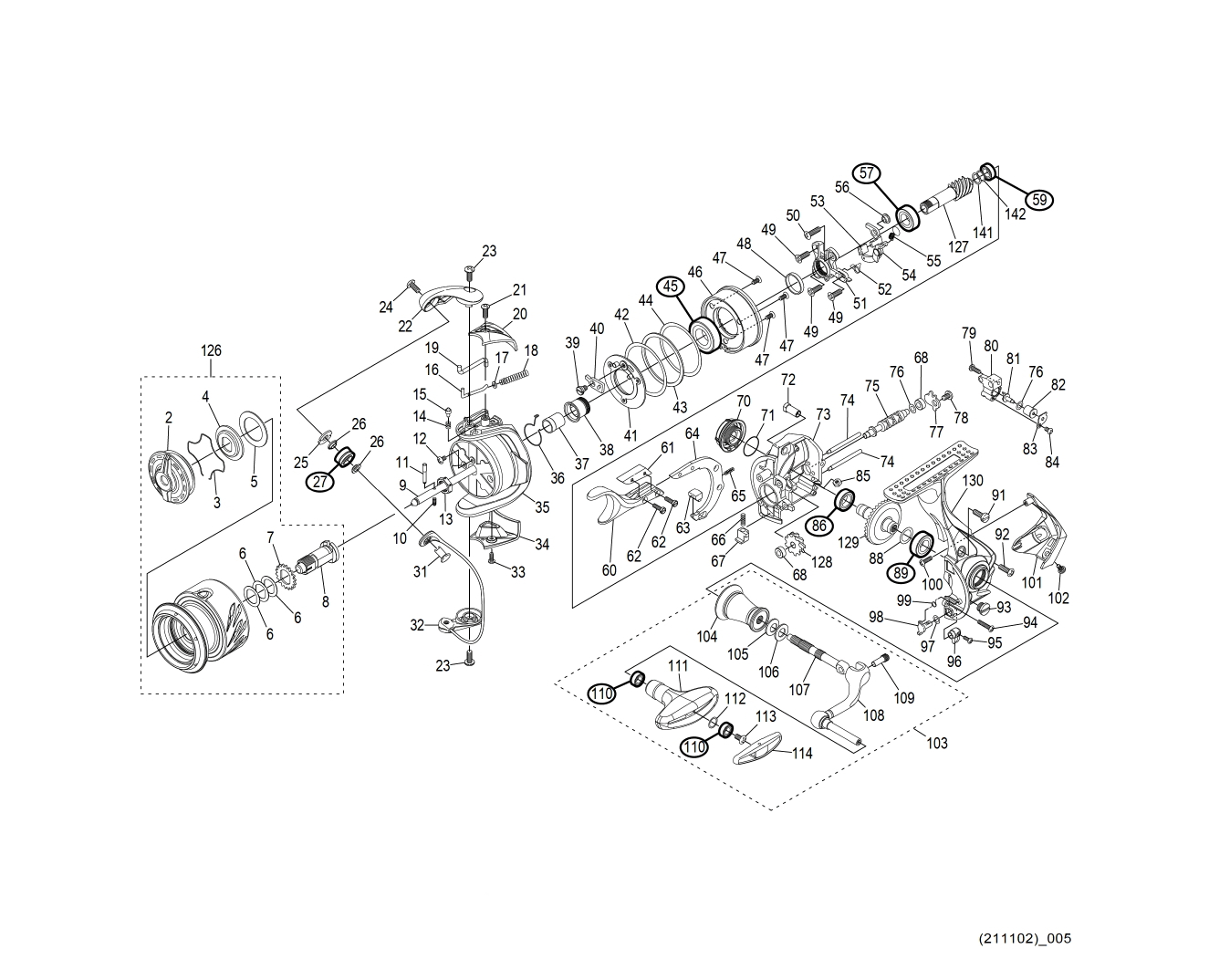

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13QPW REEL BAG (ACCESSORY) 17.05
2 13BH2 DRAG KNOB SET 22.55
3 10B8J STOPPER SPRING 1.65
4 13K2L OVAL WASHER 2.75
5 102ZP DRAG WASHER (A) 1.65
6 101DN SPOOL WASHER 2.20
7 103MK SPOOL HOLDER (A) 1.65
8 13DAB SPOOL HOLDER (B) ASSEMBLY 12.65
9 13LJZ MAIN SHAFT 11.55
10 13K4Y SPOOL PIN FIXING SPRING 1.65
11 13LQ0 SPOOL PIN FIXING PIN 1.65
12 13JVA FIXING BOLT 1.10
13 13KPD ROTOR NUT 3.85
14 10CGZ CLICK SPRING 1.65
15 106UX CLICK PIN 1.65
16 13P3M ARM SPRING GUIDE (A) 1.65
17 1064R ARM SPRING GUIDE (A) COLLAR 1.65
18 105LG ARM CAM SPRING 1.65
19 13KRN INNER GERI LEVER 2.75
20 13KL1 ARM CAM SPRING COVER 6.05
21 103DE FIXING BOLT 1.10
22 13KLX ARM CAM 6.05
23 103D9 FIXING BOLT 1.65
24 10K40 FIXING BOLT 2.75
25 1079U ARM ROLLER BEARING COLLAR 1.65
26 1020L LINE ROLLER BEARING COLLAR 2.75
27 10TSK LINE ROLLER (WITH BEARING) 22.55
31 10Q37 ARM FIXING SHAFT 6.05
32 13CVF BAIL ASSEMBLY 45.10
33 103N9 FIXING BOLT 1.10
34 13KNT BALE MOUNTING BRACKET COVER 6.05
35 13CPZ ROTOR ASSEMBLY 28.05
36 13LVS BRAKE CLAW SPRING 1.65
37 13MNN PINION GEAR COLLAR 1.65
38 13NRA BRAKE BEARING RETAINING RING 6.05
39 13M6Y FIXING BOLT 2.75
40 13LVH BRAKE CLAW 3.85
41 13LVB BRAKE PLATE 9.35
42 13MKK BRAKE ADJUSTMENT WASHER 1.65
43 13MKA BRAKE WASHERS 1.65
44 13MKJ BRAKE WASHER 1.65
45 104PV BALL BEARING (10 X 19 X 5) 13.75
46 13DB5 BRAKE CORE 28.05
47 10MGG FIXING BOLT 1.10
48 13KVW BEARING PUSH SAER RING 3.85
49 10MLD FIXING BOLT 1.10
50 13JPJ FIXING BOLT 1.10
51 13L0G BEARING PUSH PLATE 3.85
52 13ML8 BRAKE SWITCHING SPRING 1.65
53 10KY5 BRAKE SHOE (C) 1.10
54 13EN8 BRAKE LEVER PLATE 6.05
55 13MNB SAFETY BRAKE CLAW SPRING 1.65
56 13MND BRAKE LEVER PLATE COLLAR 1.65
57 104JH BALL BEARING (7X13X4) 13.75
59 10RKR BALL BEARING (5 X 8 X 2.5) 7.15
60 13LU9 BRAKE LEVER (A) 39.60
61 13MM2 BRAKE LEVER NAMEPLATE 4.95
62 13MK1 FIXING BOLT 2.75
63 13LV5 BRAKE SHOE 1.65
64 13MPF BRAKE LEVER (B) 22.55
65 13LUM BRAKE LEVER SPRING 1.65
66 13MNG BRAKE SHOE SPRING 1.65
67 13ML0 BRAKE SHOE 1.65
68 106CM CROSS GEAR BUSHING (FRONT) 1.65
70 10RSK HANDLE SCREW CAP 3.85
71 108WH O-RING 1.65
72 13MJT BRAKE LEVER FIXED SHAFT 3.85
73 13L4M LEGLESS BODY 22.55
74 10332 SLIDE GUIDE (A) 2.75
75 13M1U WORM SHAFT 9.35
76 100CW WASHER 2.20
77 10AT2 WORM SHAFT COVER 1.65
78 103LD FIXING BOLT 1.10
79 10LVM FIXING BOLT 1.10
80 10G5Y SLIDER 8.25
81 106VH WORM SHAFT PIN 3.85
82 10JVB CROSS GEAR PIN COLLAR 2.75
83 10HAB CROSS GEAR PIN PUSH PLATE 1.10
84 10LV7 FIXING BOLT 1.10
85 105N8 FIXING NUT 1.65
86 104PP BALL BEARING (7X11X3) 13.75
88 10EEZ WASHER 2.75
89 104JD BALL BEARING (7X13X4) 13.75
91 10L5M FIXING BOLT 1.65
92 10LSZ FIXING BOLT 1.10
93 104KN LUBRICATION HOLE CAP 3.85
94 10LPW FIXING BOLT 1.10
95 10PRU FIXING BOLT 1.65
96 13L1D STOPPER KNOB 1.65
97 1059U WASHER 1.10
98 13LLQ STOPPER CAM 2.75
99 13LQ3 STOPPER CAM SPRING 1.65
100 13JPA FIXING BOLT 1.65
101 13MUY BODY GUARD 11.55
102 10MHE FIXING BOLT 1.10
103 13AT6 HANDLE ASSEMBLY 101.20
104 13MHV HANDLE SHAFT FLANGE 14.85
105 1052H HANDLE SPRING 1.65
106 13M8P HANDLE WASHER 1.65
107 13AYR HANDLE SHAFT 6.05
108 13E2J HANDLE SHANK ASSEMBLY 34.10
109 10PV2 HANDLE SHAFT BOLT 3.85
110 104VX BALL BEARING (4X7X2.5) 13.75
111 10R38 HANDLE KNOB 17.05
112 104FH WASHER 2.20
113 103E9 FIXING BOLT 1.10
114 10R3A HANDLE CAP 3.85
126 13C5X SPOOL ASSEMBLY 123.75
127 13LAF PINION GEAR 17.05
128 13M09 WORM SHAFT GEAR 9.35
129 13D1R DRIVE GEAR ASSEMBLY 22.55
130 13DQQ KIFTER ASSEMBLY WITH LEGS 39.60
141 10DJ1 WASHER 1.65
142 10HV4 ADJUSTMENT WASHER 1.10
AC02 13R2V NO. SEALS (ACCESSORY) 2.75
MH01 13N6X NAMEPLATE ON THE BACK OF THE LEG 2.75
