[SHIMANO] Genuine Spare Parts for 22 BB-X HYPER FORCE C3000DXXG S RIGHT Product Code: 044938 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

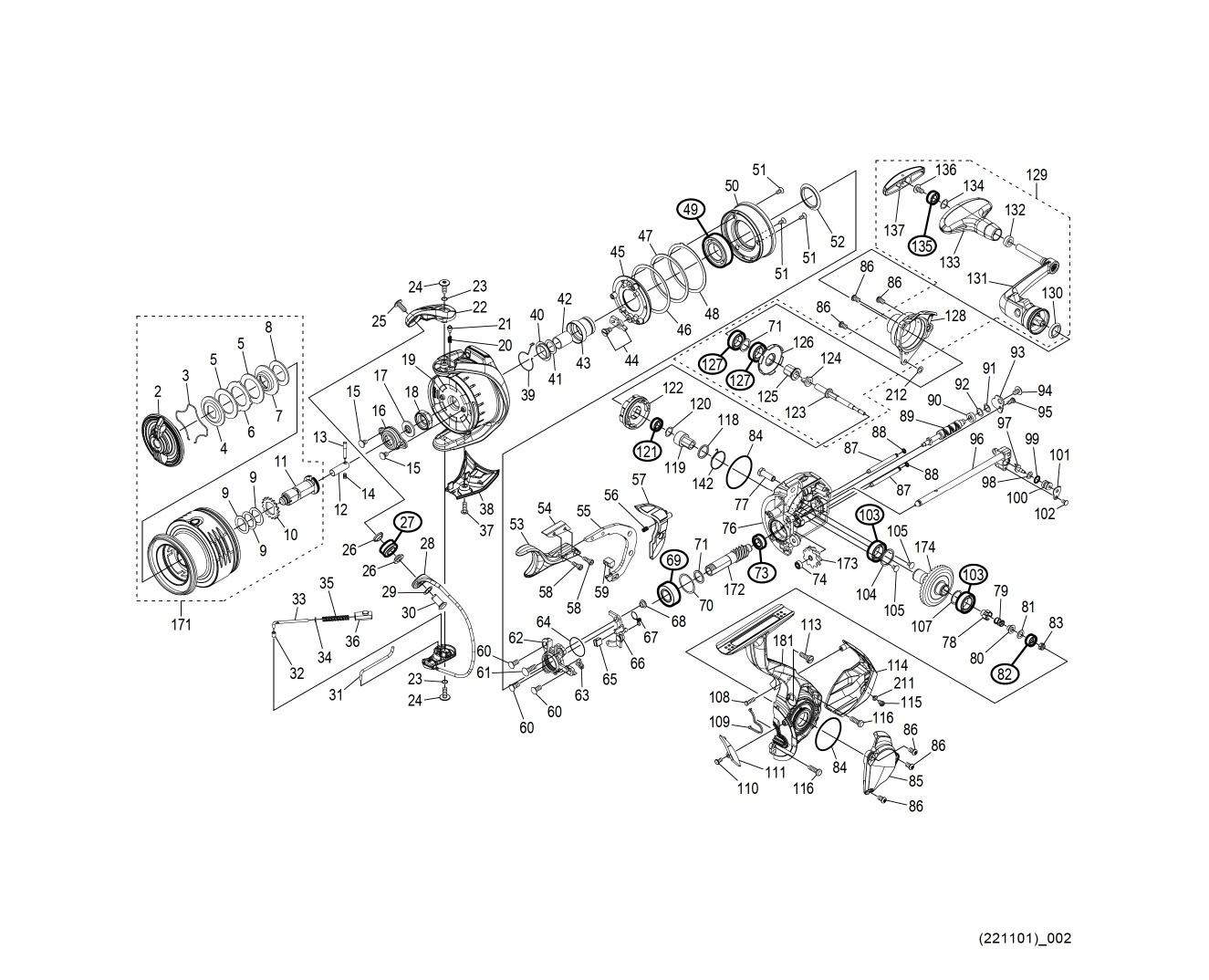

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "142 / STOPPER SPRING R" and "122 / ROLLER CLUTCH ASSEMBLY", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13QQ8	REEL BAG (ACCESSORY)	11.55
2	13XZ5	DRAG KNOB SET	22.00
3	10B6J	STOPPER SPRING	1.65
4	10Q6Q	OVAL WASHER	1.65
5	102ZP	DRAG WASHER (A)	1.65
6	10BCP	DRAG EAR WASHER	6.05
7	10B9R	OVAL WASHER	1.65
8	10C1D	DRAG WASHER	1.65
9	101DN	SPOOL WASHER	2.20
10	103MK	SPOOL GUIDE (A)	1.65
11	13ARZ	SPOOL GUIDE (B) SET	22.55
12	13LMH	SPOOL GUIDE COLLAR	3.85
13	13LQ0	SPOOL GUIDE FIXING PIN	1.65
14	13K4Y	SPOOL PIN FIXING SPRING	1.65
15	1055M	FIXING BOLT	1.10
16	13KSS	RETAINER	1.65
17	1004T	ROTOR BEARING SEAL	3.85
18	13Y05	ROTOR NUT	4.40
19	13XZB	ROTOR ASSEMBLY	49.50
20	10CGZ	CLICK SPRING	1.65
21	106ZC	CLICK PIN	1.65
22	13Y03	ARM CAM	7.15
23	10192	ARM CAM ADJUSTMENT WASHER	1.10
24	10RFW	FIXING BOLT	1.65
25	10K40	FIXING BOLT	2.75
26	1020L	LINE ROLLER BEARING COLLAR	2.75
27	10TSK	LINE ROLLER (WITH BEARING)	22.55
28	13XZA	BAIL ASSEMBLY	56.10
29	1002S	ARM FIXING SHAFT WASHER	1.10
30	13Y04	ARM FIXING SHAFT	5.50
31	13KT3	BAIL TRIP LEVER	2.20
32	10DKC	ARM SPRING GUIDE (A) COLLAR BUSH	1.65
33	10SAN	ARM SPRING GUIDE (A)	3.85
34	101D9	ARM SPRING GUIDE (A) COLLAR	1.65
35	10R2P	ARM CAM SPRING	1.65
36	10R2E	ARM CAM SPRING GUIDE (B)	2.75
37	10DT7	FIXING BOLT	1.65
38	13KT2	BAIL MOUNTING COVER	6.05
39	13AYE	BRAKE CLAW SPRING	1.65
40	13NN3	BRAKE GEAR BEARING SEAL	2.75
41	10JDE	SLIDER WASHER (7 X 10 X 0.3)	1.10
42	13MPA	PINION GEAR COLLAR	1.65
43	13NRB	BRAKE BEARING STOPPER RING	9.35
44	13DBN	BRAKE CLAW ASSEMBLY	3.85
45	13AYD	BRAKE PLATE	9.35
46	13MKH	BRAKE ADJUSTING WASHER	1.65
47	13MK9	BRAKE WASHER	1.65
48	13MKD	BRAKE WASHER	1.65
49	10KXA	BALL BEARING (12 X 21 X 5)	17.05
50	13AS2	BRAKE CORE	28.05
51	10MGG	FIXING BOLT	1.10
52	13NWW	BRAKE GEAR BEARING SEAL	1.65
53	13Y0B	BRAKE LEVER (A)	39.60
54	13MP5	BRAKE LEVER NAMEPLATE	4.95
55	13MPB	BRAKE LEVER (B)	22.55
56	13LUM	BRAKE LEVER SPRING	1.65
57	13Y0V	BRAKE LEVER SEAT	1.65
58	13MK1	FIXING BOLT	2.75
59	13LV5	BRAKE SHOE	1.65
60	10MLD	FIXING BOLT	1.10
61	103LJ	FIXING BOLT	1.10
62	13L0E	BEARING PUSH PLATE	3.85
63	13AZ1	BRAKE SWITCHING SPRING	1.65
64	13M30	O-RING	3.85
65	10KY5	BRAKE SHOE (C)	1.10
66	13EN5	BRAKE LEVER PLATE	6.05
67	13MNB	SAFETY BRAKE CLAW SPRING	1.65
68	13MND	BRAKE LEVER PLATE COLLAR	1.65
69	104Q6	BALL BEARING (7 X 14 X 5)	13.75
70	13LL2	WASHER	1.10
71	13MGK	WASHER	1.65
73	10RKR	BALL BEARING (5 X 8 X 2.5)	7.15
74	106M8	WORM SHAFT BUSH (FRONT)	2.75
76	13XZD	BODY ASSEMBLY WITHOUT LEGS	27.50
77	13MJT	BRAKE LEVER FIXED SHAFT	3.85
78	13RUR	BRAKE BUSHING	1.10
79	13RUS	BRAKE SPRING	1.10
80	13S0T	BRAKE SPRING GUIDE	1.10
81	13PL2	WASHER	1.10
82	13L4T	BALL BEARING (2 X 6 X 2.3)	8.80
83	13NWY	NYLON NUT	3.30
84	13JZX	O-RING	3.85
85	13Y0X	COVER PLATE	9.35
86	13Y02	FIXING BOLT	1.10
87	13LU8	SLIDER GUIDE	2.75
88	10JAB	O-RING	1.65
89	13Y0C	WORM SHAFT	6.05
90	1009C	WORM SHAFT BUSHING	1.65
91	10TK0	WASHER	1.65
92	100XZ	WORM SHAFT WASHER	2.20
93	13MVG	WORM SHAFT COVER	1.65
94	103L6	FIXING BOLT	1.10
95	103N4	FIXING BOLT	1.10
96	13DD3	MAIN SHAFT ASSEMBLY	28.05
97	106VH	WORM SHAFT PIN	3.85
98	10RR9	WASHER	2.75
99	108W9	O-RING (3 X 5)	1.65
100	13LUB	WORM SHAFT PIN COLLAR	1.10
101	13NR1	WORM SHAFT PIN PUSH PLATE	1.65
102	13JXE	FIXING BOLT	1.10
103	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
104	13Y10	WASHER	1.10
105	10MPL	FIXING BOLT	1.10
107	13FMW	WASHER	2.20
108	13JPA	FIXING BOLT	1.65
109	13Y0D	COVER FLANGE SEAL	1.10
110	13JXF	FIXING BOLT	1.10
111	13LNC	INNER TRIP BOLT	1.10
113	10L5M	FIXING BOLT	1.65
114	13Y0F	BODY GUARD	11.55
115	10EF0	FIXING BOLT	1.65
116	10LT4	FIXING BOLT	1.65
118	13NKK	ROLLER CLUTCH INNER COLLAR	2.75
119	13NR2	ROLLER CLUTCH INNER	7.15
120	10G8G	WASHER	1.10
121	10SAM	BALL BEARING (4 X 7 X 2)	13.75
122	13ESK	ROLLER CLUTCH ASSEMBLY *Cannot be ordered	21.45
123	13MPJ	HANDLE SHAFT (C)	9.90
124	13MD3	HANDLE SHAFT LOOSENING STOPPER WASHER	1.65
125	13MHW	HANDLE SHAFT (B)	9.35
126	13NLQ	ROLLER CLUTCH PLATE	20.35
127	104PP	BALL BEARING (7 X 11 X 3)	13.75
128	13Y0W	UNIT PLATE	55.00
129	13XZN	HANDLE ASSEMBLY	198.00
130	13MPH	HANDLE SHAFT SEAL	2.75
131	13XZM	HANDLE SHANK ASSEMBLY	104.50
132	10PXZ	HANDLE KNOB BUSHING	1.65
133	10R38	HANDLE KNOB	17.05
134	104FH	WASHER	2.20
135	104VX	BALL BEARING (4 X 7 X 2.5)	13.75
136	103E9	FIXING BOLT	1.10
137	10R3A	HANDLE CAP	3.85
142	13LND	STOPPER SPRING R *Cannot be ordered	1.65
171	13XZ8	SPOOL ASSEMBLY	137.50
172	13LAA	PINION GEAR	13.75
173	13M08	WORM SHAFT GEAR	9.35
174	13Y07	DRIVE GEAR	27.50
181	13XZK	LID ASSEMBLY WITH LEGS	108.35
211	13PE7	WASHER	1.10
212	13YJB	WASHER	1.10
AC02	13R2V	NO. STICKERS (ACCESSORY)	2.75
MH01	13Y0M	NAMEPLATE ON THE BACK OF THE FOOT	1.10
