[DAIWA] Genuine Spare Parts for 25 IPRIMI LT2000S-XH Product code: 00060112 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Return & Exchange Policy

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

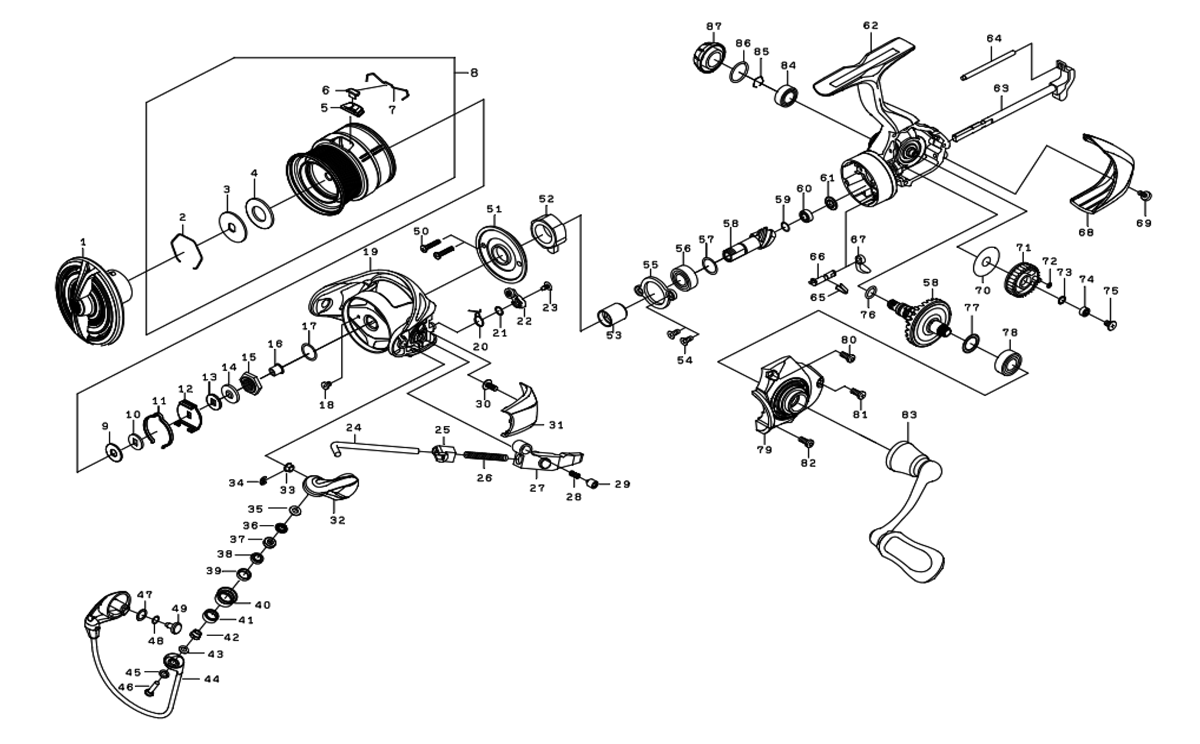

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	DRAG KNOB	6Q376801	12.10
2	DRAG RING	6Q346101	2.20
3	DRAG DISC W	6Q621901	2.20
4	DRAG W (1 piece)	6Q917501	6.60
5	LINE STOPPER PLATE	6Q376701	2.20
6	LINE STOPPER	6Q345501	2.20
7	LINE STOPPER SP	6Q345701	2.20
8	SPOOL (2-8)	6R084301	102.30
9	SPOOL W (A)	6E398003	1.10
10	SPOOL W (B)	6Q348502	1.10
11	CLICK LEAF SP	6Q797701	2.20
12	CLICK HOLDER	6Q798201	2.20
13	CLICK HOLDER W	6Q344001	1.10
14	ROTOR NUT PACKING	6H986901	3.30
15	ROTOR NUT	6Q748401	3.30
16	ROTOR NUT COLLAR	6Q858101	3.30
17	ROTOR NUT W	63727602	1.10
18	ROTOR NUT SC	6H022701	2.20
19	ROTOR	6Q825319	19.80
20	KICK LEVER SP	6Q825401	2.20
21	KICK LEVER W	6M194601	1.10
22	KICK LEVER	6Q825501	2.20
23	KICK LEVER SC	6Q957301	2.20
24	ARM LEVER SHAFT	6Q810901	2.20
25	ARM LEVER SHAFT COLLAR	6Q808501	3.30
26	ARM LEVER SP	6Q873901	2.20
27	ARM LEVER SP HOLDER	6Q826001	2.20
28	ARM LEVER HOLDER SP	6Q812001	2.20
29	ARM LEVER HOLDER PIN	6Q808701	2.20
30	ARM LEVER SP COVER SC	6Q812201	2.20
31	ARM LEVER SP COVER	6Q826402	3.30
32	ARM LEVER	6Q905206	11.00
33	ARM LEVER COLLAR	6Q809101	2.20
34	ARM LEVER RETAINER	6B339801	2.20
35	ROLLER W (A)	6F889105	1.10
36	ROLLER PACKING	6J736201	1.10
37	ROLLER COLLAR (A)	6Q896601	2.20
38	ROLLER BALL BEARING	6J256702	15.40
39	ROLLER COLLAR (B)	6Q896901	3.30
40	LINE ROLLER	6Q881101	8.80
41	ROLLER COLLAR (C)	6Q994201	2.20
42	ROLLER COLLAR (D)	6Q994101	2.20
43	ROLLER W (B)	63754101	1.10
44	BAIL	6R083901	35.20
45	ROLLER SC・W	63754105	1.10
46	ROLLER SC	6M475401	2.20
47	BAIL HOLDER SC・W (A)	6Q416203	1.10
48	BAIL HOLDER SC・W (B)	6F037404	1.10
49	BAIL HOLDER SC	6Q812301	2.20
50	SEALED CAP SC	6G837101	2.20
51	SEALED CAP	6Q139401	3.30
52	ONE-WAY CLUTCH *Cannot be ordered	6J388401	26.40
53	CLUTCH RING *Cannot be ordered	6J001403	6.60
54	PINION BEARING PLATE SC	6Q126201	2.20
55	PINION BEARING PLATE	6Q195601	2.20
56	PINION BALL BEARING (A)	6G467302	8.80
57	PINION BEARING (A) W	63758502	1.10
58	PINION + DRIVE GEAR SET	6Z700890	17.60
59	PINION BEARING (B) W	6H931701	1.10
60	PINION BALL BEARING (B)	6H959601	8.80
61	PINION BEARING (B) COLLAR	6J387701	3.30
62	BODY	6R083101	28.60
63	MAIN SHAFT	6Q866301	8.80
64	OSCILLATING POST	6Q126306	2.20
65	STOPPER CAM SP	6Q845901	2.20
66	STOPPER CAM	6Q852701	2.20
67	STOPPER LEVER	6Q852601	2.20
68	REAR CAP	6Q866902	5.50
69	REAR CAP SC	6Q342902	2.20
70	OSCILLATE GEAR W	6H607902	1.10
71	OSCILLATE GEAR *Cannot be ordered	6Q375201	6.60
72	OSCILLATE GEAR O-RING	6H770601	1.10
73	OSCILLATE GEAR BEARING W	6H129201	1.10
74	OSCILLATE GEAR BALL BEARING	6G469005	8.80
75	OSCILLATE GEAR SC	6Q126101	2.20
76	DRIVE GEAR O-RING	6G670501	1.10
77	DRIVE W	63758511	1.10
78	DRIVE BALL BEARING (A)	6G467302	8.80
79	BODY COVER	6R083301	22.00
80	BODY COVER SC (A)	6Q342602	2.20
81	BODY COVER SC (B)	6Q342701	2.20
82	BODY COVER SC (C)	6Q852402	2.20
83	HANDLE	6R085201	82.50
84	DRIVE BALL BEARING (B)	6G522706	8.80
85	DRIVE BEARING (B) RING	6G472401	2.20
86	HANDLE CAP O-RING	6G162401	2.20
87	HANDLE CAP	6Q345104	4.40
200	HANDLE KNOB W	6B411703	1.10
201	HANDLE KNOB BALL BEARING (A)	6G469005	8.80
202	HANDLE KNOB	6J850001	15.40
203	HANDLE KNOB BALL BEARING (B)	6G469005	8.80
204	HANDLE KNOB SC	6G752603	3.30
