[SHIMANO] Genuine Spare Parts for 14 BULL'S EYE 5050 Product Code: 032713 **Back-order (Shipping in 3-4 weeks after receiving order)
![Photo1: [SHIMANO] Genuine Spare Parts for 14 BULL'S EYE 5050 Product Code: 032713 **Back-order (Shipping in 3-4 weeks after receiving order) (1)](https://www.hedgehog-studio.co.jp/phone/data/hedgehog-studio/product/20251013_46bcd1.png)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.
- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.
*Please make sure to read about the conditions before you order.

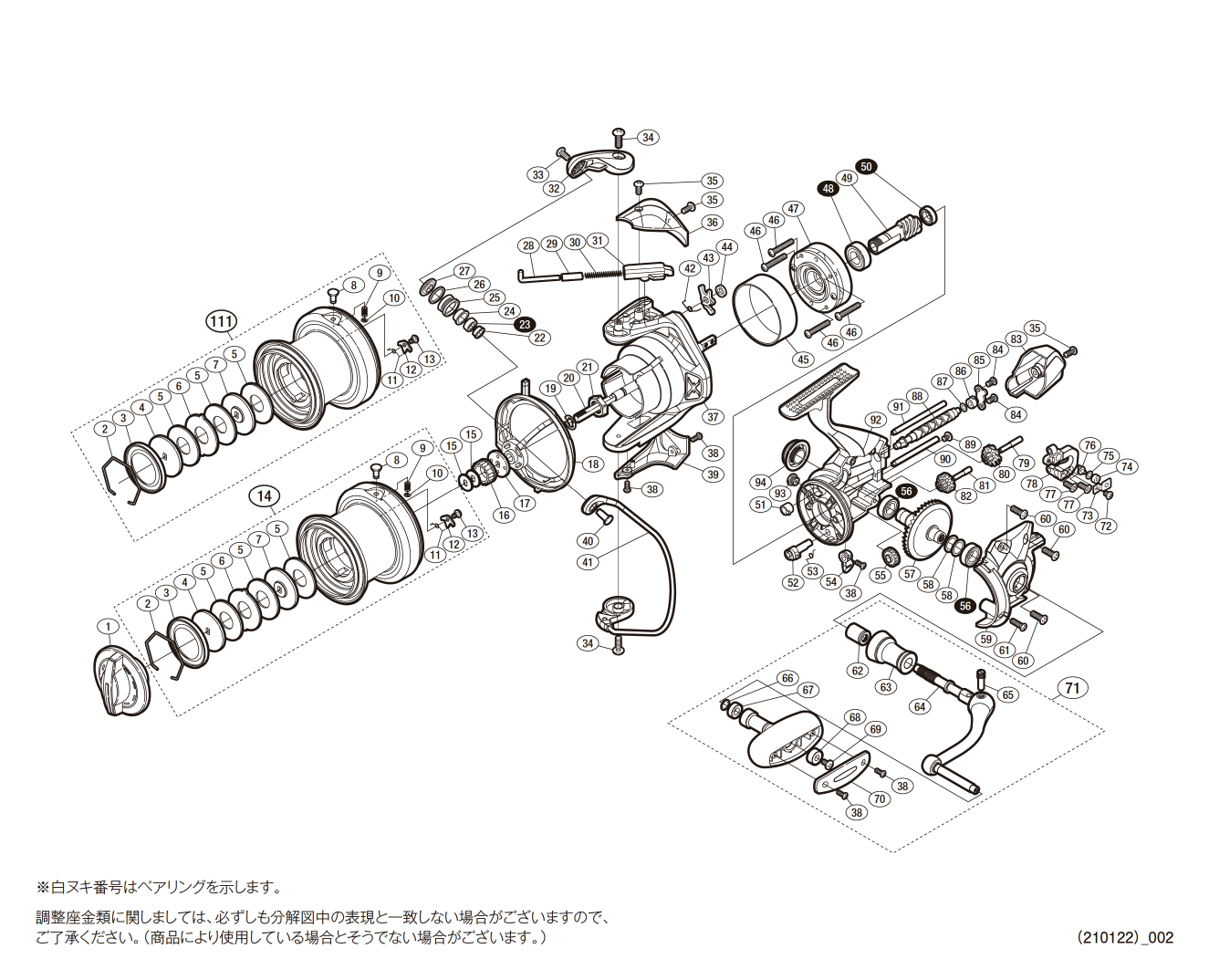

| Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Regarding adjustment washers, the actual parts used may not always match the expressions shown in the exploded view.
Thank you for your understanding. (Depending on the product, they may or may not be used.)
* Please note disassembly is at your own risk.
| No. | S Part No. | Description | Price (USD) |
| *F01 | 13QNC | REEL BAG | 6.05 |
| 0001 | 13BEE | DRAG KNOB ASSEMBLY | 11.55 |
| 0002 | 13K0Q | STOP SPRING | 1.65 |
| 0003 | 13K4G | WATERPROOF SEAL | 6.05 |
| 0004 | 10BC7 | OVAL WASHER | 3.85 |
| 0005 | 10346 | DRAG WASHER | 1.65 |
| 0006 | 102XY | EAR WASHER | 3.85 |
| 0007 | 10QBX | OVAL WASHER | 2.75 |
| 0008 | 10ATV | LINE STOP GUIDE | 2.75 |
| 0009 | 10LQ3 | LINE STOP SPRING | 1.10 |
| 0010 | 105NC | E RING 2 | 1.10 |
| 0011 | 10JM4 | CLICK SPRING | 1.10 |
| 0012 | 1038E | SPOOL PIN | 1.10 |
| 0013 | 10PH4 | FIXING SCREW | 1.65 |
| 0014 | 13CAL | SPOOL ASSEMBLY (5050: NO.5 LINE) | 50.60 |
| 0015 | 10BXK | SPOOL WASHER SET | 1.10 |
| 0016 | 10Q03 | SPOOL SEAT (A) | 1.65 |
| 0017 | 10GH4 | SPOOL SEAT (B) | 1.65 |
| 0018 | 13CWG | ANTI-LINE DROP COLLAR ASSEMBLY | 11.55 |
| 0019 | 105RY | E RING 5 | 1.10 |
| 0020 | 13LJY | MAIN SHAFT | 11.55 |
| 0021 | 1080W | ROTOR NUT | 1.65 |
| 0022 | 10GAD | ARM ROLLER BEARING COLLAR | 2.75 |
| 0023 | 104VQ | BALL BEARING (4×8×3) | 13.75 |
| 0024 | 10PFJ | ARM ROLLER BUSH | 1.65 |
| 0025 | 10KUD | LINE ROLLER | 6.05 |
| 0026 | 10KFF | ARM ROLLER SPACER | 1.65 |
| 0027 | 107WW | ARM ROLLER WASHER | 1.65 |
| 0028 | 105YV | ARM SPRING GUIDE (A) | 1.65 |
| 0029 | 10HDK | SPRING GUIDE (A) COLLAR | 1.65 |
| 0030 | 105LJ | ARM CAM SPRING | 1.65 |
| 0031 | 107A7 | ARM SPRING GUIDE (B) | 1.65 |
| 0032 | 13KFX | ARM CAM | 6.05 |
| 0033 | 10PMS | FIXING SCREW | 1.10 |
| 0034 | 103J1 | FIXING SCREW | 1.10 |
| 0035 | 103DC | FIXING SCREW | 1.10 |
| 0036 | 1087N | ARM CAM SPRING COVER | 6.05 |
| 0037 | 13KA4 | ROTOR | 28.05 |
| 0038 | 103NH | FIXING SCREW | 1.10 |
| 0039 | 10MK1 | MOUNT CAM COVER | 3.85 |
| 0040 | 10L1C | ARM FIX SHAFT | 2.75 |
| 0041 | 13CUB | BAIL ASSEMBLY | 45.10 |
| 0042 | 106PL | INNER LEVER SPRING | 1.10 |
| 0043 | 106KL | INNER LEVER | 1.65 |
| 0044 | 10763 | INNER LEVERWASHER | 1.10 |
| 0045 | 106HS | ROLLER CLUTCH RING | 2.75 |
| 0046 | 103LA | FIXING SCREW | 1.10 |
| 0047 | 10QNW | ROLLER CLUTCH ASSEMBLY | 11.55 |
| 0048 | 10BGD | BALL BEARING (9×17×5) | 13.75 |
| 0049 | 13L95 | PINION GEAR | 22.55 |
| 0050 | 104PP | BALL BEARING (7×11×3) | 13.75 |
| 0051 | 106M1 | WORM SHAFT BUSH (FRONT) | 1.65 |
| 0052 | 1053L | STOPPER CAM | 1.65 |
| 0053 | 105B2 | CLICK SPRING | 1.10 |
| 0054 | 10ANY | STOPPER LEVER | 2.75 |
| 0055 | 10HBF | WORM SHAFT GEAR | 6.05 |
| 0056 | 104PT | BALL BEARING (8×14×4) | 13.75 |
| 0057 | 13LD7 | DRIVE GEAR | 17.05 |
| 0058 | 10DKJ | WASHER | 2.20 |
| 0059 | 13M43 | COVER | 28.05 |
| 0060 | 10MBD | FIXING SCREW | 1.10 |
| 0061 | 10M2W | FIXING SCREW | 1.10 |
| 0062 | 10PQA | HANDLE COLLAR (B) | 3.85 |
| 0063 | 13MGA | HANDLE COLLAR | 11.55 |
| 0064 | 13M89 | HANDLE SHAFT | 9.35 |
| 0065 | 10A9T | HANDLE SHAFT SCREW | 3.85 |
| 0066 | 104FH | WASHER | 2.20 |
| 0067 | 104UJ | HANDLE GRIP BUSH (B) | 1.65 |
| 0068 | 10EU0 | HANDLE GRIP BUSH (A) | 1.65 |
| 0069 | 103E9 | FIXING SCREW | 1.10 |
| 0070 | 108X4 | HANDLE KNOB PLATE | 2.75 |
| 0071 | 13EKZ | HANDLE ASSEMBLY | 56.10 |
| 0072 | 103LG | FIXING SCREW | 1.10 |
| 0073 | 10H7L | CROSS GEAR PIN PLATE | 1.10 |
| 0074 | 10JXM | WORM SHAFT PIN COLLAR | 1.65 |
| 0075 | 10RKQ | WASHER | 2.20 |
| 0076 | 10JT6 | CROSS GEAR PIN | 6.05 |
| 0077 | 10ML8 | FIXING SCREW | 1.10 |
| 0078 | 10G61 | SLIDER | 2.75 |
| 0079 | 10CKJ | INTERMEDIATE GEAR (B) SHAFT | 1.65 |
| 0080 | 13MMU | INTERMEDIATE GEAR (B) | 3.85 |
| 0081 | 10H4D | INTERMEDIATE GEAR (C) SHAFT | 1.65 |
| 0082 | 10H4A | INTERMEDIATE GEAR (C) | 1.65 |
| 0083 | 13MUH | BODY GUARD | 6.05 |
| 0084 | 10LSN | FIXING SCREW | 1.10 |
| 0085 | 10AT4 | WORM SHAFT COVER | 1.65 |
| 0086 | 106M3 | WORM SHAFT BUSH (REAR) | 1.65 |
| 0087 | 1059T | WASHER | 1.10 |
| 0088 | 13M1R | WORM SHAFT | 9.35 |
| 0089 | 10MT3 | FIXING SCREW | 1.10 |
| 0090 | 10356 | SLIDER GUIDE (A) | 2.75 |
| 0091 | 104M6 | SLIDER GUIDE (B) | 2.75 |
| 0092 | 13D9K | BODY | 34.10 |
| 0093 | 104KN | OIL HOLE CAP | 3.85 |
| 0094 | 10N18 | HANDLE SCREW CAP | 11.55 |
| AC02 | 13R2W | SIZE SEAL | 2.75 |
| MH01 | 13NDY | FOOT PLATE | 2.75 |
