[SHIMANO] Genuine Spare Parts for 18-19 STELLA 3000MHG Product Code: 038074 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 18-19 STELLA 3000MHG Product Code: 038074 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.213 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/3916

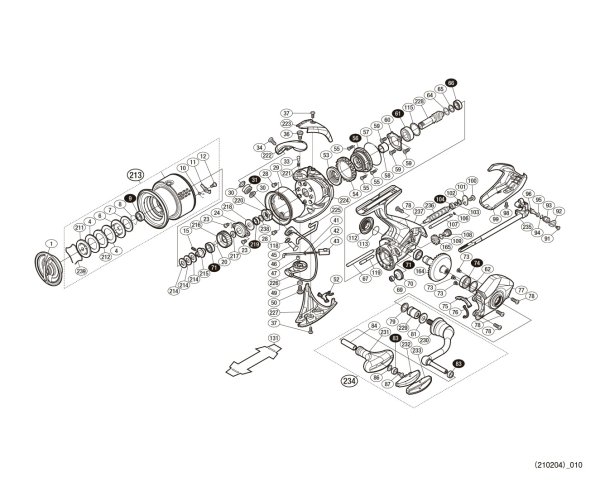

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "56 / ROLLER CLUTCH ASSEMBLY", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10S17 DRAG KNOB ASSEMBLY 101.20
4 102ZP DRAG WASHER (A) 1.65
6 10BBQ OVAL WASHER 2.75
7 10C1D DRAG WASHER 1.65
8 10GEW BEARING RETAINER 1.10
9 104JT BALL BEARING (6X10X3) 13.75
10 10BQE SPOOL PIN SPRING 1.65
11 10TJX SPOOL PIN 1.65
12 10A6F FIXING BOLT 1.65
15 10PN2 SET SCREW 1.65
20 107V2 RATCHET SPRING 1.65
23 103LB FIXING BOLT 1.10
24 1076P RETAINER 2.75
28 101C6 SET SCREW 1.10
29 10TK1 ROTOR FLANGE 9.35
30 1020L LINE ROLLER BEARING COLLAR 2.75
31 101BJ LINE ROLLER (WITH BEARING) 39.60
33 106UX CLICK PIN 1.65
34 10K40 FIXING BOLT 2.75
36 10DK8 FIXING BOLT 6.05
37 10CYU FIXING BOLT 2.75
41 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
42 10R2P ARM CAM SPRING 1.65
43 10R2E ARM CAM SPRING GUIDE (B) 2.75
45 10L02 ARM FIXING SHAFT 3.85
46 10DJN ARM SPRING GUIDE (A) 3.85
47 10DKC ARM SPRING GUIDE (A) COLLAR BUSHING 1.65
49 101D0 BAIL MOUNTING CAM COLLAR 1.65
50 10S9Q FIXING BOLT 6.05
52 10TJS BAIL MOUNTING CAM COVER 1.65
53 101D5 ROTOR COLLAR 9.35
54 10DK7 FRICTION RING 3.85
55 101D7 FIXING BOLT 1.65
56 10S2L ROLLER CLUTCH ASSEMBLY *Cannot be ordered 12.65
57 10DKD ROLLER CLUTCH GUIDE SEAL 1.65
58 10DJY ROLLER CLUTCH INNER 3.85
59 10ML6 FIXING BOLT 1.65
60 10DJZ BEARING THRUST WASHER 2.75
61 104VF BALL BEARING (7X14X5) 13.75
62 10RYR WASHER 1.10
64 10053 WASHER 1.65
65 10GD8 WASHER 1.10
66 104JQ BALL BEARING (6X10X3) 7.15
67 1006F SLIDER GUIDE (A) 3.85
69 10PC0 BALL BEARING (2X5X2.5) 13.75
70 10074 WORM SHAFT GEAR 9.35
71 104PP BALL BEARING (7X11X3) 13.75
73 1055G FIXING BOLT 1.65
74 104JD BALL BEARING (7X13X4) 13.75
75 10DJK INNER GEAR STOP 1.65
76 10DKA COVER FLANGE SEAL 2.75
77 10TDB COVER ASSEMBLY 56.10
78 10M2C FIXING BOLT 1.10
79 10PXU HANDLE SHAFT SEAL 2.75
81 10FJ6 HANDLE WASHER 1.65
83 104VX BALL BEARING (4X7X2.5) 13.75
84 1022F KNOB FIXING SHAFT PIPE 3.85
86 10G8G WASHER 1.10
87 103E9 FIXING BOLT 1.10
91 10MT4 FIXING BOLT 1.10
92 10HAH WORM SHAFT PIN RETAINING PLATE 1.65
93 1005H WORM SHAFT PIN COLLAR 2.75
94 108W9 O-RING (3X5) 1.65
95 1059U WASHER 1.10
96 106VM WORM SHAFT PIN 4.95
98 106ZG FIXING BOLT 1.65
99 10032 BODY GUARD 11.55
100 103EB FIXING BOLT 1.65
101 10ATB WORM SHAFT COVER 1.65
102 10TK0 WASHER 1.65
103 10HZ1 WASHER 1.10
104 10PDA BALL BEARING (3X6X2.5) 13.75
106 10JAB O-RING 1.65
107 1006Z SLIDER GUIDE (B) 3.85
108 10SM7 INTERMEDIATE GEAR (S) 8.25
109 10TJT WASHER 1.65
112 10DK4 HANDLE SCREW CAP 17.05
113 108WA O-RING 1.65
115 107JT FRONT FLANGE BEARING ADJUSTMENT WASHER 1.10
118 1002S ARM FIXING SHAFT WASHER 1.10
119 10TC8 INTERMEDIATE GEAR SHAFT 3.85
131 10PBS LEG PROTECTIVE SHEET 2.75
164 13LGB DRIVE GEAR 39.60
165 10071 INTERMEDIATE GEAR (L) 9.35
211 10TJV OVAL WASHER 9.35
212 102XW WING WASHER 1.65
213 13CG3 SPOOL ASSEMBLY 146.30
214 10BU8 SPOOL WASHER SET 1.10
215 10DKF MAIN SHAFT BEARING GUIDE 6.05
216 10SYS DRAG NOISE RELEASE RATCHET 2.75
217 103PE SPOOL SUPPORT 1.65
218 107L2 ROTOR BEARING SEAL 3.85
219 10TD2 ROTOR SUPPORT COLLAR ASSEMBLY (WITH BEARING) 17.05
220 101CY ROTOR NUT 9.35
221 10CGZ CLICK SPRING 1.65
222 101CX ARM CAM 7.15
223 10DK9 ARM CAM SPRING COVER 11.55
224 100N2 ROTOR ASSEMBLY 90.20
225 101D4 BAIL TRIP LEVER 2.75
226 100N1 BAIL ASSEMBLY 45.10
227 10DJX BAIL MOUNTING COVER 17.05
228 13LAE PINION GEAR 20.35
229 10TJW HANDLE SHAFT FLANGE (B) 9.35
230 1.3E+28 HANDLE SHAFT ASSEMBLY 78.65
231 10DJ2 HANDLE KNOB 28.05
232 101C5 HANDLE CAP 6.05
233 101C0 HANDLE KNOB NAMEPLATE 3.85
234 13ESC HANDLE ASSEMBLY 123.75
235 13DCG MAIN SHAFT ASSEMBLY 30.80
236 13M5Y WORM SHAFT 11.55
237 13DCH BODY ASSEMBLY 168.30
238 1026J WASHER 1.10
239 145QR RETAINING SPRING 1.10
*F01 13QQ9 REEL BAG 12.65
ITOS 13QPZ LINE STOPPER SEAL 1.65
LRKM 13D1P LINE ROLLER ASSEMBLY 19.25
MH01 13NJC FOOT BASE NAMEPLATE 2.75
