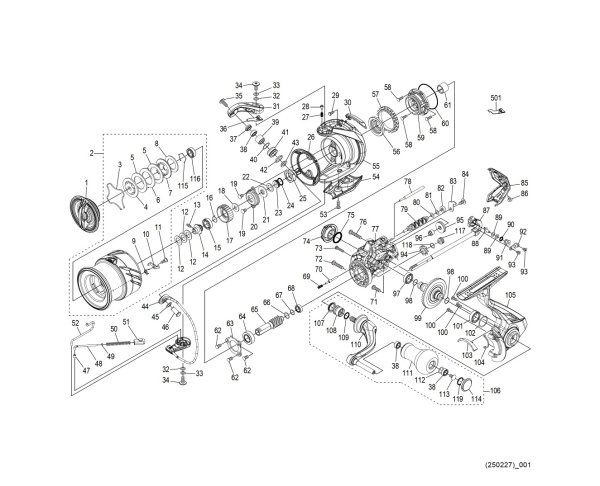

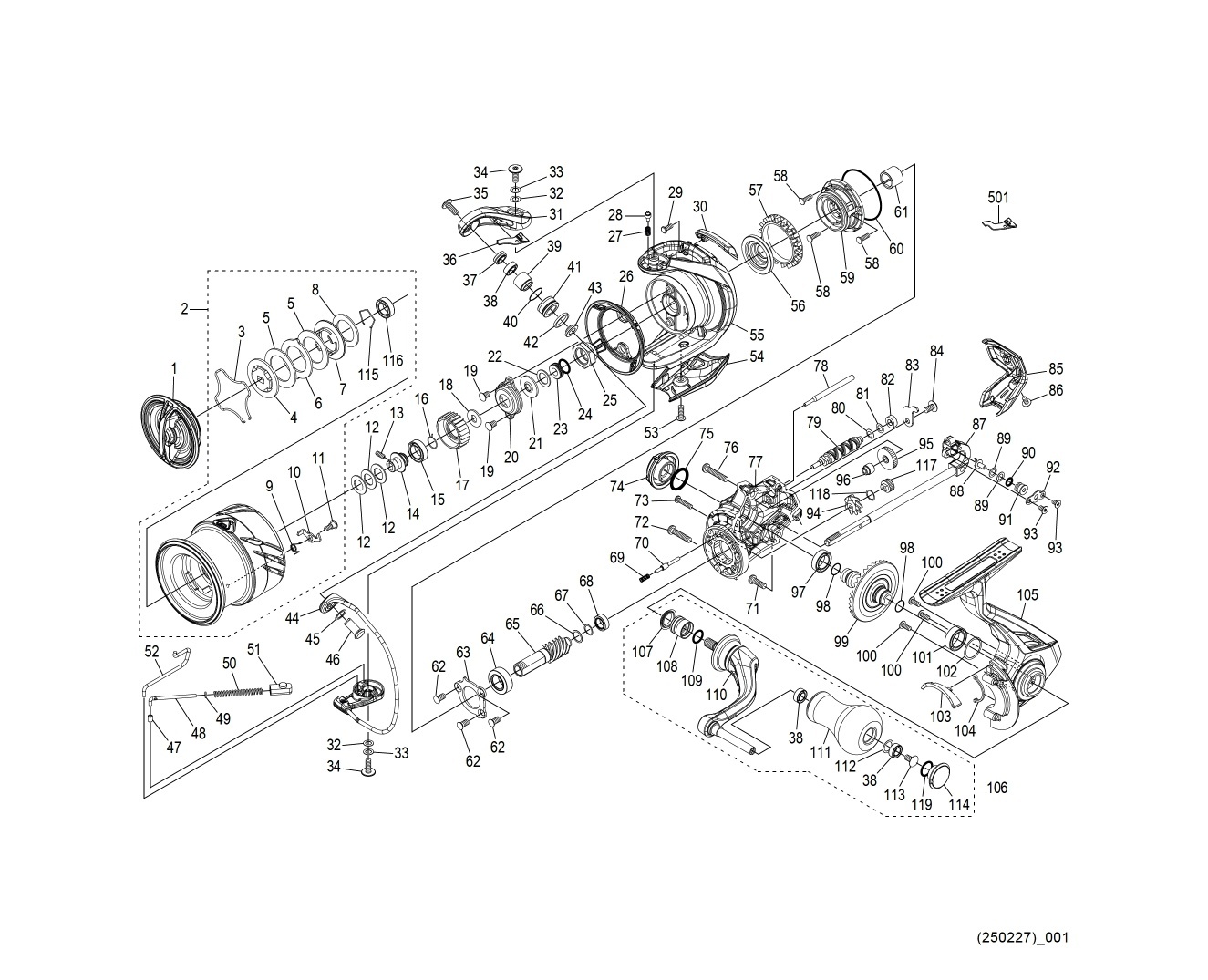

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 14A77 DRAG KNOB ASSEMBLY 83.60
2 14A78 SPOOL ASSEMBLY 92.40
3 10B8N ANTI-SLIP SPRING 1.65
4 10K3C OVAL WASHER 6.05
5 10R5H DRAG WASHER (A) 2.20
6 1427B EAR-TYPE WASHER 1.65
7 10B9D DRAG OVAL WASHER 2.75
8 10R4W DRAG WASHER (B) 2.20
9 10BQF SPOOL PIN SPRING 1.65
10 102H5 SPOOL PIN 1.65
11 10TRB FIXING BOLT 1.65
12 10BU9 SPOOL WASHER 1.10
13 10PN3 SET SCREW (M2 X 5) 1.65
14 10THY SPOOL SHAFT BEARING GUIDE 3.85
15 104PP BALL BEARING (7 X 11 X 3) 13.75
16 107V2 RATCHET SPRING 1.65
17 10SYS DRAG CLICK RATCHET 2.75
18 103PE SPOOL RECEIVER 1.65
19 103GW FIXING BOLT 1.65
20 1076N RETAINER 2.75
21 1017W ROTOR BEARING SEAL 1.65
22 100RU WASHER 1.65
23 10RDL MAIN SHAFT COLLAR 3.85
24 10DXE O-RING 1.65
25 1427D ROTOR NUT 6.05
26 1462D ROTOR FLANGE 9.35
27 10HE7 CLICK SPRING 1.65
28 106ZC CLICK PIN 1.65
29 10RNG FIXING BOLT 1.65
30 1462F BALANCER GUARD 2.75
31 14A7E ARM CAM 33.00
32 10KFA ADJUSTMENT WASHER 1.10
33 10K96 WASHER 1.65
34 10RFW FIXING BOLT 1.65
35 10TLJ FIXING BOLT 2.75
36 1427J ARM CAM FIN 1.10
37 10E44 LINE ROLLER COLLAR 2.75
38 104VX BALL BEARING (4X7X2.5) 13.75
39 1009K LINE ROLLER BUSHING 1.65
40 1009E O-RING 1.65
41 1009A LINE ROLLER 6.05
42 10RFZ LINE ROLLER SPACER 1.65
43 10TJM LINE ROLLER BEARING COLLAR 2.75
44 14BLS BAIL ASSEMBLY 215.60
45 1018Z WASHER 1.65
46 10TPC ARM FIXING SHAFT 6.05
47 1009B ARM SPRING GUIDE (A) COLLAR BUSHING 1.65
48 10SAN ARM SPRING GUIDE (A) 3.85
49 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
50 10DMC ARM CAM SPRING 1.65
51 107AB ARM CAM SPRING SHEET 2.75
52 14625 INNER LEVER 2.75
53 101CC FIXING BOLT 1.65
54 145EW BAIL MOUNTING COVER 8.25
55 14BLT ROTOR ASSEMBLY 171.60
56 101D5 ROTOR COLLAR 9.35
57 10QXQ FRICTION RING 2.75
58 100WT FIXING BOLT 1.65
59 10S2L ROLLER CLUTCH ASSEMBLY 12.65
60 1009Z O-RING 1.65
61 1009Y ROLLER CLUTCH INNER 3.85
62 100WY FIXING BOLT 1.65
63 10DWD BEARING PRESS PLATE 1.65
64 10DZB BALL BEARING (7X13X4) 7.15
65 1427N PINION GEAR 19.80
66 10HE5 WASHER 1.65
67 10SYU WASHER 1.65
68 104JZ BALL BEARING (5X8X2.5) 13.75
69 1427P INTERMEDIATE GEAR SPRING 1.10
70 1427Q INTERMEDIATE GEAR SHAFT 3.85
71 10LZG FIXING BOLT 1.10
72 10M31 FIXING BOLT 1.10
73 10TP1 FIXING BOLT 1.10
74 1427T HANDLE SCREW CAP 5.50
75 108WH O-RING 1.65
76 146AR FIXING BOLT 1.65
77 14A7G BODY 132.00
78 1427V SLIDER GUIDE 1.65
79 1427W WORM SHAFT 6.05
80 10ECK WASHER 1.10
81 10K98 WASHER 1.10
82 1009C WORM SHAFT BUSHING 1.65
83 1427X WORM SHAFT COVER 1.65
84 10QG5 FIXING BOLT 1.10
85 141HU BODY GUARD 11.55
86 10RX2 FIXING BOLT 1.65
87 141HD MAIN SHAFT ASSEMBLY 22.00
88 1018D WORM SHAFT PIN 6.05
89 1070D WASHER 1.10
90 100WX O-RING 1.65
91 1009L WORM SHAFT PIN COLLAR 1.65
92 10182 WORM SHAFT PIN PRESS PLATE 1.65
93 1055H FIXING BOLT 1.65
94 148P0 INTERMEDIATE GEAR (LARGE) 8.25
95 10DK0 WORM SHAFT GEAR 9.35
96 1427Y BUSHING 1.10
97 107FA BALL BEARING (7 X 11 X 3) 7.15
98 1009S O-RING 1.65
99 14281 DRIVE GEAR 20.35
100 100UL FIXING BOLT 1.65
101 10EX6 BALL BEARING (8 X 12 X 3.5) 7.15
102 1022D WASHER 2.75
103 14282 INNER GEAR 1.65
104 1009W COVER FLANGE SEAL 2.75
105 14BLU COVER ASSEMBLY 33.00
106 14A7A HANDLE ASSEMBLY 110.00
107 10PXV HANDLE SHAFT SEAL 2.75
108 14638 HANDLE SHAFT FLANGE (B) 6.05
109 108WQ O-RING 1.65
110 14BLV HANDLE SHANK ASSEMBLY 77.00
111 13M7S HANDLE KNOB 46.20
112 104FH WASHER 2.20
113 10LFA FIXING BOLT 1.10
114 10U1Q HANDLE CAP 8.80
115 10GEW BEARING RETAINER 1.10
116 104JT BALL BEARING (6X10X3) 13.75
117 147W5 INTERMEDIATE GEAR (SMALL) 8.25
118 10TBA WASHER 1.65
119 10LAA O-RING 1.10
501 14287 ARM CAM FIN 1.10
MH01 14A7K LEG BOTTOM NAMEPLATE 2.75
