[DAIWA] Genuine Spare Parts for 25 TIERRA IC 300L-C Product code: 00631567 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 25 TIERRA IC 300L-C Product code: 00631567 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

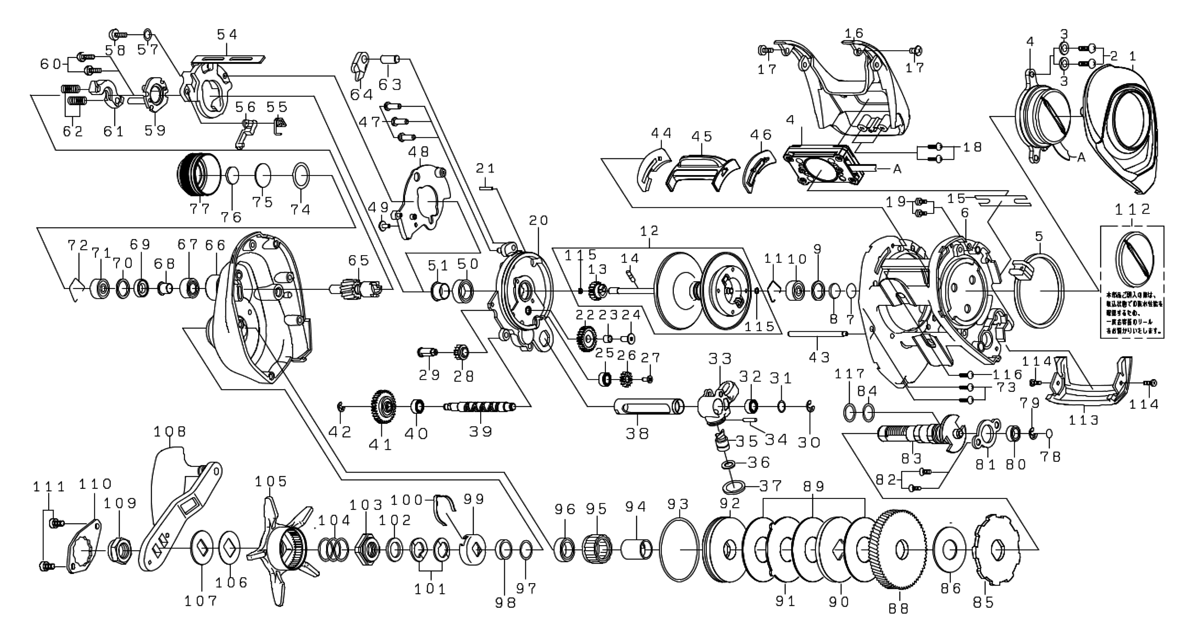

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 RS PLATE 6M371004 30.80
2 IC MODULE SC 6H666003 2.20
3 IC MODULE SC・W 6B536104 1.10
4 IC MODULE 6M627101 132.00
5 RS SENSOR PLATE 6M370801 19.80
7 RS BEARING W (A) 63757404 1.10
8 RS BEARING W (B) 63757411 1.10
9 RS BEARING W (C) 6G185101 1.10
10 RS BALL BEARING 6G511506 15.40
11 RS BEARING RING 6F032201 2.20
12 SPOOL (12-14・115) 6M614201 79.20
13 SPOOL GEAR 6M026001 2.20
14 SPOOL PIN 6J252301 2.20
15 IC MODULE HOLD SEAL 6J619501 2.20
16 IC MODULE COVER 6M602501 15.40
17 IC MODULE COVER SC (A) 6H531509 2.20
18 IC MODULE COVER SC (B) 6H005701 2.20
19 RS PLATE SC 6H005701 2.20
20 SET PLATE 6M370301 22.00
21 SET PLATE PIN 6M024101 2.20
22 SET PLATE GEAR (A) 6M023701 2.20
23 SET PLATE GEAR (A) COLOR 6M023601 2.20
24 SET PLATE GEAR (A) SC *Not available 6H472205 2.20
25 SET PLATE GEAR (B) BEARING 6G469009 15.40
26 SET PLATE GEAR (B) 6M023801 2.20
27 SET PLATE GEAR (B) SC 6H842806 2.20
28 SET PLATE GEAR (C) 6M023901 2.20
29 SET PLATE GEAR (C) SC 6M024001 2.20
30 WORM SHAFT RETAINER 63205901 2.20
31 WORM SHAFT BEARING W 6B411703 1.10
32 WORM SHAFT BALL BEARING 6G469009 15.40
33 LEVEL WIND 6M357001 29.70
34 LEVEL WIND PIN 6J740201 3.30
35 POLE 6J740101 3.30
36 POLE W 6G099801 1.10
37 POLE HOLDER O-RING 6G252202 1.10
38 WORM SHIELD 6M349101 13.20
39 WORM SHAFT 6M349201 12.10
40 WORM SHAFT BALL BEARING 6G469009 15.40
41 WORM SHAFT GEAR 6M023501 2.20
42 WORM SHAFT GEAR RETAINER 6B339801 2.20
43 OSCILLATING POST *Cannot be ordered 6M349501 2.20
44 CLUTCH LEVER PLATE (R) 6M348901 2.20
45 CLUTCH LEVER 6M614101 8.80
46 CLUTCH LEVER PLATE (L) 6M348801 2.20
47 SET PLATE SC 6B557613 2.20
48 CLUTCH CAM PLATE 6M090401 2.20
49 CLUTCH CAM PLATE SC 6H531508 2.20
50 CLUTCH CAM BALL BEARING 6G431008 15.40
51 CLUTCH CAM BEARING COLLAR 6M518401 7.70
54 CLUTCH CAM 6M370401 4.40
55 KICK LEVER SP 6J933601 2.20
56 KICK LEVER 6J990301 6.60
57 CLUTCH CAM W 6H159201 1.10
58 CLUTCH CAM SC 63522501 2.20
59 KICK LEVER PLATE 6M044101 3.30
60 KICK LEVER PLATE SC 6B032904 2.20
61 CLUTCH PLATE 6M106001 3.30
62 CLUTCH PLATE SP 6J142501 2.20
63 STOPPER PIN 6J946701 2.20
64 STOPPER 6H270401 8.80
65 PINION + DRIVE GEAR SET 6Z026912 82.50
67 PINION BALL BEARING (A) 6G467101 15.40
68 PINION BEARING COLLAR (A) *Cannot be ordered 6J953001 7.70
69 PINION BEARING COLLAR (B) 6M348501 7.70
70 PINION BEARING W 6G185101 1.10
71 PINION BALL BEARING (B) 6G511506 15.40
72 PINION BEARING RING 6F032201 2.20
73 LS PLATE SC (A) 6B557613 2.20
74 MECHANICAL BRAKE KNOB O-RING 6M150101 1.10
75 MECHANICAL BRAKE W (A) 6M412001 1.10
76 MECHANICAL BRAKE W (B) 6B175503 1.10
77 MECHANICAL BRAKE KNOB 6M348601 18.70
78 GEAR SHAFT W 6G099801 1.10
79 GEAR SHAFT RETAINER 63208002 2.20
80 GEAR SHAFT BALL BEARING 6G538007 15.40
81 GEAR SHAFT PLATE 6M040001 3.30
82 GEAR SHAFT PLATE SC 6E134514 2.20
83 GEAR SHAFT 6M462302 22.00
84 GEAR SHAFT O-RING (A) 6H156901 1.10
85 RATCHET 6M045501 3.30
86 DRIVE GEAR W 6M085901 2.20
88 PINION + DRIVE GEAR SET 6Z026912 82.50
89 DRAG W 6H470801 9.90
90 DRAG DISC W 6H470904 2.20
91 DRAG GRIP W 6M046101 3.30
92 DRIVE COLLAR 6M046302 17.60
93 DRIVE COLLAR O-RING 6H452801 1.10
94 CLUTCH RING 6J327701 8.80
95 ONE-WAY CLUTCH 6G819801 20.90
96 HANDLE BALL BEARING 6G431008 15.40
97 CLUTCH RING W 6B553805 1.10
98 DRAG HOLDER COLLAR 6J640603 2.20
99 DRAG HOLDER 6E709201 3.30
100 DRAG HOLDER LEAF SP 6E715601 2.20
101 DRAG SP・W 61508901 2.20
102 STAR DRAG W 6H929501 2.20
103 STAR DRAG NUT *Not available 6J935104 7.70
104 STAR DRAG SP 6J011901 2.20
105 STAR DRAG 6E721101 46.20
106 HANDLE W (A) 6J102801 1.10
107 HANDLE W (B) 6J101301 3.30
108 HANDLE 6M614601 145.20
109 HANDLE NUT 6J090312 4.40
110 HANDLE LOCK PLATE 6M096503 4.40
111 HANDLE LOCK PLATE SC 6J632309 2.20
112 BATTERY CAP (WITH O-RING) *Cannot be ordered 6Y658601 22.00
113 FRONT COVER 6M350004 9.90
114 FRONT COVER SC 6H531511 2.20
115 SPOOL SHAFT O-RING 6H770601 1.10
116 LS PLATE SC (B) 6B557614 2.20
117 GEAR SHAFT O-RING (B) 6F657801 1.10
200 MANUAL 6Y733601 2.20
201 MANUAL 6Y733701 2.20
202 MANUAL 6Y733801 2.20
203 HANDLE KNOB W 63753005 1.10
204 HANDLE KNOB COLOR 6F648301 4.40
205 HANDLE KNOB 6M047304 72.60
206 HANDLE KNOB SC 6E454003 2.20
207 HANDLE KNOB CAP 6M086201 9.90
208 HANDLE KNOB CAP SC 6G352301 2.20
