[SHIMANO] Genuine Spare Parts for 25 ENGETSU CT 150PG Product code: 048615 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 25 ENGETSU CT 150PG Product code: 048615 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

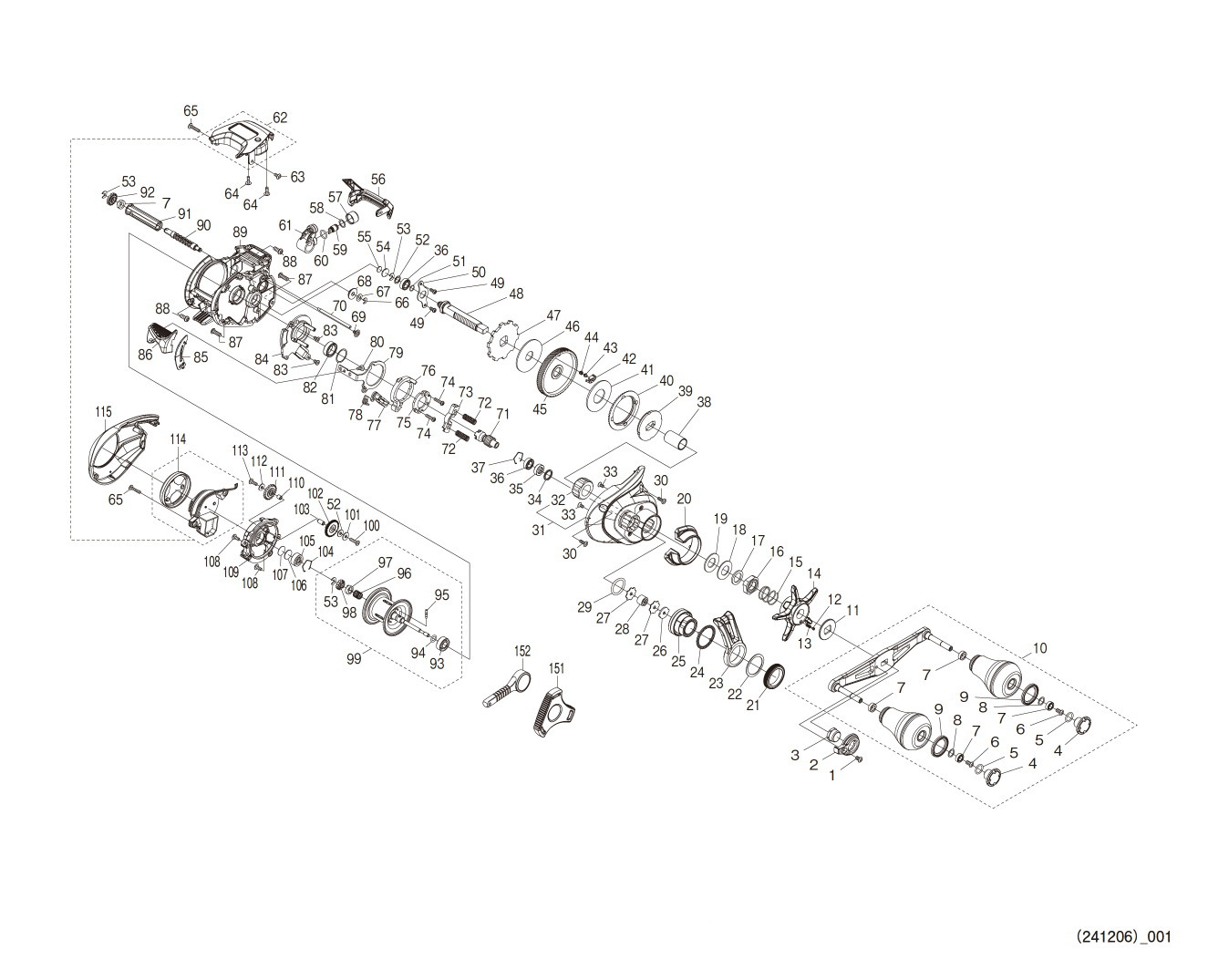

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "32 / ROLLER CLUTCH", "95 /SPOOL CLUTCH PIN" and "93 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10DV5 FIXING BOLT 1.10
2 10SSK RETAINER 3.85
3 10DVL HANDLE FIXING NUT 6.05
4 143BW HANDLE CAP 1.10
5 10LAA O-RING 1.10
6 10LFA FIXING BOLT 1.10
7 10PXZ HANDLE KNOB BUSHING 1.65
8 104FH WASHER 2.20
9 10S9X WASHER 1.65
10 149EM HANDLE ASSEMBLY 88.00
11 10J22 STAR DRAG CLICK PLATE 1.65
12 10MFC CLICK PIN 1.65
13 10BT2 CLICK SPRING 1.65
14 149EX STAR DRAG 6.60
15 10A70 STAR DRAG SPRING 2.75
16 10A3T STAR DRAG FIXING NUT 3.85
17 10J1N STAR DRAG SPACER 1.65
18 10EW3 SARA SPRING (DB8L) 1.65
19 109LA SARA SPRING (DB -8H) 1.65
20 1489Q BODY A NAMEPLATE 3.85
21 13UD5 LOCK RING 2.75
22 13B6Z WASHER 1.65
23 1489N FALL LEVER 4.95
24 13UD3 LOCK SPACER B 1.65
25 149EU MECHANICAL BRAKE KNOB 22.00
26 145AB MECHANICAL BRAKE WASHER 5.50
27 13UET MECHANICAL BRAKE WASHER 3.85
28 13SVY ROLLER CLUTCH 16.50
29 10R22 O-RING 1.65
30 10LCY FIXING BOLT 1.10
31 14AR1 BODY A ASSEMBLY 71.50
32 10F5D ROLLER CLUTCH BEARING A-RB *Cannot be ordered 17.05
33 10LA3 FIXED BOLT 1.65
34 148U3 SPACER 1.10
35 101V3 BEARING INTERLOCK 2.75
36 105BP BALL BEARING (5X9X3) 13.75
37 1057X EXTRACTION STOPPER 1.65
38 1489R ROLLER CLUTCH INNER TUBE 9.90
39 143C6 STAR DRAG PLATE 4.95
40 143C8 DRAG CLICK SYRATCHET 1.65
41 10CM0 STAR DRAG WASHER 6.05
42 143CC DRAG SPRING HOLDER 1.10
43 143C9 CLICK PIN 1.65
44 143CA CLICK SPRING 1.10
45 149EW DRIVE GEAR 28.60
46 1023U STAR DRAG WASHER 6.05
47 10D73 STOPPER GEAR 6.05
48 149EV DRIVE GEAR SHAFT 11.00
49 10E23 FIXED BOLT 1.10
50 109T1 DRIVE GEAR SHAFT FIXING PLATE 2.75
51 108WU O-RING 1.65
52 10G6D WASHER 1.65
53 105NK E-TYPE STOPPER RING 2.5 1.10
54 143CG METAL SPACER 1.10
55 14079 RUBBER SPACER 1.65
56 149EQ LEVEL WINDING GUARD 4.40
57 10FJW LEVEL WINDING RECEPTACLE 1.65
58 10CFU WASHER 1.10
59 10BHQ WORM SHAFT PIN 2.75
60 108WQ O-RING 1.65
61 13GED LEVEL WINDING ASSEMBLY 9.35
62 14AR2 COUNTER UNIT ASSEMBLY 176.00
63 10LCQ FIXED BOLT 1.10
64 10LCM FIXED BOLT 1.10
65 13JWV FIXED BOLT 1.65
66 105NC E-TYPE STOPPER RING 2 1.10
67 10FJZ WASHER 1.10
68 100G7 LEVEL WINDING GUARD BUSH 1.10
69 1022E FIXING BOLT 1.65
70 13B5P LEVEL WIND GUIDE 1.65
71 149ES PINION GEAR 14.30
72 100U9 CLUTCH YOKE SPRING 1.10
73 10S8M CLUTCH YOKE 1.10
74 10LV0 FIXING BOLT 1.10
75 100US CLUTCH CAM PUSH PLATE 3.85
76 100UK CLUTCH CAM 2.75
77 10MME CLUTCH CLAW 3.85
78 10R1H CLUTCH CLAW SPRING 1.65
79 143CJ CLUTCH PLATE 2.20
80 10LF4 FIXING BOLT 1.10
81 10190 WASHER 1.65
82 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
83 100S4 FIXING BOLT 1.10
84 10R56 BODY A SEAT 3.30
85 143CK CLUTCH LEVER RECEIVER (B) 1.10
86 13H6Q CLUTCH LEVER ASSEMBLY 5.50
87 10LFP FIXING BOLT 1.10
88 13JQQ FIXING BOLT 1.65
89 14AR3 FRAME ASSEMBLY 57.20
90 13S61 WORM SHAFT 11.55
91 13S6D LEVEL WINDING PIPE 1.10
92 13S5T WORM SHAFT GEAR 2.75
93 105CA BALL BEARING (5X11X4) *Cannot be ordered 13.75
94 10TM7 O RING 1.65
95 10MD0 SPOOL CLUTCH PIN *Cannot be ordered 1.65
96 13SVD SPOOL SHAFT SPRING 1.65
97 10MCY SPOOL SHAFT CAM 1.65
98 10JAH WORM SHAFT GEAR 3.85
99 149EJ SPOOL ASSEMBLY 66.00
100 13JXR FIXING BOLT 1.65
101 146B4 WASHER 1.10
102 13RTV WORM SHAFT GEAR 1.65
103 13SGH WORM SHAFT GEAR (B) RECEIVER B 2.75
104 1054D BEARING STOPPER 1.10
105 105C2 BALL BEARING (3X10X4) 13.75
106 13Z0G SPOOL SHAFT TALLY B 1.10
107 13PE6 WASHER 1.65
108 10LCF FIXED BOLT 1.10
109 13RUA BODY B RECEIVER 6.05
110 13RU2 WORM SHAFT GEAR (B) RECEIVER 1.65
111 13S5R WORM SHAFT GEAR 2.75
112 1019V WASHER 1.65
113 10LCP FIXED BOLT 1.65
114 143CM BATTERY COVER ASSEMBLY 7.70
115 149EN BODY B 19.80
151 143CQ BATTERY CAP WRENCH 2.75
152 10NC0 REEL WRENCH 1.65
